Canon SX40 vs Nikon D5100

The Canon PowerShot SX40 HS and the Nikon D5100 are two digital cameras that were revealed to the public, respectively, in September 2011 and April 2011. The SX40 is a fixed lens compact, while the D5100 is a DSLR. The cameras are based on a 1/2.3-inch (SX40) and an APS-C (D5100) sensor. The Canon has a resolution of 12 megapixels, whereas the Nikon provides 16.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX40		Nikon D5100
Fixed lens compact camera		Digital single lens reflex
24-840mm f/2.7-5.8		Nikon F mount lenses
12 MP – 1/2.3" sensor		16.1 MP – APS-C sensor
1080/24p Video		1080/30p Video
ISO 100-3,200		ISO 100-6,400 (100 - 25,600)
Electronic viewfinder (202k dots)		Optical viewfinder
2.7" LCD – 230k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Swivel screen (not touch-sensitive)
10.3 shutter flaps per second		4 shutter flaps per second
380 shots per battery charge		660 shots per battery charge
123 x 92 x 108 mm, 600 g		128 x 97 x 79 mm, 560 g

Check SX40 offers at
ebay.com
Check D5100 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX40 HS and the Nikon D5100? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

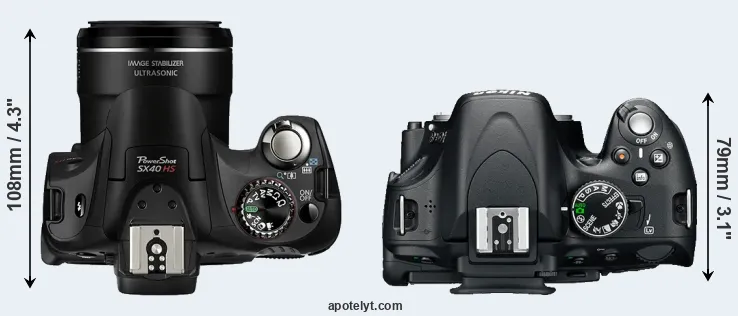

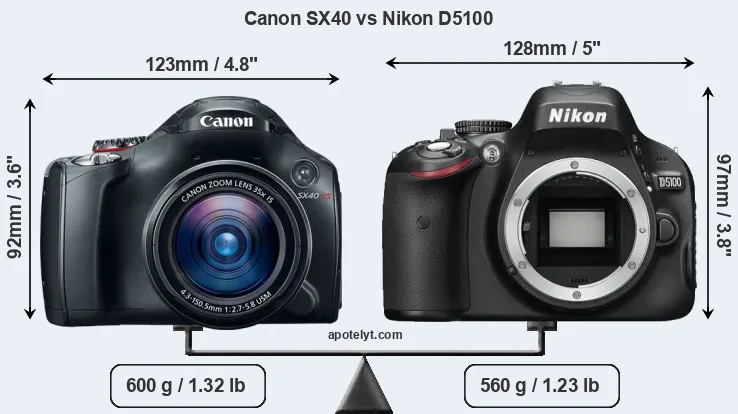

The side-by-side display below illustrates the physical size and weight of the Canon SX40 and the Nikon D5100. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D5100 is notably larger (10 percent) than the Canon SX40. In this context, it is worth noting that neither the SX40 nor the D5100 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX40 has a lens built in, whereas the D5100 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the D5100 and their specifications in the Nikon Lens Catalog.

Concerning battery life, the SX40 gets 380 shots out of its Canon NB-10L battery, while the D5100 can take 660 images on a single charge of its Nikon EN-EL14 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
2.		Nikon D5100	128 mm	97 mm	79 mm	560 g	660	n	Apr 2011	US$ 749	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
5.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
6.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
7.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
10.		Nikon D3100	124 mm	96 mm	75 mm	505 g	550	n	Aug 2010	US$ 599	ebay.com
11.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
12.		Nikon D5200	129 mm	98 mm	78 mm	555 g	500	n	Nov 2012	US$ 749	ebay.com
13.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
14.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
15.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
16.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
17.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX40 was launched at a lower price than the D5100, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX40 features a 1/2.3-inch sensor and the Nikon D5100 an APS-C sensor. The sensor area in the D5100 is 1225 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the SX40 has a native 4:3 aspect ratio, while the one in the D5100 offers a 3:2 aspect.

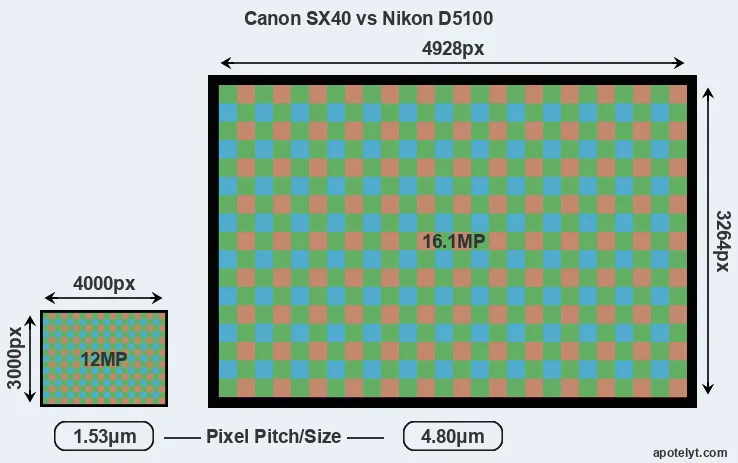

With 16.1MP, the D5100 offers a higher resolution than the SX40 (12MP), but the D5100 nevertheless has larger individual pixels (pixel pitch of 4.80μm versus 1.53μm for the SX40) due to its larger sensor. However, the SX40 is a somewhat more recent model (by 5 months) than the D5100, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX40 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D5100 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D5100 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Canon SX40 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Canon PowerShot SX40 HS has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Nikon D5100 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the SX40 is build around a BSI-CMOS sensor, while the D5100 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
2.		Nikon D5100	APS-C	16.1	4928	3264	1080/30p	23.5	13.6	1183	80
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
5.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
6.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
7.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
10.		Nikon D3100	APS-C	14.2	4608	3072	1080/24p	22.5	11.3	919	67
11.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
12.		Nikon D5200	APS-C	24.0	6000	4000	1080/60i	24.2	13.9	1284	84
13.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
14.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
15.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
16.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
17.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the D5100 provides a faster frame rate than the SX40. It can shoot movie footage at 1080/30p, while the Canon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the SX40 has an electronic viewfinder (202k dots), while the D5100 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The adjacent table lists some of the other core features of the Canon SX40 and Nikon D5100 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
2.		Nikon D5100	optical	n	3.0 / 921	swivel	n	1/4000s	4.0/s	Y	n
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
5.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
6.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
7.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
10.		Nikon D3100	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
11.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
12.		Nikon D5200	optical	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	n
13.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
14.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
16.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
17.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Nikon D5100 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX40 and the D5100 write their files to SDXC cards. The D5100 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX40 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX40 HS and Nikon D5100 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
2.		Nikon D5100	Y	mono / mono	Y	-	mini	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
6.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
7.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon D3100	Y	mono / mono	-	-	mini	2.0	-	-	-
11.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
12.		Nikon D5200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
17.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the D5100 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The SX40 does not feature such a mic input.

Both the SX40 and the D5100 have been discontinued, but can regularly be found used on ebay. The D5100 was replaced by the Nikon D5200, while the SX40 was followed by the Canon SX50. Further information on the features and operation of the SX40 and D5100 can be found, respectively, in the Canon SX40 Manual (free pdf) or the online Nikon D5100 Manual.

Review summary

So what is the bottom line? Is the Canon SX40 better than the Nikon D5100 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Canon PowerShot SX40 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Faster burst: Shoots at higher frequency (10.3 vs 4 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the D5100 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 5 months after the D5100).

Advantages of the Nikon D5100:

• More detail: Has more megapixels (16.1 vs 12MP), which boosts linear resolution by 18%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/30p versus 1080/24p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (921k vs 230k dots).
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (660 versus 380) out of a single battery charge.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in April 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the D5100 is the clear winner of the contest (18 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX40 and the Nikon D5100 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the SX40 or the D5100 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
2.		Nikon D5100	5/5	+ +	..	76/100	4.5/5	4.5/5	Apr 2011	US$ 749	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
5.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
6.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
7.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
10.		Nikon D3100	5/5	+ +	..	72/100	4.5/5	4.5/5	Aug 2010	US$ 599	ebay.com
11.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
12.		Nikon D5200	4/5	+ +	..	79/100	4.5/5	4.5/5	Nov 2012	US$ 749	ebay.com
13.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
14.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
15.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
16.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
17.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
