Canon SX430 vs SX500

The Canon PowerShot SX430 IS and the Canon PowerShot SX500 IS are two digital cameras that were officially introduced, respectively, in January 2017 and August 2012. Both the SX430 and the SX500 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The SX430 has a resolution of 19.9 megapixels, whereas the SX500 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX430		Canon SX500
Fixed lens compact camera		Fixed lens compact camera
24-1080mm f/3.5-6.6		24-720mm f/3.4-5.8
19.9 MP – 1/2.3" sensor		15.9 MP – 1/2.3" sensor
720/25p Video		720/30p Video
ISO 100-1,600		ISO 80-1,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 230k dots		3.0" LCD – 461k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
0.5 shutter flaps per second		0.8 shutter flaps per second
195 shots per battery charge		195 shots per battery charge
104 x 69 x 85 mm, 323 g		104 x 70 x 80 mm, 341 g

Check SX430 offers at
ebay.com
Check SX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX430 IS and the Canon PowerShot SX500 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

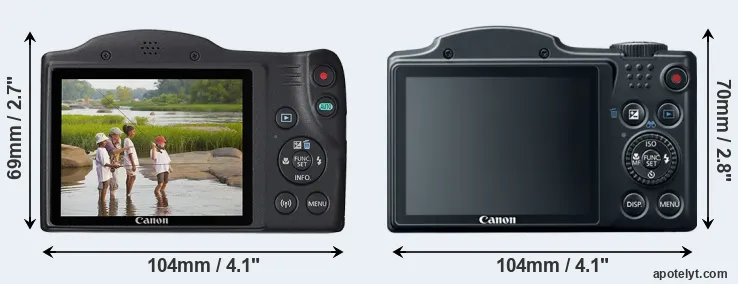

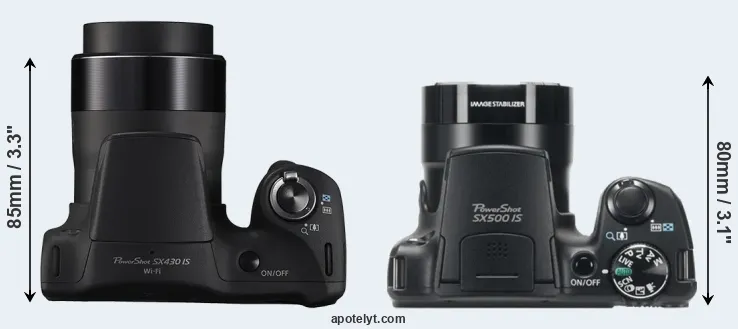

The side-by-side display below illustrates the physical size and weight of the Canon SX430 and the Canon SX500. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX500 is somewhat larger (1 percent) than the Canon SX430. Moreover, the SX500 is markedly heavier (6 percent) than the SX430. In this context, it is worth noting that neither the SX430 nor the SX500 are weather-sealed.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
2.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
3.		Canon 100D	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
5.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
6.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
7.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
9.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
10.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
11.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
12.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
13.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
14.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
15.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX430 was somewhat cheaper (by 9 percent) than the SX500 at launch, but both cameras fall into the same price category. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

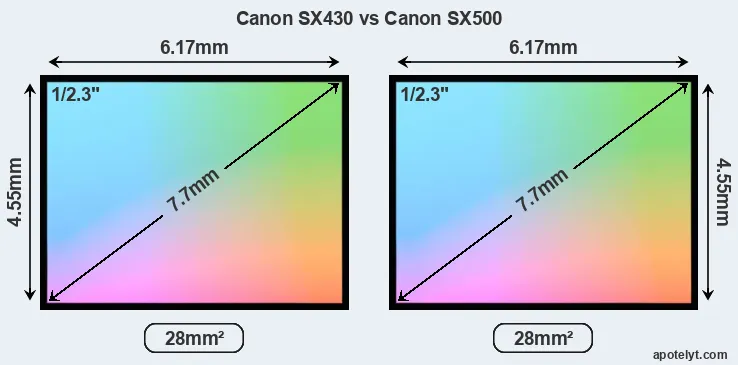

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the SX430 uses a more advanced image processing engine (DIGIC 4+) than the SX500 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

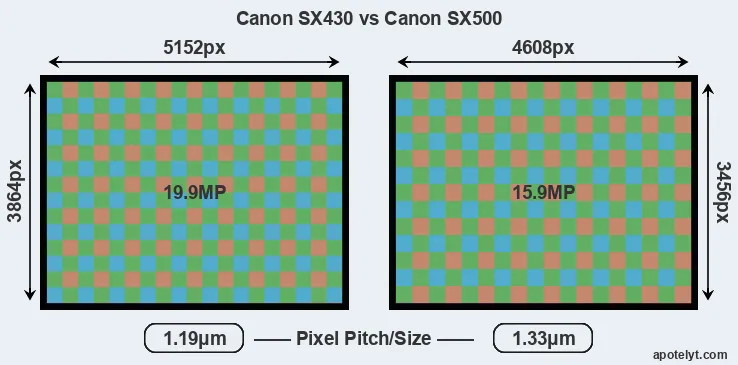

While the two cameras under review share the same sensor size, the SX430 offers a higher resolution of 19.9 megapixels, compared with 15.9 MP of the SX500. This megapixels advantage translates into a 12 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX430 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 1.33μm for the SX500). In this context, it should be noted, however, that the SX430 is much more recent (by 4 years and 4 months) than the SX500, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX430 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX430 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Canon SX500 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX430 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Canon PowerShot SX500 IS are ISO 80 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CCD (Charged Coupled Device) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
2.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
3.		Canon 100D	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
5.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
6.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
7.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
8.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
9.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
10.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
11.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
12.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
13.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
14.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
15.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the SX500 provides a faster frame rate than the SX430. It can shoot movie footage at 720/30p, while the SX430 is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The SX430 and the SX500 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Canon SX430 and Canon SX500 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
2.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
3.		Canon 100D	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
5.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
6.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
7.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
9.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
10.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
11.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
12.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
13.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
14.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
15.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX430 and the SX500 have zoom lenses built in. The SX430 has a 24-1080mm f/3.5-6.6 optic and the SX500 offers a 24-720mm f/3.4-5.8 (focal lengths in full frame equivalent terms). Hence, the SX430 and SX500 provide the same view at the wide-angle end, but the SX500 has less tele-photo reach at the long end. The SX500 offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX430 and the SX500 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX430 IS and Canon PowerShot SX500 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
2.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
3.		Canon 100D	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
6.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
9.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
14.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the SX430 offers wifi support, while the SX500 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX430 and the SX500 have been discontinued, but can regularly be found used on ebay. The SX500 was replaced by the Canon SX510, while the SX430 does not have a direct successor. Further information on the features and operation of the SX430 and SX500 can be found, respectively, in the Canon SX430 Manual (free pdf) or the online Canon SX500 Manual.

Review summary

So how do things add up? Is the Canon SX430 better than the Canon SX500 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon PowerShot SX430 IS:

• More detail: Offers more megapixels (19.9 vs 15.9MP) with a 12% higher linear resolution.
• Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC 4).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/1600s) to freeze action.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More modern: Reflects 4 years and 4 months of technical progress since the SX500 launch.

Reasons to prefer the Canon PowerShot SX500 IS:

• Better video: Provides higher movie framerates (720/30p versus 720/25p).
• More detailed LCD: Has a higher resolution rear screen (461k vs 230k dots).
• Faster burst: Shoots at higher frequency (0.8 vs 0.5 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/3.4 vs f/3.5).
• More heavily discounted: Has been around for much longer (launched in August 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the SX430 emerges as the winner of the contest (7 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX430 and the Canon SX500 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX430 or the SX500. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
2.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
3.		Canon 100D	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
5.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
6.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
7.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
8.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
9.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
10.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
11.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
12.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
13.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
14.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
15.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
