Canon SX430 vs T5

The Canon PowerShot SX430 IS and the Canon EOS Rebel T5 (labelled Canon 1200D in some countries) are two digital cameras that were revealed to the public, respectively, in January 2017 and February 2014. The SX430 is a fixed lens compact, while the T5 is a DSLR. The cameras are based on a 1/2.3-inch (SX430) and an APS-C (T5) sensor. The SX430 has a resolution of 19.9 megapixels, whereas the T5 provides 17.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX430		Canon T5
Fixed lens compact camera		Digital single lens reflex
24-1080mm f/3.5-6.6		Canon EF mount lenses
19.9 MP – 1/2.3" sensor		17.9 MP – APS-C sensor
720/25p Video		1080/30p Video
ISO 100-1,600		ISO 100-6,400 (100 - 12,800)
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 230k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
0.5 shutter flaps per second		3 shutter flaps per second
195 shots per battery charge		500 shots per battery charge
104 x 69 x 85 mm, 323 g		130 x 100 x 78 mm, 480 g

Check SX430 offers at
ebay.com
Check T5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX430 IS and the Canon EOS Rebel T5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

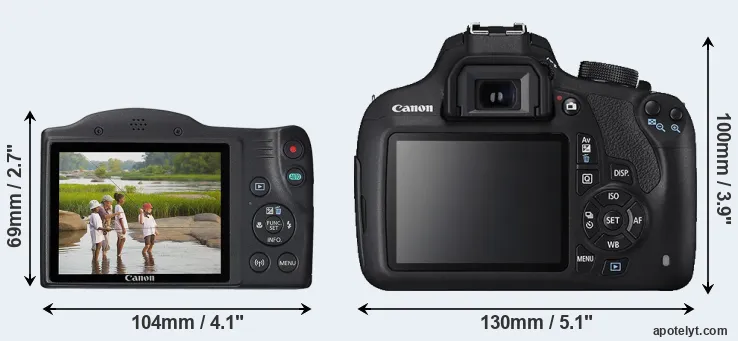

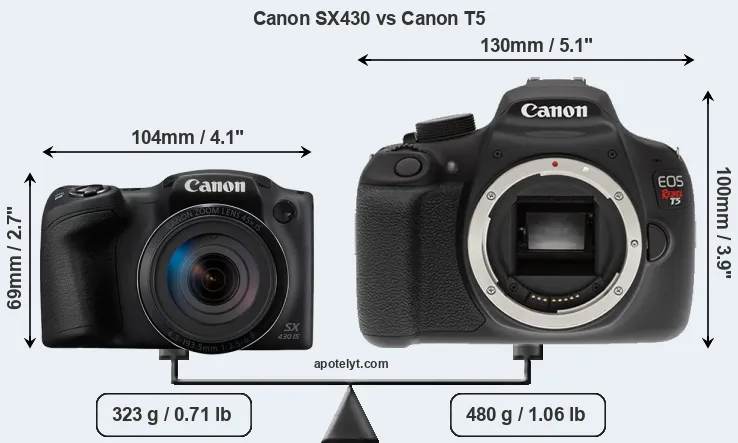

The physical size and weight of the Canon SX430 and the Canon T5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon T5 is considerably larger (81 percent) than the Canon SX430. In this context, it is worth noting that neither the SX430 nor the T5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX430 has a lens built in, whereas the T5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the T5 and their specifications in the Canon EF Lens Catalog.

Concerning battery life, the SX430 gets 195 shots out of its Canon NB-11LH battery, while the T5 can take 500 images on a single charge of its Canon LP-E10 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
2.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
3.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
5.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
6.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
7.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
8.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
9.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
10.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
11.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
12.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
13.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
14.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
15.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
16.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
17.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX430 was launched at a lower price than the T5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

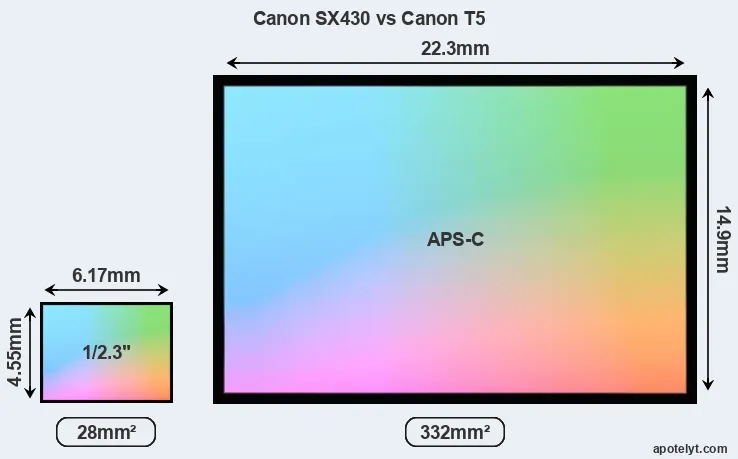

Of the two cameras under consideration, the Canon SX430 features a 1/2.3-inch sensor and the Canon T5 an APS-C sensor. The sensor area in the T5 is 1086 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.6. The sensor in the SX430 has a native 4:3 aspect ratio, while the one in the T5 offers a 3:2 aspect.

In terms of chip-set technology, the SX430 uses a more advanced image processing engine (DIGIC 4+) than the T5 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

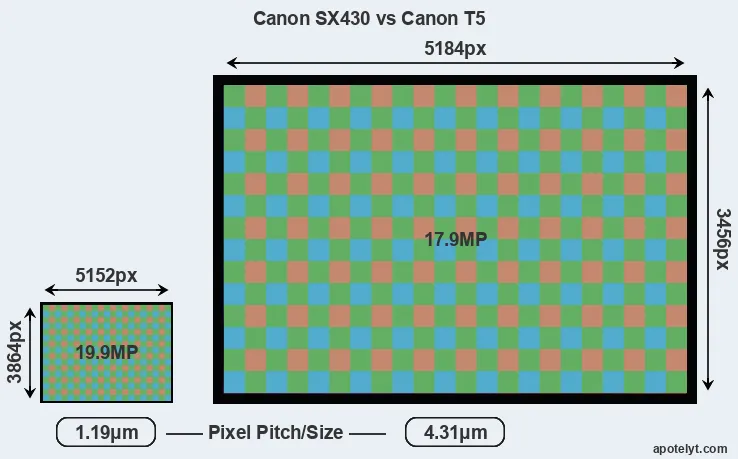

Despite having a smaller sensor, the Canon SX430 offers a higher resolution of 19.9 megapixels, compared with 17.9 MP of the Canon T5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 4.31μm for the T5). However, it should be noted that the SX430 is much more recent (by 2 years and 10 months) than the T5, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX430 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX430 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Canon EOS Rebel T5 are ISO 100 to ISO 6400, with the possibility to increase the ISO range to 100-12800.

In terms of underlying technology, the SX430 is build around a CCD sensor, while the T5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
2.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
3.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
6.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
7.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
8.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
9.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
10.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
11.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
12.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
13.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
14.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
15.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
16.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
17.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the T5 provides a better video resolution than the SX430. It can shoot movie footage at 1080/30p, while the SX430 is limited to 720/25p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the T5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the SX430 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX430, the Canon T5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
2.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
6.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
8.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
9.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
10.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
11.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
12.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
13.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
15.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
16.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
17.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the SX430 and the T5 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX430 IS and Canon EOS Rebel T5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
2.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
6.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
7.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
8.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
12.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
16.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
17.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the SX430 offers wifi support, while the T5 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX430 and the T5 have been discontinued, but can regularly be found used on ebay. The T5 was replaced by the Canon T6, while the SX430 does not have a direct successor. Further information on the features and operation of the SX430 and T5 can be found, respectively, in the Canon SX430 Manual (free pdf) or the online Canon T5 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon SX430 or the Canon T5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot SX430 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (DIGIC 4+ vs DIGIC 4).
• Ready to shoot: Comes with a built-in lens, while the T5 requires a separate lens.
• More compact: Is smaller (104x69mm vs 130x100mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the T5).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 2 years and 10 months of technical progress since the T5 launch.

Arguments in favor of the Canon EOS Rebel T5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (1080/30p vs 720/25p).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Faster burst: Shoots at higher frequency (3 vs 0.5 flaps/sec) to capture the decisive moment.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (500 versus 195) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in February 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the T5 emerges as the winner of the match-up (13 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX430 and the Canon T5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX430 or the T5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
2.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
3.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
5.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
6.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
7.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
8.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
9.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
10.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
11.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
12.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
13.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
14.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
15.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
16.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
17.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
