Canon SX430 vs Panasonic G3

The Canon PowerShot SX430 IS and the Panasonic Lumix DMC-G3 are two digital cameras that were announced, respectively, in January 2017 and May 2011. The SX430 is a fixed lens compact, while the G3 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX430) and a Four Thirds (G3) sensor. The Canon has a resolution of 19.9 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX430		Panasonic G3
Fixed lens compact camera		Mirrorless system camera
24-1080mm f/3.5-6.6		Micro Four Thirds lenses
19.9 MP – 1/2.3" sensor		15.8 MP – Four Thirds sensor
720/25p Video		1080/60i Video
ISO 100-1,600		ISO 160-6,400
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 230k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
0.5 shutter flaps per second		4 shutter flaps per second
195 shots per battery charge		270 shots per battery charge
104 x 69 x 85 mm, 323 g		115 x 84 x 47 mm, 336 g

Check SX430 offers at
ebay.com
Check G3 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX430 IS and the Panasonic Lumix DMC-G3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

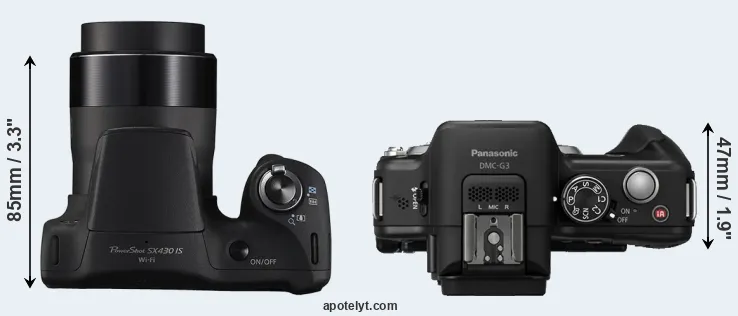

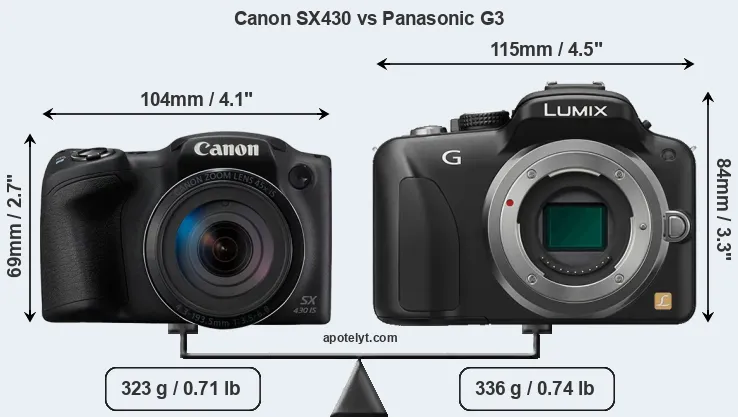

The side-by-side display below illustrates the physical size and weight of the Canon SX430 and the Panasonic G3. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The G3 can be obtained in four different colors (black, brown, red, white), while the SX430 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G3 is notably larger (35 percent) than the Canon SX430. In this context, it is worth noting that neither the SX430 nor the G3 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX430 has a lens built in, whereas the G3 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the G3 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX430 gets 195 shots out of its Canon NB-11LH battery, while the G3 can take 270 images on a single charge of its Panasonic DMW-BLD10 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
2.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
3.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
4.		Canon SX70	127 mm	91 mm	117 mm	608 g	325	n	Sep 2018	US$ 549	amazon.com
5.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
7.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
12.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
13.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
14.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
15.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
16.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
17.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX430 was launched at a lower price than the G3, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

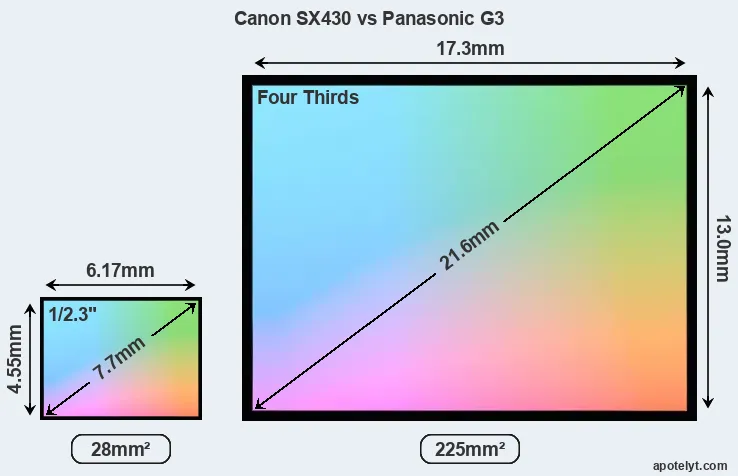

Of the two cameras under consideration, the Canon SX430 features a 1/2.3-inch sensor and the Panasonic G3 a Four Thirds sensor. The sensor area in the G3 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

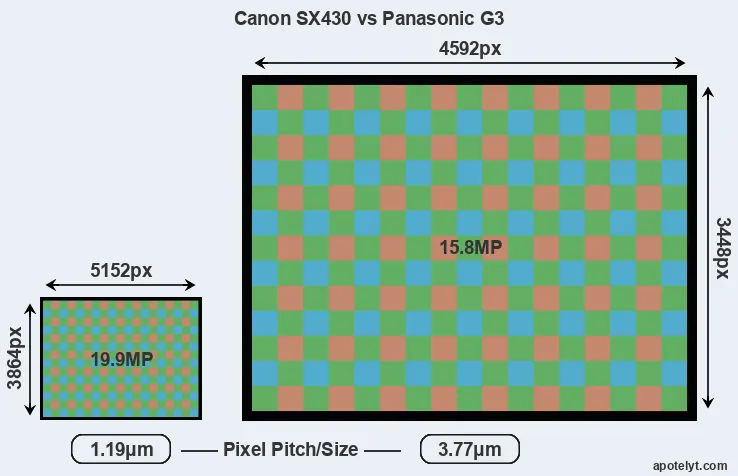

Despite having a smaller sensor, the Canon SX430 offers a higher resolution of 19.9 megapixels, compared with 15.8 MP of the Panasonic G3. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.19μm versus 3.77μm for the G3). However, it should be noted that the SX430 is much more recent (by 5 years and 7 months) than the G3, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the SX430 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon SX430 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX430 for good quality output (200 dots per inch) amounts to 25.8 x 19.3 inches or 65.4 x 49.1 cm, for very good quality (250 dpi) 20.6 x 15.5 inches or 52.3 x 39.3 cm, and for excellent quality (300 dpi) 17.2 x 12.9 inches or 43.6 x 32.7 cm. The corresponding values for the Panasonic G3 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The Canon PowerShot SX430 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-G3 are ISO 160 to ISO 6400 (no boost).

In terms of underlying technology, the SX430 is build around a CCD sensor, while the G3 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
2.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
3.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
4.		Canon SX70	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1063	51
5.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
10.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
11.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
12.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
13.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
14.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
15.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
16.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
17.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the G3 provides a better video resolution than the SX430. It can shoot movie footage at 1080/60i, while the Canon is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the G3 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX430 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Canon SX430 and Panasonic G3 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
2.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
3.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
4.		Canon SX70	2360	n	3.0 / 922	swivel	n	1/2000s	10.0/s	Y	Y
5.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
10.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
11.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
12.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
13.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
14.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
15.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
16.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
17.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G3 has a touchscreen, while the SX430 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

Concerning the storage of imaging data, both the SX430 and the G3 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX430 IS and Panasonic Lumix DMC-G3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
2.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon SX70	-	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
15.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the SX430 offers wifi support, while the G3 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the SX430 and the G3 have been discontinued, but can regularly be found used on ebay. The G3 was replaced by the Panasonic G5, while the SX430 does not have a direct successor. Further information on the features and operation of the SX430 and G3 can be found, respectively, in the Canon SX430 Manual (free pdf) or the online Panasonic G3 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Canon SX430 and the Panasonic G3? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot SX430 IS:

• More detail: Offers more megapixels (19.9 vs 15.8MP) with a 12% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has a lens built-in, whereas the G3 requires a separate lens.
• More compact: Is smaller (104x69mm vs 115x84mm) and thus needs less room in the bag.
• Less heavy: Is lighter even though it comes with a built-in lens (unlike the G3).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 5 years and 7 months of technical progress since the G3 launch.

Advantages of the Panasonic Lumix DMC-G3:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (1080/60i vs 720/25p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (4 vs 0.5 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (270 versus 195) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been around for much longer (launched in May 2011).

If the count of relative strengths (bullet points above) is taken as a measure, the G3 is the clear winner of the contest (16 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX430 and the Panasonic G3 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the SX430 or the G3. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
2.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
3.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
4.		Canon SX70	..	+ +	3.5/5	..	3.5/5	3.5/5	Sep 2018	US$ 549	amazon.com
5.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
7.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
12.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
13.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
14.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
15.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
16.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
17.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
