Canon SX510 vs Sony RX100 III

The Canon PowerShot SX510 HS and the Sony Cyber-shot DSC-RX100 III are two digital cameras that were announced, respectively, in August 2013 and May 2014. Both the SX510 and the RX100 III are fixed lens compact cameras that are based on a 1/2.3-inch (SX510) and an one-inch (RX100 III) sensor. The Canon has a resolution of 15.9 megapixels, whereas the Sony provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX510		Sony RX100 III
Fixed lens compact camera		Fixed lens compact camera
24-720mm f/3.4-5.8		24-70mm f/1.8-2.8
15.9 MP – 1/2.3" sensor		20 MP – 1" sensor
1080/24p Video		1080/60p Video
ISO 80-3,200		ISO 100-12,800 (80 - 25,600)
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 461k dots		3.0" LCD – 1229k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
3.8 shutter flaps per second		10 shutter flaps per second
250 shots per battery charge		320 shots per battery charge
104 x 70 x 80 mm, 349 g		102 x 58 x 41 mm, 290 g

Check SX510 offers at
ebay.com
Check RX100 III offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX510 HS and the Sony Cyber-shot DSC-RX100 III? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

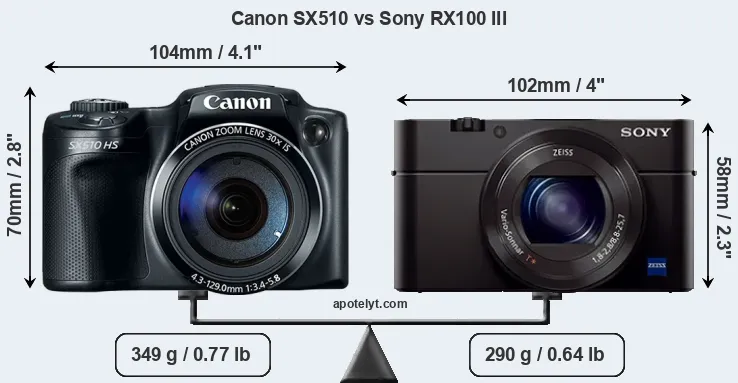

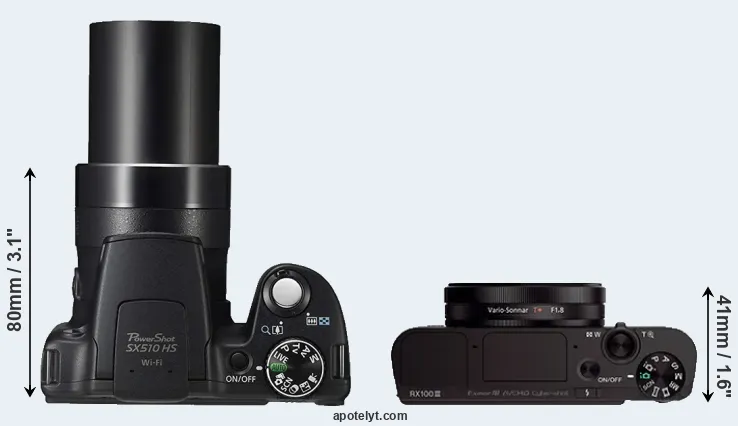

The physical size and weight of the Canon SX510 and the Sony RX100 III are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony RX100 III is notably smaller (19 percent) than the Canon SX510. Moreover, the RX100 III is markedly lighter (17 percent) than the SX510. In this context, it is worth noting that neither the SX510 nor the RX100 III are weather-sealed.

Concerning battery life, the SX510 gets 250 shots out of its Canon NB-6LH battery, while the RX100 III can take 320 images on a single charge of its Sony NP-BX1 power pack. The power pack in the RX100 III can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX510	104 mm	70 mm	80 mm	349 g	250	n	Aug 2013	US$ 249	ebay.com
2.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
3.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
5.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
6.		Canon M	109 mm	66 mm	32 mm	298 g	230	n	Jul 2012	US$ 599	ebay.com
7.		Canon SX400	104 mm	69 mm	80 mm	313 g	190	n	Jul 2014	US$ 249	ebay.com
8.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
9.		Canon SX500	104 mm	70 mm	80 mm	341 g	195	n	Aug 2012	US$ 329	ebay.com
10.		Canon SX520	120 mm	82 mm	92 mm	441 g	210	n	Jul 2014	US$ 399	ebay.com
11.		Canon SX600	104 mm	61 mm	26 mm	188 g	290	n	Jan 2014	US$ 249	ebay.com
12.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
13.		Leica X2	124 mm	69 mm	52 mm	345 g	450	n	May 2012	US$ 1 999	ebay.com
14.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
15.		Sony H200	123 mm	83 mm	87 mm	530 g	240	n	Jan 2013	US$ 249	ebay.com
16.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
17.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The SX510 was launched at a markedly lower price (by 69 percent) than the RX100 III, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon SX510 features a 1/2.3-inch sensor and the Sony RX100 III an one-inch sensor. The sensor area in the RX100 III is 314 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.7. The sensor in the SX510 has a native 4:3 aspect ratio, while the one in the RX100 III offers a 3:2 aspect.

With 20MP, the RX100 III offers a higher resolution than the SX510 (15.9MP), but the RX100 III nevertheless has larger individual pixels (pixel pitch of 2.41μm versus 1.33μm for the SX510) due to its larger sensor. Moreover, the RX100 III is a somewhat more recent model (by 8 months) than the SX510, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX510 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Sony RX100 III implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the RX100 III for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Canon SX510 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Canon PowerShot SX510 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Sony Cyber-shot DSC-RX100 III are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

In terms of underlying technology, the SX510 is build around a CMOS sensor, while the RX100 III uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX510	1/2.3	15.9	4608	3456	1080/24p	20.0	11.3	586	45
2.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
3.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
4.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
5.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
6.		Canon M	APS-C	17.9	5184	3456	1080/30p	22.1	11.2	827	65
7.		Canon SX400	1/2.3	15.9	4608	3456	720/30p	20.1	11.5	672	46
8.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
9.		Canon SX500	1/2.3	15.9	4608	3456	720/30p	19.8	11.1	494	43
10.		Canon SX520	1/2.3	15.9	4608	3456	1080/30p	20.1	11.5	672	46
11.		Canon SX600	1/2.3	15.9	4608	3456	1080/30p	20.0	11.4	620	45
12.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
13.		Leica X2	APS-C	16.1	4928	3264	none	23.2	12.4	1275	74
14.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
15.		Sony H200	1/2.3	15.2	5184	2930	720/30p	19.9	11.2	529	44
16.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
17.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the RX100 III provides a faster frame rate than the SX510. It can shoot movie footage at 1080/60p, while the Canon is limited to 1080/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the RX100 III has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX510 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon SX510, the Sony RX100 III, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX510	none	n	3.0 / 461	fixed	n	1/1600s	3.8/s	Y	Y
2.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
3.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
4.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
5.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
6.		Canon M	none	n	3.0 / 1040	fixed	Y	1/4000s	4.3/s	n	n
7.		Canon SX400	none	n	3.0 / 230	fixed	n	1/1600s	0.8/s	Y	Y
8.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
9.		Canon SX500	none	n	3.0 / 461	fixed	n	1/1600s	0.8/s	Y	Y
10.		Canon SX520	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
11.		Canon SX600	none	n	3.0 / 461	fixed	n	1/2000s	3.9/s	Y	Y
12.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
13.		Leica X2	optional	n	2.7 / 230	fixed	n	1/2000s	5.0/s	Y	n
14.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
15.		Sony H200	none	n	3.0 / 460	fixed	n	1/1500s	0.8/s	Y	Y
16.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Both the SX510 and the RX100 III have zoom lenses built in. The SX510 has a 24-720mm f/3.4-5.8 optic and the RX100 III offers a 24-70mm f/1.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon and Sony provide the same view at the wide-angle end, but the Sony has less tele-photo reach at the long end. The RX100 III offers the faster maximum aperture.

The SX510 writes its imaging data to SDXC cards, while the RX100 III uses SDXC or Memory Stick PRO Duo cards. The RX100 III supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the SX510 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX510 HS and Sony Cyber-shot DSC-RX100 III and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX510	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
3.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon M	Y	stereo / mono	Y	-	mini	2.0	-	-	-
7.		Canon SX400	-	stereo / mono	-	-	-	2.0	-	-	-
8.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
9.		Canon SX500	-	stereo / mono	-	-	-	2.0	-	-	-
10.		Canon SX520	-	stereo / mono	-	-	mini	2.0	-	-	-
11.		Canon SX600	-	mono / mono	-	-	micro	2.0	Y	Y	-
12.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Leica X2	Y	- / -	-	-	mini	2.0	-	-	-
14.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
15.		Sony H200	-	mono / mono	-	-	-	2.0	-	-	-
16.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-

Both the SX510 and the RX100 III have been discontinued, but can regularly be found used on ebay. The SX510 was replaced by the Canon SX520, while the RX100 III was followed by the Sony RX100 IV. Further information on the features and operation of the SX510 and RX100 III can be found, respectively, in the Canon SX510 Manual (free pdf) or the online Sony RX100 III Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon SX510 and the Sony RX100 III? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon PowerShot SX510 HS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More affordable: Was introduced into a lower priced category (69 percent cheaper at launch).
• More heavily discounted: Has been on the market for longer (launched in August 2013).

Arguments in favor of the Sony Cyber-shot DSC-RX100 III:

• More detail: Has more megapixels (20 vs 15.9MP), which boosts linear resolution by 14%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (1080/60p versus 1080/24p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1229k vs 461k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/1600s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 3.8 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/3.4).
• More compact: Is smaller (102x58mm vs 104x70mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 59g or 17 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (320 versus 250) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Was introduced somewhat (8 months) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the RX100 III is the clear winner of the contest (21 : 4 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX510 and the Sony RX100 III place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX510 and the RX100 III in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX510	..	+ +	..	..	4.5/5	4/5	Aug 2013	US$ 249	ebay.com
2.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
3.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
4.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
5.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
6.		Canon M	3/5	+	..	..	4/5	4/5	Jul 2012	US$ 599	ebay.com
7.		Canon SX400	..	+	..	..	..	..	Jul 2014	US$ 249	ebay.com
8.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
9.		Canon SX500	..	+ +	..	..	4/5	4/5	Aug 2012	US$ 329	ebay.com
10.		Canon SX520	..	+	..	..	3.5/5	3.5/5	Jul 2014	US$ 399	ebay.com
11.		Canon SX600	..	+	..	..	4/5	4/5	Jan 2014	US$ 249	ebay.com
12.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
13.		Leica X2	3/5	..	..	..	3/5	4/5	May 2012	US$ 1 999	ebay.com
14.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
15.		Sony H200	..	..	..	..	3.5/5	3.5/5	Jan 2013	US$ 249	ebay.com
16.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
17.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
