Canon SX540 vs Panasonic FZ80D

The Canon PowerShot SX540 HS and the Panasonic Lumix DC-FZ80D (labelled Panasonic FZ82D in some countries) are two digital cameras that were announced, respectively, in January 2016 and July 2024. Both the SX540 and the FZ80D are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Canon has a resolution of 20.2 megapixels, whereas the Panasonic provides 18 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX540		Panasonic FZ80D
Fixed lens compact camera		Fixed lens compact camera
24-1200mm f/3.4-6.5		20-1200mm f/2.8-5.9
20.2 MP – 1/2.3" sensor		18 MP – 1/2.3" sensor
1080/60p Video		4K/30p Video
ISO 80-3,200		ISO 80-3,200 (80 - 6,400)
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 461k dots		3.0" LCD – 1840k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
5.9 shutter flaps per second		10 shutter flaps per second
205 shots per battery charge		330 shots per battery charge
120 x 82 x 92 mm, 442 g		130 x 94 x 119 mm, 616 g

Check SX540 offers at
ebay.com
Check FZ80D price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX540 HS and the Panasonic Lumix DC-FZ80D? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

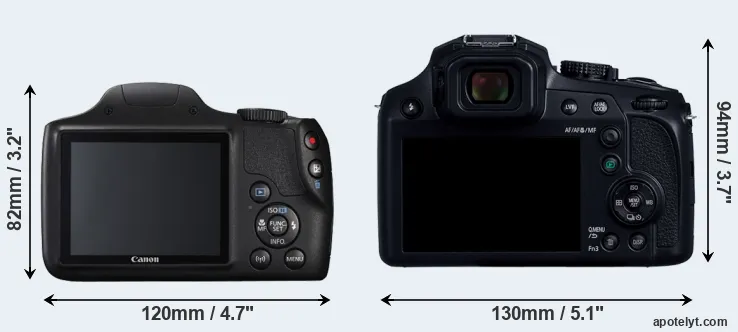

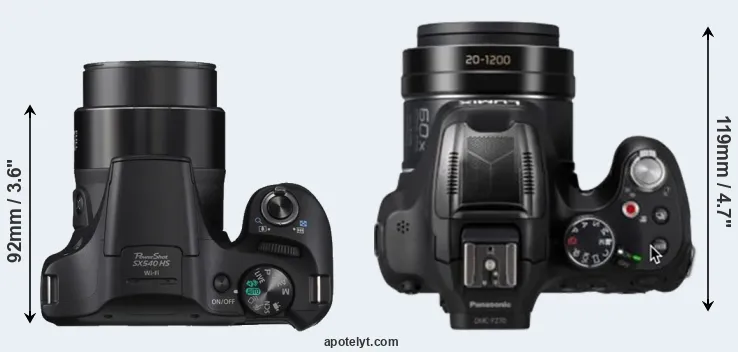

Body comparison

The side-by-side display below illustrates the physical size and weight of the Canon SX540 and the Panasonic FZ80D. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic FZ80D is notably larger (24 percent) than the Canon SX540. Moreover, the FZ80D is substantially heavier (39 percent) than the SX540. In this context, it is worth noting that neither the SX540 nor the FZ80D are weather-sealed.

Concerning battery life, the SX540 gets 205 shots out of its Canon NB-6LH battery, while the FZ80D can take 330 images on a single charge of its Panasonic DMW-BMB9 power pack. The power pack in the FZ80D can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX540	120 mm	82 mm	92 mm	442 g	205	n	Jan 2016	US$ 399	ebay.com
2.		Panasonic FZ80D	130 mm	94 mm	119 mm	616 g	330	n	Jul 2024	US$ 479	amazon.com
3.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
4.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
5.		Canon SX530	120 mm	82 mm	92 mm	442 g	210	n	Jan 2015	US$ 429	ebay.com
6.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
7.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
8.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
9.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
10.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
11.		Panasonic FZ80	130 mm	94 mm	119 mm	616 g	330	n	Jan 2017	US$ 399	ebay.com
12.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
13.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
14.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
15.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX540 was launched at a somewhat lower price (by 17 percent) than the FZ80D, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

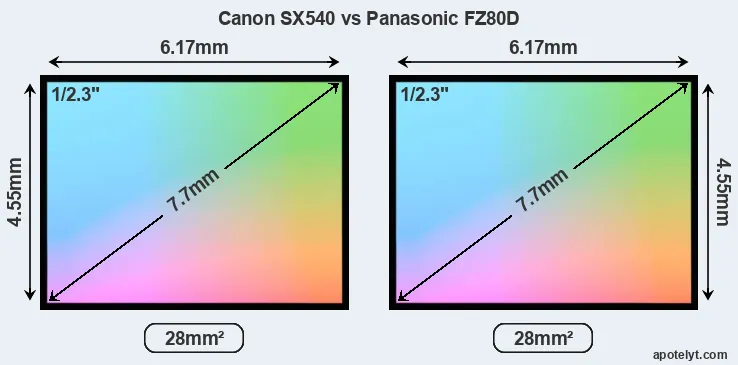

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

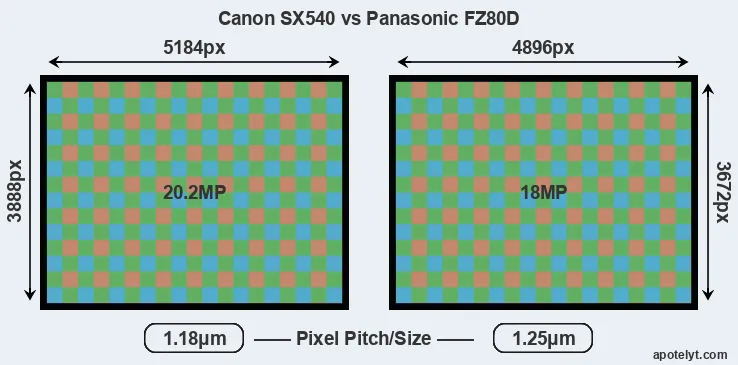

While the two cameras under review share the same sensor size, the SX540 offers a higher resolution of 20.2 megapixels, compared with 18 MP of the FZ80D. This megapixels advantage translates into a 6 percent gain in linear resolution. On the other hand, these sensor specs imply that the SX540 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 1.25μm for the FZ80D). Moreover, it should be noted that the FZ80D is much more recent (by 8 years and 5 months) than the SX540, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Canon SX540 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the SX540 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic FZ80D are 24.5 x 18.4 inches or 62.2 x 46.6 cm for good quality, 19.6 x 14.7 inches or 49.7 x 37.3 cm for very good quality, and 16.3 x 12.2 inches or 41.5 x 31.1 cm for excellent quality prints.

The Canon PowerShot SX540 HS has a native sensitivity range from ISO 80 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DC-FZ80D are ISO 80 to ISO 3200, with the possibility to increase the ISO range to 80-6400.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX540	1/2.3	20.2	5184	3888	1080/60p	20.3	11.7	806	48
2.		Panasonic FZ80D	1/2.3	18.0	4896	3672	4K/30p	20.9	12.8	1634	54
3.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
4.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
5.		Canon SX530	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	712	47
6.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
7.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
8.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
9.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
10.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
11.		Panasonic FZ80	1/2.3	18.0	4896	3672	4K/30p	20.5	11.9	900	49
12.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
13.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
14.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the FZ80D provides a better video resolution than the SX540. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the FZ80D has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the SX540 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Canon SX540 and Panasonic FZ80D along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX540	none	n	3.0 / 461	fixed	n	1/2000s	5.9/s	Y	Y
2.		Panasonic FZ80D	2360	n	3.0 / 1840	fixed	Y	1/2000s	10.0/s	Y	Y
3.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
4.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
5.		Canon SX530	none	n	3.0 / 461	fixed	n	1/2000s	1.6/s	Y	Y
6.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
7.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
8.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
9.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
10.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
11.		Panasonic FZ80	1166	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	Y	Y
12.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
13.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
14.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The FZ80D has a touchscreen, while the SX540 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the FZ80D is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

Both the SX540 and the FZ80D have zoom lenses built in. The SX540 has a 24-1200mm f/3.4-6.5 optic and the FZ80D offers a 20-1200mm f/2.8-5.9 (focal lengths in full frame equivalent terms). Hence, the Panasonic provides a wider angle of view at the short end than the Canon and the same tele-photo reach at the long end. The FZ80D offers the faster maximum aperture.

Concerning the storage of imaging data, both the SX540 and the FZ80D write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX540 HS and Panasonic Lumix DC-FZ80D and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX540	-	stereo / mono	-	-	mini	2.0	Y	Y	-
2.		Panasonic FZ80D	Y	stereo / mono	-	-	micro	3.0	-	-	-
3.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
4.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
5.		Canon SX530	-	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
10.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
11.		Panasonic FZ80	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the SX540 offers wifi support, while the FZ80D does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The FZ80D is a recent model that features in the current product line-up of Panasonic. In contrast, the SX540 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the SX540 from Canon. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

Review summary

So what is the bottom line? Which of the two cameras – the Canon SX540 or the Panasonic FZ80D – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon PowerShot SX540 HS:

• More detail: Offers more megapixels (20.2 vs 18MP) with a 6% higher linear resolution.
• More compact: Is smaller (120x82mm vs 130x94mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 174g or 28 percent) and hence easier to carry around.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2016).

Advantages of the Panasonic Lumix DC-FZ80D:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 461k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (10 vs 5.9 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.8 vs f/3.4).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Longer lasting: Gets more shots (330 versus 205) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• More modern: Reflects 8 years and 5 months of technical progress since the SX540 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the FZ80D is the clear winner of the contest (13 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX540 and the Panasonic FZ80D place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the SX540 and the FZ80D in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX540	..	..	..	..	..	..	Jan 2016	US$ 399	ebay.com
2.		Panasonic FZ80D	..	..	..	..	..	..	Jul 2024	US$ 479	amazon.com
3.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
4.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
5.		Canon SX530	..	+ +	..	..	4/5	4/5	Jan 2015	US$ 429	ebay.com
6.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
7.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
8.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
9.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
10.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
11.		Panasonic FZ80	..	+ +	..	..	4.5/5	4.5/5	Jan 2017	US$ 399	ebay.com
12.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
13.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
14.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
15.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
