Canon T5 vs Nikon Z30

The Canon EOS Rebel T5 (called Canon 1200D in some regions) and the Nikon Z30 are two digital cameras that were announced, respectively, in February 2014 and June 2022. The T5 is a DSLR, while the Z30 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Canon has a resolution of 17.9 megapixels, whereas the Nikon provides 20.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon T5		Nikon Z30
Digital single lens reflex		Mirrorless system camera
Canon EF mount lenses		Nikon Z mount lenses
17.9 MP – APS-C sensor		20.7 MP – APS-C sensor
1080/30p Video		4K/30p Video
ISO 100-6,400 (100 - 12,800)		ISO 100-51,200 (100 - 204,800)
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 460k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
3 shutter flaps per second		11 shutter flaps per second
not weather sealed		Weathersealed body
500 shots per battery charge		330 shots per battery charge
130 x 100 x 78 mm, 480 g		128 x 74 x 60 mm, 405 g

Check T5 offers at
ebay.com
Check Z30 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS Rebel T5 and the Nikon Z30? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

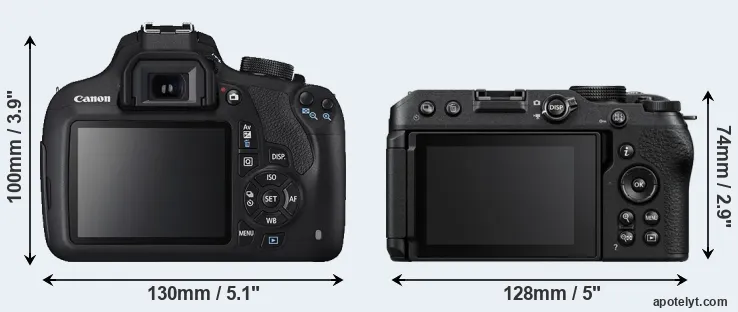

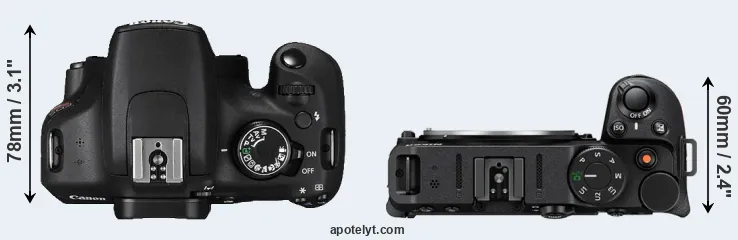

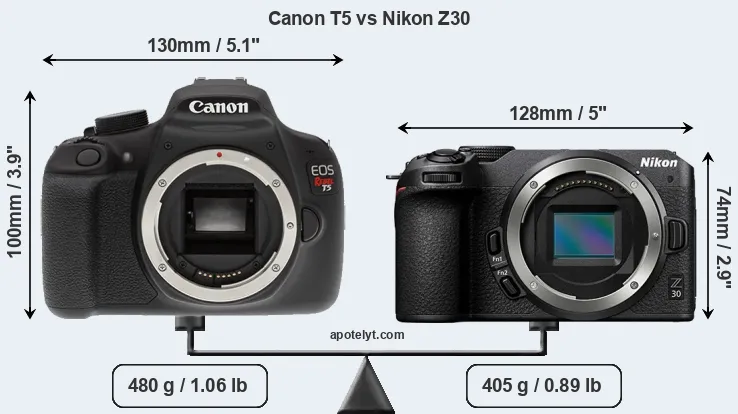

The side-by-side display below illustrates the physical size and weight of the Canon T5 and the Nikon Z30. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon Z30 is notably smaller (27 percent) than the Canon T5. Moreover, the Z30 is markedly lighter (16 percent) than the T5. It is noteworthy in this context that the Z30 is splash and dust-proof, while the T5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the T5 gets 500 shots out of its Canon LP-E10 battery, while the Z30 can take 330 images on a single charge of its Nikon EN-EL25 power pack. The power pack in the Z30 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon T5	130 mm	100 mm	78 mm	480 g	500	n	Feb 2014	US$ 449	ebay.com
2.		Nikon Z30	128 mm	74 mm	60 mm	405 g	330	Y	Jun 2022	US$ 709	amazon.com
3.		Canon SL1	117 mm	91 mm	69 mm	407 g	380	n	Mar 2013	US$ 549	ebay.com
4.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
5.		Canon T3	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	US$ 449	ebay.com
6.		Canon T3i	133 mm	100 mm	80 mm	570 g	440	n	Feb 2011	US$ 599	ebay.com
7.		Canon T4i	133 mm	100 mm	79 mm	575 g	440	n	Jun 2012	US$ 849	ebay.com
8.		Canon T5i	133 mm	100 mm	79 mm	580 g	440	n	Mar 2013	US$ 649	ebay.com
9.		Canon T6	129 mm	101 mm	78 mm	485 g	500	n	Mar 2016	US$ 449	ebay.com
10.		Canon T6i	132 mm	101 mm	78 mm	555 g	440	n	Feb 2015	US$ 749	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
12.		Canon T100	129 mm	102 mm	77 mm	436 g	500	n	Feb 2018	US$ 399	amazon.com
13.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
14.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
15.		Nikon Z50	127 mm	94 mm	60 mm	450 g	320	Y	Oct 2019	US$ 859	amazon.com
16.		Nikon Z fc	135 mm	94 mm	44 mm	445 g	300	n	Jun 2021	US$ 959	amazon.com
17.		Sony ZV-E10	115 mm	64 mm	45 mm	343 g	440	n	Jul 2021	US$ 699	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The T5 was launched at a markedly lower price (by 37 percent) than the Z30, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the Z30 is 11 percent bigger. As a result of these sensor size differences, the cameras have format factors, respectively, of 1.6 (T5) and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

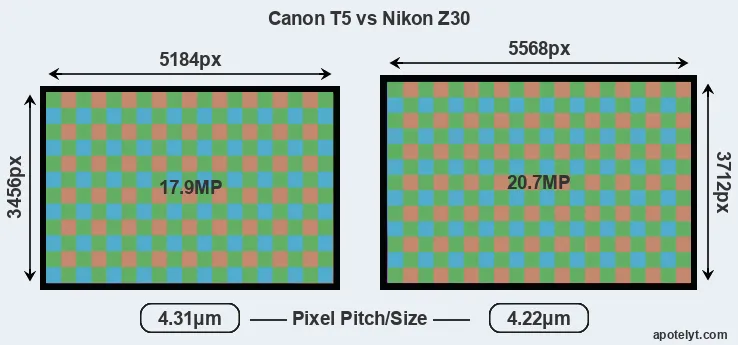

With 20.7MP, the Z30 offers a higher resolution than the T5 (17.9MP), but the Z30 has marginally smaller individual pixels (pixel pitch of 4.22μm versus 4.31μm for the T5). Yet, the Z30 is a much more recent model (by 8 years and 4 months) than the T5, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the Z30 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon Z30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the Z30 for good quality output (200 dots per inch) amounts to 27.8 x 18.6 inches or 70.7 x 47.1 cm, for very good quality (250 dpi) 22.3 x 14.8 inches or 56.6 x 37.7 cm, and for excellent quality (300 dpi) 18.6 x 12.4 inches or 47.1 x 31.4 cm. The corresponding values for the Canon T5 are 25.9 x 17.3 inches or 65.8 x 43.9 cm for good quality, 20.7 x 13.8 inches or 52.7 x 35.1 cm for very good quality, and 17.3 x 11.5 inches or 43.9 x 29.3 cm for excellent quality prints.

The Z30 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS Rebel T5 has a native sensitivity range from ISO 100 to ISO 6400, which can be extended to ISO 100-12800. The corresponding ISO settings for the Nikon Z30 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 100-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon T5	APS-C	17.9	5184	3456	1080/30p	21.9	11.3	724	63
2.		Nikon Z30	APS-C	20.7	5568	3712	4K/30p	24.3	13.9	2230	86
3.		Canon SL1	APS-C	17.9	5184	3456	1080/30p	21.8	11.3	843	63
4.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
5.		Canon T3	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
6.		Canon T3i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	793	65
7.		Canon T4i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	722	62
8.		Canon T5i	APS-C	17.9	5184	3456	1080/30p	21.7	11.2	681	61
9.		Canon T6	APS-C	17.9	5184	3456	1080/30p	22.0	11.7	781	66
10.		Canon T6i	APS-C	24.0	6000	4000	1080/30p	22.7	12.0	919	71
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Canon T100	APS-C	17.9	5184	3456	1080/30p	21.9	11.4	695	63
13.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
14.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
15.		Nikon Z50	APS-C	20.7	5568	3712	4K/30p	24.1	13.6	1963	84
16.		Nikon Z fc	APS-C	20.7	5568	3712	4K/30p	24.2	13.8	2131	85
17.		Sony ZV-E10	APS-C	24.0	6000	4000	4K/30p	24.2	13.8	2134	85
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Z30 provides a better video resolution than the T5. It can shoot movie footage at 4K/30p, while the Canon is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the T5 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the Z30 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon T5, the Nikon Z30, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon T5	optical	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
2.		Nikon Z30	none	n	3.0 / 1040	swivel	Y	1/4000s	11.0/s	Y	n
3.		Canon SL1	optical	n	3.0 / 1040	fixed	Y	1/4000s	4.9/s	Y	n
4.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
5.		Canon T3	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Canon T3i	optical	n	3.0 / 1040	swivel	n	1/4000s	3.7/s	Y	n
7.		Canon T4i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
8.		Canon T5i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon T6	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	Y	n
10.		Canon T6i	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T100	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
14.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
15.		Nikon Z50	2360	n	3.2 / 1040	tilting	Y	1/4000s	11.0/s	Y	n
16.		Nikon Z fc	2360	Y	3.0 / 1040	swivel	Y	1/4000s	11.0/s	n	n
17.		Sony ZV-E10	none	n	3.0 / 922	swivel	Y	1/4000s	11.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Z30 has a touchscreen, while the T5 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the Z30 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon Z30 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the T5 and the Z30 write their files to SDXC cards. The Z30 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the T5 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS Rebel T5 and Nikon Z30 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon T5	Y	mono / mono	-	-	mini	2.0	-	-	-
2.		Nikon Z30	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
3.		Canon SL1	Y	mono / mono	Y	-	mini	2.0	-	-	-
4.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
5.		Canon T3	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Canon T3i	Y	mono / mono	Y	-	mini	2.0	-	-	-
7.		Canon T4i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Canon T5i	Y	stereo / mono	Y	-	mini	2.0	-	-	-
9.		Canon T6	Y	mono / mono	-	-	mini	2.0	Y	Y	-
10.		Canon T6i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T100	Y	mono / mono	-	-	mini	2.0	Y	Y	-
13.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
14.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
15.		Nikon Z50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
16.		Nikon Z fc	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Sony ZV-E10	Y	stereo / mono	Y	Y	micro	3.2	Y	Y	Y

It is notable that the Z30 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the T5 does not provide wifi capability.

The Z30 is a recent model that features in the current product line-up of Nikon. In contrast, the T5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the T5 was succeeded by the Canon T6. Further information on the features and operation of the T5 and Z30 can be found, respectively, in the Canon T5 Manual (free pdf) or the online Nikon Z30 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon T5 and the Nikon Z30? Which camera is better? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Canon EOS Rebel T5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (500 versus 330) on a single battery charge.
• More affordable: Was introduced into a lower priced category (37 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in February 2014).

Reasons to prefer the Nikon Z30:

• More detail: Has more megapixels (20.7 vs 17.9MP), which boosts linear resolution by 7%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (11 vs 3 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (128x74mm vs 130x100mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 75g or 16 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 8 years and 4 months of technical progress since the T5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the Z30 is the clear winner of the contest (22 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon T5 and the Nikon Z30 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the T5 or the Z30. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon T5	3/5	+	..	..	4/5	4.5/5	Feb 2014	US$ 449	ebay.com
2.		Nikon Z30	4/5	..	4/5	86/100	4.5/5	4/5	Jun 2022	US$ 709	amazon.com
3.		Canon SL1	4/5	+	..	78/100	4/5	4/5	Mar 2013	US$ 549	ebay.com
4.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
5.		Canon T3	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	US$ 449	ebay.com
6.		Canon T3i	3/5	o	..	77/100	4.5/5	4.5/5	Feb 2011	US$ 599	ebay.com
7.		Canon T4i	4/5	+ +	..	77/100	4.5/5	4.5/5	Jun 2012	US$ 849	ebay.com
8.		Canon T5i	..	..	..	76/100	4.5/5	4.5/5	Mar 2013	US$ 649	ebay.com
9.		Canon T6	4/5	o	4/5	73/100	4/5	4/5	Mar 2016	US$ 449	ebay.com
10.		Canon T6i	5/5	..	..	75/100	4.5/5	4.5/5	Feb 2015	US$ 749	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
12.		Canon T100	..	o	3/5	..	3.5/5	3.5/5	Feb 2018	US$ 399	amazon.com
13.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
14.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
15.		Nikon Z50	5/5	..	5/5	85/100	4.5/5	4.5/5	Oct 2019	US$ 859	amazon.com
16.		Nikon Z fc	4/5	..	4.5/5	86/100	5/5	4.5/5	Jun 2021	US$ 959	amazon.com
17.		Sony ZV-E10	4/5	..	4/5	82/100	4.5/5	4.5/5	Jul 2021	US$ 699	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check T5 offers at
ebay.com
Check Z30 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check T5 offers at
ebay.com
Check Z30 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
