Canon XC10 vs Leica V-LUX 4

The Canon XC10 and the Leica V-LUX 4 are two digital cameras that were announced, respectively, in April 2015 and September 2012. Both the XC10 and the V-LUX 4 are fixed lens compact cameras that are based on an one-inch (XC10) and a 1/2.3-inch (V-LUX 4) sensor. Both cameras offer a resolution of 12 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XC10		Leica V-LUX 4
Fixed lens compact camera		Fixed lens compact camera
24-240mm f/2.8-5.6		25-600mm f/2.8
12 MP – 1" sensor		12 MP – 1/2.3" sensor
4K/30p Video		1080/60p Video
ISO 160-20,000		ISO 100-3,200 (100 - 6,400)
No viewfinder, LCD framing		Electronic viewfinder (1312k dots)
3.0" LCD – 1030k dots		3.0" LCD – 460k dots
Tilting touchscreen		Swivel screen (not touch-sensitive)
3.8 shutter flaps per second		12 shutter flaps per second
370 shots per battery charge		540 shots per battery charge
125 x 102 x 122 mm, 1040 g		125 x 87 x 110 mm, 588 g

Check XC10 offers at
ebay.com
Check V-LUX 4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Leica V-LUX 4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

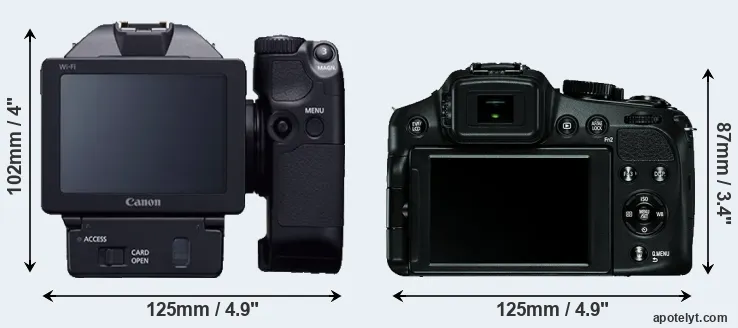

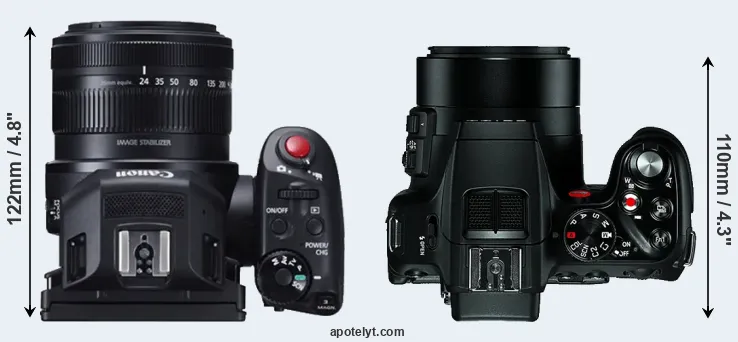

An illustration of the physical size and weight of the Canon XC10 and the Leica V-LUX 4 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica V-LUX 4 is notably smaller (15 percent) than the Canon XC10. Moreover, the V-LUX 4 is substantially lighter (43 percent) than the XC10. In this context, it is worth noting that neither the XC10 nor the V-LUX 4 are weather-sealed.

Concerning battery life, the XC10 gets 370 shots out of its Canon LP-E6N battery, while the V-LUX 4 can take 540 images on a single charge of its Leica BP-DC12 power pack. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
2.		Leica V-LUX 4	125 mm	87 mm	110 mm	588 g	540	n	Sep 2012	US$ 949	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
5.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
7.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
8.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
9.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
10.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
11.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
12.		Leica V-LUX 2	124 mm	80 mm	95 mm	520 g	410	n	Sep 2010	US$ 849	ebay.com
13.		Leica V-LUX 3	124 mm	81 mm	95 mm	540 g	410	n	Dec 2011	US$ 949	ebay.com
14.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
15.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
16.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The V-LUX 4 was launched at a markedly lower price (by 62 percent) than the XC10, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

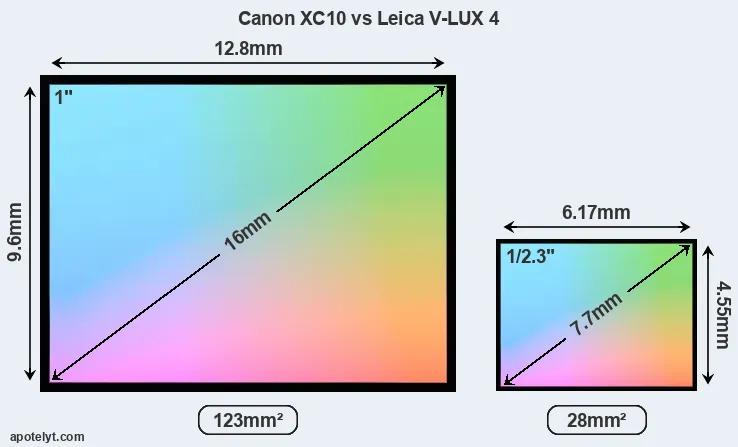

Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Leica V-LUX 4 a 1/2.3-inch sensor. The sensor area in the V-LUX 4 is 77 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

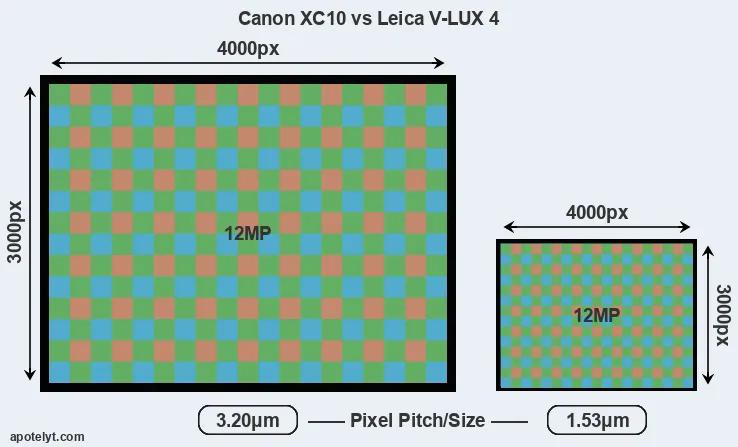

Even though the XC10 has a larger sensor, both cameras offer the same resolution of 12 megapixels. This implies that the XC10 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.20μm versus 1.53μm for the V-LUX 4), which gives it a potential advantage in terms of light gathering capacity. In addition, the XC10 is much more recent (by 2 years and 6 months) than the V-LUX 4, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that the V-LUX 4 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Leica V-LUX 4 are ISO 100 to ISO 3200, with the possibility to increase the ISO range to 100-6400.

In terms of underlying technology, the XC10 is build around a CMOS sensor, while the V-LUX 4 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
2.		Leica V-LUX 4	1/2.3	12.0	4000	3000	1080/60p	19.8	11.1	501	43
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
6.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
7.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
8.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
9.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
10.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
11.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
12.		Leica V-LUX 2	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	321	39
13.		Leica V-LUX 3	1/2.3	12.0	4000	3000	1080/60p	19.7	11.0	430	42
14.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
15.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
16.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the XC10 provides a higher video resolution than the V-LUX 4. It can shoot video footage at 4K/30p, while the Leica is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the V-LUX 4 has an electronic viewfinder (1312k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon XC10, the Leica V-LUX 4, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
2.		Leica V-LUX 4	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
6.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
7.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
8.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
9.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
10.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
11.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
12.		Leica V-LUX 2	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
13.		Leica V-LUX 3	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
14.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
15.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
16.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The XC10 has a touchscreen, while the V-LUX 4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the XC10 and the V-LUX 4 have zoom lenses built in. The XC10 has a 24-240mm f/2.8-5.6 optic and the V-LUX 4 offers a 25-600mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end than the Leica, but less tele-photo reach at the long end. Both cameras offer the same maximum aperture.

The XC10 writes its imaging data to CFast or SDXC cards, while the V-LUX 4 uses SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the V-LUX 4 only has one slot. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Leica V-LUX 4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Leica V-LUX 4	Y	stereo / mono	Y	-	mini	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
11.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Leica V-LUX 2	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Leica V-LUX 3	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
16.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the XC10 offers wifi support, while the V-LUX 4 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the XC10 and the V-LUX 4 have been discontinued, but can regularly be found used on ebay. The V-LUX 4 was replaced by the Leica V-LUX Typ 114, while the XC10 was followed by the Canon XC15. Further information on the features and operation of the XC10 and V-LUX 4 can be found, respectively, in the Canon XC10 Manual (free pdf) or the online Leica V-LUX 4 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon XC10 or the Leica V-LUX 4 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon XC10:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed LCD: Has a higher resolution rear screen (1030k vs 460k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More modern: Reflects 2 years and 6 months of technical progress since the V-LUX 4 launch.

Reasons to prefer the Leica V-LUX 4:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 3.8 flaps/sec) to capture the decisive moment.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• More compact: Is smaller (125x87mm vs 125x102mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 452g or 43 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (540 versus 370) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More affordable: Was introduced into a lower priced category (62 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in September 2012).

If the count of relative strengths (bullet points above) is taken as a measure, the XC10 emerges as the winner of the contest (16 : 14 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XC10 and the Leica V-LUX 4 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the XC10 or the V-LUX 4 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
2.		Leica V-LUX 4	..	..	..	..	..	..	Sep 2012	US$ 949	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
5.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
7.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
8.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
9.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
10.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
11.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
12.		Leica V-LUX 2	..	..	..	..	..	..	Sep 2010	US$ 849	ebay.com
13.		Leica V-LUX 3	..	..	..	..	..	..	Dec 2011	US$ 949	ebay.com
14.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
15.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
16.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
