Fujifilm X-E5 vs X-T20

The Fujifilm X-E5 and the Fujifilm X-T20 are two digital cameras that were revealed to the public, respectively, in June 2025 and January 2017. Both the X-E5 and the X-T20 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The X-E5 has a resolution of 39.8 megapixels, whereas the X-T20 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-E5		Fujifilm X-T20
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Fujifilm X mount lenses
39.8 MP – APS-C sensor		24 MP – APS-C sensor
6.2k/30p Video		4K/30p Video
ISO 125-12,800 (64 - 51,200)		ISO 200-12,800 (100 - 51,200)
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
8 shutter flaps per second		8 shutter flaps per second
In-body stabilization		Lens stabilization only
305 shots per battery charge		350 shots per battery charge
125 x 73 x 39 mm, 445 g		118 x 83 x 41 mm, 383 g

Check X-E5 price at
amazon.com
Check X-T20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-E5 and the Fujifilm X-T20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

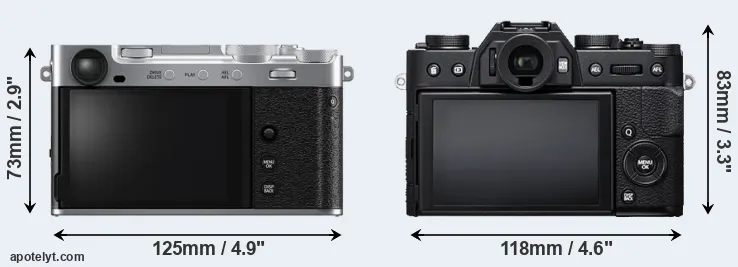

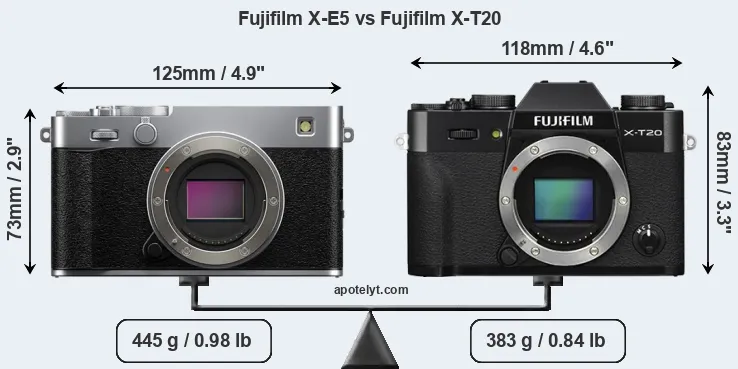

The physical size and weight of the Fujifilm X-E5 and the Fujifilm X-T20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T20 is notably larger (7 percent) than the Fujifilm X-E5. However, the X-T20 is markedly lighter (14 percent) than the X-E5. In this context, it is worth noting that neither the X-E5 nor the X-T20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Fujinon X Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-E5	125 mm	73 mm	39 mm	445 g	305	n	Jun 2025	US$ 1 699	amazon.com
2.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
3.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
4.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
5.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
6.		Fujifilm X-H2	136 mm	93 mm	85 mm	660 g	680	Y	Sep 2022	US$ 1 999	amazon.com
7.		Fujifilm X-Pro1	140 mm	82 mm	43 mm	450 g	300	n	Jan 2012	US$ 1 699	ebay.com
8.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
9.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
10.		Fujifilm X-T5	130 mm	91 mm	64 mm	557 g	580	Y	Nov 2022	US$ 1 699	amazon.com
11.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
12.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
13.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
14.		Fujifilm X-T50	124 mm	84 mm	49 mm	438 g	305	n	May 2024	US$ 1 399	amazon.com
15.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
16.		Fujifilm X100VI	128 mm	75 mm	55 mm	521 g	450	Y	Feb 2024	US$ 1 599	amazon.com
17.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-T20 was launched at a markedly lower price (by 47 percent) than the X-E5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

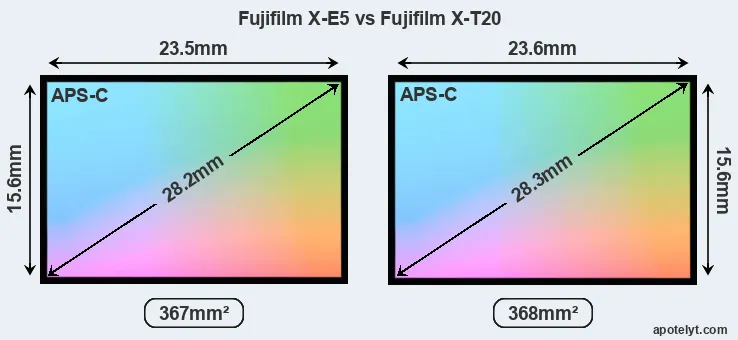

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

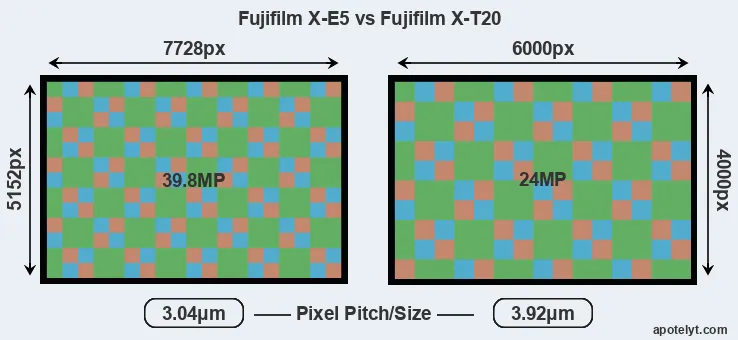

Despite having a slightly smaller sensor, the Fujifilm X-E5 offers a higher resolution of 39.8 megapixels, compared with 24 MP of the Fujifilm X-T20. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.04μm versus 3.92μm for the X-T20). However, it should be noted that the X-E5 is much more recent (by 8 years and 4 months) than the X-T20, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Fujifilm X-E5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-E5 for good quality output (200 dots per inch) amounts to 38.6 x 25.8 inches or 98.1 x 65.4 cm, for very good quality (250 dpi) 30.9 x 20.6 inches or 78.5 x 52.3 cm, and for excellent quality (300 dpi) 25.8 x 17.2 inches or 65.4 x 43.6 cm. The corresponding values for the Fujifilm X-T20 are 30 x 20 inches or 76.2 x 50.8 cm for good quality, 24 x 16 inches or 61 x 40.6 cm for very good quality, and 20 x 13.3 inches or 50.8 x 33.9 cm for excellent quality prints.

The Fujifilm X-E5 has a native sensitivity range from ISO 125 to ISO 12800, which can be extended to ISO 64-51200. The corresponding ISO settings for the Fujifilm X-T20 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the X-E5 is build around a BSI-CMOS sensor, while the X-T20 uses a CMOS imager. Both cameras use the X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-E5	APS-C	39.8	7728	5152	6.2k/30p	24.3	14.2	2523	86
2.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
3.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
4.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
5.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
6.		Fujifilm X-H2	APS-C	39.8	7728	5152	8k/30p	24.3	13.9	2249	86
7.		Fujifilm X-Pro1	APS-C	16.0	4896	3264	1080/24p	23.1	12.3	1238	74
8.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
9.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
10.		Fujifilm X-T5	APS-C	39.8	7728	5152	6.2k/30p	24.3	13.9	2264	86
11.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
12.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
13.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
14.		Fujifilm X-T50	APS-C	39.8	7728	5152	6.2k/30p	24.3	14.1	2418	86
15.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
16.		Fujifilm X100VI	APS-C	39.8	7728	5152	6.2K/30p	24.3	14.1	2397	86
17.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the X-E5 provides a higher video resolution than the X-T20. It can shoot video footage at 6.2k/30p, while the X-T20 is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The X-E5 and the X-T20 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The table below summarizes some of the other core capabilities of the Fujifilm X-E5 and Fujifilm X-T20 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-E5	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	n	Y
2.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
3.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
5.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
6.		Fujifilm X-H2	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
7.		Fujifilm X-Pro1	1440	n	3.0 / 1230	fixed	n	1/4000s	6.0/s	n	n
8.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
9.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
10.		Fujifilm X-T5	3690	n	3.0 / 1840	tilting	Y	1/8000s	15.0/s	n	Y
11.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
14.		Fujifilm X-T50	2360	n	3.0 / 1840	tilting	Y	1/4000s	8.0/s	Y	Y
15.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
16.		Fujifilm X100VI	3690	n	3.0 / 1620	tilting	Y	1/4000s	11.0/s	n	Y
17.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the X-E5 and the X-T20 is in-body image stabilization (IBIS). The X-E5 reduces the risk of handshake-induced blur with all attached lenses, while the X-T20 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-E5 and the Fujifilm X-T20 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-E5 and the X-T20 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-E5 and Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-E5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
2.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
3.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
4.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
6.		Fujifilm X-H2	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
7.		Fujifilm X-Pro1	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
10.		Fujifilm X-T5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
11.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
13.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
14.		Fujifilm X-T50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
15.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
16.		Fujifilm X100VI	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
17.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y

The X-E5 is a recent model that features in the current product line-up of Fujifilm. In contrast, the X-T20 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the X-T20 was succeeded by the Fujifilm X-T100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm website.

Review summary

So what conclusions can be drawn? Is the Fujifilm X-E5 better than the Fujifilm X-T20 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Fujifilm X-E5:

• More detail: Offers more megapixels (39.8 vs 24MP) with a 29% higher linear resolution.
• Better video: Provides higher definition movie capture (6.2k/30p vs 4K/30p).
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 8 years and 4 months of technical progress since the X-T20 launch.

Advantages of the Fujifilm X-T20:

• Less heavy: Has a lower weight (by 62g or 14 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (350 versus 305) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in January 2017).

If the count of relative strengths (bullet points above) is taken as a measure, the X-E5 comes out slightly ahead of the X-T20 (6 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-E5 and the Fujifilm X-T20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the X-E5 and the X-T20 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-E5	..	..	..	..	..	..	Jun 2025	US$ 1 699	amazon.com
2.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
3.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
4.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
5.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
6.		Fujifilm X-H2	5/5	+ +	5/5	89/100	5/5	5/5	Sep 2022	US$ 1 999	amazon.com
7.		Fujifilm X-Pro1	5/5	+ +	..	79/100	4.5/5	4.5/5	Jan 2012	US$ 1 699	ebay.com
8.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
9.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
10.		Fujifilm X-T5	5/5	+ +	4.5/5	90/100	4.5/5	..	Nov 2022	US$ 1 699	amazon.com
11.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
12.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
13.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
14.		Fujifilm X-T50	..	..	..	85/100	..	..	May 2024	US$ 1 399	amazon.com
15.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
16.		Fujifilm X100VI	5/5	+ +	4.5/5	87/100	..	4.5/5	Feb 2024	US$ 1 599	amazon.com
17.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
