Fujifilm X-M5 vs Leica M10

The Fujifilm X-M5 and the Leica M10 (Typ 3656) are two digital cameras that were officially introduced, respectively, in October 2025 and January 2017. The X-M5 is a mirrorless interchangeable lens camera, while the M10 is a rangefinder-focusing mirrorless. The cameras are based on an APS-C (X-M5) and a full frame (M10) sensor. The Fujifilm has a resolution of 26 megapixels, whereas the Leica provides 23.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M5		Leica M10
Mirrorless system camera		Rangefinder camera
Fujifilm X mount lenses		Leica M mount lenses
26 MP – APS-C sensor		23.8 MP – Full Frame sensor
4K/60p Video		no Video
ISO 160-12,800 (80 - 51,200)		ISO 100-50,000
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1040k dots		3.0" LCD – 1037k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
8 shutter flaps per second		5 shutter flaps per second
not weather sealed		Weathersealed body
330 shots per battery charge		210 shots per battery charge
112 x 67 x 38 mm, 355 g		139 x 80 x 39 mm, 660 g

Check X-M5 price at
amazon.com
Check M10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M5 and the Leica M10 (Typ 3656)? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

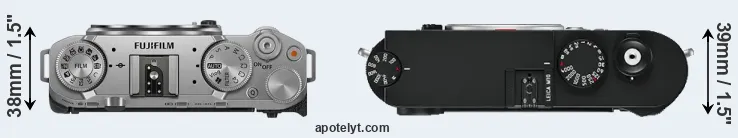

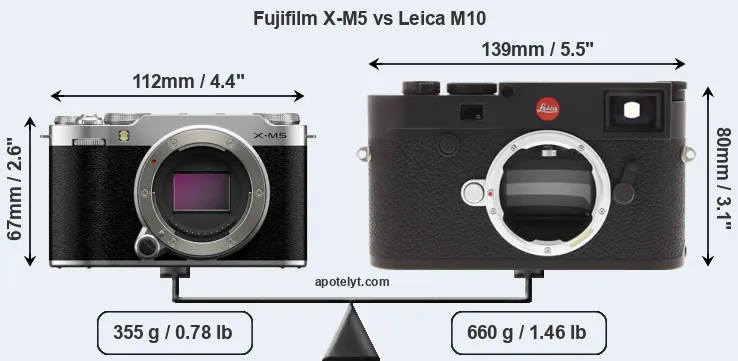

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-M5 and the Leica M10. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica M10 is considerably larger (48 percent) than the Fujifilm X-M5. Moreover, the M10 is substantially heavier (86 percent) than the X-M5. It is noteworthy in this context that the M10 is splash and dust-proof, while the X-M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Fujinon X Lens Catalog (X-M5) and the Leica M Lens Catalog (M10).

Concerning battery life, the X-M5 gets 330 shots out of its Fujifilm NP-W126S battery, while the M10 can take 210 images on a single charge of its Leica BP-SCL5 power pack. The power pack in the X-M5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
2.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
3.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	US$ 1 199	ebay.com
4.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	US$ 699	ebay.com
7.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
8.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
9.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
10.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
11.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
14.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
15.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
16.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
17.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M5 was launched at a markedly lower price (by 88 percent) than the M10, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

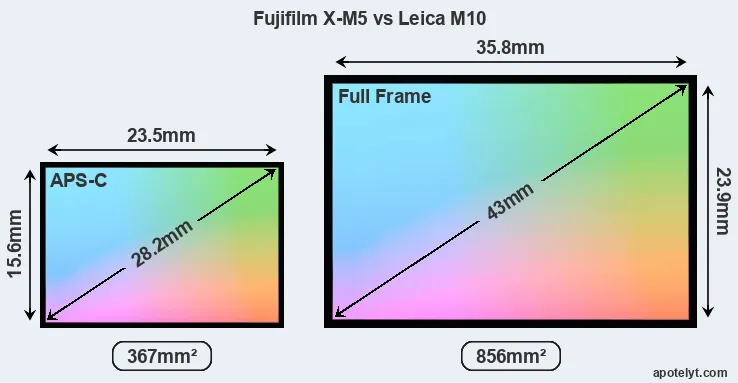

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Fujifilm X-M5 features an APS-C sensor and the Leica M10 a full frame sensor. The sensor area in the M10 is 133 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

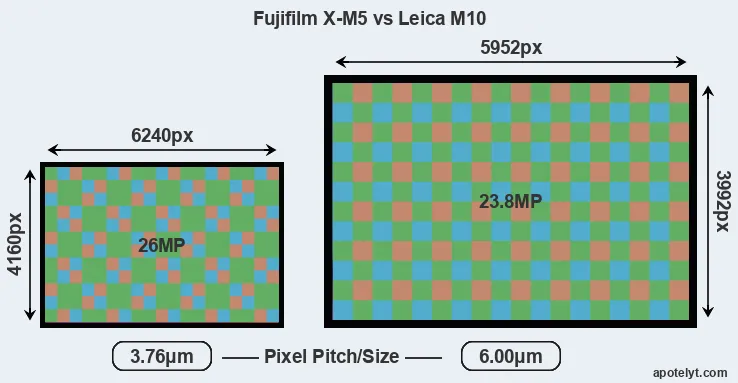

Despite having a smaller sensor, the Fujifilm X-M5 offers a higher resolution of 26 megapixels, compared with 23.8 MP of the Leica M10. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 6.00μm for the M10). However, it should be noted that the X-M5 is much more recent (by 8 years and 8 months) than the M10, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Fujifilm X-M5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the X-M5 for good quality output (200 dots per inch) amounts to 31.2 x 20.8 inches or 79.2 x 52.8 cm, for very good quality (250 dpi) 25 x 16.6 inches or 63.4 x 42.3 cm, and for excellent quality (300 dpi) 20.8 x 13.9 inches or 52.8 x 35.2 cm. The corresponding values for the Leica M10 are 29.8 x 20 inches or 75.6 x 50.7 cm for good quality, 23.8 x 16 inches or 60.5 x 40.6 cm for very good quality, and 19.8 x 13.3 inches or 50.4 x 33.8 cm for excellent quality prints.

The X-M5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Fujifilm X-M5 has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Leica M10 (Typ 3656) are ISO 100 to ISO 50000 (no boost).

In terms of underlying technology, the X-M5 is build around a BSI-CMOS sensor, while the M10 uses a CMOS imager. The X-M5 uses Fujifilm's X-Trans layout of photosites, while the M10 employs the more common Bayer array.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
2.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
3.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
4.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
5.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
6.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
7.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
8.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
9.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
10.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
11.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
12.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
13.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
14.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
15.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
16.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
17.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The X-M5 indeed provides movie recording capabilities, while the M10 does not. The highest resolution format that the X-M5 can use is 4K/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the M10 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the X-M5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Fujifilm X-M5 and Leica M10 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
2.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
3.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
4.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
6.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
7.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
9.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
10.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
14.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
15.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
16.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
17.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X-M5 has one, while the M10 does not. While the built-in flash of the X-M5 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the X-M5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica M10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M5 and the M10 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M5 and Leica M10 (Typ 3656) and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
3.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
4.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
8.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
9.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
10.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
12.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
14.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
15.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
16.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
17.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y

The X-M5 is a recent model that features in the current product line-up of Fujifilm. In contrast, the M10 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M10 was succeeded by the Leica M11. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Leica websites.

Review summary

So what conclusions can be drawn? Is the Fujifilm X-M5 better than the Leica M10 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Fujifilm X-M5:

• More detail: Offers more megapixels (26 vs 23.8MP) with a 5% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 4K/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More compact: Is smaller (112x67mm vs 139x80mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 305g or 46 percent) and hence easier to carry around.
• Longer lasting: Can take more shots (330 versus 210) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced category (88 percent cheaper at launch).
• More modern: Reflects 8 years and 8 months of technical progress since the M10 launch.

Advantages of the Leica M10 (Typ 3656):

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale value.
• More heavily discounted: Has been around for much longer (launched in January 2017).

If the count of relative strengths (bullet points above) is taken as a measure, the X-M5 is the clear winner of the match-up (16 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the X-M5 and the M10 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
2.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
3.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	US$ 1 199	ebay.com
4.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
7.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
8.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
9.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
10.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
11.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
14.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
15.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
16.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
17.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
