Kodak AZ901 vs Panasonic GM5

The Kodak PixPro AZ901 and the Panasonic Lumix DMC-GM5 are two digital cameras that were announced, respectively, in January 2016 and September 2014. The AZ901 is a fixed lens compact, while the GM5 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (AZ901) and a Four Thirds (GM5) sensor. The Kodak has a resolution of 20.2 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Kodak AZ901		Panasonic GM5
Fixed lens compact camera		Mirrorless system camera
22-1980mm f/3.1-6.8		Micro Four Thirds lenses
20.2 MP – 1/2.3" sensor		15.8 MP – Four Thirds sensor
1080/30p Video		1080/60p Video
ISO 100-3,200		ISO 200-25,600
Electronic viewfinder (202k dots)		Electronic viewfinder (1166k dots)
3.0" LCD – 920k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Fixed touchscreen
5 shutter flaps per second		5.8 shutter flaps per second
400 shots per battery charge		220 shots per battery charge
139 x 104 x 119 mm, 777 g		99 x 60 x 36 mm, 211 g

Check AZ901 price at
amazon.com
Check GM5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Kodak PixPro AZ901 and the Panasonic Lumix DMC-GM5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

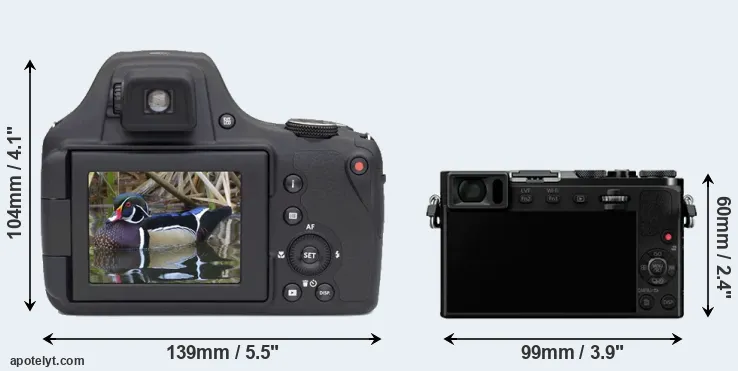

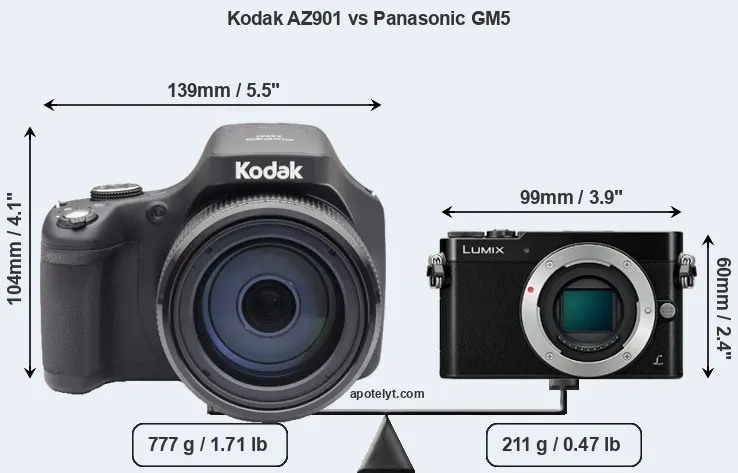

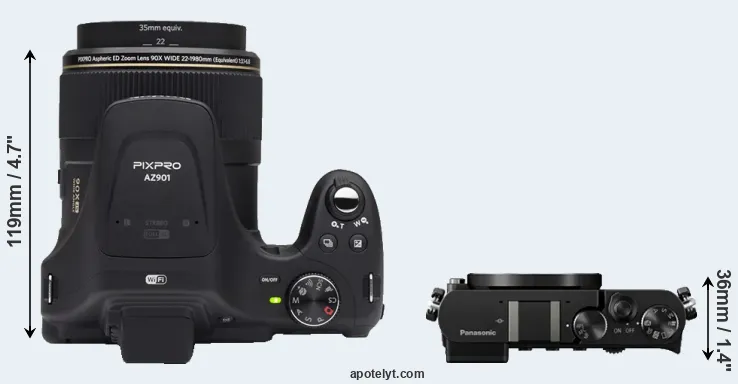

An illustration of the physical size and weight of the Kodak AZ901 and the Panasonic GM5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The GM5 can be obtained in two different colors (black, silver), while the AZ901 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM5 is considerably smaller (59 percent) than the Kodak AZ901. In this context, it is worth noting that neither the AZ901 nor the GM5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the AZ901 has a lens built in, whereas the GM5 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GM5 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the AZ901 gets 400 shots out of its Kodak LB-070 battery, while the GM5 can take 220 images on a single charge of its Panasonic DMW-BLH7 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Kodak AZ901	139 mm	104 mm	119 mm	777 g	400	n	Jan 2016	US$ 499	amazon.com
2.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
3.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
4.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
5.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
6.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	US$ 499	ebay.com
7.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
8.		Panasonic FZ2000	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
9.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
10.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	US$ 649	ebay.com
11.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
12.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
13.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
14.		Panasonic TZ90	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
15.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The AZ901 was launched at a lower price than the GM5, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

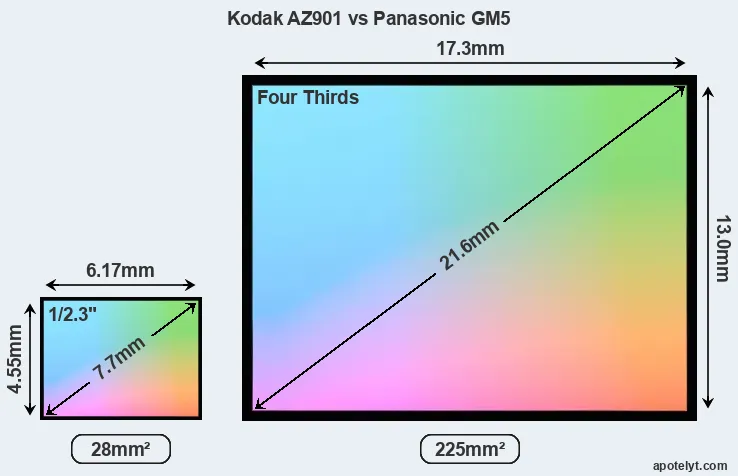

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Kodak AZ901 features a 1/2.3-inch sensor and the Panasonic GM5 a Four Thirds sensor. The sensor area in the GM5 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

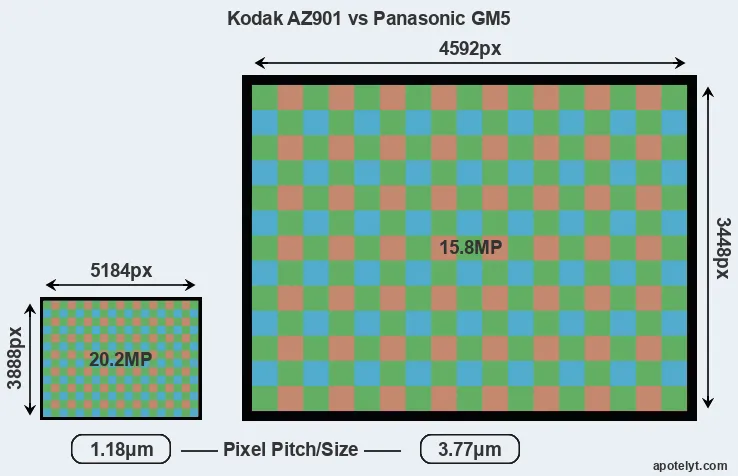

Despite having a smaller sensor, the Kodak AZ901 offers a higher resolution of 20.2 megapixels, compared with 15.8 MP of the Panasonic GM5. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 3.77μm for the GM5). However, it should be noted that the AZ901 is a somewhat more recent model (by 1 year and 3 months) than the GM5, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.

The resolution advantage of the Kodak AZ901 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the AZ901 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Panasonic GM5 are 23 x 17.2 inches or 58.3 x 43.8 cm for good quality, 18.4 x 13.8 inches or 46.7 x 35 cm for very good quality, and 15.3 x 11.5 inches or 38.9 x 29.2 cm for excellent quality prints.

The Kodak PixPro AZ901 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Panasonic Lumix DMC-GM5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

In terms of underlying technology, the AZ901 is build around a BSI-CMOS sensor, while the GM5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Kodak AZ901	1/2.3	20.2	5184	3888	1080/30p	20.3	11.7	806	48
2.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
3.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
4.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
5.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
6.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
7.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
8.		Panasonic FZ2000	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
9.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
10.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
11.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
12.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
13.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
14.		Panasonic TZ90	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
16.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
17.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GM5 provides a faster frame rate than the AZ901. It can shoot movie footage at 1080/60p, while the Kodak is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under review are similar with respect to both having an electronic viewfinder. However, the one in the GM5 offers a substantially higher resolution than the one in the AZ901 (1166k vs 202k dots). The adjacent table lists some of the other core features of the Kodak AZ901 and Panasonic GM5 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Kodak AZ901	202	n	3.0 / 920	swivel	n	1/2000s	5.0/s	Y	Y
2.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
3.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
4.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
5.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
6.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
7.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
8.		Panasonic FZ2000	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
9.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
10.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
11.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
12.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
13.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
14.		Panasonic TZ90	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
17.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The AZ901 has one, while the GM5 does not. While the built-in flash of the AZ901 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GM5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the AZ901 and the GM5 write their files to SDXC cards. The GM5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the AZ901 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Kodak PixPro AZ901 and Panasonic Lumix DMC-GM5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Kodak AZ901	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Panasonic FZ2000	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
9.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
10.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
12.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic TZ90	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-
17.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the GM5 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The AZ901 does not feature such an accessory-socket.

The AZ901 is a recent model that features in the current product line-up of Kodak. In contrast, the GM5 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the GM5 from Panasonic. Further information on the features and operation of the AZ901 and GM5 can be found, respectively, in the Kodak AZ901 Manual (free pdf) or the online Panasonic GM5 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Kodak AZ901 and the Panasonic GM5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Kodak PixPro AZ901:

• More detail: Offers more megapixels (20.2 vs 15.8MP) with a 13% higher linear resolution.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/500s) to freeze action.
• Ready to shoot: Has a lens built-in, whereas the GM5 requires a separate lens.
• Longer lasting: Can take more shots (400 versus 220) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 1 year and 3 months after the GM5).

Arguments in favor of the Panasonic Lumix DMC-GM5:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• More detailed viewfinder: Has higher resolution electronic viewfinder (1166k vs 202k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (5.8 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (99x60mm vs 139x104mm) and will fit more readily into a bag.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in September 2014).

If the count of relative strengths (bullet points above) is taken as a measure, the GM5 is the clear winner of the contest (15 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Kodak AZ901 and the Panasonic GM5 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the AZ901 or the GM5. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Kodak AZ901	..	..	..	..	3.5/5	3/5	Jan 2016	US$ 499	amazon.com
2.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
3.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
4.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
5.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
6.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	US$ 499	ebay.com
7.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
8.		Panasonic FZ2000	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
9.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
10.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	US$ 649	ebay.com
11.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
12.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
13.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
14.		Panasonic TZ90	..	+ +	4/5	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
15.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check AZ901 price at
amazon.com
Check GM5 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check AZ901 price at
amazon.com
Check GM5 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
