Leica M10 vs Panasonic S5 II

The Leica M10 (Typ 3656) and the Panasonic Lumix DC-S5 II are two enthusiast cameras that were revealed to the public, respectively, in January 2017 and January 2023. The M10 is a rangefinder-focusing mirrorless, while the S5 II is a mirrorless interchangeable lens camera. Both cameras are equipped with a full frame sensor. The Leica has a resolution of 23.8 megapixels, whereas the Panasonic provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M10		Panasonic S5 II
Rangefinder camera		Mirrorless system camera
Leica M mount lenses		Leica L mount lenses
23.8 MP – Full Frame sensor		24 MP – Full Frame sensor
no Video		6K/30p Video
ISO 100-50,000		ISO 100-51,200 (50 - 204,800)
Optical viewfinder		Electronic viewfinder (3680k dots)
3.0" LCD – 1037k dots		3.0" LCD – 1840k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
5 shutter flaps per second		9 shutter flaps per second
no shake reduction		In-body stabilization
Weathersealed body		Weathersealed body
210 shots per battery charge		370 shots per battery charge
139 x 80 x 39 mm, 660 g		134 x 102 x 90 mm, 740 g

Check M10 offers at
ebay.com
Check S5 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10 (Typ 3656) and the Panasonic Lumix DC-S5 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

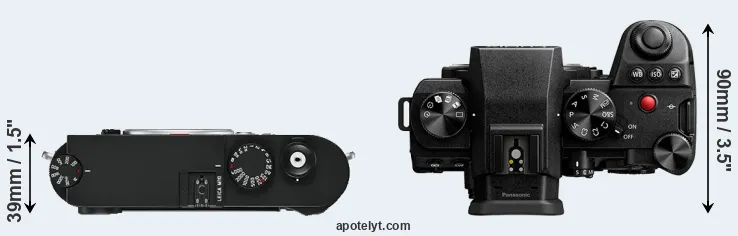

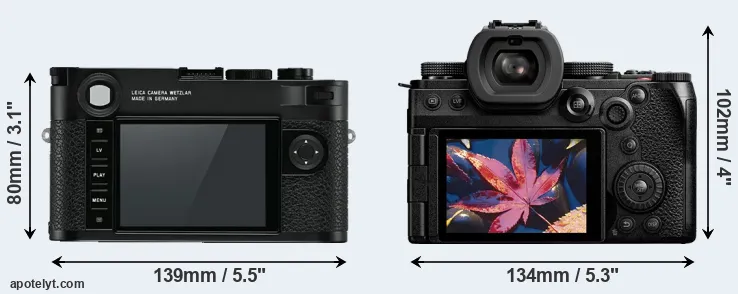

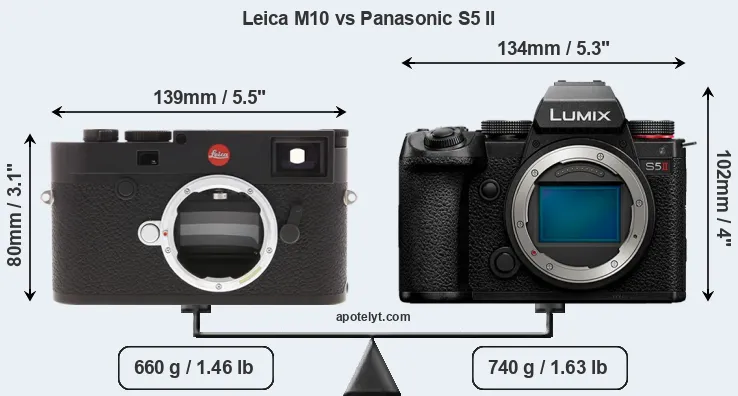

The physical size and weight of the Leica M10 and the Panasonic S5 II are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The M10 can be obtained in two different colors (black, silver), while the S5 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 II is notably larger (23 percent) than the Leica M10. Moreover, the S5 II is markedly heavier (12 percent) than the M10. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the M10 gets 210 shots out of its Leica BP-SCL5 battery, while the S5 II can take 370 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S5 II can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
2.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
5.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
6.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
7.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
8.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
9.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
10.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
11.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
12.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
13.		Nikon Zf	144 mm	103 mm	49 mm	710 g	380	Y	Sep 2023	US$ 1 999	amazon.com
14.		Panasonic G9 II	134 mm	102 mm	90 mm	658 g	390	Y	Sep 2023	US$ 1 899	amazon.com
15.		Panasonic GH6	138 mm	100 mm	100 mm	823 g	360	Y	Feb 2022	US$ 2 199	amazon.com
16.		Panasonic GH7	138 mm	100 mm	100 mm	805 g	380	Y	Jun 2024	US$ 2 199	amazon.com
17.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S5 II was launched at a markedly lower price (by 70 percent) than the M10, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

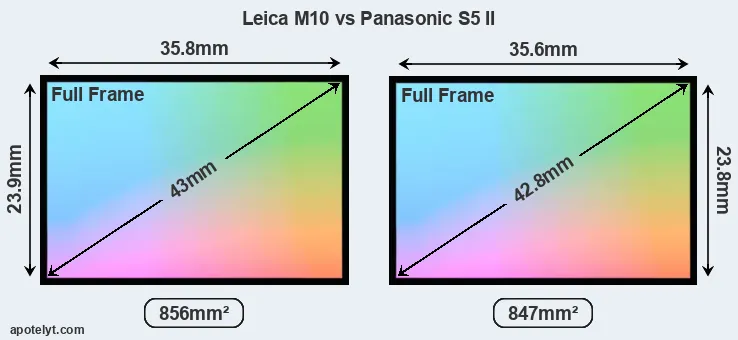

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the S5 II is 1 percent smaller. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

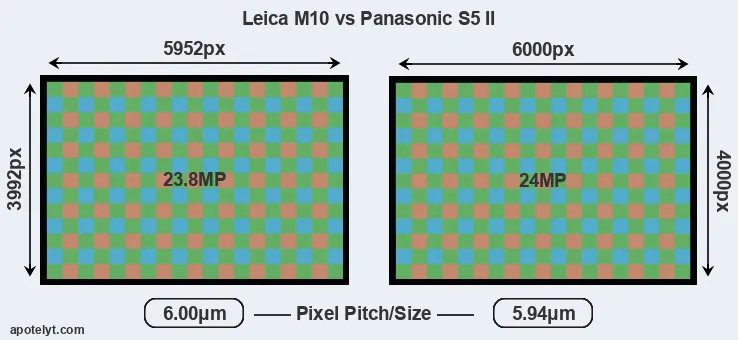

Despite having a slightly smaller sensor, the S5 II offers a slightly higher resolution of 24 megapixels, compared with 23.8 MP of the M10. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 5.94μm versus 6.00μm for the M10). However, it should be noted that the S5 II is much more recent (by 5 years and 11 months) than the M10, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The S5 II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the M10, the S5 II has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Leica M10 (Typ 3656) has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Panasonic Lumix DC-S5 II are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the M10 is build around a CMOS sensor, while the S5 II uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
2.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
5.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
6.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
7.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
8.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
9.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
10.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
11.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
12.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
13.		Nikon Zf	Full Frame	24.3	6048	4024	4K/60p	25.4	14.7	3243	96
14.		Panasonic G9 II	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.5	1710	78
15.		Panasonic GH6	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.4	1555	77
16.		Panasonic GH7	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.6	1784	78
17.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The S5 II indeed provides for movie recording, while the M10 does not. The highest resolution format that the S5 II can use is 6K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the S5 II has an electronic viewfinder (3680k dots), while the M10 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the S5 II has a higher magnification than the one of the M10 (0.78x vs 0.73x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica M10 and Panasonic S5 II in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
2.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
5.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
7.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
8.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
9.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
10.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
11.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
12.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
13.		Nikon Zf	3690	n	3.2 / 2100	swivel	Y	1/8000s	14.0/s	n	Y
14.		Panasonic G9 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	10.0/s	n	Y
15.		Panasonic GH6	3680	n	3.0 / 1840	full-flex	Y	1/8000s	14.0/s	n	Y
16.		Panasonic GH7	3680	n	3.0 / 1840	full-flex	Y	1/8000s	14.0/s	n	Y
17.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The S5 II has a touchscreen, while the M10 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the S5 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica M10 and the Panasonic S5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M10 and the S5 II write their files to SDXC cards. The S5 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10 only has one slot. The S5 II supports UHS-II cards (on both slots), while the M10 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10 (Typ 3656) and Panasonic Lumix DC-S5 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
2.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
7.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
10.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
12.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
13.		Nikon Zf	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
14.		Panasonic G9 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Panasonic GH6	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Panasonic GH7	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y

The S5 II is a recent model that features in the current product line-up of Panasonic. In contrast, the M10 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M10 was succeeded by the Leica M11. Further information on the features and operation of the M10 and S5 II can be found, respectively, in the Leica M10 Manual (free pdf) or the online Panasonic S5 II Manual.

Review summary

So how do things add up? Is the Leica M10 better than the Panasonic S5 II or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica M10 (Typ 3656):

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• More compact: Is smaller (139x80mm vs 134x102mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 80g or 11 percent) and hence easier to carry around.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in January 2017).

Advantages of the Panasonic Lumix DC-S5 II:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Broader imaging potential: Can capture not only stills but also 6K/30p video.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.73x).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1037k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (9 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Longer lasting: Gets more shots (370 versus 210) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced category (70 percent cheaper at launch).
• More modern: Reflects 5 years and 11 months of technical progress since the M10 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the S5 II is the clear winner of the contest (20 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the M10 and the S5 II in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
2.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
5.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
6.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
7.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
8.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
9.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
10.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
11.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
12.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
13.		Nikon Zf	4.5/5	..	4.5/5	90/100	4.5/5	5/5	Sep 2023	US$ 1 999	amazon.com
14.		Panasonic G9 II	5/5	..	4.5/5	87/100	..	4.5/5	Sep 2023	US$ 1 899	amazon.com
15.		Panasonic GH6	5/5	+ +	5/5	87/100	5/5	5/5	Feb 2022	US$ 2 199	amazon.com
16.		Panasonic GH7	..	..	..	..	..	..	Jun 2024	US$ 2 199	amazon.com
17.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check M10 offers at
ebay.com
Check S5 II price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check M10 offers at
ebay.com
Check S5 II price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
