Leica M8 vs V-LUX 5

The Leica M8 and the Leica V-LUX 5 are two digital cameras that were revealed to the public, respectively, in September 2006 and July 2019. The M8 is a rangefinder-focusing mirrorless camera, while the V-LUX 5 is a fixed lens compact. The cameras are based on an APS-H (M8) and an one-inch (V-LUX 5) sensor. The M8 has a resolution of 10.4 megapixels, whereas the V-LUX 5 provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M8		Leica V-LUX 5
Rangefinder camera		Fixed lens compact camera
Leica M mount lenses		25-400mm f/2.8-4.0
10.4 MP – APS-H sensor		20 MP – 1" sensor
no Video		4K/30p Video
ISO 160-2,500		ISO 125-12,800 (80 - 25,600)
Optical viewfinder		Electronic viewfinder (2360k dots)
2.5" LCD – 230k dots		3.0" LCD – 1240k dots
Fixed screen (not touch-sensitive)		Swivel touchscreen
2 shutter flaps per second		12 shutter flaps per second
550 shots per battery charge		350 shots per battery charge
139 x 80 x 37 mm, 591 g		136 x 97 x 131 mm, 812 g

Check M8 offers at
ebay.com
Check V-LUX 5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M8 and the Leica V-LUX 5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

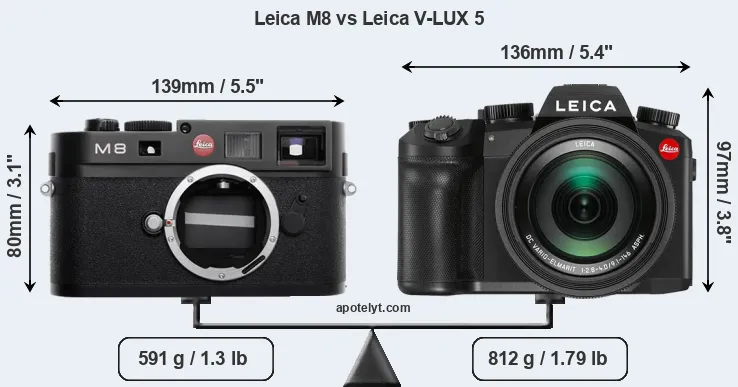

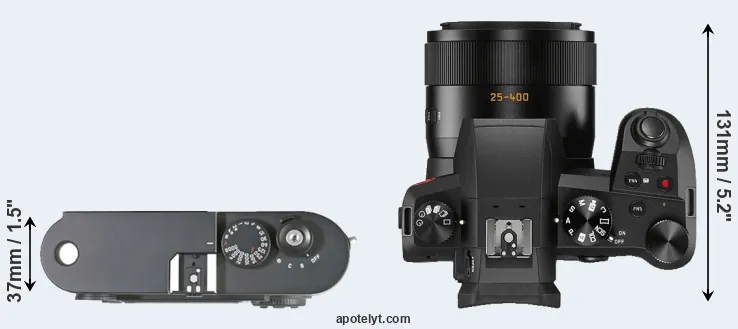

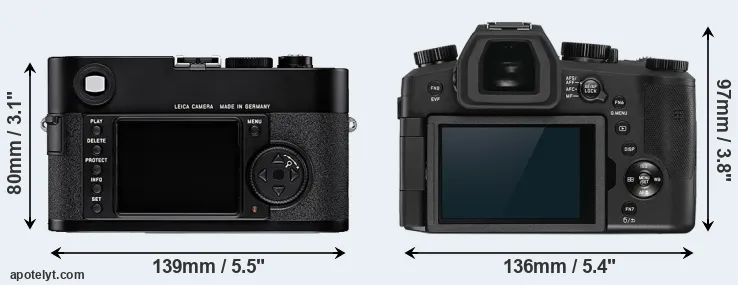

An illustration of the physical size and weight of the Leica M8 and the Leica V-LUX 5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The M8 can be obtained in two different colors (black, silver), while the V-LUX 5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Leica V-LUX 5 is notably larger (19 percent) than the Leica M8. In this context, it is worth noting that neither the M8 nor the V-LUX 5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the V-LUX 5 has a lens built in, whereas the M8 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M8 and their specifications in the Leica M Lens Catalog.

Concerning battery life, the M8 gets 550 shots out of its Leica BLI-312 battery, while the V-LUX 5 can take 350 images on a single charge of its Leica BP-DC12 power pack. The power pack in the V-LUX 5 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	EUR 4 199	ebay.com
2.		Leica V-LUX 5	136 mm	97 mm	131 mm	812 g	350	n	Jul 2019	EUR 1 199	amazon.com
3.		Canon 400D	127 mm	84 mm	65 mm	556 g	370	n	Aug 2006	EUR 799	ebay.com
4.		Canon 1100D	130 mm	100 mm	78 mm	495 g	700	n	Feb 2011	EUR 399	ebay.com
5.		Leica C-LUX	113 mm	67 mm	46 mm	340 g	370	n	Jun 2018	EUR 970	ebay.com
6.		Leica D-LUX 7	115 mm	66 mm	65 mm	392 g	300	n	Nov 2018	EUR 1 149	ebay.com
7.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	EUR 5 499	ebay.com
8.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	EUR 5 499	ebay.com
9.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	EUR 6 499	ebay.com
10.		Leica V-LUX Typ 114	137 mm	99 mm	131 mm	830 g	360	n	Sep 2014	EUR 1 099	ebay.com
11.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	EUR 699	ebay.com
12.		Nikon D80	132 mm	103 mm	77 mm	668 g	600	n	Aug 2006	EUR 969	ebay.com
13.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	EUR 539	ebay.com
14.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	EUR 699	ebay.com
15.		Panasonic FZ2000	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	EUR 1 249	amazon.com
16.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	EUR 599	ebay.com
17.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	EUR 1 299	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The V-LUX 5 was launched at a lower price than the M8, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

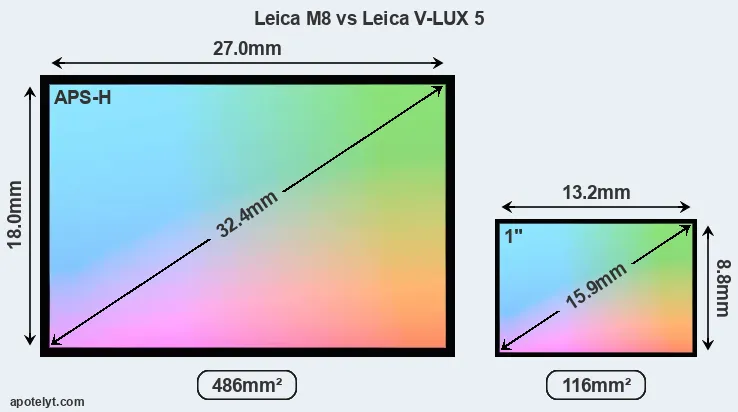

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica M8 features an APS-H sensor and the Leica V-LUX 5 an one-inch sensor. The sensor area in the V-LUX 5 is 76 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.3 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

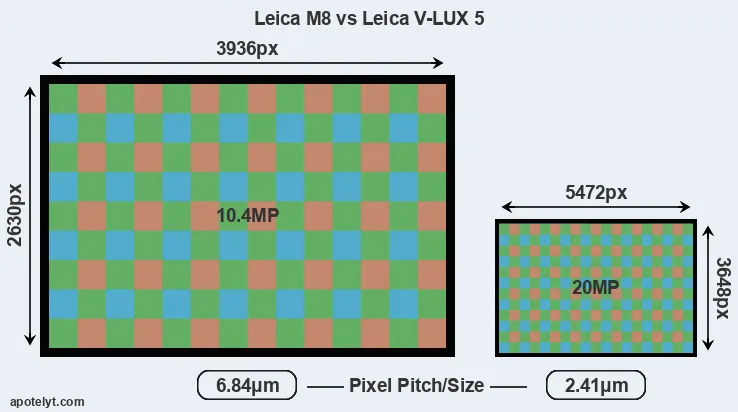

Despite having a smaller sensor, the V-LUX 5 offers a higher resolution of 20 megapixels, compared with 10.4 MP of the M8. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 2.41μm versus 6.84μm for the M8). However, it should be noted that the V-LUX 5 is much more recent (by 12 years and 9 months) than the M8, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the M8 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica V-LUX 5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the V-LUX 5 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Leica M8 are 19.7 x 13.2 inches or 50 x 33.4 cm for good quality, 15.7 x 10.5 inches or 40 x 26.7 cm for very good quality, and 13.1 x 8.8 inches or 33.3 x 22.3 cm for excellent quality prints.

The Leica M8 has a native sensitivity range from ISO 160 to ISO 2500. The corresponding ISO settings for the Leica V-LUX 5 are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

In terms of underlying technology, the M8 is build around a CCD sensor, while the V-LUX 5 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
2.		Leica V-LUX 5	1-inch	20.0	5472	3648	4K/30p	22.2	12.4	584	65
3.		Canon 400D	APS-C	10.1	3888	2592	none	22.1	11.0	664	62
4.		Canon 1100D	APS-C	12.2	4272	2848	720/30p	21.9	11.0	755	62
5.		Leica C-LUX	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	481	64
6.		Leica D-LUX 7	Four Thirds	16.8	4736	3552	4K/30p	22.9	12.8	1002	72
7.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
8.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
9.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
10.		Leica V-LUX Typ 114	1-inch	20.0	5472	3648	4K/30p	21.6	11.7	127	60
11.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
12.		Nikon D80	APS-C	10.0	3872	2592	none	22.1	11.2	524	61
13.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
14.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
15.		Panasonic FZ2000	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
16.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
17.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The V-LUX 5 indeed provides for movie recording, while the M8 does not. The highest resolution format that the V-LUX 5 can use is 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the V-LUX 5 has an electronic viewfinder (2360k dots), while the M8 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The table below summarizes some of the other core capabilities of the Leica M8 and Leica V-LUX 5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
2.		Leica V-LUX 5	2360	n	3.0 / 1240	swivel	Y	1/4000s	12.0/s	Y	Y
3.		Canon 400D	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 1100D	optical	n	2.7 / 230	fixed	n	1/4000s	3.0/s	Y	n
5.		Leica C-LUX	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
6.		Leica D-LUX 7	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
7.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
8.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
9.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
10.		Leica V-LUX Typ 114	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
11.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D80	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
13.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
14.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
15.		Panasonic FZ2000	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
16.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
17.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The V-LUX 5 has a touchscreen, while the M8 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the V-LUX 5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Leica V-LUX 5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M8 and the V-LUX 5 write their files to SDXC cards. The V-LUX 5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the M8 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M8 and Leica V-LUX 5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
2.		Leica V-LUX 5	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon 400D	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 1100D	Y	stereo / mono	-	-	mini	2.0	-	-	-
5.		Leica C-LUX	-	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Leica D-LUX 7	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
9.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
10.		Leica V-LUX Typ 114	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
11.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D80	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
15.		Panasonic FZ2000	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
16.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-
17.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the V-LUX 5 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the M8 does not provide wifi capability.

The V-LUX 5 is a recent model that features in the current product line-up of Leica. In contrast, the M8 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the M8 was succeeded by the Leica M9. Further information on the features and operation of the M8 and V-LUX 5 can be found, respectively, in the Leica M8 Manual (free pdf) or the online Leica V-LUX 5 Manual.

Review summary

So how do things add up? Is the Leica M8 better than the Leica V-LUX 5 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Leica M8:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (139x80mm vs 136x97mm) and thus needs less room in the bag.
• Longer lasting: Can take more shots (550 versus 350) on a single battery charge.
• More heavily discounted: Has been available for much longer (launched in September 2006).

Reasons to prefer the Leica V-LUX 5:

• More detail: Has more megapixels (20 vs 10.4MP), which boosts linear resolution by 39%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can capture not only stills but also 4K/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1240k vs 230k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (12 vs 2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the M8 necessitates an extra lens.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 12 years and 9 months of technical progress since the M8 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the V-LUX 5 is the clear winner of the contest (21 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the M8 or the V-LUX 5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M8	..	..	..	+ +	..	..	Sep 2006	EUR 4 199	ebay.com
2.		Leica V-LUX 5	..	..	..	..	4/5	4/5	Jul 2019	EUR 1 199	amazon.com
3.		Canon 400D	..	+ +	..	+ +	o	4/5	Aug 2006	EUR 799	ebay.com
4.		Canon 1100D	..	80/100	..	69/100	4/5	4.5/5	Feb 2011	EUR 399	ebay.com
5.		Leica C-LUX	..	..	3.5/5	..	4.5/5	4/5	Jun 2018	EUR 970	ebay.com
6.		Leica D-LUX 7	..	..	..	..	..	4.5/5	Nov 2018	EUR 1 149	ebay.com
7.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	EUR 5 499	ebay.com
8.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	EUR 5 499	ebay.com
9.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	EUR 6 499	ebay.com
10.		Leica V-LUX Typ 114	..	..	..	..	..	5/5	Sep 2014	EUR 1 099	ebay.com
11.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	EUR 699	ebay.com
12.		Nikon D80	..	+	..	+ +	o	4.5/5	Aug 2006	EUR 969	ebay.com
13.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	EUR 539	ebay.com
14.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	EUR 699	ebay.com
15.		Panasonic FZ2000	..	+	..	82/100	4.5/5	5/5	Sep 2016	EUR 1 249	amazon.com
16.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	EUR 599	ebay.com
17.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	EUR 1 299	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
