Leica S2 vs Sony NEX-5

The Leica S2 and the Sony Alpha NEX-5 are two digital cameras that were officially introduced, respectively, in September 2008 and May 2010. The S2 is a DSLR, while the NEX-5 is a mirrorless interchangeable lens camera. The cameras are based on a medium format (S2) and an APS-C (NEX-5) sensor. The Leica has a resolution of 37.5 megapixels, whereas the Sony provides 14 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica S2		Sony NEX-5
Digital single lens reflex		Mirrorless system camera
Leica S mount lenses		Sony E mount lenses
37.5 MP – Medium Format sensor		14 MP – APS-C sensor
no Video		1080/60i Video
ISO 80-1,250		ISO 200-12,800
Optical viewfinder		Viewfinder optional
3.0" LCD – 460k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
1.5 shutter flaps per second		7 shutter flaps per second
Weathersealed body		not weather sealed
160 x 120 x 80 mm, 1410 g		111 x 59 x 38 mm, 287 g

Check S2 offers at
ebay.com
Check NEX-5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S2 and the Sony Alpha NEX-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

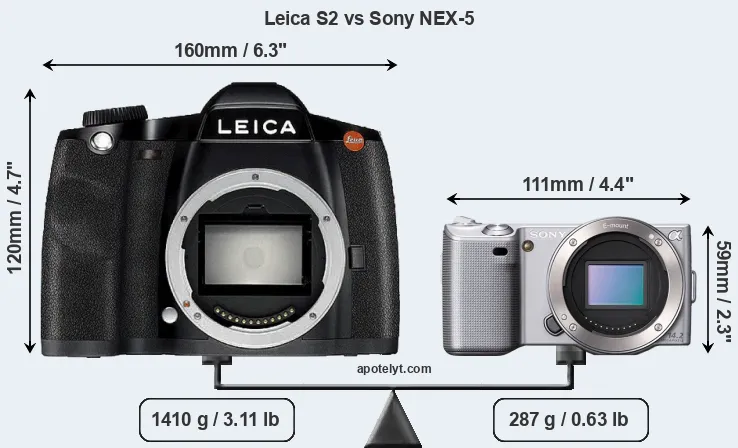

An illustration of the physical size and weight of the Leica S2 and the Sony NEX-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The NEX-5 can be obtained in two different colors (black, silver), while the S2 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony NEX-5 is considerably smaller (66 percent) than the Leica S2. Moreover, the NEX-5 is substantially lighter (80 percent) than the S2. It is worth mentioning in this context that the S2 is splash and dust resistant, while the NEX-5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the S2 gets .. shots out of its Leica BP-PRO1 battery, while the NEX-5 can take 330 images on a single charge of its Sony NP-FW50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
2.		Sony NEX-5	111 mm	59 mm	38 mm	287 g	330	n	May 2010	US$ 699	ebay.com
3.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	US$ 7 999	ebay.com
4.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
5.		Leica S3	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2018	US$ 18 999	ebay.com
6.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	US$ 21 949	ebay.com
7.		Leica S-E Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 16 599	ebay.com
8.		Leica S Typ 007	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 24 499	ebay.com
9.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
10.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
11.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
12.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
13.		Sony NEX-3	117 mm	62 mm	33 mm	297 g	330	n	May 2010	US$ 599	ebay.com
14.		Sony NEX-5N	111 mm	59 mm	38 mm	269 g	460	n	Aug 2011	US$ 699	ebay.com
15.		Sony NEX-5R	111 mm	59 mm	39 mm	276 g	330	n	Aug 2012	US$ 749	ebay.com
16.		Sony NEX-C3	110 mm	60 mm	33 mm	225 g	400	n	Jun 2011	US$ 599	ebay.com
17.		Sony NEX-F3	117 mm	67 mm	42 mm	314 g	470	n	May 2012	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NEX-5 was launched at a markedly lower price (by 97 percent) than the S2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica S2 features a medium format sensor and the Sony NEX-5 an APS-C sensor. The sensor area in the NEX-5 is 73 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.8 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 37.5MP, the S2 offers a higher resolution than the NEX-5 (14MP), but the S2 nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 5.11μm for the NEX-5) due to its larger sensor. However, the NEX-5 is a somewhat more recent model (by 1 year and 7 months) than the S2, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S2 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Sony NEX-5 are 23 x 15.3 inches or 58.3 x 38.8 cm for good quality, 18.4 x 12.2 inches or 46.7 x 31 cm for very good quality, and 15.3 x 10.2 inches or 38.9 x 25.9 cm for excellent quality prints.

The Leica S2 has a native sensitivity range from ISO 80 to ISO 1250. The corresponding ISO settings for the Sony Alpha NEX-5 are ISO 200 to ISO 12800 (no boost).

In terms of underlying technology, the S2 is build around a CCD sensor, while the NEX-5 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
2.		Sony NEX-5	APS-C	14.0	4592	3056	1080/60i	22.2	12.2	796	69
3.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
4.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
5.		Leica S3	Medium Format	64.0	9800	6533	4K/24p	25.6	14.4	3143	98
6.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
7.		Leica S-E Typ 006	Medium Format	37.5	7500	5000	none	25.1	13.7	2763	93
8.		Leica S Typ 007	Medium Format	37.5	7500	5000	4K/24p	25.1	13.7	2763	93
9.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
10.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
11.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
12.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
13.		Sony NEX-3	APS-C	14.0	4592	3056	720/30p	22.1	12.0	830	68
14.		Sony NEX-5N	APS-C	16.0	4912	3264	1080/60i	23.6	12.7	1079	77
15.		Sony NEX-5R	APS-C	16.0	4912	3264	1080/60i	23.7	13.1	910	78
16.		Sony NEX-C3	APS-C	16.0	4912	3264	720/30p	22.7	12.2	1083	73
17.		Sony NEX-F3	APS-C	16.0	4912	3264	1080/60i	22.7	12.3	1114	73
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The NEX-5 indeed provides for movie recording, while the S2 does not. The highest resolution format that the NEX-5 can use is 1080/60i.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the S2 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NEX-5 relies on live view and the rear LCD for framing. That said, the NEX-5 can be equipped with an optional viewfinder – the FDA-SV1. The table below summarizes some of the other core capabilities of the Leica S2 and Sony NEX-5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
2.		Sony NEX-5	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
3.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
4.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
5.		Leica S3	optical	Y	3.0 / 922	fixed	n	1/4000s	3.0/s	n	n
6.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
7.		Leica S-E Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
8.		Leica S Typ 007	optical	Y	3.0 / 922	fixed	n	1/4000s	3.5/s	n	n
9.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
10.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
11.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
12.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
13.		Sony NEX-3	optional	n	3.0 / 920	tilting	n	1/4000s	7.0/s	n	n
14.		Sony NEX-5N	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
15.		Sony NEX-5R	optional	n	3.0 / 920	tilting	Y	1/4000s	10.0/s	n	n
16.		Sony NEX-C3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	n	n
17.		Sony NEX-F3	optional	n	3.0 / 920	tilting	n	1/4000s	5.5/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the S2, but is missing on the NEX-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The S2 writes its imaging data to Compact Flash or SDHC cards, while the NEX-5 uses SDXC or Memory Stick PRO Duo cards. The S2 features dual card slots, which can be very useful in case a memory card fails. In contrast, the NEX-5 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S2 and Sony Alpha NEX-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
2.		Sony NEX-5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
4.		Leica S1	-	- / -	-	-	-	-	-	-	-
5.		Leica S3	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
6.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
7.		Leica S-E Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
8.		Leica S Typ 007	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
9.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
10.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
12.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
13.		Sony NEX-3	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony NEX-5N	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Sony NEX-5R	Y	stereo / mono	-	-	mini	2.0	Y	-	-
16.		Sony NEX-C3	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Sony NEX-F3	Y	stereo / mono	-	-	mini	2.0	-	-	-

Studio photographers will appreciate that the Leica S2 (unlike the NEX-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the S2 and the NEX-5 have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the NEX-5 was followed by the Sony NEX-5N. Further information on the features and operation of the S2 and NEX-5 can be found, respectively, in the Leica S2 Manual (free pdf) or the online Sony NEX-5 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Leica S2 or the Sony NEX-5 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Leica S2:

• More detail: Offers more megapixels (37.5 vs 14MP) with a 63% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been on the market for longer (launched in September 2008).

Arguments in favor of the Sony Alpha NEX-5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can capture not only stills but also 1080/60i video.
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (7 vs 1.5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x59mm vs 160x120mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 1123g or 80 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (97 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 7 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the S2 emerges as the winner of the contest (13 : 11 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica S2 and the Sony NEX-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the S2 or the NEX-5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
2.		Sony NEX-5	3/5	+ +	..	71/100	4.5/5	4/5	May 2010	US$ 699	ebay.com
3.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	US$ 7 999	ebay.com
4.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
5.		Leica S3	..	..	..	..	..	..	Sep 2018	US$ 18 999	ebay.com
6.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	US$ 21 949	ebay.com
7.		Leica S-E Typ 006	..	..	..	..	..	..	Sep 2014	US$ 16 599	ebay.com
8.		Leica S Typ 007	4/5	..	..	..	..	..	Sep 2014	US$ 24 499	ebay.com
9.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
10.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
11.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
12.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
13.		Sony NEX-3	..	..	..	70/100	4.5/5	4/5	May 2010	US$ 599	ebay.com
14.		Sony NEX-5N	3/5	+ +	..	79/100	4.5/5	4.5/5	Aug 2011	US$ 699	ebay.com
15.		Sony NEX-5R	..	..	..	..	4.5/5	4.5/5	Aug 2012	US$ 749	ebay.com
16.		Sony NEX-C3	3/5	+ +	..	74/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
17.		Sony NEX-F3	4/5	..	..	74/100	4.5/5	4.5/5	May 2012	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
