Nikon D500 vs D750

The Nikon D500 and the Nikon D750 are two enthusiast cameras that were announced, respectively, in January 2016 and September 2014. Both are DSLR (Digital Single Lens Reflex) cameras that are based on an APS-C (D500) and a full frame (D750) sensor. The D500 has a resolution of 20.7 megapixels, whereas the D750 provides 24.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D500		Nikon D750
Digital single lens reflex		Digital single lens reflex
Nikon F mount lenses		Nikon F mount lenses
20.7 MP – APS-C sensor		24.2 MP – Full Frame sensor
4K/30p Video		1080/60p Video
ISO 100-51,200 (50 - 1,640,000)		ISO 100-12,800 (50 - 51,200)
Optical viewfinder		Optical viewfinder
3.2" LCD – 2359k dots		3.2" LCD – 1229k dots
Tilting touchscreen		Tilting screen (no touchscreen)
10 shutter flaps per second		6 shutter flaps per second
Weathersealed body		Weathersealed body
1240 shots per battery charge		1230 shots per battery charge
147 x 115 x 81 mm, 860 g		141 x 113 x 78 mm, 750 g

Check D500 offers at
ebay.com
Check D750 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D500 and the Nikon D750? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

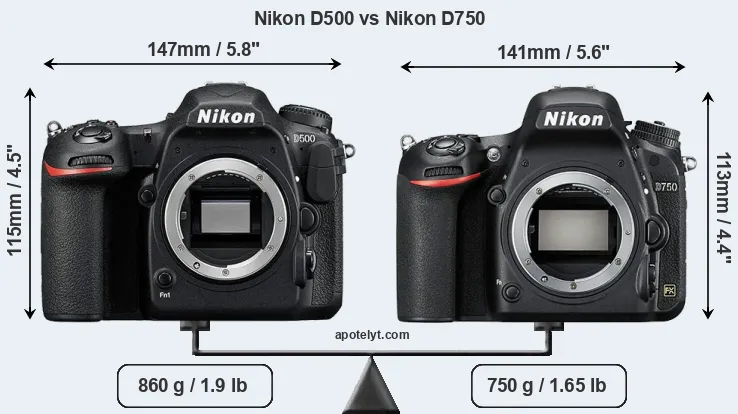

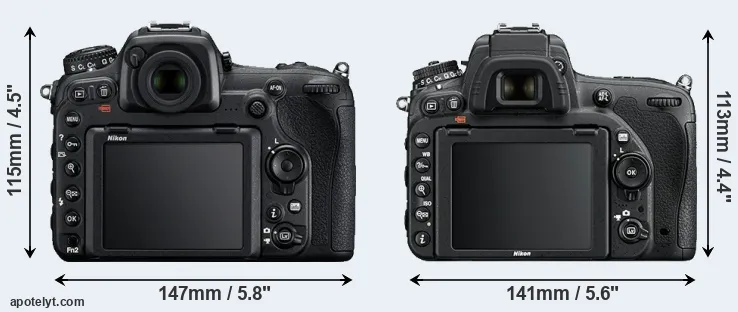

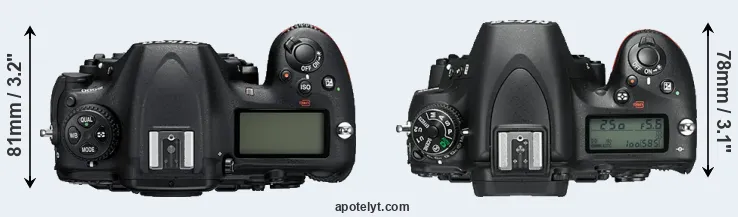

The physical size and weight of the Nikon D500 and the Nikon D750 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D750 is notably smaller (6 percent) than the Nikon D500. Moreover, the D750 is markedly lighter (13 percent) than the D500. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor (as in the D750) will tend to go along with bigger and heavier lenses, while more compact options are available for the smaller-sensor camera (D500). You can compare the optics available in the Nikon Lens Catalog.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	EUR 2 399	ebay.com
2.		Nikon D750	141 mm	113 mm	78 mm	750 g	1230	Y	Sep 2014	EUR 2 149	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	EUR 2 099	amazon.com
4.		Canon 80D	139 mm	105 mm	79 mm	730 g	960	Y	Feb 2016	EUR 1 285	ebay.com
5.		Nikon D300S	147 mm	115 mm	81 mm	938 g	950	Y	Jul 2009	EUR 1 399	ebay.com
6.		Nikon D600	141 mm	113 mm	82 mm	850 g	900	Y	Sep 2012	EUR 2 149	ebay.com
7.		Nikon D610	141 mm	113 mm	82 mm	850 g	900	Y	Oct 2013	EUR 1 949	ebay.com
8.		Nikon D7100	136 mm	107 mm	76 mm	765 g	950	Y	Feb 2013	EUR 1 179	ebay.com
9.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	EUR 1 179	ebay.com
10.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	EUR 1 499	amazon.com
11.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	EUR 2 999	ebay.com
12.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	EUR 1 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The D500 was launched at a somewhat lower price (by 13 percent) than the D750, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

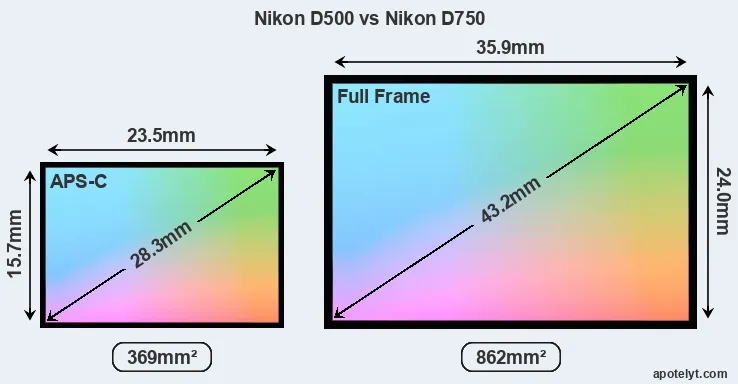

Of the two cameras under consideration, the Nikon D500 features an APS-C sensor and the Nikon D750 a full frame sensor. The sensor area in the D750 is 134 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the D500 uses a more advanced image processing engine (EXPEED 5) than the D750 (EXPEED 4), with benefits for noise reduction, color accuracy, and processing speed.

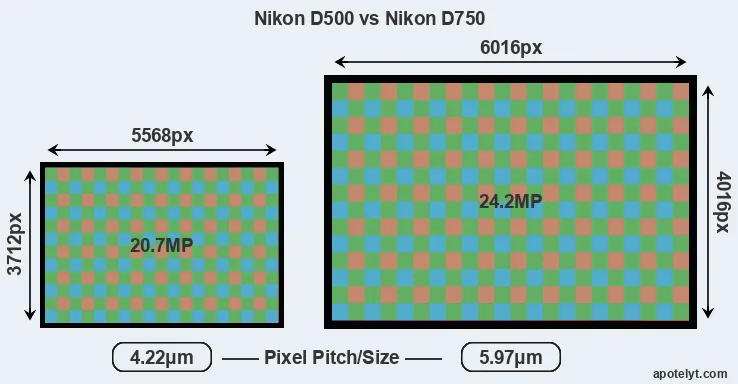

With 24.2MP, the D750 offers a higher resolution than the D500 (20.7MP), but the D750 nevertheless has larger individual pixels (pixel pitch of 5.97μm versus 4.22μm for the D500) due to its larger sensor. However, the D500 is a somewhat more recent model (by 1 year and 3 months) than the D750, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the D500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D750 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D750 for good quality output (200 dots per inch) amounts to 30.1 x 20.1 inches or 76.4 x 51 cm, for very good quality (250 dpi) 24.1 x 16.1 inches or 61.1 x 40.8 cm, and for excellent quality (300 dpi) 20.1 x 13.4 inches or 50.9 x 34 cm. The corresponding values for the Nikon D500 are 27.8 x 18.6 inches or 70.7 x 47.1 cm for good quality, 22.3 x 14.8 inches or 56.6 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.1 x 31.4 cm for excellent quality prints.

The Nikon D500 has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-1640000. The corresponding ISO settings for the Nikon D750 are ISO 100 to ISO 12800, with the possibility to increase the ISO range to 50-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the D750 has a markedly higher DXO score than the D500 (overall score 10 points higher), which will translate into better image quality. The advantage is based on 0.8 bits higher color depth, 0.5 EV in additional dynamic range, and 1.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
2.		Nikon D750	Full Frame	24.2	6016	4016	1080/60p	24.8	14.5	2956	93
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Canon 80D	APS-C	24.0	6000	4000	1080/60p	23.6	13.2	1135	79
5.		Nikon D300S	APS-C	12.2	4288	2848	720/24p	22.5	12.2	787	70
6.		Nikon D600	Full Frame	24.2	6016	4016	1080/30p	25.1	14.2	2980	94
7.		Nikon D610	Full Frame	24.2	6016	4016	1080/30p	25.1	14.4	2925	94
8.		Nikon D7100	APS-C	24.0	6000	4000	1080/60p	24.2	13.7	1256	83
9.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
10.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
11.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
12.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the D500 provides a higher video resolution than the D750. It can shoot video footage at 4K/30p, while the D750 is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The D500 and the D750 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the D750 has a higher magnification than the one of the D500 (0.70x vs 0.67x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Nikon D500 and Nikon D750 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
2.		Nikon D750	optical	Y	3.2 / 1229	tilting	n	1/4000s	6.0/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Canon 80D	optical	Y	3.0 / 1040	swivel	Y	1/8000s	7.0/s	Y	n
5.		Nikon D300S	optical	Y	3.0 / 920	fixed	n	1/8000s	7.0/s	Y	n
6.		Nikon D600	optical	Y	3.0 / 921	fixed	n	1/4000s	5.5/s	Y	n
7.		Nikon D610	optical	Y	3.2 / 921	fixed	n	1/4000s	6.0/s	Y	n
8.		Nikon D7100	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
9.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
10.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
11.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
12.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The D500 has a touchscreen, while the D750 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Nikon D500 and the Nikon D750 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The D500 writes its imaging data to SDXC or XQD cards, while the D750 uses SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. The D500 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the D750 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D500 and Nikon D750 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
2.		Nikon D750	Y	stereo / mono	Y	Y	mini	2.0	Y	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 80D	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
5.		Nikon D300S	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Nikon D600	Y	mono / mono	Y	Y	mini	2.0	-	-	-
7.		Nikon D610	Y	mono / mono	Y	Y	mini	2.0	-	-	-
8.		Nikon D7100	Y	stereo / mono	Y	Y	mini	2.0	-	-	-
9.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
10.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y
11.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
12.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the D500 and the D750 have been discontinued, but can regularly be found used on ebay. The D750 was replaced by the Nikon D780, while the D500 does not have a direct successor. Further information on the features and operation of the D500 and D750 can be found, respectively, in the Nikon D500 Manual (free pdf) or the online Nikon D750 Manual.

Review summary

So what conclusions can be drawn? Is the Nikon D500 better than the Nikon D750 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Nikon D500:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better jpgs: Has a more modern image processing engine (EXPEED 5 vs EXPEED 4).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More detailed LCD: Has a higher resolution rear screen (2359k vs 1229k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (10 vs 6 flaps/sec) to capture the decisive moment.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More affordable: Was introduced into a lower priced segment (13 percent cheaper at launch).
• More modern: Is somewhat more recent (announced 1 year and 3 months after the D750).

Arguments in favor of the Nikon D750:

• More detail: Has more megapixels (24.2 vs 20.7MP), which boosts linear resolution by 8%.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores markedly higher (10 points) in the DXO overall evaluation.
• Better low-light sensitivity: Can shoot in dim conditions (1.2 stops ISO advantage).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.67x).
• Less heavy: Has a lower weight (by 110g or 13 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More heavily discounted: Has been on the market for longer (launched in September 2014).

If the number of relative strengths (bullet points above) is taken as a guide, the D500 is the clear winner of the match-up (13 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D500 and the Nikon D750 place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the D500 or the D750 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	EUR 2 399	ebay.com
2.		Nikon D750	5/5	+ +	4/5	90/100	4.5/5	4.5/5	Sep 2014	EUR 2 149	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	EUR 2 099	amazon.com
4.		Canon 80D	4/5	+ +	4.5/5	84/100	4.5/5	4.5/5	Feb 2016	EUR 1 285	ebay.com
5.		Nikon D300S	5/5	+ +	..	82/100	4/5	4.5/5	Jul 2009	EUR 1 399	ebay.com
6.		Nikon D600	4/5	+ +	..	87/100	5/5	4.5/5	Sep 2012	EUR 2 149	ebay.com
7.		Nikon D610	4/5	+ +	..	87/100	4.5/5	4.5/5	Oct 2013	EUR 1 949	ebay.com
8.		Nikon D7100	5/5	+ +	..	85/100	4.5/5	4.5/5	Feb 2013	EUR 1 179	ebay.com
9.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	EUR 1 179	ebay.com
10.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	EUR 1 499	amazon.com
11.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	EUR 2 999	ebay.com
12.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	EUR 1 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
