Olympus E-520 vs Panasonic G10

The Olympus E-520 and the Panasonic Lumix DMC-G10 are two digital cameras that were announced, respectively, in May 2008 and March 2010. The E-520 is a DSLR, while the G10 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The Olympus has a resolution of 10 megapixels, whereas the Panasonic provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-520		Panasonic G10
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		12 MP – Four Thirds sensor
no Video		720/30p Video
ISO 100-1,600		ISO 100-6,400
Optical viewfinder		Electronic viewfinder (202k dots)
2.7" LCD – 215k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
3.5 shutter flaps per second		2.6 shutter flaps per second
In-body stabilization		Lens stabilization only
750 shots per battery charge		380 shots per battery charge
136 x 92 x 68 mm, 535 g		124 x 84 x 74 mm, 388 g

Check E-520 offers at
ebay.com
Check G10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-520 and the Panasonic Lumix DMC-G10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

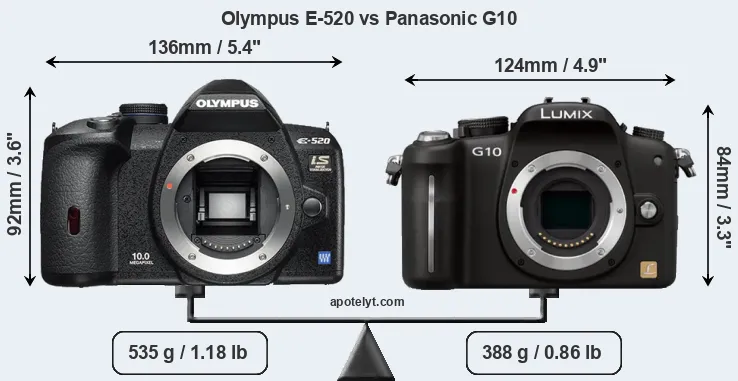

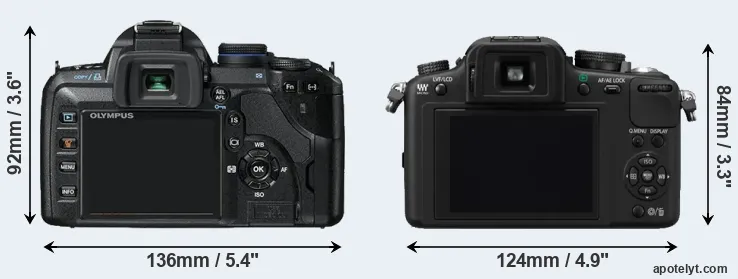

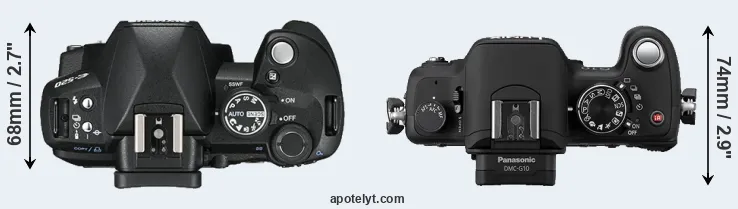

The side-by-side display below illustrates the physical size and weight of the Olympus E-520 and the Panasonic G10. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic G10 is notably smaller (17 percent) than the Olympus E-520. Moreover, the G10 is markedly lighter (27 percent) than the E-520. In this context, it is worth noting that neither the E-520 nor the G10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-520) and the Micro Four Thirds Lens Catalog (G10). Mirrorless cameras, such as the G10, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-520 gets 750 shots out of its Olympus BLM-1 battery, while the G10 can take 380 images on a single charge of its Panasonic DMW-BLB13 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
2.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
3.		Olympus E-30	142 mm	108 mm	75 mm	701 g	750	n	Nov 2008	US$ 1 299	ebay.com
4.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
5.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
6.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
7.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
8.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
10.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
11.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
12.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	US$ 599	ebay.com
13.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
14.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
15.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	US$ 499	ebay.com
16.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The G10 was launched at a markedly lower price (by 29 percent) than the E-520, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

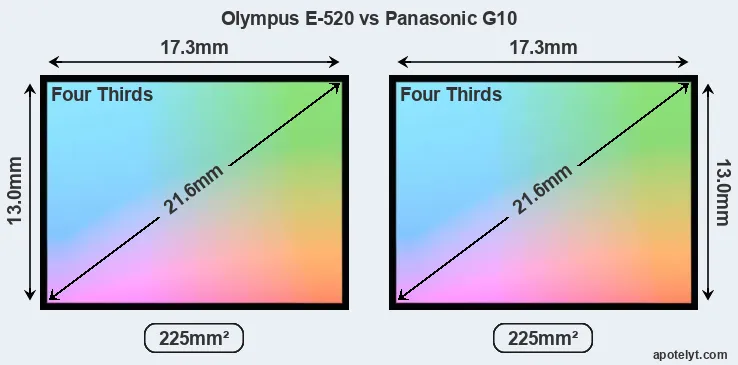

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

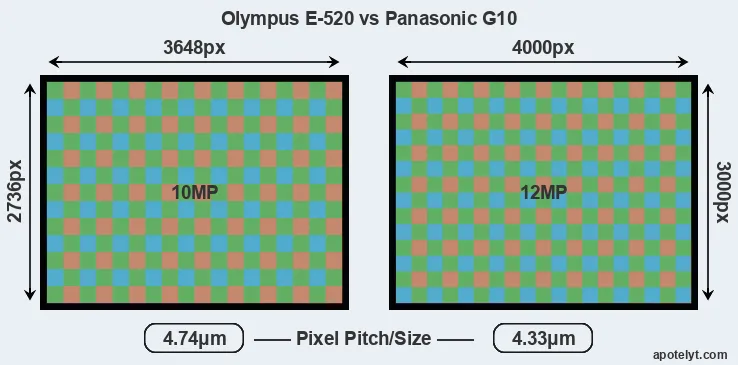

While the two cameras under review share the same sensor size, the G10 offers a higher resolution of 12 megapixels, compared with 10 MP of the E-520. This megapixels advantage translates into a 10 percent gain in linear resolution. On the other hand, these sensor specs imply that the G10 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.33μm versus 4.74μm for the E-520). However, it should be noted that the G10 is a somewhat more recent model (by 1 year and 9 months) than the E-520, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size.

The resolution advantage of the Panasonic G10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G10 for good quality output (200 dots per inch) amounts to 20 x 15 inches or 50.8 x 38.1 cm, for very good quality (250 dpi) 16 x 12 inches or 40.6 x 30.5 cm, and for excellent quality (300 dpi) 13.3 x 10 inches or 33.9 x 25.4 cm. The corresponding values for the Olympus E-520 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-520 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Panasonic Lumix DMC-G10 are ISO 100 to ISO 6400 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
2.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
3.		Olympus E-30	Four Thirds	12.2	4032	3024	none	21.3	10.4	530	55
4.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
5.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
6.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
7.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
8.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
11.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
12.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
13.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
14.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
15.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
16.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55

Many modern cameras cannot only take still pictures, but also record videos. The G10 indeed provides for movie recording, while the E-520 does not. The highest resolution format that the G10 can use is 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the G10 has an electronic viewfinder (202k dots), while the E-520 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the G10 offers a wider field of view (100%) than the one in the E-520 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the G10 has a higher magnification (0.52x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Olympus E-520 and Panasonic G10 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
2.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
3.		Olympus E-30	optical	Y	2.7 / 230	swivel	n	1/8000s	5.0/s	Y	Y
4.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
6.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
8.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
11.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
12.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
14.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
15.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
16.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-520 and the G10 is in-body image stabilization (IBIS). The E-520 reduces the risk of handshake-induced blur with all attached lenses, while the G10 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The E-520 writes its imaging data to Compact Flash or xD Picture cards, while the G10 uses SDXC cards. The E-520 features dual card slots, which can be very useful in case a memory card fails. In contrast, the G10 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-520 and Panasonic Lumix DMC-G10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
2.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
3.		Olympus E-30	Y	- / -	-	-	-	2.0	-	-	-
4.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
13.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

Both the E-520 and the G10 have been discontinued, but can regularly be found used on ebay. The G10 was replaced by the Panasonic G3, while the E-520 does not have a direct successor. Further information on the features and operation of the E-520 and G10 can be found, respectively, in the Olympus E-520 Manual (free pdf) or the online Panasonic G10 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-520 and the Panasonic G10? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Olympus E-520:

• Better low-light sensitivity: Requires less light for good images (0.4 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Faster burst: Shoots at higher frequency (3.5 vs 2.6 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (750 versus 380) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been on the market for longer (launched in May 2008).

Advantages of the Panasonic Lumix DMC-G10:

• More detail: Has more megapixels (12 vs 10MP), which boosts linear resolution by 10%.
• Broader imaging potential: Can capture not only stills but also 720/30p video.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.52x vs 0.46x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 215k dots).
• More compact: Is smaller (124x84mm vs 136x92mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 147g or 27 percent) and is thus easier to take along.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More affordable: Was introduced into a lower priced category (29 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 9 months) more recently.

If the count of individual advantages (bullet points above) is taken as a guide, the G10 is the clear winner of the contest (12 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-520 and the Panasonic G10 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-520 or the G10. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
2.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
3.		Olympus E-30	..	..	..	71/100	4.5/5	4/5	Nov 2008	US$ 1 299	ebay.com
4.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
5.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
6.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
7.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
8.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
10.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
11.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
12.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	US$ 599	ebay.com
13.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
14.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
15.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	US$ 499	ebay.com
16.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
