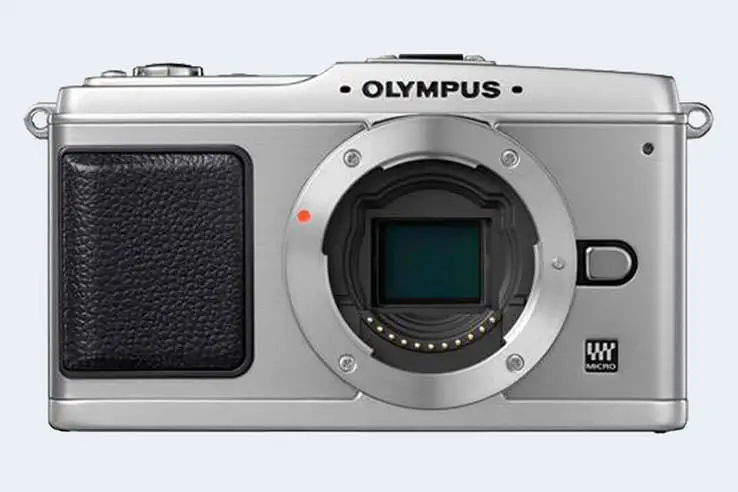

Olympus E-P1 Comparison Review
The Olympus PEN E-P1 is a mirrorless interchangeable lens camera that was revealed to the public in June 2009 and is equipped with a Four Thirds sensor. It offers a resolution of 12.2 megapixel.
Is the Olympus E-P1 a good camera? The E-P1 has a Camera Elo of 1170. This rating puts the E-P1 below average of all mirrorless interchangeable lens cameras. In terms of its sensor size category (Four Thirds cameras), the E-P1 also ranks below average. Based on its within category standings, the camera earns a 2.5-star performance rating. – Well, the Olympus E-P1 is more than 15 years old, and there have been many other good digital cameras released since 2009.
Olympus E-P1 |
---|
Mirrorless system camera |
Micro Four Thirds lenses |
12.2 MP, Four Thirds Sensor |
720/30p Video |
ISO 100 - 6 400 |
no viewfinder, LCD framing |
3.0 LCD, 230k dots |
Fixed screen (not touch-sensitive) |
3 shutter flaps per second |
In-body stabilization |
300 shots per battery charge |
121 x 70 x 36 mm, 355 g |
Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.
Body comparison with a credit card
The physical dimensions of the Olympus E-P1 relative to a credit card are illustrated in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All width, height and depth dimensions are rounded to the nearest millimeter.
The table below summarizes the key physical specs of the Olympus E-P1 alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.
Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-P1 | 121 mm | 70 mm | 36 mm | 355 g | 300 | n | Jun 2009 | US$ 799 | ebay.com | |
2. | Olympus E-520 | 136 mm | 92 mm | 68 mm | 535 g | 750 | n | May 2008 | US$ 699 | ebay.com | |
3. | Olympus E-620 | 130 mm | 94 mm | 60 mm | 521 g | 500 | n | Feb 2009 | US$ 699 | ebay.com | |
4. | Olympus E-P2 | 121 mm | 70 mm | 36 mm | 355 g | 300 | n | Nov 2009 | US$ 799 | ebay.com | |
5. | Olympus E-P3 | 122 mm | 69 mm | 34 mm | 369 g | 330 | n | Jun 2011 | US$ 799 | ebay.com | |
6. | Olympus E-PL1 | 115 mm | 72 mm | 42 mm | 334 g | 290 | n | Feb 2010 | US$ 599 | ebay.com | |
7. | Olympus E-PL2 | 114 mm | 72 mm | 42 mm | 362 g | 280 | n | Jan 2011 | US$ 599 | ebay.com | |
8. | Olympus E-PL3 | 110 mm | 64 mm | 37 mm | 313 g | 300 | n | Jun 2011 | US$ 599 | ebay.com | |
9. | Panasonic G10 | 124 mm | 84 mm | 74 mm | 388 g | 380 | n | Mar 2010 | US$ 499 | ebay.com | |
10. | Panasonic GF1 | 119 mm | 71 mm | 36 mm | 385 g | 380 | n | Sep 2009 | US$ 749 | ebay.com | |
11. | Panasonic GH1 | 124 mm | 90 mm | 45 mm | 385 g | 300 | n | Mar 2009 | US$ 899 | ebay.com | |
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-P1 was launched in the US market at a price of $799. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison with a 35mm slide
The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tent to lead to bigger and heavier cameras and lenses.
The Olympus E-P1 features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-P1 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.
Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.
Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-P1 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.4 | 10.4 | 536 | 55 | |
2. | Olympus E-520 | Four Thirds | 10.0 | 3648 | 2736 | none | 21.4 | 10.4 | 548 | 55 | |
3. | Olympus E-620 | Four Thirds | 12.2 | 4032 | 3024 | none | 21.3 | 10.3 | 536 | 55 | |
4. | Olympus E-P2 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.5 | 10.4 | 505 | 56 | |
5. | Olympus E-P3 | Four Thirds | 12.2 | 4032 | 3024 | 1080/60i | 20.8 | 10.1 | 536 | 51 | |
6. | Olympus E-PL1 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.5 | 10.1 | 487 | 54 | |
7. | Olympus E-PL2 | Four Thirds | 12.2 | 4032 | 3024 | 720/30p | 21.4 | 10.2 | 573 | 55 | |
8. | Olympus E-PL3 | Four Thirds | 12.2 | 4032 | 3024 | 1080/60i | 20.9 | 10.3 | 499 | 52 | |
9. | Panasonic G10 | Four Thirds | 12.0 | 4000 | 3000 | 720/30p | 21.2 | 10.1 | 411 | 52 | |
10. | Panasonic GF1 | Four Thirds | 12.0 | 4000 | 3000 | 720/30p | 21.2 | 10.3 | 513 | 54 | |
11. | Panasonic GH1 | Four Thirds | 12.0 | 4000 | 3000 | 1080/24p | 21.6 | 11.6 | 772 | 64 |
Many modern cameras are not only capable of taking still images, but can also record movies. The E-P1 indeed provides movie recording capabilities. The highest resolution format that the E-P1 can use is 720/30p.
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. The tables below summarize some of the other core capabilities of the Olympus E-P1 in connection with corresponding information for a sample of similar cameras.
Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-P1 | none | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | n | Y | |
2. | Olympus E-520 | optical | n | 2.7 / 215 | fixed | n | 1/4000s | 3.5/s | Y | Y | |
3. | Olympus E-620 | optical | n | 2.7 / 230 | swivel | n | 1/4000s | 4.0/s | Y | Y | |
4. | Olympus E-P2 | optional | n | 3.0 / 230 | fixed | n | 1/4000s | 3.0/s | n | Y | |
5. | Olympus E-P3 | optional | n | 3.0 / 614 | fixed | Y | 1/4000s | 3.0/s | Y | Y | |
6. | Olympus E-PL1 | optional | n | 2.7 / 230 | fixed | n | 1/2000s | 3.0/s | Y | Y | |
7. | Olympus E-PL2 | optional | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | Y | |
8. | Olympus E-PL3 | optional | n | 3.0 / 460 | tilting | n | 1/4000s | 5.5/s | n | Y | |
9. | Panasonic G10 | 202 | n | 3.0 / 460 | fixed | n | 1/4000s | 2.6/s | Y | n | |
10. | Panasonic GF1 | optional | n | 3.0 / 460 | fixed | n | 1/4000s | 3.0/s | Y | n | |
11. | Panasonic GH1 | 1440 | n | 3.0 / 460 | swivel | n | 1/4000s | 3.0/s | Y | n | |
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. |
One feature that differentiates the E-P1 from many older cameras is in-body image stabilization (IBIS). The E-P1 reduces the risk of handshake-induced blur with all attached lenses, while cameras without IBIS have to rely on optical image stabilization in OIS-equipped lenses to achieve the same effect.
Connection comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.
Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-P1 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
2. | Olympus E-520 | Y | - / - | - | - | - | 2.0 | - | - | - | |
3. | Olympus E-620 | Y | - / - | - | - | - | 2.0 | - | - | - | |
4. | Olympus E-P2 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
5. | Olympus E-P3 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
6. | Olympus E-PL1 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
7. | Olympus E-PL2 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
8. | Olympus E-PL3 | Y | stereo / - | - | - | mini | 2.0 | - | - | - | |
9. | Panasonic G10 | Y | mono / - | - | - | mini | 2.0 | - | - | - | |
10. | Panasonic GF1 | Y | mono / mono | - | - | mini | 2.0 | - | - | - | |
11. | Panasonic GH1 | Y | stereo / - | Y | - | mini | 2.0 | - | - | - |
Further information on the features and operation of the E-P1 can be found in the free online Olympus E-P1 Manual or on the Olympus support site.
Expert reviews
While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-P1 handle or perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is why hands-on reviews by experts are important. The adjacent table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).
Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
---|---|---|---|---|---|---|---|---|---|---|---|
1. | Olympus E-P1 | .. | + | .. | 66/100 | 4/5 | 4.5/5 | Jun 2009 | US$ 799 | ebay.com | |
2. | Olympus E-520 | .. | 87/100 | .. | + + | 4.5/5 | 4.5/5 | May 2008 | US$ 699 | ebay.com | |
3. | Olympus E-620 | 3/5 | 88/100 | .. | 72/100 | 4.5/5 | 5/5 | Feb 2009 | US$ 699 | ebay.com | |
4. | Olympus E-P2 | 3/5 | + | .. | 69/100 | 4/5 | 4.5/5 | Nov 2009 | US$ 799 | ebay.com | |
5. | Olympus E-P3 | .. | 83/100 | .. | 74/100 | 4.5/5 | 4.5/5 | Jun 2011 | US$ 799 | ebay.com | |
6. | Olympus E-PL1 | .. | 86/100 | .. | 69/100 | 4/5 | 4.5/5 | Feb 2010 | US$ 599 | ebay.com | |
7. | Olympus E-PL2 | 3/5 | 83/100 | .. | 71/100 | 4.5/5 | 4.5/5 | Jan 2011 | US$ 599 | ebay.com | |
8. | Olympus E-PL3 | 3/5 | + + | .. | 72/100 | 4.5/5 | 4/5 | Jun 2011 | US$ 599 | ebay.com | |
9. | Panasonic G10 | 3/5 | .. | .. | 70/100 | 4/5 | 4/5 | Mar 2010 | US$ 499 | ebay.com | |
10. | Panasonic GF1 | .. | 85/100 | .. | 69/100 | 4.5/5 | 4.5/5 | Sep 2009 | US$ 749 | ebay.com | |
11. | Panasonic GH1 | .. | + + | .. | 72/100 | 4.5/5 | 4.5/5 | Mar 2009 | US$ 899 | ebay.com | |
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. |
The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
Olympus E-P1 FAQ
Below are some additional questions and answers concerning some particular features of the E-P1.
What technology is the imaging sensor in the Olympus E-P1 based on?
The camera is build around a CMOS (Complementary Metal–Oxide–Semiconductor) sensor.
Which image processing chip is used in the Olympus E-P1 to convert the raw signal into an image file and perform noise reduction and image sharpening?
Olympus equipped the E-P1 with the TruePic V image processor.
What is the ISO sensitivity range of the Olympus E-P1?
The camera has a native sensitivity range from ISO 100 to ISO 6400.
What is the life expectancy of the shutter in the Olympus PEN E-P1?
Olympus does not publish a shutter rating for the E-P1. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.
How do I find the shutter count on my Olympus E-P1?
Olympus embeds the number of shutter actuations in hidden menus. You can check the number of shots that your E-P1 has taken up to now by carefully following the steps described on the Olympus E-P1 shutter count page.
What is the fastest shutter speed that can be used with the Olympus E-P1 for flash photography?
The E-P1's flash sync speed is 1/180 sec.
Which battery does the Olympus E-P1 use?
The camera gets its power from the Olympus BLS-1 (here at amazon), which is a rechargeable Lithium-Ion power pack.
Camera to camera comparisons
In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.
- Canon 100D vs Olympus E-P1
- Canon 5D Mark IV vs Olympus E-P1
- Canon SX60 vs Olympus E-P1
- Canon T6 vs Olympus E-P1
- Canon T6s vs Olympus E-P1
- Kodak AZ901 vs Olympus E-P1
- Leica X-U Typ 113 vs Olympus E-P1
- Nikon B500 vs Olympus E-P1
- Nikon D2H vs Olympus E-P1
- Nikon D70 vs Olympus E-P1
- Olympus E-P1 vs Panasonic S1H
- Olympus E-P1 vs Sony A7 IV
Camera Model | Olympus E-P1 | |
---|---|---|
Camera Type | Mirrorless system camera | |
Camera Lens | Micro Four Thirds lenses | |
Launch Date | June 2009 | |
Launch Price | USD 799 | |
Sensor Specs | ||
Sensor Technology | CMOS | |
Sensor Format | Four Thirds Sensor | |
Sensor Size | 17.3 x 13.0 mm | |
Sensor Area | 225 mm2 | |
Sensor Diagonal | 21.6 mm | |
Crop Factor | 2.0x | |
Sensor Resolution | 12.2 Megapixels | |
Image Resolution | 4 032 x 3 024 pixels | |
Pixel Pitch | 4.29 μm | |
Pixel Density | 5.42 MP/cm2 | |
Moiré control | Anti-Alias filter | |
Movie Capability | 720/30p Video | |
ISO Setting | 100 - 6 400 ISO | |
Image Processor | TruePic V | |
DXO Sensor Quality (score) | 55 | |
DXO Color Depth (bits) | 21.4 | |
DXO Dynamic Range (EV) | 10.4 | |
DXO Low Light (ISO) | 536 | |
Screen Specs | ||
Viewfinder Type | No viewfinder | |
Top-Level Screen | no Top Display | |
LCD Framing | Live View | |
LCD Size | 3.0 inch | |
LCD Resolution | 230k dots | |
LCD Attachment | Fixed screen | |
Touch Input | No touchscreen | |
Shooting Specs | ||
Focus System | Contrast-detect AF | |
Manual Focusing Aid | no Peaking Feature | |
Maximum Shutter Speed | 1/4000s | |
Continuous Shooting | 3 shutter flaps/s | |
Shutter Life Expectancy | 100 000 actuations | |
Silent Shooting | no E-Shutter | |
Time Lapse Photography | no Intervalometer | |
Image Stabilization | In-body stabilization | |
Fill Flash | no On-Board Flash | |
Storage Medium | SDHC cards | |
Single or Dual Card Slots | Single card slot | |
UHS card support | no | |
Connectivity Specs | ||
External Flash | Hotshoe | |
USB Connector | USB 2.0 | |
HDMI Port | mini HDMI | |
Wifi Support | no Wifi | |
Body Specs | ||
Battery Type | Olympus BLS-1 power pack | |
Battery Life (CIPA) | 300 shots per charge | |
Body Dimensions |
121 x 70 x 36 mm (4.8 x 2.8 x 1.4 in) |
|
Camera Weight | 355 g (12.5 oz) |
