Olympus E-PL2 Comparison Review

The Olympus PEN E-PL2 is a mirrorless interchangeable lens camera that was revealed to the public in January 2011 and is equipped with a Four Thirds sensor. It offers a resolution of 12.2 megapixel.

camera

Is the Olympus E-PL2 a good camera? The E-PL2 has a Camera Elo of 1323. This rating puts the E-PL2 below average of all mirrorless interchangeable lens cameras. In terms of its sensor size category (Four Thirds cameras), the E-PL2 also ranks below average. Based on its within category standings, the camera earns a 2.5-star performance rating. – Well, the Olympus E-PL2 is more than 13 years old, and there have been many other good digital cameras released since 2011.

Headline Specifications
Olympus E-PL2
Mirrorless system camera
Micro Four Thirds lenses
12.2 MP, Four Thirds Sensor
720/30p Video
ISO 200 - 6 400
Viewfinder optional
3.0 LCD, 460k dots
Fixed screen (not touch-sensitive)
3 shutter flaps per second
In-body stabilization
280 shots per battery charge
114 x 72 x 42 mm, 362 g

Read on to find out more about the camera's size, sensor, features, reception by expert reviewers, and how it compares to other digital cameras.

ad

Body comparison with a credit card

An illustration of the physical dimensions of the Olympus E-PL2 vis-à-vis a credit card is provided in the side-by-side display below. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

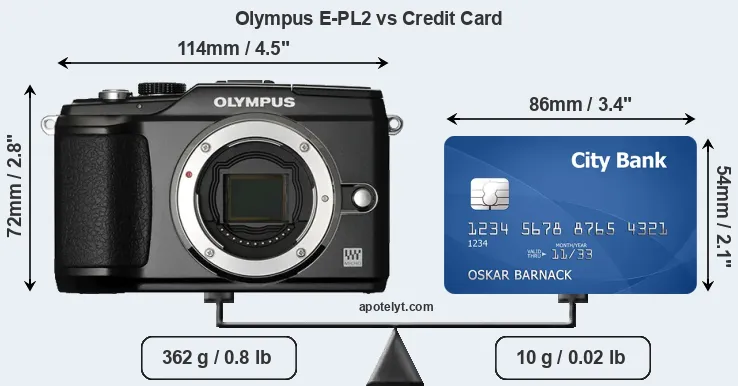

Olympus E-PL2 vs credit card front

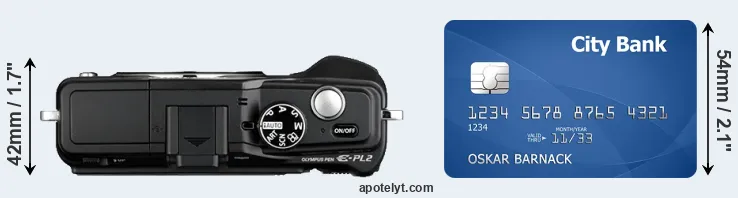

E-PL2 versus credit card top view
E-PL2 and credit card rear side

The table below summarizes the key physical specs of the Olympus E-PL2 alongside a set of similar cameras. If you want to review a particular camera pair side-by-side, just move across to the CAM-parator tool and choose from the broad selection of possible comparisons there.

scroll hint
Body Specifications
    Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-PL2 114 mm 72 mm 42 mm 362 g 280 n Jan 2011 US$ 599ebay.com
2.

Olympus E-P1 121 mm 70 mm 36 mm 355 g 300 n Jun 2009 US$ 799ebay.com
3.

Olympus E-P2 121 mm 70 mm 36 mm 355 g 300 n Nov 2009 US$ 799ebay.com
4.

Olympus E-P3 122 mm 69 mm 34 mm 369 g 330 n Jun 2011 US$ 799ebay.com
5.

Olympus E-PL1 115 mm 72 mm 42 mm 334 g 290 n Feb 2010 US$ 599ebay.com
6.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 n Jun 2011 US$ 599ebay.com
7.

Olympus E-PL5 111 mm 64 mm 38 mm 325 g 360 n Sep 2012 US$ 599ebay.com
8.

Olympus E-PM1 110 mm 64 mm 34 mm 265 g 330 n Jun 2011 US$ 499ebay.com
9.

Olympus XZ-2 113 mm 65 mm 48 mm 346 g 340 n Sep 2012 US$ 599ebay.com
10.

Panasonic G10 124 mm 84 mm 74 mm 388 g 380 n Mar 2010 US$ 499ebay.com
11.

Panasonic GF2 113 mm 68 mm 33 mm 310 g 300 n Nov 2010 US$ 549ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The listed prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The Olympus E-PL2 was launched in the US market at a price of $599. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

logo
Check E-PL2 offers at
ebay.com

Sensor comparison with a 35mm slide

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

The Olympus E-PL2 features a Four Thirds sensor and has a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the Olympus E-PL2 among the medium-sized sensor cameras that aim to strike a balance between image quality and portability.

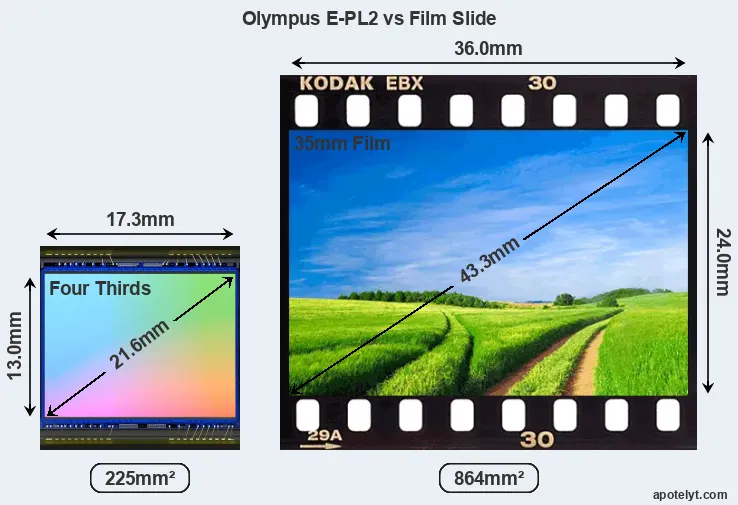

Olympus E-PL2 sensor measures

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of alternative cameras.

scroll hint
Sensor Characteristics
    Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-PL2 Four Thirds 12.2 4032 3024720/30p21.410.257355
2.

Olympus E-P1 Four Thirds 12.2 4032 3024720/30p21.410.453655
3.

Olympus E-P2 Four Thirds 12.2 4032 3024720/30p21.510.450556
4.

Olympus E-P3 Four Thirds 12.2 4032 30241080/60i20.810.153651
5.

Olympus E-PL1 Four Thirds 12.2 4032 3024720/30p21.510.148754
6.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
7.

Olympus E-PL5 Four Thirds 15.9 4608 34561080/30p22.812.388972
8.

Olympus E-PM1 Four Thirds 12.2 4032 30241080/60i21.010.349952
9.

Olympus XZ-2 1/1.7 11.8 3968 29761080/30p20.411.321649
10.

Panasonic G10 Four Thirds 12.0 4000 3000720/30p21.210.141152
11.

Panasonic GF2 Four Thirds 12.0 4000 30001080/60i21.210.350654

Many modern cameras cannot only take still pictures, but also record videos. The E-PL2 indeed provides movie recording capabilities. The highest resolution format that the E-PL2 can use is 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The adjacent tables list some of the other core features of the Olympus E-PL2 along with similar information for a selection of comparators.

scroll hint
Core Features
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-PL2optional n3.0 / 460 fixed n 1/4000s 3.0/s Y Y
2.

Olympus E-P1none n3.0 / 230 fixed n 1/4000s 3.0/s n Y
3.

Olympus E-P2optional n3.0 / 230 fixed n 1/4000s 3.0/s n Y
4.

Olympus E-P3optional n3.0 / 614 fixed Y 1/4000s 3.0/s Y Y
5.

Olympus E-PL1optional n2.7 / 230 fixed n 1/2000s 3.0/s Y Y
6.

Olympus E-PL3optional n3.0 / 460 tilting n 1/4000s 5.5/s n Y
7.

Olympus E-PL5optional n3.0 / 460 tilting Y 1/4000s 8.0/s n Y
8.

Olympus E-PM1optional n3.0 / 460 fixed n 1/4000s 5.5/s n Y
9.

Olympus XZ-2optional n3.0 / 920 tilting Y 1/2000s 5.0/s Y Y
10.

Panasonic G10202 n3.0 / 460 fixed n 1/4000s 2.6/s Y n
11.

Panasonic GF2optional n3.0 / 460 fixed Y 1/4000s 2.6/s Y n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One convenient feature of the E-PL2 is the presence of an on-board flash. While this built-in flash is not very powerful, it can at times be useful as a fill-in light to brighten deep shadow areas.

ad

Connection comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL2 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
    Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-PL2Ystereo / ---mini2.0---
2.

Olympus E-P1Ystereo / ---mini2.0---
3.

Olympus E-P2Ystereo / ---mini2.0---
4.

Olympus E-P3Ystereo / ---mini2.0---
5.

Olympus E-PL1Ystereo / ---mini2.0---
6.

Olympus E-PL3Ystereo / ---mini2.0---
7.

Olympus E-PL5Ystereo / mono--mini2.0---
8.

Olympus E-PM1Ystereo / mono--mini2.0---
9.

Olympus XZ-2Ystereo / mono--mini2.0---
10.

Panasonic G10Ymono / ---mini2.0---
11.

Panasonic GF2Ystereo / mono--mini2.0---

Further information on the features and operation of the E-PL2 can be found in the free online Olympus E-PL2 Manual or on the Olympus support site.

ad

Expert reviews

While the specs-based evaluation of cameras is instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the handling experience and imaging performance when actually working with the E-PL2. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased. This is where reviews by experts come in. The adjacent table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]).

scroll hint
Review Scores
     Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-PL23/583/100..71/1004.5/54.5/5 Jan 2011 US$ 599ebay.com
2.

Olympus E-P1..+..66/1004/54.5/5 Jun 2009 US$ 799ebay.com
3.

Olympus E-P23/5+..69/1004/54.5/5 Nov 2009 US$ 799ebay.com
4.

Olympus E-P3..83/100..74/1004.5/54.5/5 Jun 2011 US$ 799ebay.com
5.

Olympus E-PL1..86/100..69/1004/54.5/5 Feb 2010 US$ 599ebay.com
6.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 US$ 599ebay.com
7.

Olympus E-PL53/5+ +....4.5/54.5/5 Sep 2012 US$ 599ebay.com
8.

Olympus E-PM1..86/100..71/1004.5/54.5/5 Jun 2011 US$ 499ebay.com
9.

Olympus XZ-24/5+....4.5/54.5/5 Sep 2012 US$ 599ebay.com
10.

Panasonic G103/5....70/1004/54/5 Mar 2010 US$ 499ebay.com
11.

Panasonic GF23/582/100..70/1004.5/54.5/5 Nov 2010 US$ 549ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

logo
Check E-PL2 offers at
ebay.com

Olympus E-PL2 FAQ

Below are some additional questions and answers concerning some particular features of the E-PL2.

What type of imaging sensor is used in the Olympus E-PL2?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Olympus E-PL2 to convert the raw signal into an image file and perform noise reduction and image sharpening?

Olympus equipped the E-PL2 with the Truepic V image processor.

What is the ISO sensitivity range of the Olympus E-PL2?

The camera has a native sensitivity range from ISO 200 to ISO 6400.

Can the Olympus E-PL2 be equipped with an optional viewfinder?

Yes, Olympus provides the VF-2 as an accessory (here on amazon) that can be mounted on the hotshoe.

What is the life expectancy of the shutter in the Olympus PEN E-PL2?

Olympus does not publish a shutter rating for the E-PL2. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

How do I find the shutter count on my Olympus E-PL2?

Olympus embeds the number of shutter actuations in hidden menus. You can check the number of shots that your E-PL2 has taken up to now by carefully following the steps described on the Olympus E-PL2 shutter count page.

What is the fastest shutter speed that can be used with the Olympus E-PL2 for flash photography?

The E-PL2's flash sync speed is 1/160 sec.

Which battery does the Olympus E-PL2 use?

The camera gets its power from the Olympus BLS-5 (here at amazon), which is a rechargeable Lithium-Ion power pack.

Camera to camera comparisons

In case you are interested in seeing how this camera compares to another one, just use the search menu below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~
    loader
    ad
    Specifications Summary
    Camera Model Olympus E-PL2
    Camera Type Mirrorless system camera
    Camera Lens Micro Four Thirds lenses
    Launch Date January 2011
    Launch Price USD 599
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 225 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 12.2 Megapixels
    Image Resolution 4 032 x 3 024 pixels
    Pixel Pitch 4.29 μm
    Pixel Density 5.42 MP/cm2
    Moiré control Anti-Alias filter
    Movie Capability 720/30p Video
    ISO Setting 200 - 6 400 ISO
    Image Processor Truepic V
    DXO Sensor Quality (score) 55
    DXO Color Depth (bits) 21.4
    DXO Dynamic Range (EV) 10.2
    DXO Low Light (ISO) 573
    Screen Specs
    Viewfinder Type Viewfinder optional
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 460k dots
    LCD Attachment Fixed screen
    Touch Input No touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing Aidno Peaking Feature
    Maximum Shutter Speed 1/4000s
    Continuous Shooting 3 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent Shootingno E-Shutter
    Time Lapse Photographyno Intervalometer
    Image StabilizationIn-body stabilization
    Fill Flash Built-in Flash
    Storage Medium SDHC cards
    Single or Dual Card Slots Single card slot
    UHS card support no
    Connectivity Specs
    External Flash Hotshoe
    USB Connector USB 2.0
    HDMI Port mini HDMI
    Wifi Support no Wifi
    Body Specs
    Battery Type Olympus BLS-5 power pack
    Battery Life (CIPA)280 shots per charge
    Body Dimensions 114 x 72 x 42 mm
    (4.5 x 2.8 x 1.7 in)
    Camera Weight 362 g (12.8 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
