Olympus E-P1 vs Samsung NX1

The Olympus PEN E-P1 and the Samsung NX1 are two enthusiast cameras that were officially introduced, respectively, in June 2009 and September 2014. Both the E-P1 and the NX1 are mirrorless interchangeable lens cameras that are based on a Four Thirds (E-P1) and an APS-C (NX1) sensor. The Olympus has a resolution of 12.2 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications
Olympus E-P1
versus

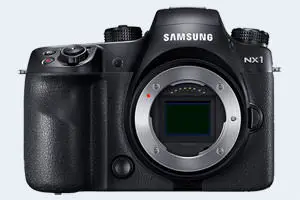

Samsung NX1
Olympus E-P1   Samsung NX1
Mirrorless system camera Mirrorless system camera
Micro Four Thirds lenses Samsung NX mount lenses
12.2 MP – Four Thirds sensor 28 MP – APS-C sensor
720/30p Video 4K/30p Video
ISO 100-6,400 ISO 100-25,600 (100 - 51,200)
No viewfinder, LCD framing Electronic viewfinder (2360k dots)
3.0" LCD – 230k dots 3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive) Tilting touchscreen
3 shutter flaps per second 15 shutter flaps per second
In-body stabilizationLens stabilization only
not weather sealedWeathersealed body
300 shots per battery charge500 shots per battery charge
121 x 70 x 36 mm, 355 g 139 x 102 x 66 mm, 550 g
logo
Check E-P1 offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-P1 and the Samsung NX1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

ad

Body comparison

An illustration of the physical size and weight of the Olympus E-P1 and the Samsung NX1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The E-P1 can be obtained in three different colors (black, silver, white), while the NX1 is only available in black.

Size Olympus E-P1 vs Samsung NX1
Compare E-P1 versus NX1 top
Comparison E-P1 or NX1 rear

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX1 is considerably larger (67 percent) than the Olympus E-P1. Moreover, the NX1 is substantially heavier (55 percent) than the E-P1. It is noteworthy in this context that the NX1 is splash and dust-proof, while the E-P1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX1 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

scroll hint
Body Specifications
  empty Camera
Model
Camera
Width
Camera
Height
Camera
Depth
Camera
Weight
Battery
Life
Weather
Sealing
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-P1 121 mm 70 mm 36 mm 355 g 300 n Jun 2009 US$ 799ebay.com
2.

Samsung NX1 139 mm 102 mm 66 mm 550 g 500 Y Sep 2014 US$ 1 499ebay.com
3.

Fujifilm X-Pro2 141 mm 83 mm 46 mm 495 g 350 Y Jan 2016 US$ 1 699ebay.com
4.

Fujifilm X-T2 133 mm 92 mm 49 mm 507 g 340 Y Jul 2016 US$ 1 599ebay.com
5.

Nikon D5300 125 mm 98 mm 76 mm 480 g 600 n Oct 2013 US$ 799ebay.com
6.

Olympus E-520 136 mm 92 mm 68 mm 535 g 750 n May 2008 US$ 699ebay.com
7.

Olympus E-620 130 mm 94 mm 60 mm 521 g 500 n Feb 2009 US$ 699ebay.com
8.

Olympus E-P2 121 mm 70 mm 36 mm 355 g 300 n Nov 2009 US$ 799ebay.com
9.

Olympus E-P3 122 mm 69 mm 34 mm 369 g 330 n Jun 2011 US$ 799ebay.com
10.

Olympus E-PL1 115 mm 72 mm 42 mm 334 g 290 n Feb 2010 US$ 599ebay.com
11.

Olympus E-PL2 114 mm 72 mm 42 mm 362 g 280 n Jan 2011 US$ 599ebay.com
12.

Olympus E-PL3 110 mm 64 mm 37 mm 313 g 300 n Jun 2011 US$ 599ebay.com
13.

Panasonic G10 124 mm 84 mm 74 mm 388 g 380 n Mar 2010 US$ 499ebay.com
14.

Panasonic GF1 119 mm 71 mm 36 mm 385 g 380 n Sep 2009 US$ 749ebay.com
15.

Panasonic GH1 124 mm 90 mm 45 mm 385 g 300 n Mar 2009 US$ 899ebay.com
16.

Samsung NX500 120 mm 64 mm 43 mm 287 g 370 n Feb 2015 US$ 799ebay.com
17.

Sony A7 127 mm 94 mm 48 mm 474 g 340 Y Oct 2013 US$ 1 699ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The E-P1 was launched at a markedly lower price (by 47 percent) than the NX1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus E-P1 features a Four Thirds sensor and the Samsung NX1 an APS-C sensor. The sensor area in the NX1 is 64 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.5. The sensor in the E-P1 has a native 4:3 aspect ratio, while the one in the NX1 offers a 3:2 aspect.

Olympus E-P1 and Samsung NX1 sensor measures

With 28MP, the NX1 offers a higher resolution than the E-P1 (12.2MP), but the NX1 has smaller individual pixels (pixel pitch of 3.63μm versus 4.29μm for the E-P1). Yet, the NX1 is a much more recent model (by 5 years and 3 months) than the E-P1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the NX1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX1 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Olympus E-P1 are 20.2 x 15.1 inches or 51.2 x 38.4 cm for good quality, 16.1 x 12.1 inches or 41 x 30.7 cm for very good quality, and 13.4 x 10.1 inches or 34.1 x 25.6 cm for excellent quality prints.

The NX1 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Olympus PEN E-P1 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Samsung NX1 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the E-P1 is build around a CMOS sensor, while the NX1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

E-P1 versus NX1 MP

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NX1 offers substantially better image quality than the E-P1 (overall score 28 points higher). The advantage is based on 2.8 bits higher color depth, 2.8 EV in additional dynamic range, and 1.3 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

scroll hint
Sensor Characteristics
  empty Camera
Model
Sensor
Class
Resolution
(MP)
Horiz.
Pixels
Vert.
Pixels
Video
Format
DXO
Portrait
DXO
Landscape
DXO
Sports
DXO
Overall
1.

Olympus E-P1 Four Thirds 12.2 4032 3024720/30p21.410.453655
2.

Samsung NX1 APS-C 28.0 6480 43204K/30p24.213.2136383
3.

Fujifilm X-Pro2 APS-C 24.0 6000 40001080/60p23.713.0160880
4.

Fujifilm X-T2 APS-C 24.0 6000 40004K/30p23.813.1165381
5.

Nikon D5300 APS-C 24.0 6000 40001080/60p24.013.9133883
6.

Olympus E-520 Four Thirds 10.0 3648 2736none21.410.454855
7.

Olympus E-620 Four Thirds 12.2 4032 3024none21.310.353655
8.

Olympus E-P2 Four Thirds 12.2 4032 3024720/30p21.510.450556
9.

Olympus E-P3 Four Thirds 12.2 4032 30241080/60i20.810.153651
10.

Olympus E-PL1 Four Thirds 12.2 4032 3024720/30p21.510.148754
11.

Olympus E-PL2 Four Thirds 12.2 4032 3024720/30p21.410.257355
12.

Olympus E-PL3 Four Thirds 12.2 4032 30241080/60i20.910.349952
13.

Panasonic G10 Four Thirds 12.0 4000 3000720/30p21.210.141152
14.

Panasonic GF1 Four Thirds 12.0 4000 3000720/30p21.210.351354
15.

Panasonic GH1 Four Thirds 12.0 4000 30001080/24p21.611.677264
16.

Samsung NX500 APS-C 28.0 6480 43204K/30p24.813.9137987
17.

Sony A7 Full Frame 24.0 6000 40001080/60p24.814.2224890
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the NX1 provides a better video resolution than the E-P1. It can shoot movie footage at 4K/30p, while the Olympus is limited to 720/30p.

ad

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the NX1 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-P1 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Olympus E-P1, the Samsung NX1, and comparable cameras.

scroll hint
Core Features
  empty Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Max
Shutter
Speed *
Max
Shutter
Flaps *
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Olympus E-P1none n3.0 / 230 fixed n 1/4000s 3.0/s n Y
2.

Samsung NX12360 Y3.0 / 1036 tilting Y 1/8000s 15.0/s Y n
3.

Fujifilm X-Pro22360 n3.0 / 1620 fixed n 1/8000s 8.0/s n n
4.

Fujifilm X-T22360 n3.0 / 1040 full-flex n 1/8000s 8.0/s n n
5.

Nikon D5300optical n3.2 / 1037 swivel n 1/4000s 5.0/s Y n
6.

Olympus E-520optical n2.7 / 215 fixed n 1/4000s 3.5/s Y Y
7.

Olympus E-620optical n2.7 / 230 swivel n 1/4000s 4.0/s Y Y
8.

Olympus E-P2optional n3.0 / 230 fixed n 1/4000s 3.0/s n Y
9.

Olympus E-P3optional n3.0 / 614 fixed Y 1/4000s 3.0/s Y Y
10.

Olympus E-PL1optional n2.7 / 230 fixed n 1/2000s 3.0/s Y Y
11.

Olympus E-PL2optional n3.0 / 460 fixed n 1/4000s 3.0/s Y Y
12.

Olympus E-PL3optional n3.0 / 460 tilting n 1/4000s 5.5/s n Y
13.

Panasonic G10202 n3.0 / 460 fixed n 1/4000s 2.6/s Y n
14.

Panasonic GF1optional n3.0 / 460 fixed n 1/4000s 3.0/s Y n
15.

Panasonic GH11440 n3.0 / 460 swivel n 1/4000s 3.0/s Y n
16.

Samsung NX500none n3.0 / 1036 tilting Y 1/6000s 9.0/s Y n
17.

Sony A72400 n3.0 / 1230 tilting n 1/8000s 5.0/s n n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the E-P1 and the NX1 is in-body image stabilization (IBIS). The E-P1 reduces the risk of handshake-induced blur with all attached lenses, while the NX1 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the NX1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Samsung NX1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-P1 writes its imaging data to SDHC cards, while the NX1 uses SDXC cards. The NX1 supports UHS-II cards on its first slot and UHS-I on its second one, while the E-P1 cannot take advantage of Ultra High Speed SD cards.

ad

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-P1 and Samsung NX1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

scroll hint
Input-Output Connections
  empty Camera
Model
Hotshoe
Port
Internal
Mic / Speaker
Microphone
Port
Headphone
Port
HDMI
Port
USB
Port
WiFi
Support
NFC
Support
Bluetooth
Support
1.

Olympus E-P1Ystereo / ---mini2.0---
2.

Samsung NX1Ystereo / monoYYmicro3.0YYY
3.

Fujifilm X-Pro2Ystereo / monoY-micro2.0Y--
4.

Fujifilm X-T2Ystereo / monoY-micro3.0Y--
5.

Nikon D5300Ystereo / monoY-mini2.0Y--
6.

Olympus E-520Y- / ----2.0---
7.

Olympus E-620Y- / ----2.0---
8.

Olympus E-P2Ystereo / ---mini2.0---
9.

Olympus E-P3Ystereo / ---mini2.0---
10.

Olympus E-PL1Ystereo / ---mini2.0---
11.

Olympus E-PL2Ystereo / ---mini2.0---
12.

Olympus E-PL3Ystereo / ---mini2.0---
13.

Panasonic G10Ymono / ---mini2.0---
14.

Panasonic GF1Ymono / mono--mini2.0---
15.

Panasonic GH1Ystereo / -Y-mini2.0---
16.

Samsung NX500Ystereo / mono--micro2.0YYY
17.

Sony A7Ystereo / monoYYmicro2.0YY-

It is notable that the NX1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-P1 does not provide wifi capability.

Both the E-P1 and the NX1 have been discontinued, but can regularly be found used on ebay. The E-P1 was replaced by the Olympus E-P2, while the NX1 does not have a direct successor. Further information on the features and operation of the E-P1 and NX1 can be found, respectively, in the Olympus E-P1 Manual (free pdf) or the online Samsung NX1 Manual.

ad

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus E-P1 and the Samsung NX1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

ilogo

Reasons to prefer the Olympus PEN E-P1:

  • Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
  • More compact: Is smaller (121x70mm vs 139x102mm) and thus needs less room in the bag.
  • Less heavy: Is lighter (by 195g or 35 percent) and hence easier to carry around.
  • Sharper images: Has hand-shake reducing image stabilization built-in.
  • More affordable: Was introduced into a lower priced category (47 percent cheaper at launch).
  • More heavily discounted: Has been available for much longer (launched in June 2009).

ilogo

Arguments in favor of the Samsung NX1:

  • More detail: Has more megapixels (28 vs 12.2MP), which boosts linear resolution by 55%.
  • Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
  • Better image quality: Scores substantially higher (28 points) in the DXO overall evaluation.
  • Richer colors: Generates noticeably more natural colors (2.8 bits more color depth).
  • More dynamic range: Captures a broader range of light and dark details (2.8 EV of extra DR).
  • Better low-light sensitivity: Can shoot in dim conditions (1.3 stops ISO advantage).
  • Better video: Provides higher definition movie capture (4K/30p vs 720/30p).
  • Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
  • Better sound: Can connect to an external microphone for higher quality sound recording.
  • Better sound control: Has a headphone port that enables audio monitoring while recording.
  • Easier framing: Has an electronic viewfinder for image composition and settings control.
  • Easier setting verification: Features a control panel on top to check shooting parameters.
  • More detailed LCD: Has a higher resolution rear screen (1036k vs 230k dots).
  • More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
  • Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
  • Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
  • Faster burst: Shoots at higher frequency (15 vs 3 flaps/sec) to capture the decisive moment.
  • Less disturbing: Has an electronic shutter option for completely silent shooting.
  • Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
  • Longer lasting: Gets more shots (500 versus 300) out of a single battery charge.
  • Easier travel charging: Can be conveniently charged via its USB port.
  • Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
  • Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
  • Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
  • Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
  • Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
  • Easier wireless transfer: Supports Bluetooth for image sharing without cables.
  • Faster buffer clearing: Supports Ultra High Speed (UHS-II and UHS-I) SDXC cards.
  • More modern: Reflects 5 years and 3 months of technical progress since the E-P1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the NX1 is the clear winner of the contest (29 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

E-P1 06:29 NX1

How about other alternatives? Do the specifications of the Olympus E-P1 and the Samsung NX1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-P1 or the NX1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

scroll hint
Expert Camera Reviews
  empty  Camera
 Model
 AP
 score
 CL
 score
 DCW
 score
 DPR
 score
 EPZ
 score
 PB
 score
Camera
Launch
Launch
Price
Street
Price
1.

Olympus E-P1..+..66/1004/54.5/5 Jun 2009 US$ 799ebay.com
2.

Samsung NX15/5....87/1005/55/5 Sep 2014 US$ 1 499ebay.com
3.

Fujifilm X-Pro2..+..83/1004.5/54.5/5 Jan 2016 US$ 1 699ebay.com
4.

Fujifilm X-T25/5+ +..86/1004.5/55/5 Jul 2016 US$ 1 599ebay.com
5.

Nikon D53004/5+ +..79/1004.5/54.5/5 Oct 2013 US$ 799ebay.com
6.

Olympus E-520..87/100..+ +4.5/54.5/5 May 2008 US$ 699ebay.com
7.

Olympus E-6203/588/100..72/1004.5/55/5 Feb 2009 US$ 699ebay.com
8.

Olympus E-P23/5+..69/1004/54.5/5 Nov 2009 US$ 799ebay.com
9.

Olympus E-P3..83/100..74/1004.5/54.5/5 Jun 2011 US$ 799ebay.com
10.

Olympus E-PL1..86/100..69/1004/54.5/5 Feb 2010 US$ 599ebay.com
11.

Olympus E-PL23/583/100..71/1004.5/54.5/5 Jan 2011 US$ 599ebay.com
12.

Olympus E-PL33/5+ +..72/1004.5/54/5 Jun 2011 US$ 599ebay.com
13.

Panasonic G103/5....70/1004/54/5 Mar 2010 US$ 499ebay.com
14.

Panasonic GF1..85/100..69/1004.5/54.5/5 Sep 2009 US$ 749ebay.com
15.

Panasonic GH1..+ +..72/1004.5/54.5/5 Mar 2009 US$ 899ebay.com
16.

Samsung NX5004.5/5....81/1005/54.5/5 Feb 2015 US$ 799ebay.com
17.

Sony A75/5+ +..80/1005/55/5 Oct 2013 US$ 1 699ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

logo
Check E-P1 offers at
ebay.com
logo
Check NX1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Specifications: Olympus E-P1 vs Samsung NX1

    Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.

    Camera Specifications
    Camera Model Olympus E-P1 Samsung NX1
    Camera Type Mirrorless system camera Mirrorless system camera
    Camera Lens Micro Four Thirds lenses Samsung NX mount lenses
    Launch Date June 2009 September 2014
    Launch Price USD 799 USD 1,499
    Sensor Specs Olympus E-P1 Samsung NX1
    Sensor Technology CMOS BSI-CMOS
    Sensor Format Four Thirds Sensor APS-C Sensor
    Sensor Size 17.3 x 13.0 mm 23.5 x 15.7 mm
    Sensor Area 224.9 mm2 368.95 mm2
    Sensor Diagonal 21.6 mm 28.3 mm
    Crop Factor 2.0x 1.5x
    Sensor Resolution 12.2 Megapixels 28 Megapixels
    Image Resolution 4032 x 3024 pixels 6480 x 4320 pixels
    Pixel Pitch 4.29 μm 3.63 μm
    Pixel Density 5.42 MP/cm2 7.59 MP/cm2
    Moiré control Anti-Alias filter no AA filter
    Movie Capability 720/30p Video 4K/30p Video
    ISO Setting 100 - 6,400 ISO 100 - 25,600 ISO
    ISO Boost no Enhancement 100 - 51,200 ISO
    Image Processor TruePic V DRIMe 5
    DXO Sensor Quality (score) 55 83
    DXO Color Depth (bits) 21.4 24.2
    DXO Dynamic Range (EV) 10.4 13.2
    DXO Low Light (ISO) 536 1363
    Screen Specs Olympus E-P1 Samsung NX1
    Viewfinder Type no viewfinder Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.69x
    Viewfinder Resolution 2360k dots
    Top-Level Screen no Top Display Control Panel
    LCD Framing Live View Live View
    Rear LCD Size 3.0inch 3.0inch
    LCD Resolution 230k dots 1036k dots
    LCD Attachment Fixed screen Tilting screen
    Touch Input no Touchscreen Touchscreen
    Shooting Specs Olympus E-P1 Samsung NX1
    Focus System Contrast-detect AF On-Sensor Phase-detect
    Manual Focusing Aidno Peaking FeatureFocus Peaking
    Max Shutter Speed (mechanical) 1/4000s 1/8000s
    Continuous Shooting 3 shutter flaps/s 15 shutter flaps/s
    Electronic Shutterno E-ShutterYES
    Time-Lapse Photographyno IntervalometerIntervalometer built-in
    Image StabilizationIn-body stabilizationLens stabilization only
    Fill Flash no On-Board Flash Built-in Flash
    Storage Medium SDHC cards SDXC cards
    Single or Dual Card Slots Single card slot Single card slot
    UHS card support no Single UHS-II
    Connectivity Specs Olympus E-P1 Samsung NX1
    External Flash Hotshoe Hotshoe
    USB Connector USB 2.0 USB 3.0
    HDMI Port mini HDMI micro HDMI
    Microphone Port no MIC socket External MIC port
    Headphone Socket no Headphone port Headphone port
    Wifi Support no Wifi Wifi built-in
    Near-Field Communication no NFC NFC built-in
    Bluetooth Support no Bluetooth Bluetooth built-in
    Body Specs Olympus E-P1 Samsung NX1
    Environmental Sealingnot weather sealedWeathersealed body
    Battery Type Olympus BLS-1 Samsung BP1900
    Battery Life (CIPA)300 shots per charge500 shots per charge
    In-Camera Charging no USB charging USB charging
    Body Dimensions 121 x 70 x 36 mm
    (4.8 x 2.8 x 1.4 in)
    139 x 102 x 66 mm
    (5.5 x 4.0 x 2.6 in)
    Camera Weight 355 g (12.5 oz) 550 g (19.4 oz)
    logo
    Check E-P1 offers at
    ebay.com
    logo
    Check NX1 offers at
    ebay.com

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.

    You are here Home  »  CAM-parator  »  Olympus E-P1 vs Samsung NX1
