Olympus E-M1 II vs OM System OM-3

The Olympus OM-D E-M1 Mark II and the OM System OM-3 are two enthusiast cameras that were officially introduced, respectively, in September 2016 and February 2025. Both the E-M1 II and the OM-3 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-M1 II		OM System OM-3
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
20.2 MP – Four Thirds sensor		20.2 MP – Four Thirds sensor
4K/30p Video		4K/60p Video
ISO 200-25,600		ISO 80-25,600 (80 - 102,400)
Electronic viewfinder (2360k dots)		Electronic viewfinder (2360k dots)
3.0" LCD – 1037k dots		3.0" LCD – 1640k dots
Swivel touchscreen		Swivel touchscreen
18 shutter flaps per second		6 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
440 shots per battery charge		590 shots per battery charge
134 x 91 x 67 mm, 574 g		139 x 89 x 46 mm, 496 g

Check E-M1 II offers at
ebay.com
Check OM-3 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M1 Mark II and the OM System OM-3? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

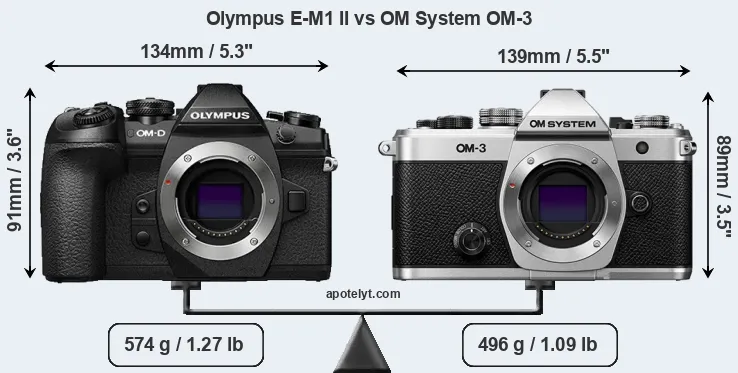

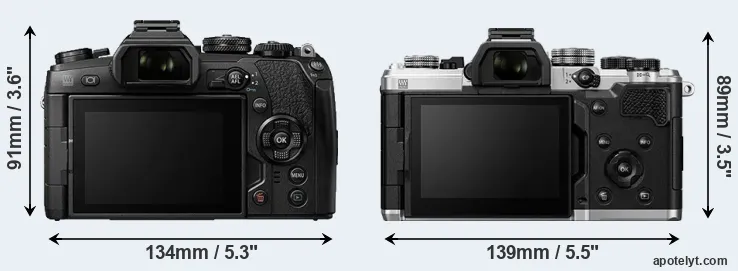

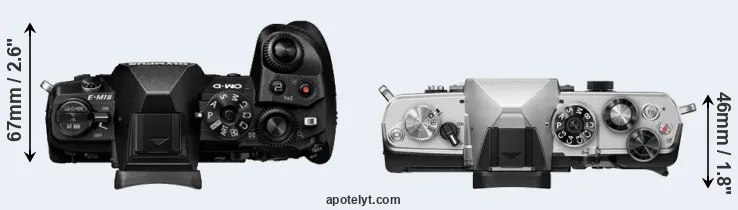

Body comparison

The side-by-side display below illustrates the physical size and weight of the Olympus E-M1 II and the OM System OM-3. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The OM-3 can be obtained in two different colors (black, silver), while the E-M1 II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-3 is somewhat larger (1 percent) than the Olympus E-M1 II. However, the OM-3 is markedly lighter (14 percent) than the E-M1 II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the E-M1 II gets 440 shots out of its Olympus BLH-1 battery, while the OM-3 can take 590 images on a single charge of its OM System BLX-1 power pack. The power pack in the OM-3 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
2.		OM System OM-3	139 mm	89 mm	46 mm	496 g	590	Y	Feb 2025	US$ 1 999	amazon.com
3.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
4.		Olympus E-M1 III	134 mm	91 mm	69 mm	580 g	420	Y	Feb 2020	US$ 1 799	ebay.com
5.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
6.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	US$ 1 199	ebay.com
7.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
8.		OM System OM-1 II	135 mm	92 mm	73 mm	599 g	500	Y	Jan 2024	US$ 2 399	amazon.com
9.		OM System OM-5 II	125 mm	85 mm	50 mm	414 g	310	Y	Jun 2025	US$ 1 199	amazon.com
10.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
11.		Panasonic G80	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
12.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
13.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
14.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	US$ 1 999	ebay.com
15.		Sony A9	127 mm	96 mm	63 mm	673 g	650	Y	Apr 2017	US$ 4 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

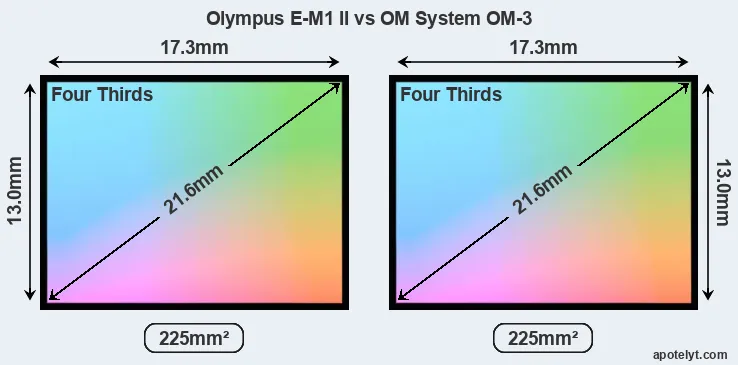

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the OM-3 uses a more advanced image processing engine (TruePic X) than the E-M1 II (TruePic VIII), with benefits for noise reduction, color accuracy, and processing speed.

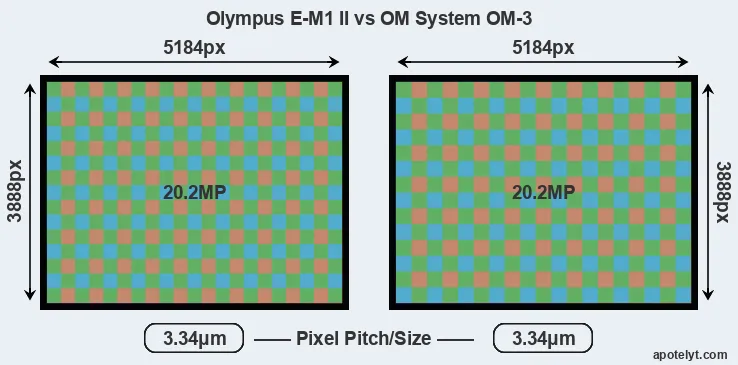

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the E-M1 II and the OM-3 have the same pixel density, as well as the same pixel size. It should, however, be noted that the OM-3 is much more recent (by 8 years and 4 months) than the E-M1 II, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

Both cameras have the capacity to capture high quality composite images by combining multiple shots after shifting the sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus OM-D E-M1 Mark II has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 64-25600. The corresponding ISO settings for the OM System OM-3 are ISO 80 to ISO 25600, with the possibility to increase the ISO range to 80-102400.

In terms of underlying technology, the E-M1 II is build around a CMOS sensor, while the OM-3 uses a Stacked BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
2.		OM System OM-3	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.7	1852	78
3.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
4.		Olympus E-M1 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1356	76
5.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
6.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
7.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
8.		OM System OM-1 II	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.6	1749	78
9.		OM System OM-5 II	Four Thirds	20.2	5184	3888	4K/30p	23.4	13.7	1889	78
10.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
11.		Panasonic G80	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
12.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
13.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
14.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
15.		Sony A9	Full Frame	24.0	6000	4000	4K/30p	24.9	13.3	3517	92
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the OM-3 provides a faster frame rate than the E-M1 II. It can shoot movie footage at 4K/60p, while the Olympus is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-M1 II and the OM-3 are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 2360k dots. The adjacent table lists some of the other core features of the Olympus E-M1 II and OM System OM-3 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
2.		OM System OM-3	2360	n	3.0 / 1640	swivel	Y	1/8000s	6.0/s	n	Y
3.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
4.		Olympus E-M1 III	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
5.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
6.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
7.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
8.		OM System OM-1 II	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
9.		OM System OM-5 II	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
10.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
11.		Panasonic G80	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
12.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
13.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
14.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
15.		Sony A9	3686	n	3.0 / 1440	tilting	Y	1/8000s	20.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus E-M1 II and the OM System OM-3 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-M1 II and the OM-3 write their files to SDXC cards. The E-M1 II features dual card slots, which can be very useful in case a memory card fails. In contrast, the OM-3 only has one slot. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s (the second slot of the E-M1 II supports only UHS-I, though).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M1 Mark II and OM System OM-3 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
2.		OM System OM-3	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
3.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
4.		Olympus E-M1 III	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
5.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
8.		OM System OM-1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
9.		OM System OM-5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
11.		Panasonic G80	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
13.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony A9	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	Y

Studio photographers will appreciate that the Olympus E-M1 II (unlike the OM-3) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The OM-3 is a recent model that features in the current product line-up of OM System. In contrast, the E-M1 II has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-M1 II was succeeded by the Olympus E-M1 III. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and OM System websites.

Review summary

So how do things add up? Is there a clear favorite between the Olympus E-M1 II and the OM System OM-3? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Olympus OM-D E-M1 Mark II:

• Larger viewfinder image: Features a viewfinder with a higher magnification (0.74x vs 0.69x).
• Faster burst: Shoots at higher frequency (18 vs 6 flaps/sec) to capture the decisive moment.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in September 2016).

Arguments in favor of the OM System OM-3:

• Better jpgs: Has a more modern image processing engine (TruePic X vs TruePic VIII).
• Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
• More detailed LCD: Has a higher resolution rear screen (1640k vs 1037k dots).
• Less heavy: Has a lower weight (by 78g or 14 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (590 versus 440) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 8 years and 4 months of technical progress since the E-M1 II launch.

If the count of relative strengths (bullet points above) is taken as a measure, the OM-3 emerges as the winner of the match-up (8 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-M1 II and the OM System OM-3 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the E-M1 II and the OM-3 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
2.		OM System OM-3	..	..	..	86/100	..	..	Feb 2025	US$ 1 999	amazon.com
3.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
4.		Olympus E-M1 III	5/5	..	5/5	83/100	4.5/5	4/5	Feb 2020	US$ 1 799	ebay.com
5.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
6.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	US$ 1 199	ebay.com
7.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
8.		OM System OM-1 II	..	..	..	..	..	..	Jan 2024	US$ 2 399	amazon.com
9.		OM System OM-5 II	..	..	..	..	..	..	Jun 2025	US$ 1 199	amazon.com
10.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
11.		Panasonic G80	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
12.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
13.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
14.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	US$ 1 999	ebay.com
15.		Sony A9	5/5	+ +	4.8/5	89/100	5/5	5/5	Apr 2017	US$ 4 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check E-M1 II offers at
ebay.com
Check OM-3 price at
amazon.com
