Olympus E-M10 vs Stylus 1s

The Olympus OM-D E-M10 and the Olympus Stylus 1s are two digital cameras that were officially introduced, respectively, in January 2014 and April 2015. The E-M10 is a mirrorless interchangeable lens camera, while the Stylus 1s is a fixed lens compact. The cameras are based on a Four Thirds (E-M10) and a 1/1.7-inch (Stylus 1s) sensor. The E-M10 has a resolution of 15.9 megapixels, whereas the Stylus 1s provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-M10		Olympus Stylus 1s
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-300mm f/2.8
15.9 MP – Four Thirds sensor		11.8 MP – 1/1.7" sensor
1080/30p Video		1080/30p Video
ISO 200-25,600		ISO 100-12,800
Electronic viewfinder (1440k dots)		Electronic viewfinder (1440k dots)
3.0" LCD – 1037k dots		3.0" LCD – 1040k dots
Tilting touchscreen		Tilting touchscreen
8 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens-based stabilization
320 shots per battery charge		450 shots per battery charge
119 x 82 x 46 mm, 396 g		116 x 87 x 57 mm, 402 g

Check E-M10 offers at
ebay.com
Check Stylus 1s offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus OM-D E-M10 and the Olympus Stylus 1s? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

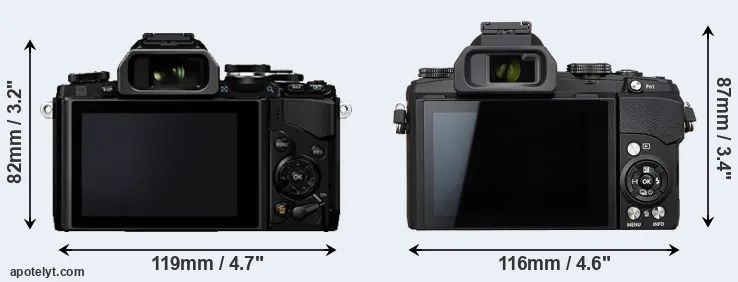

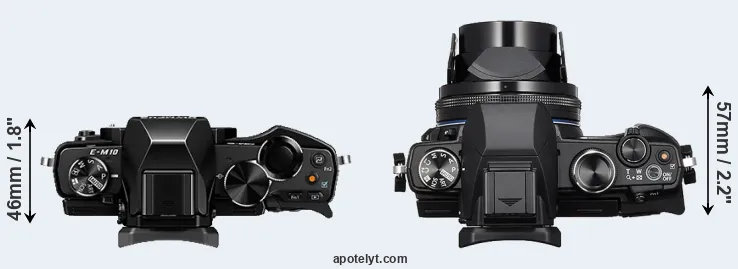

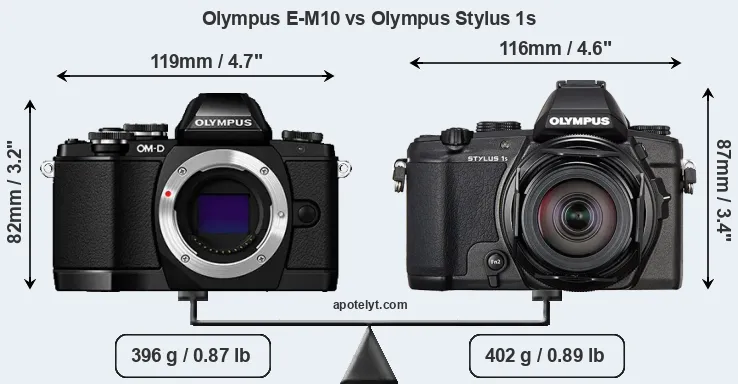

An illustration of the physical size and weight of the Olympus E-M10 and the Olympus Stylus 1s is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The E-M10 can be obtained in two different colors (black, silver), while the Stylus 1s is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1s is somewhat larger (3 percent) than the Olympus E-M10. In this context, it is worth noting that neither the E-M10 nor the Stylus 1s are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1s has a lens built in, whereas the E-M10 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-M10 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-M10 gets 320 shots out of its Olympus BLS-5 battery, while the Stylus 1s can take 450 images on a single charge of its Olympus BLS-50 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
2.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
5.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
6.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
7.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
8.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
9.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
10.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
11.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
12.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
13.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
14.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
15.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
16.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
17.		Panasonic GX80	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	US$ 799	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

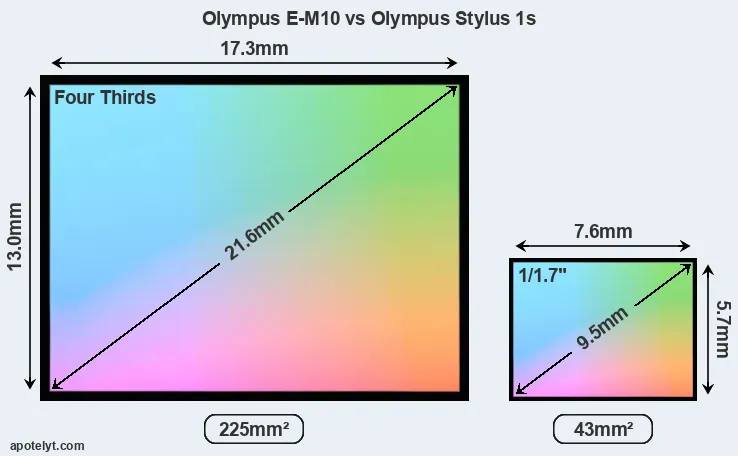

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-M10 features a Four Thirds sensor and the Olympus Stylus 1s a 1/1.7-inch sensor. The sensor area in the Stylus 1s is 81 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

In terms of chip-set technology, the E-M10 uses a more advanced image processing engine (TruePic VII) than the Stylus 1s (TruePic VI), with benefits for noise reduction, color accuracy, and processing speed.

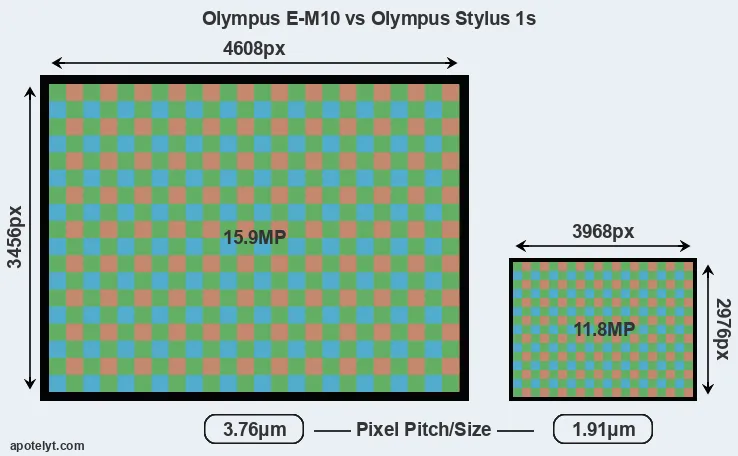

With 15.9MP, the E-M10 offers a higher resolution than the Stylus 1s (11.8MP), but the E-M10 nevertheless has larger individual pixels (pixel pitch of 3.76μm versus 1.91μm for the Stylus 1s) due to its larger sensor. However, the Stylus 1s is a somewhat more recent model (by 1 year and 2 months) than the E-M10, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Olympus E-M10 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-M10 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus Stylus 1s are 19.8 x 14.9 inches or 50.4 x 37.8 cm for good quality, 15.9 x 11.9 inches or 40.3 x 30.2 cm for very good quality, and 13.2 x 9.9 inches or 33.6 x 25.2 cm for excellent quality prints.

The Olympus OM-D E-M10 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus Stylus 1s are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-M10 is build around a CMOS sensor, while the Stylus 1s uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
2.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
6.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
7.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
8.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
9.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
10.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
11.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
12.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
13.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
14.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
15.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
16.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
17.		Panasonic GX80	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The E-M10 and the Stylus 1s are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 1440k dots. The table below summarizes some of the other core capabilities of the Olympus E-M10 and Olympus Stylus 1s in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
2.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
6.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
8.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
9.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
10.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
11.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
13.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
14.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
15.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
16.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
17.		Panasonic GX80	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus E-M10 and the Olympus Stylus 1s both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-M10 and the Stylus 1s write their files to SDXC cards. The E-M10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the Stylus 1s cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus OM-D E-M10 and Olympus Stylus 1s and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
6.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
13.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
16.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
17.		Panasonic GX80	Y	stereo / mono	-	-	micro	2.0	Y	-	-

Both the E-M10 and the Stylus 1s have been discontinued, but can regularly be found used on ebay. The E-M10 was replaced by the Olympus E-M10 II, while the Stylus 1s does not have a direct successor. Further information on the features and operation of the E-M10 and Stylus 1s can be found, respectively, in the Olympus E-M10 Manual (free pdf) or the online Olympus Stylus 1s Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Olympus E-M10 or the Olympus Stylus 1s – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Olympus OM-D E-M10:

• More detail: Offers more megapixels (15.9 vs 11.8MP) with a 16% higher linear resolution.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic VI).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 7 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been on the market for longer (launched in January 2014).

Arguments in favor of the Olympus Stylus 1s:

• Ready to shoot: Has an integrated lens, whereas the E-M10 necessitates an extra lens.
• Longer lasting: Gets more shots (450 versus 320) out of a single battery charge.
• More modern: Was introduced somewhat (1 year and 2 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the E-M10 is the clear winner of the match-up (11 : 3 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-M10 and the Olympus Stylus 1s place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the E-M10 or the Stylus 1s. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
2.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
5.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
6.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
7.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
8.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
9.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
10.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
11.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
12.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
13.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
14.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
15.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
16.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
17.		Panasonic GX80	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	US$ 799	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
