Olympus E-PL8 vs TG-4

The Olympus PEN E-PL8 and the Olympus Tough TG-4 are two digital cameras that were revealed to the public, respectively, in September 2016 and April 2015. The E-PL8 is a mirrorless interchangeable lens camera, while the TG-4 is a fixed lens compact. The cameras are based on a Four Thirds (E-PL8) and a 1/2.3-inch (TG-4) sensor. Both cameras offer a resolution of 15.9 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL8		Olympus TG-4
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		25-100mm f/2.0-4.9
15.9 MP – Four Thirds sensor		15.9 MP – 1/2.3" sensor
1080/30p Video		1080/30p Video
ISO 200-6,400 (100 - 25,600)		ISO 100-6,400
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 1037k dots		3.0" LCD – 460k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
8 shutter flaps per second		5 shutter flaps per second
In-body stabilization		In-body stabilization
not weather sealed		Waterproof body (15m)
350 shots per battery charge		380 shots per battery charge
115 x 67 x 38 mm, 357 g		112 x 66 x 31 mm, 247 g

Check E-PL8 offers at
ebay.com
Check TG-4 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL8 and the Olympus Tough TG-4? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

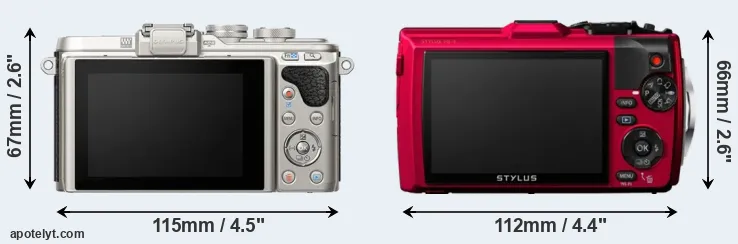

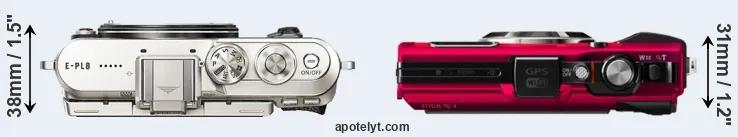

Body comparison

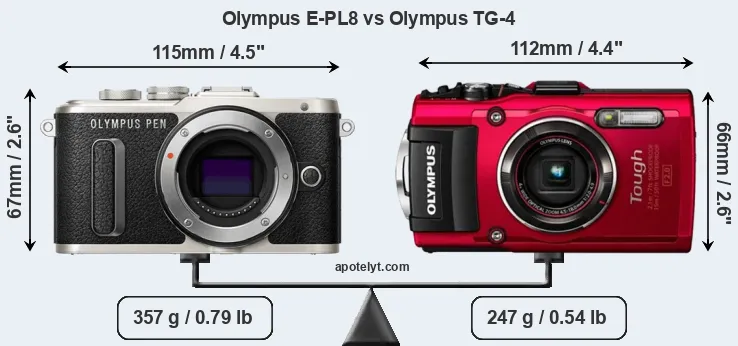

The side-by-side display below illustrates the physical size and weight of the Olympus E-PL8 and the Olympus TG-4. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The E-PL8 can be obtained in three different colors (black, brown, white), while the TG-4 is available in two color-versions (black, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus TG-4 is somewhat smaller (4 percent) than the Olympus E-PL8. It is noteworthy in this context that the TG-4 is splash and dust-proof, while the E-PL8 does not feature any corresponding weather-sealing. More than that, the TG-4 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-4 has a lens built in, whereas the E-PL8 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL8 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PL8 gets 350 shots out of its Olympus BLS-50 battery, while the TG-4 can take 380 images on a single charge of its Olympus LI-92B power pack. The power pack in the TG-4 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
2.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
3.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
4.		Fujifilm XP140	110 mm	71 mm	28 mm	207 g	240	Y	Feb 2019	US$ 229	ebay.com
5.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
6.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
7.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
8.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
10.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
12.		Olympus E-PL10	117 mm	68 mm	39 mm	380 g	350	n	Oct 2019	US$ 599	ebay.com
13.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
14.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
15.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
16.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	US$ 649	ebay.com
17.		Panasonic GX85	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	US$ 799	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-4 was launched at a lower price than the E-PL8, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

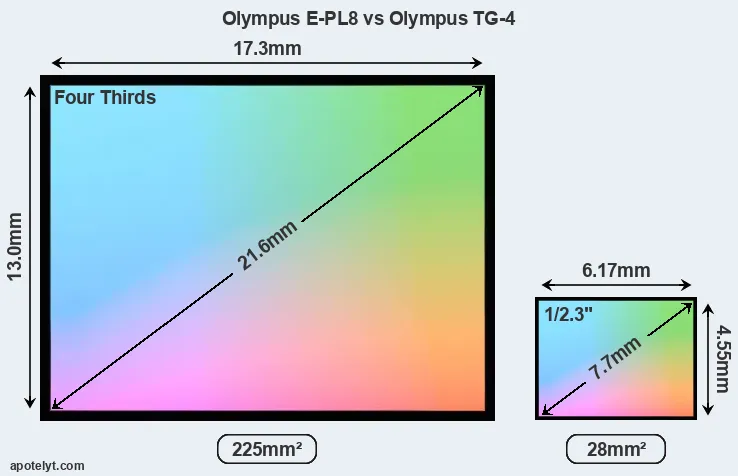

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PL8 features a Four Thirds sensor and the Olympus TG-4 a 1/2.3-inch sensor. The sensor area in the TG-4 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

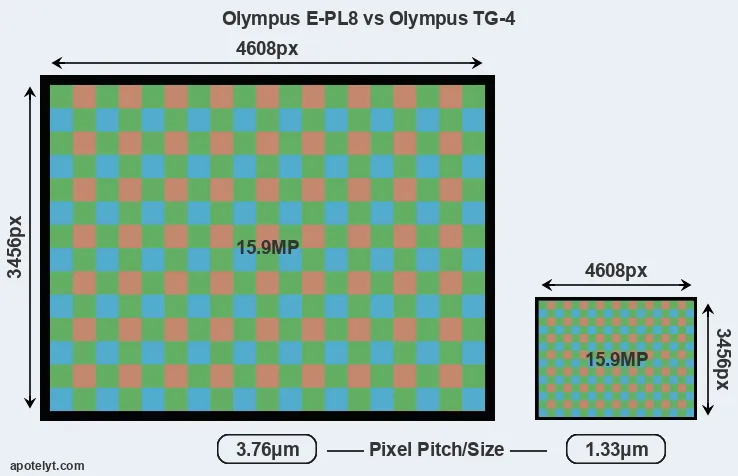

Even though the E-PL8 has a larger sensor, both cameras offer the same resolution of 15.9 megapixels. This implies that the E-PL8 has a lower pixel density and larger individual pixels (with a pixel pitch of 3.76μm versus 1.33μm for the TG-4), which gives it a potential advantage in terms of light gathering capacity. In addition, the E-PL8 is a somewhat more recent model (by 1 year and 5 months) than the TG-4, and its sensor might have benefitted from technological advances during this time.

The Olympus PEN E-PL8 has a native sensitivity range from ISO 200 to ISO 6400, which can be extended to ISO 100-25600. The corresponding ISO settings for the Olympus Tough TG-4 are ISO 100 to ISO 6400 (no boost).

In terms of underlying technology, the E-PL8 is build around a CMOS sensor, while the TG-4 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
2.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
3.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
4.		Fujifilm XP140	1/2.3	15.9	4608	3456	4K/15p	20.7	12.2	1102	52
5.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
6.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
7.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
8.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
9.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
10.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
11.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
12.		Olympus E-PL10	Four Thirds	15.9	4608	3456	4K/30p	23.3	13.1	1324	76
13.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
14.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
15.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
16.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
17.		Panasonic GX85	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The E-PL8 and the TG-4 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PL8 can be equipped with an optional viewfinder – the VF-4. The table below summarizes some of the other core capabilities of the Olympus E-PL8 and Olympus TG-4 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
2.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
3.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
4.		Fujifilm XP140	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
5.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
6.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
7.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
8.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
9.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
10.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
12.		Olympus E-PL10	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
14.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
15.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
16.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
17.		Panasonic GX85	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The E-PL8 has a touchscreen, while the TG-4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus E-PL8 and the Olympus TG-4 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PL8 and the TG-4 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL8 and Olympus Tough TG-4 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
4.		Fujifilm XP140	-	mono / mono	-	-	micro	2.0	Y	-	Y
5.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
6.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
7.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Olympus E-PL10	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
16.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
17.		Panasonic GX85	Y	stereo / mono	-	-	micro	2.0	Y	-	-

It is notable that the E-PL8 has a hotshoe, while the TG-4 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Travel and landscape photographers will find it useful that the TG-4 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the E-PL8 and the TG-4 have been discontinued, but can regularly be found used on ebay. The TG-4 was replaced by the Olympus TG-5, while the E-PL8 was followed by the Olympus E-PL9. Further information on the features and operation of the E-PL8 and TG-4 can be found, respectively, in the Olympus E-PL8 Manual (free pdf) or the online Olympus TG-4 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Olympus E-PL8 or the Olympus TG-4 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Olympus PEN E-PL8:

• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (8 vs 5 flaps/sec) to capture the decisive moment.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More modern: Is somewhat more recent (announced 1 year and 5 months after the TG-4).

Reasons to prefer the Olympus Tough TG-4:

• Ready to shoot: Has an integrated lens, whereas the E-PL8 necessitates an extra lens.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the E-PL8).
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been on the market for longer (launched in April 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL8 is the clear winner of the match-up (14 : 9 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL8 and the Olympus TG-4 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the E-PL8 or the TG-4 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
2.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
3.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
4.		Fujifilm XP140	..	+	..	..	3.5/5	4/5	Feb 2019	US$ 229	ebay.com
5.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
6.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
7.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
8.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
9.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
10.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
11.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
12.		Olympus E-PL10	..	..	4/5	77/100	..	4/5	Oct 2019	US$ 599	ebay.com
13.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
14.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
15.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
16.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	US$ 649	ebay.com
17.		Panasonic GX85	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	US$ 799	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check E-PL8 offers at
ebay.com
Check TG-4 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check E-PL8 offers at
ebay.com
Check TG-4 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
