Olympus PEN-F vs Panasonic S9

The Olympus PEN-F and the Panasonic Lumix DC-S9 are two enthusiast cameras that were officially introduced, respectively, in January 2016 and May 2024. Both the PEN-F and the S9 are mirrorless interchangeable lens cameras that are based on a Four Thirds (PEN-F) and a full frame (S9) sensor. The Olympus has a resolution of 20.2 megapixels, whereas the Panasonic provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus PEN-F		Panasonic S9
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Leica L mount lenses
20.2 MP – Four Thirds sensor		24 MP – Full Frame sensor
1080/60p Video		6K/30p Video
ISO 80-25,600		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.0" LCD – 1037k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
10 shutter flaps per second		30 shutter flaps per second
In-body stabilization		In-body stabilization
330 shots per battery charge		470 shots per battery charge
125 x 72 x 37 mm, 427 g		126 x 74 x 47 mm, 486 g

Check PEN-F offers at
ebay.com
Check S9 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN-F and the Panasonic Lumix DC-S9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

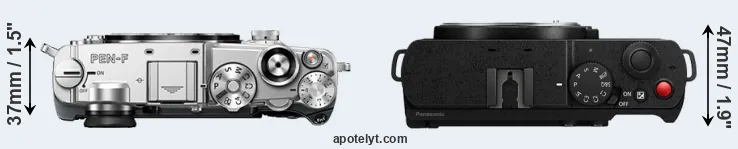

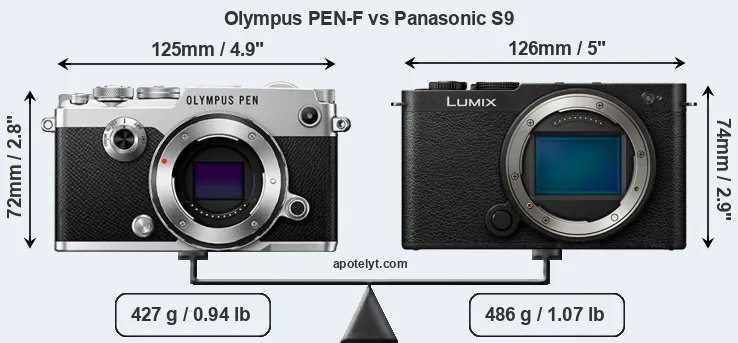

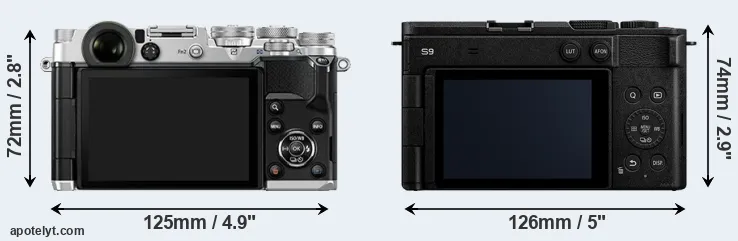

Body comparison

The physical size and weight of the Olympus PEN-F and the Panasonic S9 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The PEN-F can be obtained in two different colors (black, silver), while the S9 is available in four color-versions (black, blue, red, green).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S9 is somewhat larger (4 percent) than the Olympus PEN-F. Moreover, the S9 is markedly heavier (14 percent) than the PEN-F. In this context, it is worth noting that neither the PEN-F nor the S9 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the PEN-F gets 330 shots out of its Olympus BLN-1 battery, while the S9 can take 470 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S9 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus PEN-F	125 mm	72 mm	37 mm	427 g	330	n	Jan 2016	US$ 1 199	ebay.com
2.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
3.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
4.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
5.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
6.		Olympus E-M5	122 mm	89 mm	43 mm	425 g	360	Y	Feb 2012	US$ 1 299	ebay.com
7.		Olympus E-M5 II	124 mm	85 mm	45 mm	469 g	310	Y	Feb 2015	US$ 1 099	ebay.com
8.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
9.		Olympus E-M10 III	122 mm	84 mm	50 mm	410 g	330	n	Aug 2017	US$ 649	ebay.com
10.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
11.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
12.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
13.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
14.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
15.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	US$ 849	ebay.com
16.		Panasonic S1 II	134 mm	102 mm	92 mm	800 g	350	Y	May 2025	US$ 3 199	amazon.com
17.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The PEN-F was launched at a somewhat lower price (by 20 percent) than the S9, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

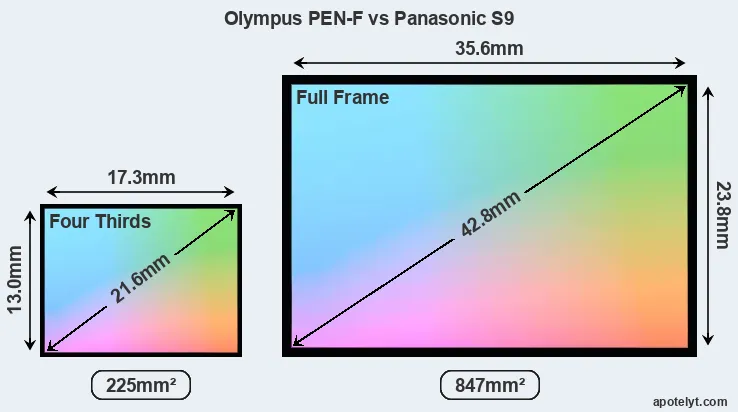

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus PEN-F features a Four Thirds sensor and the Panasonic S9 a full frame sensor. The sensor area in the S9 is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the PEN-F has a native 4:3 aspect ratio, while the one in the S9 offers a 3:2 aspect.

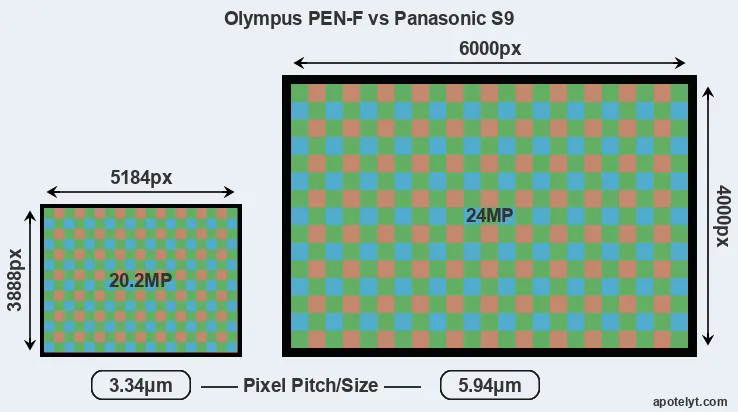

With 24MP, the S9 offers a higher resolution than the PEN-F (20.2MP), but the S9 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.34μm for the PEN-F) due to its larger sensor. Moreover, the S9 is a much more recent model (by 8 years and 3 months) than the PEN-F, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Panasonic S9 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S9 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Olympus PEN-F are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The S9 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the S9, the PEN-F has the capacity to capture high quality composite images (40MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Olympus PEN-F has a native sensitivity range from ISO 80 to ISO 25600. The corresponding ISO settings for the Panasonic Lumix DC-S9 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the PEN-F is build around a CMOS sensor, while the S9 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus PEN-F	Four Thirds	20.2	5184	3888	1080/60p	23.1	12.4	894	74
2.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
3.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
4.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
5.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
6.		Olympus E-M5	Four Thirds	15.9	4608	3456	1080/60i	22.8	12.3	826	71
7.		Olympus E-M5 II	Four Thirds	15.9	4608	3456	1080/60p	23.0	12.5	842	73
8.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
9.		Olympus E-M10 III	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1120	74
10.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
11.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
12.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
13.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
14.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
15.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
16.		Panasonic S1 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3406	97
17.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S9 provides a better video resolution than the PEN-F. It can shoot movie footage at 6K/30p, while the Olympus is limited to 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the PEN-F has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the S9 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Olympus PEN-F and Panasonic S9 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus PEN-F	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
2.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
3.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
4.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
5.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
6.		Olympus E-M5	1440	n	3.0 / 610	tilting	Y	1/4000s	9.0/s	n	Y
7.		Olympus E-M5 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
8.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
9.		Olympus E-M10 III	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
10.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
11.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
12.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
13.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
14.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
15.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
16.		Panasonic S1 II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	10.0/s	n	Y
17.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus PEN-F and the Panasonic S9 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the PEN-F and the S9 write their files to SDXC cards. Both cameras support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN-F and Panasonic Lumix DC-S9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus PEN-F	Y	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
3.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
5.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Olympus E-M5	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Olympus E-M5 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus E-M10 III	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
14.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
15.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Panasonic S1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

It is notable that the S9 has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The PEN-F does not feature such a mic input.

The S9 is a recent model that features in the current product line-up of Panasonic. In contrast, the PEN-F has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the PEN-F from Olympus. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Panasonic websites.

Review summary

So how do things add up? Which of the two cameras – the Olympus PEN-F or the Panasonic S9 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Olympus PEN-F:

• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Less heavy: Is lighter (by 59g or 12 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced segment (20 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2016).

Arguments in favor of the Panasonic Lumix DC-S9:

• More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (6K/30p vs 1080/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1037k dots).
• Faster burst: Shoots at higher frequency (30 vs 10 flaps/sec) to capture the decisive moment.
• Longer lasting: Gets more shots (470 versus 330) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 8 years and 3 months of technical progress since the PEN-F launch.

If the count of individual advantages (bullet points above) is taken as a guide, the S9 is the clear winner of the contest (15 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus PEN-F and the Panasonic S9 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the PEN-F or the S9 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus PEN-F	..	..	4/5	82/100	4.5/5	5/5	Jan 2016	US$ 1 199	ebay.com
2.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
3.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
4.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
5.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
6.		Olympus E-M5	4/5	+ +	..	80/100	4.5/5	5/5	Feb 2012	US$ 1 299	ebay.com
7.		Olympus E-M5 II	5/5	+ +	4.5/5	81/100	5/5	5/5	Feb 2015	US$ 1 099	ebay.com
8.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
9.		Olympus E-M10 III	..	+	5/5	80/100	4.5/5	4.5/5	Aug 2017	US$ 649	ebay.com
10.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
11.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
12.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
13.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
14.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
15.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	US$ 849	ebay.com
16.		Panasonic S1 II	..	..	..	..	..	..	May 2025	US$ 3 199	amazon.com
17.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
