Olympus TG-4 vs Panasonic GM1

The Olympus Tough TG-4 and the Panasonic Lumix DMC-GM1 are two digital cameras that were announced, respectively, in April 2015 and October 2013. The TG-4 is a fixed lens compact, while the GM1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (TG-4) and a Four Thirds (GM1) sensor. The Olympus has a resolution of 15.9 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus TG-4		Panasonic GM1
Fixed lens compact camera		Mirrorless system camera
25-100mm f/2.0-4.9		Micro Four Thirds lenses
15.9 MP – 1/2.3" sensor		15.8 MP – Four Thirds sensor
1080/30p Video		1080/60i Video
ISO 100-6,400		ISO 200-25,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 460k dots		3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
5 shutter flaps per second		5 shutter flaps per second
In-body stabilization		Lens stabilization only
Waterproof body (15m)		not weather sealed
380 shots per battery charge		230 shots per battery charge
112 x 66 x 31 mm, 247 g		99 x 55 x 30 mm, 204 g

Check TG-4 offers at
ebay.com
Check GM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-4 and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

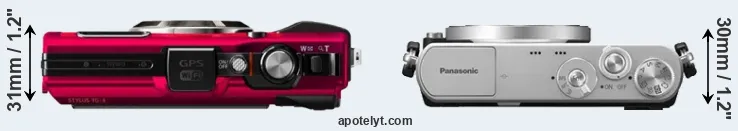

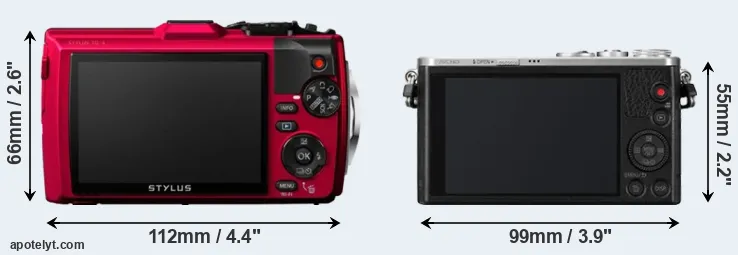

Body comparison

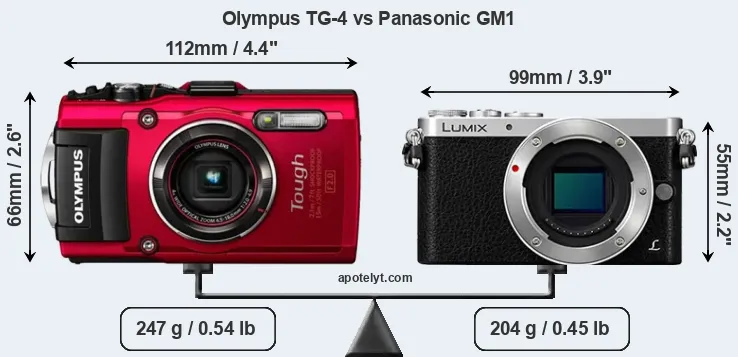

The physical size and weight of the Olympus TG-4 and the Panasonic GM1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The TG-4 can be obtained in two different colors (black, red), while the GM1 is available in three color-versions (black, silver, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is notably smaller (26 percent) than the Olympus TG-4. It is worth mentioning in this context that the TG-4 is splash and dust resistant, while the GM1 does not feature any corresponding weather-sealing. More than that, the TG-4 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the TG-4 has a lens built in, whereas the GM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GM1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the TG-4 gets 380 shots out of its Olympus LI-92B battery, while the GM1 can take 230 images on a single charge of its Panasonic DMW-BLH7 power pack. The power pack in the TG-4 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
2.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
3.		Canon SX700	113 mm	66 mm	35 mm	269 g	250	n	Feb 2014	US$ 349	ebay.com
4.		Fujifilm XP120	110 mm	71 mm	28 mm	203 g	210	Y	Jan 2017	US$ 229	ebay.com
5.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
6.		Fujifilm XP140	110 mm	71 mm	28 mm	207 g	240	Y	Feb 2019	US$ 229	ebay.com
7.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
8.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
9.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
10.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	US$ 549	amazon.com
11.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
12.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
13.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
14.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
15.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
16.		Sony HX80	102 mm	58 mm	36 mm	245 g	390	n	Mar 2016	US$ 349	ebay.com
17.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The TG-4 was launched at a lower price than the GM1, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

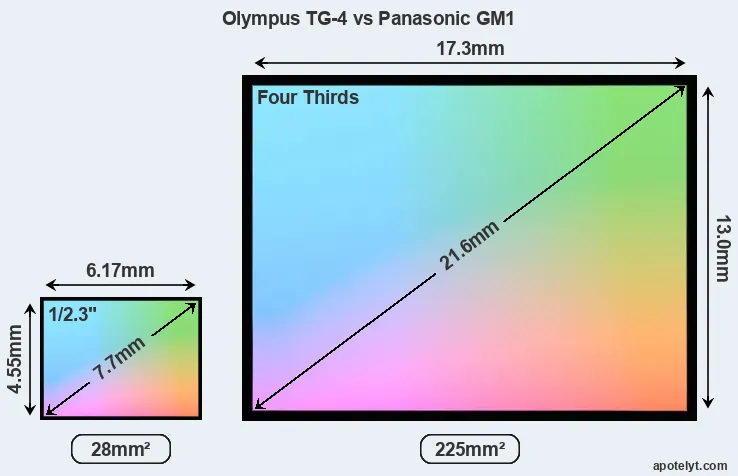

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Olympus TG-4 features a 1/2.3-inch sensor and the Panasonic GM1 a Four Thirds sensor. The sensor area in the GM1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

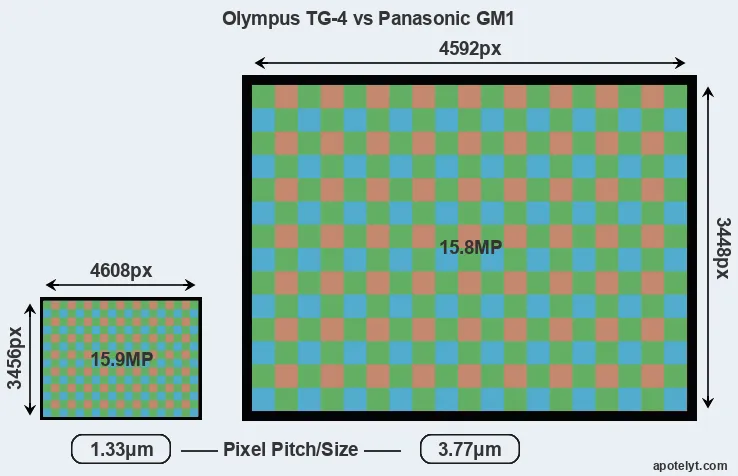

Despite having a smaller sensor, the Olympus TG-4 offers a higher resolution of 15.9 megapixels, compared with 15.8 MP of the Panasonic GM1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 3.77μm for the GM1). However, it should be noted that the TG-4 is a somewhat more recent model (by 1 year and 5 months) than the GM1, and its sensor might have benefitted from technological advances during this time that partly offset its pixel-size disadvantage.

The Olympus Tough TG-4 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.

In terms of underlying technology, the TG-4 is build around a BSI-CMOS sensor, while the GM1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
2.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
3.		Canon SX700	1/2.3	15.9	4608	3456	1080/60p	20.1	11.4	629	45
4.		Fujifilm XP120	1/2.3	15.9	4608	3456	1080/60p	20.5	11.9	900	49
5.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
6.		Fujifilm XP140	1/2.3	15.9	4608	3456	4K/15p	20.7	12.2	1102	52
7.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
8.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
9.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
10.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
11.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
12.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
13.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
14.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
15.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
16.		Sony HX80	1/2.3	18.0	4896	3672	1080/60p	20.4	11.8	822	48
17.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the GM1 provides a faster frame rate than the TG-4. It can shoot movie footage at 1080/60i, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The TG-4 and the GM1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The table below summarizes some of the other core capabilities of the Olympus TG-4 and Panasonic GM1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
2.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
3.		Canon SX700	none	n	3.0 / 922	fixed	n	1/3200s	8.5/s	Y	Y
4.		Fujifilm XP120	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
5.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
6.		Fujifilm XP140	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
7.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
8.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
9.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
10.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
11.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
12.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
14.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
15.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
16.		Sony HX80	638	n	3.0 / 922	tilting	n	1/2000s	10.0/s	Y	Y
17.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GM1 has a touchscreen, while the TG-4 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus TG-4 and the Panasonic GM1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the TG-4 and the GM1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-4 and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon SX700	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Fujifilm XP120	-	mono / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
6.		Fujifilm XP140	-	mono / mono	-	-	micro	2.0	Y	-	Y
7.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
8.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
10.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Sony HX80	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

Travel and landscape photographers will find it useful that the TG-4 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

Both the TG-4 and the GM1 have been discontinued, but can regularly be found used on ebay. The GM1 was replaced by the Panasonic GM5, while the TG-4 was followed by the Olympus TG-5. Further information on the features and operation of the TG-4 and GM1 can be found, respectively, in the Olympus TG-4 Manual (free pdf) or the online Panasonic GM1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Olympus TG-4 or the Panasonic GM1 – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Olympus Tough TG-4:

• Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/500s) to freeze action.
• Ready to shoot: Has a lens built-in, whereas the GM1 requires a separate lens.
• Longer lasting: Can take more shots (380 versus 230) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier geotagging: Features an internal GPS sensor to log localization data.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 1 year and 5 months after the GM1).

Advantages of the Panasonic Lumix DMC-GM1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• More detailed LCD: Has a higher resolution rear screen (1036k vs 460k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (99x55mm vs 112x66mm) and will fit more readily into a bag.
• More heavily discounted: Has been on the market for longer (launched in October 2013).

If the count of relative strengths (bullet points above) is taken as a measure, the GM1 comes out slightly ahead of the TG-4 (11 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus TG-4 and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the TG-4 or the GM1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
2.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
3.		Canon SX700	..	+ +	..	..	4/5	4/5	Feb 2014	US$ 349	ebay.com
4.		Fujifilm XP120	..	o	..	..	3.5/5	4/5	Jan 2017	US$ 229	ebay.com
5.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
6.		Fujifilm XP140	..	+	..	..	3.5/5	4/5	Feb 2019	US$ 229	ebay.com
7.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
8.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
9.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
10.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	US$ 549	amazon.com
11.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
12.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
13.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
14.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
15.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
16.		Sony HX80	..	..	..	..	..	..	Mar 2016	US$ 349	ebay.com
17.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
