Olympus TG-5 vs Pentax WG-1000

The Olympus Tough TG-5 and the Pentax WG-1000 are two digital cameras that were announced, respectively, in May 2017 and June 2024. Both the TG-5 and the WG-1000 are fixed lens compact cameras that are equipped with a 1/2.3-inch sensor. The Olympus has a resolution of 12 megapixels, whereas the Pentax provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus TG-5		Pentax WG-1000
Fixed lens compact camera		Fixed lens compact camera
25-100mm f/2.0-4.9		27-108mm f/3.0-6.6
12 MP – 1/2.3" sensor		15.9 MP – 1/2.3" sensor
4K/30p Video		1080/30p Video
ISO 100-12,800		ISO 100-3,200
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 460k dots		2.7" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
20 shutter flaps per second		8 shutter flaps per second
In-body stabilization		no shake reduction
Waterproof body (15m)		Waterproof body (15m)
340 shots per battery charge		300 shots per battery charge
113 x 66 x 32 mm, 250 g		116 x 69 x 51 mm, 220 g

Check TG-5 offers at
ebay.com
Check WG-1000 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus Tough TG-5 and the Pentax WG-1000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

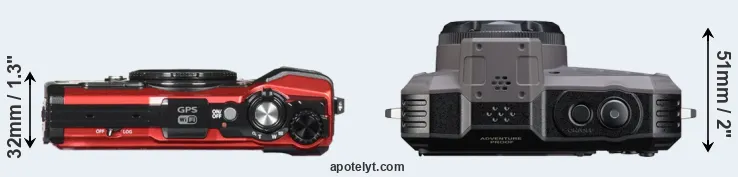

An illustration of the physical size and weight of the Olympus TG-5 and the Pentax WG-1000 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The TG-5 can be obtained in two different colors (black, red), while the WG-1000 is only available in grey.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax WG-1000 is notably larger (7 percent) than the Olympus TG-5. However, the WG-1000 is markedly lighter (12 percent) than the TG-5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, both cameras are water-proof and can, thus, be used for underwater photography.

The power pack in the TG-5 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
2.		Pentax WG-1000	116 mm	69 mm	51 mm	220 g	300	Y	Jun 2024	US$ 229	amazon.com
3.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
4.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
5.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
6.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
7.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
8.		Olympus TG-4	112 mm	66 mm	31 mm	247 g	380	Y	Apr 2015	US$ 379	ebay.com
9.		Olympus TG-6	113 mm	66 mm	32 mm	253 g	340	Y	May 2019	US$ 449	ebay.com
10.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
11.		OM System TG-7	114 mm	66 mm	33 mm	249 g	330	Y	Sep 2023	US$ 549	amazon.com
12.		Panasonic TS7	117 mm	76 mm	37 mm	319 g	300	Y	May 2018	US$ 449	ebay.com
13.		Pentax WG-8	118 mm	66 mm	33 mm	242 g	340	Y	Jun 2024	US$ 399	amazon.com
14.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	US$ 279	amazon.com
15.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	US$ 279	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The WG-1000 was launched at a markedly lower price (by 49 percent) than the TG-5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

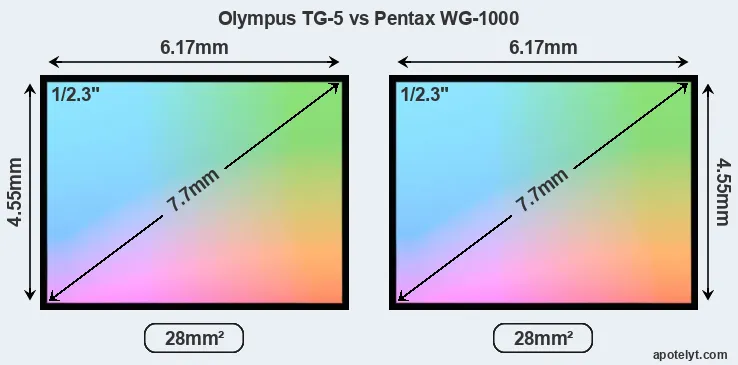

Both cameras under consideration feature a 1/2.3-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 5.6. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

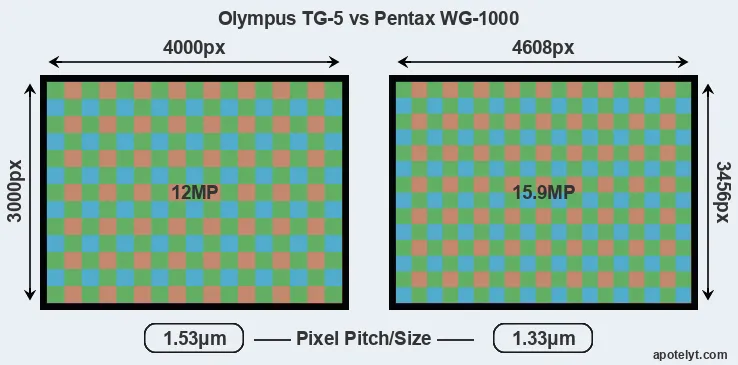

While the two cameras under review share the same sensor size, the WG-1000 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the TG-5. This megapixels advantage translates into a 15 percent gain in linear resolution. On the other hand, these sensor specs imply that the WG-1000 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.33μm versus 1.53μm for the TG-5). However, it should be noted that the WG-1000 is much more recent (by 7 years) than the TG-5, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that the WG-1000 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Pentax WG-1000 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the WG-1000 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus TG-5 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Olympus Tough TG-5 has a native sensitivity range from ISO 100 to ISO 12800. The corresponding ISO settings for the Pentax WG-1000 are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the TG-5 is build around a BSI-CMOS sensor, while the WG-1000 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
2.		Pentax WG-1000	1/2.3	15.9	4608	3456	1080/30p	20.9	12.8	1626	54
3.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
4.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
5.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
6.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
7.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
8.		Olympus TG-4	1/2.3	15.9	4608	3456	1080/30p	20.2	11.6	737	47
9.		Olympus TG-6	1/2.3	12.0	4000	3000	4K/30p	20.7	12.2	1127	52
10.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
11.		OM System TG-7	1/2.3	12.0	4000	3000	4K/30p	20.9	12.7	1553	54
12.		Panasonic TS7	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1028	51
13.		Pentax WG-8	1/2.3	20.2	5184	3888	4K/30p	20.9	12.8	1626	54
14.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
15.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the TG-5 provides a higher video resolution than the WG-1000. It can shoot video footage at 4K/30p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The TG-5 and the WG-1000 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Olympus TG-5 and Pentax WG-1000 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
2.		Pentax WG-1000	none	n	2.7 / 230	fixed	n	1/2000s	8.0/s	Y	n
3.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
4.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
5.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
6.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
7.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
8.		Olympus TG-4	none	n	3.0 / 460	fixed	n	1/2000s	5.0/s	Y	Y
9.		Olympus TG-6	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
10.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
11.		OM System TG-7	none	n	3.0 / 1040	fixed	n	1/2000s	20.0/s	Y	Y
12.		Panasonic TS7	1170	n	3.0 / 1040	fixed	n	1/1300s	10.0/s	Y	Y
13.		Pentax WG-8	none	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
14.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
15.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Olympus TG-5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the TG-5 and the WG-1000 have zoom lenses built in. The TG-5 has a 25-100mm f/2.0-4.9 optic and the WG-1000 offers a 27-108mm f/3.0-6.6 (focal lengths in full frame equivalent terms). Hence, the Olympus provides a wider angle of view at the short end than the Pentax, but less tele-photo reach at the long end. The TG-5 offers the faster maximum aperture.

Concerning the storage of imaging data, both the TG-5 and the WG-1000 write their files to SDXC cards. The TG-5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the WG-1000 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus Tough TG-5 and Pentax WG-1000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Pentax WG-1000	-	mono / mono	-	-	-	2.0	-	-	-
3.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
4.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
5.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
6.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
7.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Olympus TG-4	-	stereo / mono	-	-	micro	2.0	Y	-	-
9.		Olympus TG-6	-	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
11.		OM System TG-7	-	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Panasonic TS7	-	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Pentax WG-8	-	mono / mono	-	-	-	3.0	-	-	-
14.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
15.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-

It is notable that the TG-5 offers wifi support, while the WG-1000 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Travel and landscape photographers will find it useful that the TG-5 has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.

The WG-1000 is a recent model that features in the current product line-up of Pentax. In contrast, the TG-5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the TG-5 was succeeded by the Olympus TG-6. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Olympus and Pentax websites.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Olympus TG-5 and the Pentax WG-1000? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus Tough TG-5:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 230k dots).
• Faster burst: Shoots at higher frequency (20 vs 8 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better light gathering: Has a lens with a wider maximum aperture (f/2.0 vs f/3.0).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• Longer lasting: Can take more shots (340 versus 300) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier geotagging: Features an internal GPS sensor to log localization data.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in May 2017).

Advantages of the Pentax WG-1000:

• More detail: Has more megapixels (15.9 vs 12MP), which boosts linear resolution by 15%.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Less heavy: Has a lower weight (by 30g or 12 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (49 percent cheaper at launch).
• More modern: Reflects 7 years of technical progress since the TG-5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the TG-5 is the clear winner of the match-up (15 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus TG-5 and the Pentax WG-1000 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the TG-5 and the WG-1000 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
2.		Pentax WG-1000	..	..	..	..	..	..	Jun 2024	US$ 229	amazon.com
3.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
4.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
5.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
6.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
7.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
8.		Olympus TG-4	..	+	..	79/100	4/5	4/5	Apr 2015	US$ 379	ebay.com
9.		Olympus TG-6	4/5	+ +	4.5/5	76/100	4/5	4/5	May 2019	US$ 449	ebay.com
10.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
11.		OM System TG-7	4/5	..	4.5/5	..	4/5	4/5	Sep 2023	US$ 549	amazon.com
12.		Panasonic TS7	..	+	..	..	..	3.5/5	May 2018	US$ 449	ebay.com
13.		Pentax WG-8	..	..	..	..	..	..	Jun 2024	US$ 399	amazon.com
14.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	US$ 279	amazon.com
15.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	US$ 279	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
