Olympus XZ-1 vs Panasonic GM1

The Olympus XZ-1 and the Panasonic Lumix DMC-GM1 are two digital cameras that were officially introduced, respectively, in January 2011 and October 2013. The XZ-1 is a fixed lens compact, while the GM1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/1.7-inch (XZ-1) and a Four Thirds (GM1) sensor. The Olympus has a resolution of 10.1 megapixels, whereas the Panasonic provides 15.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus XZ-1		Panasonic GM1
Fixed lens compact camera		Mirrorless system camera
28-112mm f/1.8-2.5		Micro Four Thirds lenses
10.1 MP – 1/1.7" sensor		15.8 MP – Four Thirds sensor
720/30p Video		1080/60i Video
ISO 100-6,400		ISO 200-25,600
Viewfinder optional		No viewfinder, LCD framing
3.0" LCD – 614k dots		3.0" LCD – 1036k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
2 shutter flaps per second		5 shutter flaps per second
In-body stabilization		Lens stabilization only
320 shots per battery charge		230 shots per battery charge
111 x 65 x 42 mm, 275 g		99 x 55 x 30 mm, 204 g

Check XZ-1 offers at
ebay.com
Check GM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus XZ-1 and the Panasonic Lumix DMC-GM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

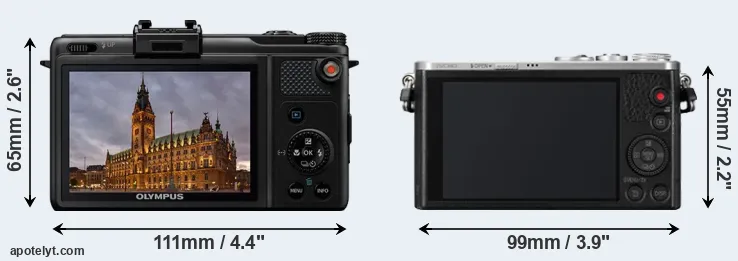

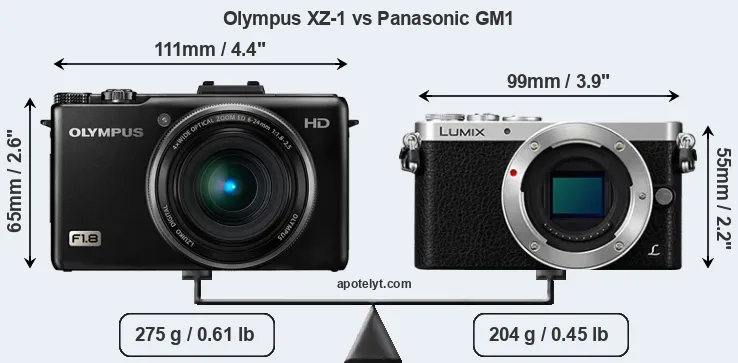

The physical size and weight of the Olympus XZ-1 and the Panasonic GM1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The XZ-1 can be obtained in two different colors (black, white), while the GM1 is available in three color-versions (black, silver, red).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GM1 is notably smaller (25 percent) than the Olympus XZ-1. In this context, it is worth noting that neither the XZ-1 nor the GM1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XZ-1 has a lens built in, whereas the GM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the GM1 and their specifications in the Micro Four Thirds Lens Catalog.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus XZ-1	111 mm	65 mm	42 mm	275 g	320	n	Jan 2011	US$ 499	ebay.com
2.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
3.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
4.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
5.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
6.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
7.		Olympus TG-5	113 mm	66 mm	32 mm	250 g	340	Y	May 2017	US$ 449	ebay.com
8.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
9.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
10.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
11.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
12.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
13.		Panasonic GM5	99 mm	60 mm	36 mm	211 g	220	n	Sep 2014	US$ 749	ebay.com
14.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
15.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
16.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
17.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The XZ-1 was launched at a lower price than the GM1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus XZ-1 features a 1/1.7-inch sensor and the Panasonic GM1 a Four Thirds sensor. The sensor area in the GM1 is 389 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 4.4 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

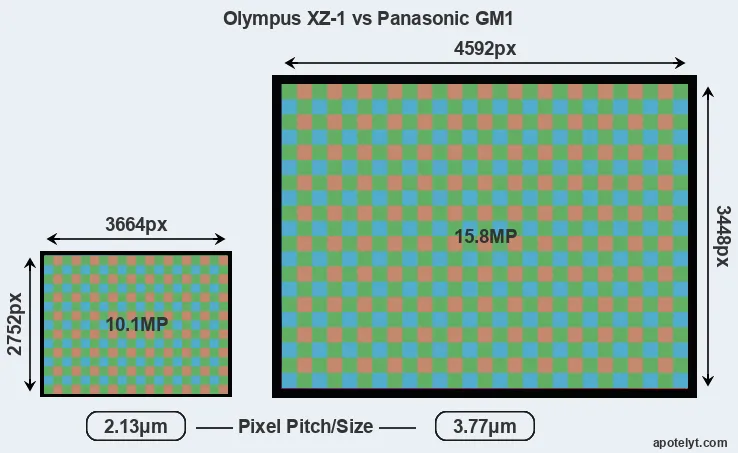

With 15.8MP, the GM1 offers a higher resolution than the XZ-1 (10.1MP), but the GM1 nevertheless has larger individual pixels (pixel pitch of 3.77μm versus 2.13μm for the XZ-1) due to its larger sensor. Moreover, the GM1 is a much more recent model (by 2 years and 9 months) than the XZ-1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Panasonic GM1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the GM1 for good quality output (200 dots per inch) amounts to 23 x 17.2 inches or 58.3 x 43.8 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.7 x 35 cm, and for excellent quality (300 dpi) 15.3 x 11.5 inches or 38.9 x 29.2 cm. The corresponding values for the Olympus XZ-1 are 18.3 x 13.8 inches or 46.5 x 35 cm for good quality, 14.7 x 11 inches or 37.2 x 28 cm for very good quality, and 12.2 x 9.2 inches or 31 x 23.3 cm for excellent quality prints.

The Olympus XZ-1 has a native sensitivity range from ISO 100 to ISO 6400. The corresponding ISO settings for the Panasonic Lumix DMC-GM1 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 125-25600.

In terms of underlying technology, the XZ-1 is build around a CCD sensor, while the GM1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the GM1 offers substantially better image quality than the XZ-1 (overall score 32 points higher). The advantage is based on 3.5 bits higher color depth, 1.3 EV in additional dynamic range, and 2.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus XZ-1	1/1.7	10.1	3664	2752	720/30p	18.8	10.4	117	34
2.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
3.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
4.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
5.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
6.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
7.		Olympus TG-5	1/2.3	12.0	4000	3000	4K/30p	20.5	11.9	934	50
8.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
9.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
10.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
11.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
12.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
13.		Panasonic GM5	Four Thirds	15.8	4592	3448	1080/60p	22.1	11.7	721	66
14.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
15.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
16.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
17.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GM1 provides a better video resolution than the XZ-1. It can shoot movie footage at 1080/60i, while the Olympus is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The XZ-1 and the GM1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the XZ-1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Olympus XZ-1, the Panasonic GM1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus XZ-1	optional	n	3.0 / 614	fixed	n	1/2000s	2.0/s	Y	Y
2.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
3.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
4.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
5.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
6.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
7.		Olympus TG-5	none	n	3.0 / 460	fixed	n	1/2000s	20.0/s	Y	Y
8.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
9.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
10.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
11.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
12.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic GM5	1166	n	3.0 / 921	fixed	Y	1/500s	5.8/s	n	n
14.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
15.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
16.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
17.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The GM1 has a touchscreen, while the XZ-1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the GM1 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Olympus XZ-1 and the Panasonic GM1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the XZ-1 and the GM1 write their files to SDXC cards. The GM1 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the XZ-1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus XZ-1 and Panasonic Lumix DMC-GM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus XZ-1	Y	mono / -	-	-	mini	2.0	-	-	-
2.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
4.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
5.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Olympus TG-5	-	stereo / mono	-	-	micro	2.0	Y	-	-
8.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
11.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Panasonic GM5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the XZ-1 has a hotshoe, while the GM1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the XZ-1 and the GM1 have been discontinued, but can regularly be found used on ebay. The XZ-1 was replaced by the Olympus XZ-2, while the GM1 was followed by the Panasonic GM5. Further information on the features and operation of the XZ-1 and GM1 can be found, respectively, in the Olympus XZ-1 Manual (free pdf) or the online Panasonic GM1 Manual.

Review summary

So what is the bottom line? Is the Olympus XZ-1 better than the Panasonic GM1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Olympus XZ-1:

• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Faster shutter: Has higher mechanical shutter speed (1/2000s vs 1/500s) to freeze action.
• Ready to shoot: Has a lens built-in, whereas the GM1 requires a separate lens.
• Longer lasting: Can take more shots (320 versus 230) on a single battery charge.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in January 2011).

Reasons to prefer the Panasonic Lumix DMC-GM1:

• More detail: Has more megapixels (15.8 vs 10.1MP), which boosts linear resolution by 25%.
• Better image quality: Scores substantially higher (32 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (3.5 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (2.5 stops ISO advantage).
• Better video: Provides higher definition movie capture (1080/60i vs 720/30p).
• More detailed LCD: Has a higher resolution rear screen (1036k vs 614k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (5 vs 2 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (99x55mm vs 111x65mm) and will fit more readily into a bag.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 2 years and 9 months of technical progress since the XZ-1 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the GM1 is the clear winner of the contest (15 : 8 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus XZ-1 and the Panasonic GM1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the XZ-1 or the GM1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus XZ-1	4/5	..	..	74/100	4.5/5	4.5/5	Jan 2011	US$ 499	ebay.com
2.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
3.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
4.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
5.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
6.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
7.		Olympus TG-5	..	+ +	4.5/5	..	4/5	4/5	May 2017	US$ 449	ebay.com
8.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
9.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
10.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
11.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
12.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
13.		Panasonic GM5	3.5/5	+	..	77/100	5/5	4.5/5	Sep 2014	US$ 749	ebay.com
14.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
15.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
16.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
17.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
