Panasonic FZ200 vs Pentax K-S1

The Panasonic Lumix DMC-FZ200 and the Pentax K-S1 are two digital cameras that were announced, respectively, in July 2012 and August 2014. The FZ200 is a fixed lens compact, while the K-S1 is a DSLR. The cameras are based on a 1/2.3-inch (FZ200) and an APS-C (K-S1) sensor. The Panasonic has a resolution of 12 megapixels, whereas the Pentax provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic FZ200		Pentax K-S1
Fixed lens compact camera		Digital single lens reflex
25-600mm f/2.8		Pentax K mount lenses
12 MP – 1/2.3" sensor		20 MP – APS-C sensor
1080/60p Video		1080/30p Video
ISO 100-3,200 (100 - 6,400)		ISO 100-51,200
Electronic viewfinder (1312k dots)		Optical viewfinder
3.0" LCD – 460k dots		3.0" LCD – 921k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
12 shutter flaps per second		5.4 shutter flaps per second
Lens-based stabilization		In-body stabilization
540 shots per battery charge		410 shots per battery charge
125 x 87 x 110 mm, 588 g		121 x 93 x 70 mm, 558 g

Check FZ200 offers at
ebay.com
Check K-S1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-FZ200 and the Pentax K-S1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

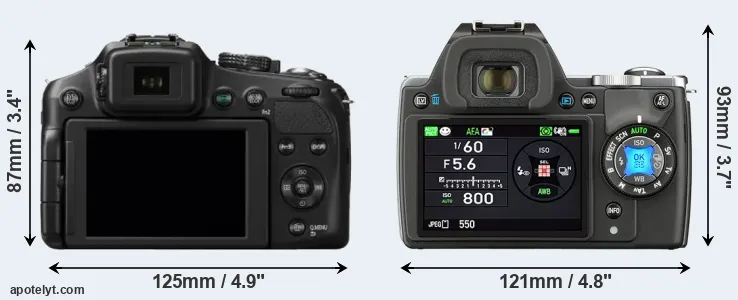

Body comparison

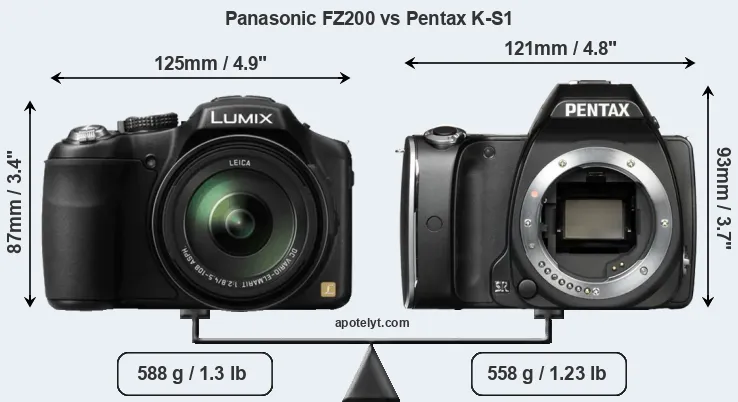

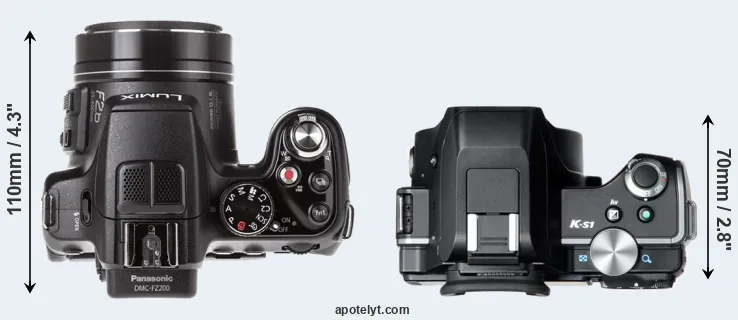

The side-by-side display below illustrates the physical size and weight of the Panasonic FZ200 and the Pentax K-S1. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The K-S1 can be obtained in four different colors (black, grey, orange, white), while the FZ200 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax K-S1 is somewhat larger (3 percent) than the Panasonic FZ200. In this context, it is worth noting that neither the FZ200 nor the K-S1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the FZ200 has a lens built in, whereas the K-S1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the FZ200 gets 540 shots out of its Panasonic DMW-BLC12 battery, while the K-S1 can take 410 images on a single charge of its Pentax D-LI109 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic FZ200	125 mm	87 mm	110 mm	588 g	540	n	Jul 2012	US$ 599	ebay.com
2.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	US$ 749	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
6.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
7.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
8.		Panasonic FZ100	124 mm	82 mm	92 mm	540 g	410	n	Jul 2010	US$ 499	ebay.com
9.		Panasonic FZ150	124 mm	82 mm	92 mm	528 g	410	n	Aug 2011	US$ 499	ebay.com
10.		Panasonic FZ330	132 mm	92 mm	117 mm	691 g	380	Y	Jul 2015	US$ 599	amazon.com
11.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	US$ 499	ebay.com
12.		Panasonic LX5	110 mm	65 mm	43 mm	271 g	400	n	Jul 2010	US$ 499	ebay.com
13.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	US$ 499	ebay.com
14.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
15.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
16.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
17.		Sony A68	143 mm	104 mm	81 mm	610 g	540	n	Nov 2015	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The FZ200 was launched at a lower price than the K-S1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

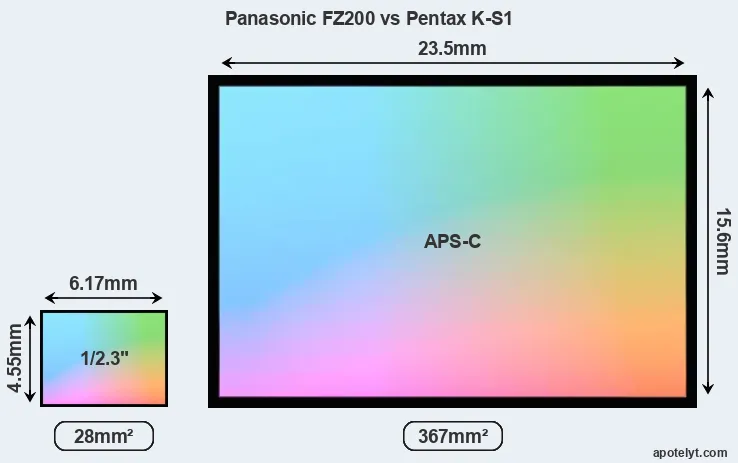

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Panasonic FZ200 features a 1/2.3-inch sensor and the Pentax K-S1 an APS-C sensor. The sensor area in the K-S1 is 1211 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 1.5. The sensor in the FZ200 has a native 4:3 aspect ratio, while the one in the K-S1 offers a 3:2 aspect.

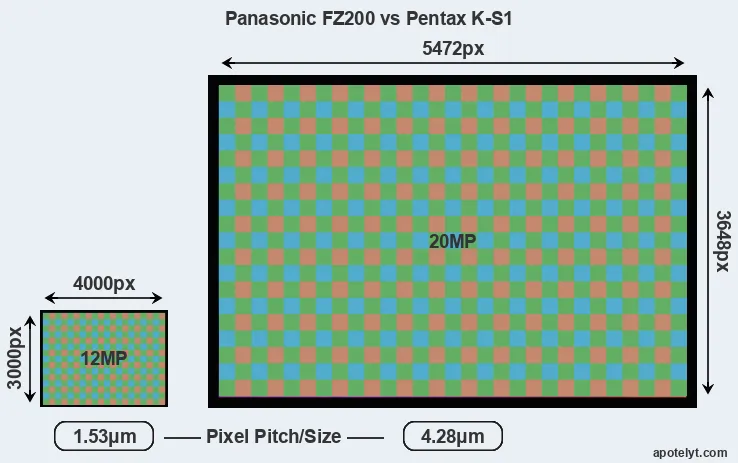

With 20MP, the K-S1 offers a higher resolution than the FZ200 (12MP), but the K-S1 nevertheless has larger individual pixels (pixel pitch of 4.28μm versus 1.53μm for the FZ200) due to its larger sensor. Moreover, the K-S1 is a much more recent model (by 2 years and 1 month) than the FZ200, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Pentax K-S1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-S1 for good quality output (200 dots per inch) amounts to 27.4 x 18.2 inches or 69.5 x 46.3 cm, for very good quality (250 dpi) 21.9 x 14.6 inches or 55.6 x 37.1 cm, and for excellent quality (300 dpi) 18.2 x 12.2 inches or 46.3 x 30.9 cm. The corresponding values for the Panasonic FZ200 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Panasonic Lumix DMC-FZ200 has a native sensitivity range from ISO 100 to ISO 3200, which can be extended to ISO 100-6400. The corresponding ISO settings for the Pentax K-S1 are ISO 100 to ISO 51200 (no boost).

In terms of underlying technology, the FZ200 is build around a BSI-CMOS sensor, while the K-S1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the K-S1 offers substantially better image quality than the FZ200 (overall score 41 points higher). The advantage is based on 4.4 bits higher color depth, 2.2 EV in additional dynamic range, and 3.2 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic FZ200	1/2.3	12.0	4000	3000	1080/60p	19.1	10.8	114	37
2.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
6.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
7.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
8.		Panasonic FZ100	1/2.3	14.0	4320	3240	1080/60i	19.4	10.7	306	39
9.		Panasonic FZ150	1/2.3	12.0	4000	3000	1080/60p	19.4	10.9	132	40
10.		Panasonic FZ330	1/2.3	12.0	4000	3000	4K/30p	19.3	11.0	97	38
11.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
12.		Panasonic LX5	1/1.7	10.0	3648	2736	720/60p	19.6	10.8	132	41
13.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
14.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
15.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
16.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
17.		Sony A68	APS-C	24.0	6000	4000	1080/60i	24.1	13.5	701	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the FZ200 provides a higher frame rate than the K-S1. It can shoot video footage at 1080/60p, while the Pentax is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the FZ200 has an electronic viewfinder (1312k dots), while the K-S1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the K-S1 has a higher magnification than the one of the FZ200 (0.63x vs 0.46x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Panasonic FZ200 and Pentax K-S1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic FZ200	1312	n	3.0 / 460	swivel	n	1/4000s	12.0/s	Y	Y
2.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
6.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
7.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
8.		Panasonic FZ100	202	n	3.0 / 460	swivel	n	1/2000s	11.0/s	Y	Y
9.		Panasonic FZ150	202	n	3.0 / 460	swivel	n	1/2000s	12.0/s	Y	Y
10.		Panasonic FZ330	1440	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
11.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
12.		Panasonic LX5	optional	n	3.0 / 460	fixed	n	1/4000s	2.5/s	Y	Y
13.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
14.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
15.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
16.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
17.		Sony A68	1440	Y	2.7 / 460	tilting	n	1/4000s	8.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the FZ200 and the K-S1 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-FZ200 and Pentax K-S1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic FZ200	Y	stereo / mono	Y	-	mini	2.0	-	-	-
2.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
7.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Panasonic FZ100	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Panasonic FZ150	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Panasonic FZ330	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
11.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Panasonic LX5	Y	mono / mono	-	-	mini	2.0	-	-	-
13.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
15.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
16.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
17.		Sony A68	Y	stereo / mono	Y	-	micro	2.0	-	-	-

It is notable that the FZ200 has a microphone port, which is missing on the K-S1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the FZ200 and the K-S1 have been discontinued, but can regularly be found used on ebay. The FZ200 was replaced by the Panasonic FZ300, while the K-S1 was followed by the Pentax K-S2. Further information on the features and operation of the FZ200 and K-S1 can be found, respectively, in the Panasonic FZ200 Manual (free pdf) or the online Pentax K-S1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Panasonic FZ200 and the Pentax K-S1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Panasonic Lumix DMC-FZ200:

• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (12 vs 5.4 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the K-S1 requires a separate lens.
• Longer lasting: Can take more shots (540 versus 410) on a single battery charge.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been available for much longer (launched in July 2012).

Advantages of the Pentax K-S1:

• More detail: Has more megapixels (20 vs 12MP), which boosts linear resolution by 32%.
• Better image quality: Scores substantially higher (41 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (4.4 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2.2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (3.2 stops ISO advantage).
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.63x vs 0.46x).
• More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/4000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• More modern: Reflects 2 years and 1 month of technical progress since the FZ200 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the K-S1 comes out slightly ahead of the FZ200 (11 : 10 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic FZ200 and the Pentax K-S1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the FZ200 or the K-S1. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic FZ200	3/5	+ +	..	80/100	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
2.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	US$ 749	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
6.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
7.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
8.		Panasonic FZ100	..	+	..	..	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
9.		Panasonic FZ150	3/5	+ +	..	76/100	4/5	4.5/5	Aug 2011	US$ 499	ebay.com
10.		Panasonic FZ330	..	+ +	..	..	4.5/5	4.5/5	Jul 2015	US$ 599	amazon.com
11.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	US$ 499	ebay.com
12.		Panasonic LX5	4/5	+	..	73/100	4.5/5	4.5/5	Jul 2010	US$ 499	ebay.com
13.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	US$ 499	ebay.com
14.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
15.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
16.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
17.		Sony A68	3/5	..	..	..	4/5	4/5	Nov 2015	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
