Panasonic G5 vs GF1

The Panasonic Lumix DMC-G5 and the Panasonic Lumix DMC-GF1 are two digital cameras that were revealed to the public, respectively, in July 2012 and September 2009. Both the G5 and the GF1 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. The G5 has a resolution of 15.9 megapixels, whereas the GF1 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic G5		Panasonic GF1
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
15.9 MP – Four Thirds sensor		12 MP – Four Thirds sensor
1080/60p Video		720/30p Video
ISO 160-12,800		ISO 100-3,200
Electronic viewfinder (1440k dots)		Viewfinder optional
3.0" LCD – 920k dots		3.0" LCD – 460k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
6 shutter flaps per second		3 shutter flaps per second
320 shots per battery charge		380 shots per battery charge
120 x 83 x 71 mm, 396 g		119 x 71 x 36 mm, 385 g

Check G5 offers at
ebay.com
Check GF1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-G5 and the Panasonic Lumix DMC-GF1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

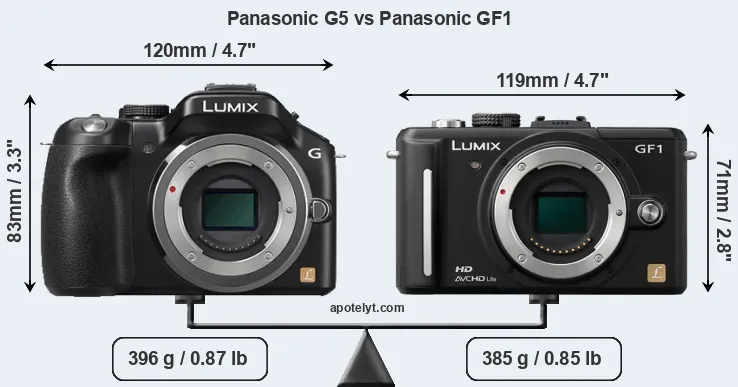

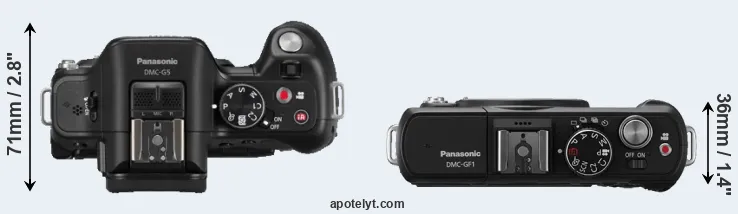

The physical size and weight of the Panasonic G5 and the Panasonic GF1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The G5 can be obtained in two different colors (black, silver), while the GF1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GF1 is notably smaller (15 percent) than the Panasonic G5. Moreover, the GF1 is slightly lighter (3 percent) than the G5. In this context, it is worth noting that neither the G5 nor the GF1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the G5 gets 320 shots out of its Panasonic DMW-BLC12 battery, while the GF1 can take 380 images on a single charge of its Panasonic DMW-BLB13 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	EUR 649	ebay.com
2.		Panasonic GF1	119 mm	71 mm	36 mm	385 g	380	n	Sep 2009	EUR 649	ebay.com
3.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	EUR 599	ebay.com
4.		Panasonic G1	124 mm	84 mm	45 mm	360 g	410	n	Sep 2008	EUR 499	ebay.com
5.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	EUR 549	ebay.com
6.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	EUR 579	ebay.com
7.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	EUR 549	ebay.com
8.		Panasonic G7	125 mm	86 mm	77 mm	410 g	350	n	May 2015	EUR 699	ebay.com
9.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	EUR 499	ebay.com
10.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	EUR 469	ebay.com
11.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	EUR 449	ebay.com
12.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	EUR 499	ebay.com
13.		Panasonic GH1	124 mm	90 mm	45 mm	385 g	300	n	Mar 2009	EUR 799	ebay.com
14.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	EUR 899	ebay.com
15.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	EUR 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The G5 was launched at a somewhat lower price (by 20 percent) than the GF1, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

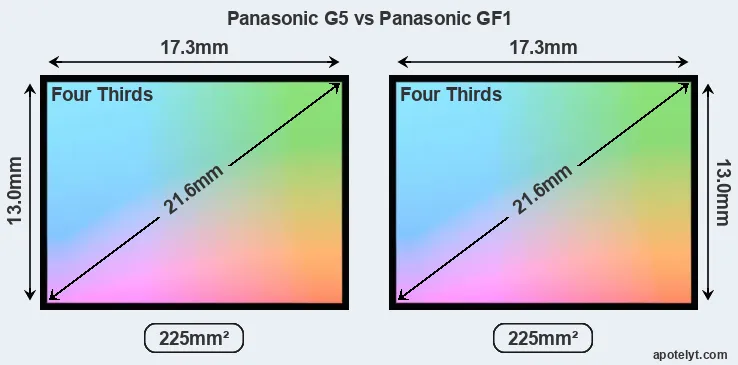

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

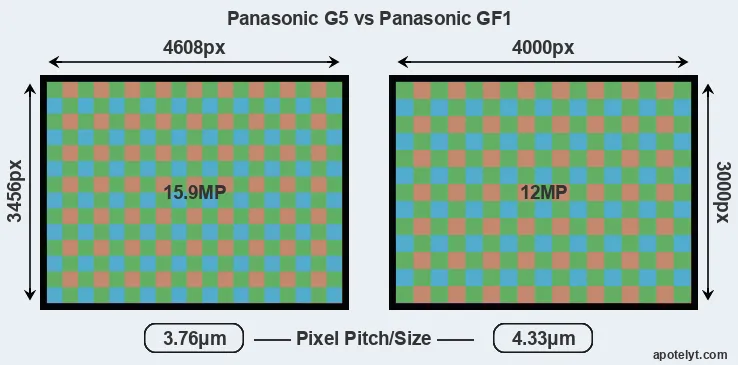

While the two cameras under review share the same sensor size, the G5 offers a higher resolution of 15.9 megapixels, compared with 12 MP of the GF1. This megapixels advantage translates into a 15 percent gain in linear resolution. On the other hand, these sensor specs imply that the G5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.33μm for the GF1). In this context, it should be noted, however, that the G5 is much more recent (by 2 years and 10 months) than the GF1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Panasonic G5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic GF1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Panasonic Lumix DMC-G5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Panasonic Lumix DMC-GF1 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the G5 has a notably higher overall DXO score than the GF1 (overall score 7 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.2 bits higher color depth, 1.3 EV in additional dynamic range, and 0.3 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
2.		Panasonic GF1	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	513	54
3.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
4.		Panasonic G1	Four Thirds	12.0	4000	3000	none	21.1	10.3	463	53
5.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
6.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
7.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
8.		Panasonic G7	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.4	904	71
9.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
10.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
11.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
12.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
13.		Panasonic GH1	Four Thirds	12.0	4000	3000	1080/24p	21.6	11.6	772	64
14.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
15.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the G5 provides a higher video resolution than the GF1. It can shoot video footage at 1080/60p, while the GF1 is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the G5 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the GF1 relies on live view and the rear LCD for framing. That said, the GF1 can be equipped with an optional viewfinder – the DMW-LVF1. The table below summarizes some of the other core capabilities of the Panasonic G5 and Panasonic GF1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
2.		Panasonic GF1	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	n
3.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
4.		Panasonic G1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
5.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
6.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
7.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
8.		Panasonic G7	2360	n	3.0 / 1040	swivel	Y	1/4000s	7.0/s	Y	n
9.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
10.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
11.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
12.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
13.		Panasonic GH1	1440	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
14.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
15.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5 has a touchscreen, while the GF1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The G5 writes its imaging data to SDXC cards, while the GF1 uses SDHC cards. The G5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the GF1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-G5 and Panasonic Lumix DMC-GF1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Panasonic GF1	Y	mono / mono	-	-	mini	2.0	-	-	-
3.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Panasonic G1	Y	- / -	-	-	mini	2.0	-	-	-
5.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
6.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
7.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
8.		Panasonic G7	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
10.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
11.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
12.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
13.		Panasonic GH1	Y	stereo / -	Y	-	mini	2.0	-	-	-
14.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
15.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-

Both the G5 and the GF1 have been discontinued, but can regularly be found used on ebay. The GF1 was replaced by the Panasonic DMC-GF2, while the G5 was followed by the Panasonic G6. Further information on the features and operation of the G5 and GF1 can be found, respectively, in the Panasonic G5 Manual (free pdf) or the online Panasonic GF1 Manual.

Review summary

So what conclusions can be drawn? Is the Panasonic G5 better than the Panasonic GF1 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Panasonic Lumix DMC-G5:

• More detail: Offers more megapixels (15.9 vs 12MP) with a 15% higher linear resolution.
• Better image quality: Scores markedly higher (7 points) in the DXO overall assessment.
• More dynamic range: Captures a larger spectrum of light and dark details (1.3 EV of extra DR).
• Better video: Provides higher definition movie capture (1080/60p vs 720/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 460k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced segment (20 percent cheaper at launch).
• More modern: Reflects 2 years and 10 months of technical progress since the GF1 launch.

Advantages of the Panasonic Lumix DMC-GF1:

• More compact: Is smaller (119x71mm vs 120x83mm) and will fit more readily into a bag.
• Longer lasting: Gets more shots (380 versus 320) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the count of relative strengths (bullet points above) is taken as a measure, the G5 is the clear winner of the match-up (13 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic G5 and the Panasonic GF1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the G5 and the GF1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	EUR 649	ebay.com
2.		Panasonic GF1	..	85/100	..	69/100	4.5/5	4.5/5	Sep 2009	EUR 649	ebay.com
3.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
4.		Panasonic G1	..	+ +	..	70/100	4/5	4.5/5	Sep 2008	EUR 499	ebay.com
5.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	EUR 549	ebay.com
6.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	EUR 579	ebay.com
7.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	EUR 549	ebay.com
8.		Panasonic G7	4/5	+ +	3.5/5	80/100	5/5	4.5/5	May 2015	EUR 699	ebay.com
9.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	EUR 499	ebay.com
10.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	EUR 469	ebay.com
11.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	EUR 449	ebay.com
12.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	EUR 499	ebay.com
13.		Panasonic GH1	..	+ +	..	72/100	4.5/5	4.5/5	Mar 2009	EUR 799	ebay.com
14.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	EUR 899	ebay.com
15.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	EUR 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
