Panasonic G5 vs L1

The Panasonic Lumix DMC-G5 and the Panasonic Lumix DMC-L1 are two digital cameras that were announced, respectively, in July 2012 and February 2006. The G5 is a mirrorless interchangeable lens camera, while the L1 is a DSLR. Both cameras are equipped with a Four Thirds sensor. The G5 has a resolution of 15.9 megapixels, whereas the L1 provides 7.4 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic G5		Panasonic L1
Mirrorless system camera		Digital single lens reflex
Micro Four Thirds lenses		Four Thirds lenses
15.9 MP – Four Thirds sensor		7.4 MP – Four Thirds sensor
1080/60p Video		no Video
ISO 160-12,800		ISO 100-1,600
Electronic viewfinder (1440k dots)		Optical viewfinder
3.0" LCD – 920k dots		2.5" LCD – 207k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
6 shutter flaps per second		3 shutter flaps per second
320 shots per battery charge		750 shots per battery charge
120 x 83 x 71 mm, 396 g		146 x 87 x 64 mm, 606 g

Check G5 offers at
ebay.com
Check L1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DMC-G5 and the Panasonic Lumix DMC-L1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Panasonic G5 and the Panasonic L1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The G5 can be obtained in two different colors (black, silver), while the L1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic L1 is notably larger (28 percent) than the Panasonic G5. Moreover, the L1 is substantially heavier (53 percent) than the G5. In this context, it is worth noting that neither the G5 nor the L1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Micro Four Thirds Lens Catalog (G5) and the Four Thirds Lens Catalog (L1). Mirrorless cameras, such as the Panasonic G5, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic G5	120 mm	83 mm	71 mm	396 g	320	n	Jul 2012	US$ 599	ebay.com
2.		Panasonic L1	146 mm	87 mm	64 mm	606 g	750	n	Feb 2006	US$ 999	ebay.com
3.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
4.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	US$ 1 499	ebay.com
5.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
6.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
7.		Panasonic G3	115 mm	84 mm	47 mm	336 g	270	n	May 2011	US$ 599	ebay.com
8.		Panasonic G6	122 mm	85 mm	71 mm	390 g	340	n	Apr 2013	US$ 599	ebay.com
9.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
10.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	US$ 499	ebay.com
11.		Panasonic GF6	111 mm	65 mm	38 mm	323 g	340	n	Apr 2013	US$ 499	ebay.com
12.		Panasonic GH2	124 mm	90 mm	76 mm	442 g	330	n	Sep 2010	US$ 899	ebay.com
13.		Panasonic GM1	99 mm	55 mm	30 mm	204 g	230	n	Oct 2013	US$ 749	ebay.com
14.		Panasonic GX1	116 mm	68 mm	39 mm	318 g	320	n	Nov 2011	US$ 699	ebay.com
15.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
16.		Panasonic GX850	107 mm	65 mm	33 mm	269 g	210	n	Jan 2017	US$ 549	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The G5 was launched at a markedly lower price (by 40 percent) than the L1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

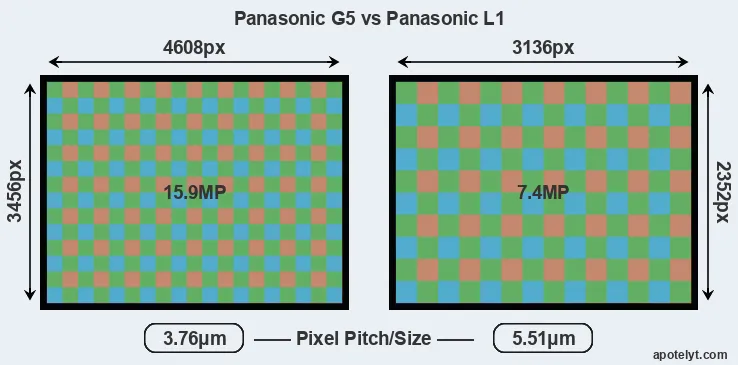

While the two cameras under review share the same sensor size, the G5 offers a higher resolution of 15.9 megapixels, compared with 7.4 MP of the L1. This megapixels advantage translates into a 47 percent gain in linear resolution. On the other hand, these sensor specs imply that the G5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.51μm for the L1). In this context, it should be noted, however, that the G5 is much more recent (by 6 years and 4 months) than the L1, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Panasonic G5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the G5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Panasonic L1 are 15.7 x 11.8 inches or 39.8 x 29.9 cm for good quality, 12.5 x 9.4 inches or 31.9 x 23.9 cm for very good quality, and 10.5 x 7.8 inches or 26.6 x 19.9 cm for excellent quality prints.

The Panasonic Lumix DMC-G5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Panasonic Lumix DMC-L1 are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic G5	Four Thirds	15.9	4608	3456	1080/60p	21.4	11.6	618	61
2.		Panasonic L1	Four Thirds	7.4	3136	2352	none	20.8	10.4	80	52
3.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
4.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
5.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
6.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
7.		Panasonic G3	Four Thirds	15.8	4592	3448	1080/60i	21.0	10.6	667	56
8.		Panasonic G6	Four Thirds	15.9	4608	3456	1080/60p	21.3	11.5	639	61
9.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
10.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
11.		Panasonic GF6	Four Thirds	15.8	4592	3448	1080/60i	20.7	10.6	622	54
12.		Panasonic GH2	Four Thirds	15.9	4608	3456	1080/60i	21.2	11.3	655	60
13.		Panasonic GM1	Four Thirds	15.8	4592	3448	1080/60i	22.3	11.7	660	66
14.		Panasonic GX1	Four Thirds	15.8	4592	3448	1080/60p	20.8	10.6	703	55
15.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
16.		Panasonic GX850	Four Thirds	15.8	4592	3448	4K/30p	23.2	13.3	586	73
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The G5 indeed provides movie recording capabilities, while the L1 does not. The highest resolution format that the G5 can use is 1080/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the G5 has an electronic viewfinder (1440k dots), while the L1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the G5 offers a wider field of view (100%) than the one in the L1 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the G5 has a higher magnification (0.70x vs 0.47x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Panasonic G5 and Panasonic L1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic G5	1440	n	3.0 / 920	swivel	Y	1/4000s	6.0/s	Y	n
2.		Panasonic L1	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
4.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
6.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
7.		Panasonic G3	1440	n	3.0 / 460	swivel	Y	1/4000s	4.0/s	Y	n
8.		Panasonic G6	1440	n	3.0 / 1036	swivel	Y	1/4000s	7.0/s	Y	n
9.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
10.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
11.		Panasonic GF6	none	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
12.		Panasonic GH2	1534	n	3.0 / 460	swivel	n	1/4000s	3.0/s	Y	n
13.		Panasonic GM1	none	n	3.0 / 1036	fixed	Y	1/500s	5.0/s	Y	n
14.		Panasonic GX1	optional	n	3.0 / 460	fixed	Y	1/4000s	4.2/s	Y	n
15.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
16.		Panasonic GX850	none	n	3.0 / 1040	tilting	Y	1/500s	10.0/s	Y	n
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The G5 has a touchscreen, while the L1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The G5 writes its imaging data to SDXC cards, while the L1 uses SDHC cards. The G5 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the L1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DMC-G5 and Panasonic Lumix DMC-L1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic G5	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Panasonic L1	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
4.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
7.		Panasonic G3	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Panasonic G6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
10.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-
11.		Panasonic GF6	-	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Panasonic GH2	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Panasonic GM1	-	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic GX1	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
16.		Panasonic GX850	-	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

Both the G5 and the L1 have been discontinued, but can regularly be found used on ebay. The L1 was replaced by the Panasonic L10, while the G5 was followed by the Panasonic G6. Further information on the features and operation of the G5 and L1 can be found, respectively, in the Panasonic G5 Manual (free pdf) or the online Panasonic L1 Manual.

Review summary

So what is the bottom line? Is the Panasonic G5 better than the Panasonic L1 or vice versa? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Panasonic Lumix DMC-G5:

• More detail: Offers more megapixels (15.9 vs 7.4MP) with a 47% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 1080/60p movies.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.47x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 207k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 3 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x83mm vs 146x87mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 210g or 35 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
• More modern: Reflects 6 years and 4 months of technical progress since the L1 launch.

Advantages of the Panasonic Lumix DMC-L1:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Gets more shots (750 versus 320) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in February 2006).

If the count of relative strengths (bullet points above) is taken as a measure, the G5 is the clear winner of the match-up (17 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic G5 and the Panasonic L1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the G5 or the L1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic G5	3/5	+ +	..	..	4.5/5	4.5/5	Jul 2012	US$ 599	ebay.com
2.		Panasonic L1	..	85/100	..	+	..	3.5/5	Feb 2006	US$ 999	ebay.com
3.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
4.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	US$ 1 499	ebay.com
5.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
6.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
7.		Panasonic G3	3/5	+ +	..	75/100	4.5/5	5/5	May 2011	US$ 599	ebay.com
8.		Panasonic G6	4/5	+ +	..	..	5/5	4.5/5	Apr 2013	US$ 599	ebay.com
9.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
10.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	US$ 499	ebay.com
11.		Panasonic GF6	..	+ +	..	..	4.5/5	4.5/5	Apr 2013	US$ 499	ebay.com
12.		Panasonic GH2	5/5	+ +	..	79/100	4.5/5	5/5	Sep 2010	US$ 899	ebay.com
13.		Panasonic GM1	3/5	+	..	78/100	5/5	4.5/5	Oct 2013	US$ 749	ebay.com
14.		Panasonic GX1	3/5	+	..	77/100	4.5/5	4.5/5	Nov 2011	US$ 699	ebay.com
15.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
16.		Panasonic GX850	..	+	..	76/100	4.5/5	4.5/5	Jan 2017	US$ 549	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
