Panasonic GH5 vs GX9

The Panasonic Lumix DC-GH5 and the Panasonic Lumix DC-GX9 are two enthusiast cameras that were announced, respectively, in January 2017 and February 2018. Both the GH5 and the GX9 are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GH5		Panasonic GX9
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
20.2 MP – Four Thirds sensor		20.2 MP – Four Thirds sensor
4K/60p Video		4K/30p Video
ISO 200-25,600		ISO 200-25,600
Electronic viewfinder (3680k dots)		Electronic viewfinder (2760k dots)
3.2" LCD – 1620k dots		3.0" LCD – 1240k dots
Swivel touchscreen		Tilting touchscreen
12 shutter flaps per second		9 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		not weather sealed
410 shots per battery charge		260 shots per battery charge
139 x 98 x 87 mm, 725 g		124 x 72 x 47 mm, 407 g

Check GH5 offers at
ebay.com
Check GX9 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-GH5 and the Panasonic Lumix DC-GX9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

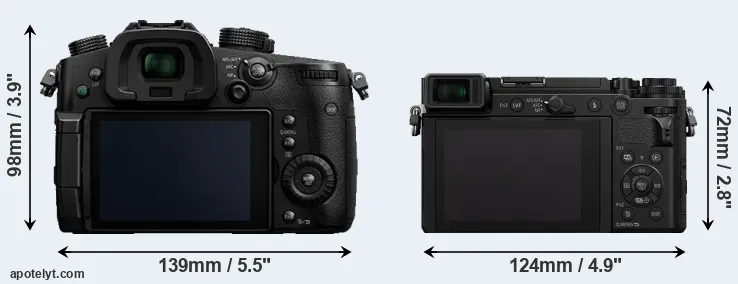

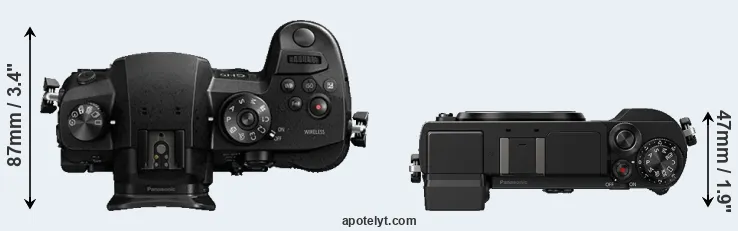

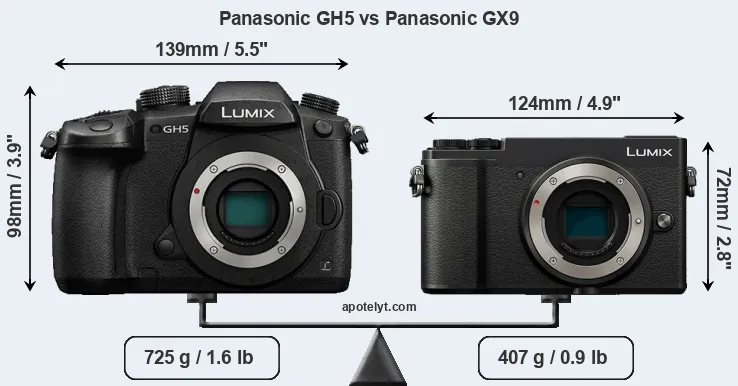

The side-by-side display below illustrates the physical size and weight of the Panasonic GH5 and the Panasonic GX9. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

The GX9 can be obtained in two different colors (black, silver), while the GH5 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic GX9 is considerably smaller (34 percent) than the Panasonic GH5. Moreover, the GX9 is substantially lighter (44 percent) than the GH5. It is worth mentioning in this context that the GH5 is splash and dust resistant, while the GX9 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the GH5 gets 410 shots out of its Panasonic DMW-BLF19 battery, while the GX9 can take 260 images on a single charge of its Panasonic DMW-BLG10 power pack. The power pack in the GX9 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
2.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	US$ 849	ebay.com
3.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
4.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
5.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
6.		Panasonic G9 II	134 mm	102 mm	90 mm	658 g	390	Y	Sep 2023	US$ 1 899	amazon.com
7.		Panasonic G85	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
8.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	US$ 1 499	ebay.com
9.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	US$ 1 699	amazon.com
10.		Panasonic GH6	138 mm	100 mm	100 mm	823 g	360	Y	Feb 2022	US$ 2 199	amazon.com
11.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
12.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
13.		Panasonic GX85	122 mm	71 mm	44 mm	426 g	290	n	Apr 2016	US$ 799	amazon.com
14.		Panasonic LX100 II	115 mm	66 mm	65 mm	392 g	300	n	Aug 2018	US$ 999	ebay.com
15.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
16.		Panasonic ZS200	111 mm	65 mm	45 mm	340 g	370	n	Feb 2018	US$ 799	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The GX9 was launched at a markedly lower price (by 58 percent) than the GH5, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

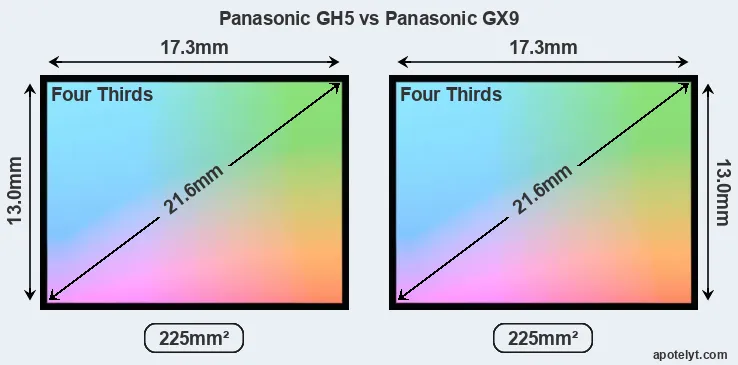

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

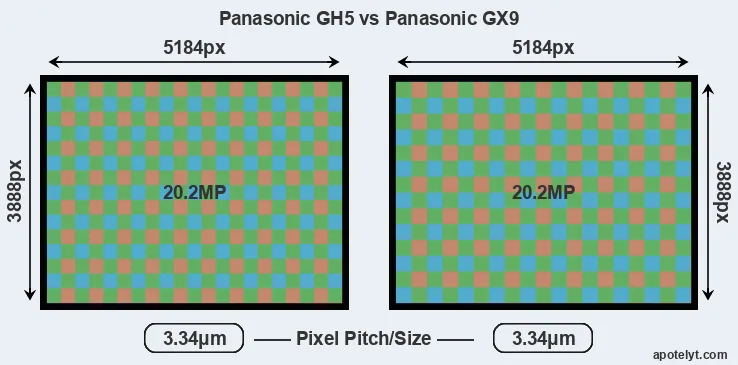

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the GH5 and the GX9 have the same pixel density, as well as the same pixel size. It should, however, be noted that the GX9 is a somewhat more recent model (by 1 year and 1 month) than the GH5, and its sensor might have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Panasonic Lumix DC-GH5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The Panasonic Lumix DC-GX9 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
2.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
3.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
4.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
5.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
6.		Panasonic G9 II	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.5	1710	78
7.		Panasonic G85	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
8.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
9.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
10.		Panasonic GH6	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.4	1555	77
11.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
12.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
13.		Panasonic GX85	Four Thirds	15.8	4592	3448	4K/30p	22.9	12.6	662	71
14.		Panasonic LX100 II	Four Thirds	16.8	4736	3552	4K/30p	22.8	12.7	979	72
15.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
16.		Panasonic ZS200	1-inch	20.0	5472	3648	4K/30p	22.0	12.2	449	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the GH5 provides a higher frame rate than the GX9. It can shoot video footage at 4K/60p, while the GX9 is limited to 4K/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the GH5 offers a substantially higher resolution than the one in the GX9 (3680k vs 2760k dots). The table below summarizes some of the other core capabilities of the Panasonic GH5 and Panasonic GX9 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
2.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
3.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
4.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
5.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
6.		Panasonic G9 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	10.0/s	n	Y
7.		Panasonic G85	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
8.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
9.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
10.		Panasonic GH6	3680	n	3.0 / 1840	full-flex	Y	1/8000s	14.0/s	n	Y
11.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
12.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
13.		Panasonic GX85	2765	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Panasonic LX100 II	2764	n	3.0 / 1240	fixed	Y	1/4000s	11.0/s	n	Y
15.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
16.		Panasonic ZS200	2330	n	3.0 / 1240	fixed	Y	1/2000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The GX9 has one, while the GH5 does not. While the built-in flash of the GX9 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GH5 and the Panasonic GX9 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GH5 and the GX9 write their files to SDXC cards. The GH5 features dual card slots, which can be very useful in case a memory card fails. In contrast, the GX9 only has one slot. The GH5 supports UHS-II cards (on both slots), while the GX9 can use UHS-I cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-GH5 and Panasonic Lumix DC-GX9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
2.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
4.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
5.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
6.		Panasonic G9 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
7.		Panasonic G85	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
8.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
9.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
10.		Panasonic GH6	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
11.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
12.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
13.		Panasonic GX85	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Panasonic LX100 II	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
15.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
16.		Panasonic ZS200	-	stereo / mono	-	-	micro	2.0	Y	-	Y

It is notable that the GH5 has a microphone port, which is missing on the GX9. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Studio photographers will appreciate that the Panasonic GH5 (unlike the GX9) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the GH5 and the GX9 have been discontinued, but can regularly be found used on ebay. The GH5 was replaced by the Panasonic GH5 II, while the GX9 does not have a direct successor. Further information on the features and operation of the GH5 and GX9 can be found, respectively, in the Panasonic GH5 Manual (free pdf) or the online Panasonic GX9 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Panasonic GH5 and the Panasonic GX9? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Panasonic Lumix DC-GH5:

• Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 2760k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.70x).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1240k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
• Longer lasting: Can take more shots (410 versus 260) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Faster data transfer: Supports a more advanced USB protocol (3.1 vs 2.0).
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been on the market for longer (launched in January 2017).

Advantages of the Panasonic Lumix DC-GX9:

• More compact: Is smaller (124x72mm vs 139x98mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 318g or 44 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (58 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 1 month) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the GH5 is the clear winner of the match-up (19 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GH5 and the Panasonic GX9 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the GH5 or the GX9. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
2.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	US$ 849	ebay.com
3.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
4.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
5.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
6.		Panasonic G9 II	5/5	..	4.5/5	87/100	..	4.5/5	Sep 2023	US$ 1 899	amazon.com
7.		Panasonic G85	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
8.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	US$ 1 499	ebay.com
9.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	US$ 1 699	amazon.com
10.		Panasonic GH6	5/5	+ +	5/5	87/100	5/5	5/5	Feb 2022	US$ 2 199	amazon.com
11.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
12.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
13.		Panasonic GX85	4.5/5	+ +	..	82/100	5/5	5/5	Apr 2016	US$ 799	amazon.com
14.		Panasonic LX100 II	4.5/5	+	4.2/5	82/100	4.5/5	4.5/5	Aug 2018	US$ 999	ebay.com
15.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
16.		Panasonic ZS200	..	+ +	4.5/5	81/100	4.5/5	4.5/5	Feb 2018	US$ 799	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
