Panasonic GH5 vs S5

The Panasonic Lumix DC-GH5 and the Panasonic Lumix DC-S5 are two enthusiast cameras that were revealed to the public, respectively, in January 2017 and September 2020. Both the GH5 and the S5 are mirrorless interchangeable lens cameras that are based on a Four Thirds (GH5) and a full frame (S5) sensor. The GH5 has a resolution of 20.2 megapixels, whereas the S5 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GH5		Panasonic S5
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Leica L mount lenses
20.2 MP – Four Thirds sensor		24 MP – Full Frame sensor
4K/60p Video		4K/60p Video
ISO 200-25,600		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (3680k dots)		Electronic viewfinder (2360k dots)
3.2" LCD – 1620k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		7 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
410 shots per battery charge		440 shots per battery charge
139 x 98 x 87 mm, 725 g		133 x 98 x 82 mm, 714 g

Check GH5 offers at
ebay.com
Check S5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-GH5 and the Panasonic Lumix DC-S5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

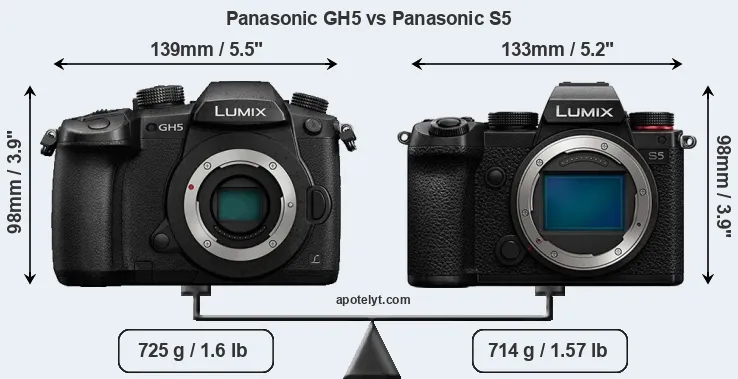

The physical size and weight of the Panasonic GH5 and the Panasonic S5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S5 is somewhat smaller (4 percent) than the Panasonic GH5. Moreover, the S5 is slightly lighter (2 percent) than the GH5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the GH5 gets 410 shots out of its Panasonic DMW-BLF19 battery, while the S5 can take 440 images on a single charge of its Panasonic DMW-BLK22 power pack. The power pack in the S5 can be charged via the USB port, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
2.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
3.		Nikon D500	147 mm	115 mm	81 mm	860 g	1240	Y	Jan 2016	US$ 1 999	ebay.com
4.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
5.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
6.		Panasonic G80	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
7.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	US$ 1 499	ebay.com
8.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	US$ 1 699	amazon.com
9.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
10.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	US$ 2 499	ebay.com
11.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
12.		Sony A7 II	127 mm	96 mm	60 mm	599 g	350	Y	Nov 2014	US$ 1 999	ebay.com
13.		Sony A9	127 mm	96 mm	63 mm	673 g	650	Y	Apr 2017	US$ 4 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

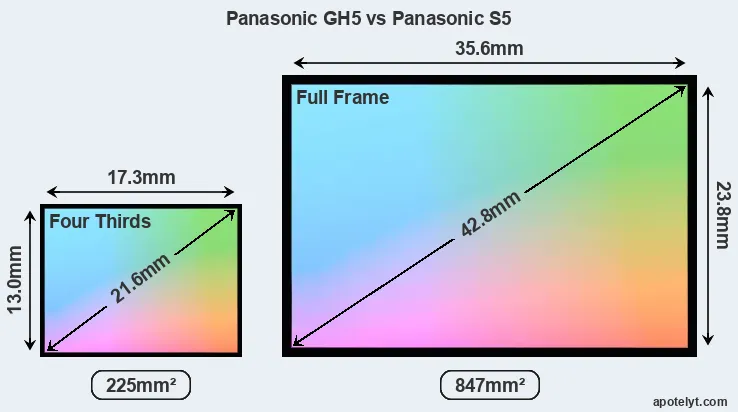

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Panasonic GH5 features a Four Thirds sensor and the Panasonic S5 a full frame sensor. The sensor area in the S5 is 276 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 1.0. The sensor in the GH5 has a native 4:3 aspect ratio, while the one in the S5 offers a 3:2 aspect.

With 24MP, the S5 offers a higher resolution than the GH5 (20.2MP), but the S5 nevertheless has larger individual pixels (pixel pitch of 5.94μm versus 3.34μm for the GH5) due to its larger sensor. Moreover, the S5 is a much more recent model (by 3 years and 7 months) than the GH5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Panasonic S5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S5 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Panasonic GH5 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

Unlike the GH5, the S5 has the capacity to capture high quality composite images (96MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Panasonic Lumix DC-GH5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The corresponding ISO settings for the Panasonic Lumix DC-S5 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the S5 offers substantially better image quality than the GH5 (overall score 17 points higher). The advantage is based on 1.2 bits higher color depth, 1.5 EV in additional dynamic range, and 1.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
2.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
3.		Nikon D500	APS-C	20.7	5568	3712	4K/30p	24.0	14.0	1324	83
4.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
5.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
6.		Panasonic G80	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
7.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
8.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
9.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
10.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
11.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
12.		Sony A7 II	Full Frame	24.0	6000	4000	1080/60p	24.9	13.6	2449	90
13.		Sony A9	Full Frame	24.0	6000	4000	4K/30p	24.9	13.3	3517	92
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the GH5 offers a substantially higher resolution than the one in the S5 (3680k vs 2360k dots). The table below summarizes some of the other core capabilities of the Panasonic GH5 and Panasonic S5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
2.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
3.		Nikon D500	optical	Y	3.2 / 2359	tilting	Y	1/8000s	10.0/s	n	n
4.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
5.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
6.		Panasonic G80	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
7.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
8.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
9.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
10.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
11.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
12.		Sony A7 II	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	Y
13.		Sony A9	3686	n	3.0 / 1440	tilting	Y	1/8000s	20.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GH5 and the Panasonic S5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GH5 and the S5 write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. However, while the GH5 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s) on both slots, the S5 supports UHS-II only on its first slot and UHS-I (data transfer speed up to 104 MB/s) on the second one.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-GH5 and Panasonic Lumix DC-S5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
2.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Nikon D500	Y	stereo / mono	Y	Y	mini	3.0	Y	Y	Y
4.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
5.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
6.		Panasonic G80	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
7.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
8.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
9.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
10.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
11.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
12.		Sony A7 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
13.		Sony A9	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	Y

Studio photographers will appreciate that the Panasonic GH5 (unlike the S5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The S5 is a recent model that features in the current product line-up of Panasonic. In contrast, the GH5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the GH5 was succeeded by the Panasonic GH5 II. Further information on the features and operation of the GH5 and S5 can be found, respectively, in the Panasonic GH5 Manual (free pdf) or the online Panasonic S5 Manual.

Review summary

So how do things add up? Is the Panasonic GH5 better than the Panasonic S5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Panasonic Lumix DC-GH5:

• More detailed viewfinder: Has higher resolution electronic viewfinder (3680k vs 2360k dots).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.76x vs 0.74x).
• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• Faster burst: Shoots at higher frequency (12 vs 7 flaps/sec) to capture the decisive moment.
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in January 2017).

Advantages of the Panasonic Lumix DC-S5:

• More detail: Has more megapixels (24 vs 20.2MP), which boosts linear resolution by 11%.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Better image quality: Scores substantially higher (17 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (1.7 stops ISO advantage).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1620k dots).
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
• More modern: Reflects 3 years and 7 months of technical progress since the GH5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the S5 emerges as the winner of the match-up (10 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GH5 and the Panasonic S5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the GH5 or the S5 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
2.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
3.		Nikon D500	5/5	+ +	4.7/5	91/100	4.5/5	5/5	Jan 2016	US$ 1 999	ebay.com
4.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
5.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
6.		Panasonic G80	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
7.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	US$ 1 499	ebay.com
8.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	US$ 1 699	amazon.com
9.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
10.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	US$ 2 499	ebay.com
11.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
12.		Sony A7 II	5/5	+	4/5	82/100	4.5/5	5/5	Nov 2014	US$ 1 999	ebay.com
13.		Sony A9	5/5	+ +	4.8/5	89/100	5/5	5/5	Apr 2017	US$ 4 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
