Pentax 645Z vs WG-1000

The Pentax 645Z and the Pentax WG-1000 are two digital cameras that were officially introduced, respectively, in April 2014 and June 2024. The 645Z is a DSLR, while the WG-1000 is a fixed lens compact. The cameras are based on a medium format (645Z) and a 1/2.3-inch (WG-1000) sensor. The 645Z has a resolution of 51.1 megapixels, whereas the WG-1000 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax 645Z		Pentax WG-1000
Digital single lens reflex		Fixed lens compact camera
Pentax 645 mount lenses		27-108mm f/3.0-6.6
51.1 MP – Medium Format sensor		15.9 MP – 1/2.3" sensor
1080/60i Video		1080/30p Video
ISO 100-204,800		ISO 100-3,200
Optical viewfinder		No viewfinder, LCD framing
3.2" LCD – 1037k dots		2.7" LCD – 230k dots
Tilting screen (no touchscreen)		Fixed screen (not touch-sensitive)
3 shutter flaps per second		8 shutter flaps per second
Weathersealed body		Waterproof body (15m)
650 shots per battery charge		300 shots per battery charge
156 x 117 x 123 mm, 1550 g		116 x 69 x 51 mm, 220 g

Check 645Z offers at
ebay.com
Check WG-1000 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax 645Z and the Pentax WG-1000? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

An illustration of the physical size and weight of the Pentax 645Z and the Pentax WG-1000 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax WG-1000 is considerably smaller (56 percent) than the Pentax 645Z. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments. More than that, the WG-1000 is water-proof up to 15m and can, thus, be used for underwater photography.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the WG-1000 has a lens built in, whereas the 645Z is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax 645Z	156 mm	117 mm	123 mm	1550 g	650	Y	Apr 2014	US$ 8 499	ebay.com
2.		Pentax WG-1000	116 mm	69 mm	51 mm	220 g	300	Y	Jun 2024	US$ 229	amazon.com
3.		Canon 1D X Mark II	158 mm	168 mm	83 mm	1530 g	1210	Y	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5DS	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
5.		Canon 5DS R	152 mm	116 mm	76 mm	930 g	700	Y	Feb 2015	US$ 3 699	ebay.com
6.		Fujifilm XP130	110 mm	71 mm	28 mm	207 g	240	Y	Jan 2018	US$ 229	ebay.com
7.		Hasselblad X1D	150 mm	98 mm	71 mm	725 g	..	Y	Jun 2016	US$ 8 995	ebay.com
8.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
9.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
10.		Nikon D4S	160 mm	157 mm	91 mm	1350 g	3020	Y	Feb 2014	US$ 6 499	ebay.com
11.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
12.		Nikon D7200	136 mm	107 mm	76 mm	765 g	1110	Y	Mar 2015	US$ 1 199	ebay.com
13.		Nikon W300	112 mm	66 mm	29 mm	231 g	280	Y	May 2017	US$ 389	ebay.com
14.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
15.		Pentax WG-8	118 mm	66 mm	33 mm	242 g	340	Y	Jun 2024	US$ 399	amazon.com
16.		Pentax WG-90	123 mm	62 mm	30 mm	194 g	300	Y	Nov 2023	US$ 279	amazon.com
17.		Ricoh WG-60	123 mm	62 mm	30 mm	193 g	300	Y	Oct 2018	US$ 279	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The WG-1000 was launched at a lower price than the 645Z, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

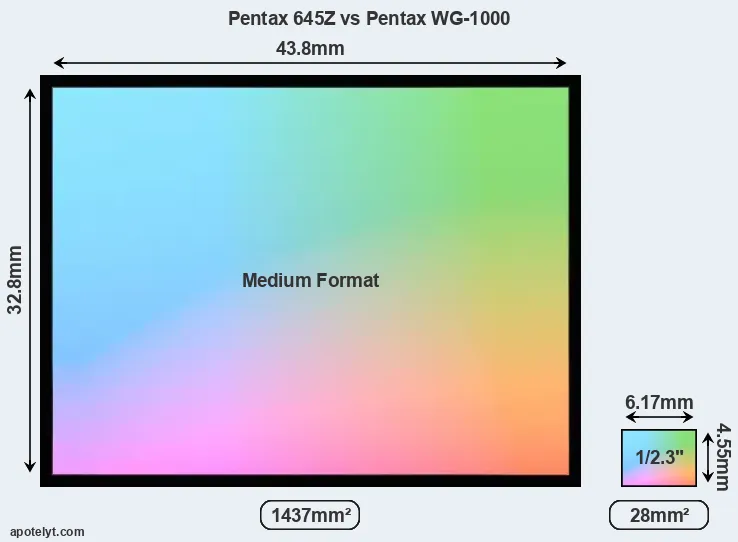

Of the two cameras under consideration, the Pentax 645Z features a medium format sensor and the Pentax WG-1000 a 1/2.3-inch sensor. The sensor area in the WG-1000 is 98 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.79 and 5.6. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

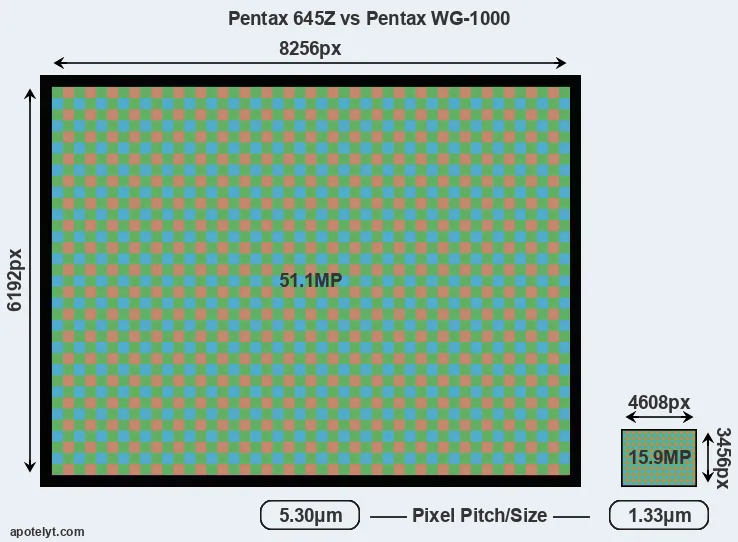

With 51.1MP, the 645Z offers a higher resolution than the WG-1000 (15.9MP), but the 645Z nevertheless has larger individual pixels (pixel pitch of 5.30μm versus 1.33μm for the WG-1000) due to its larger sensor. However, the WG-1000 is a much more recent model (by 10 years and 1 month) than the 645Z, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Pentax 645Z implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 645Z for good quality output (200 dots per inch) amounts to 41.3 x 31 inches or 104.9 x 78.6 cm, for very good quality (250 dpi) 33 x 24.8 inches or 83.9 x 62.9 cm, and for excellent quality (300 dpi) 27.5 x 20.6 inches or 69.9 x 52.4 cm. The corresponding values for the Pentax WG-1000 are 23 x 17.3 inches or 58.5 x 43.9 cm for good quality, 18.4 x 13.8 inches or 46.8 x 35.1 cm for very good quality, and 15.4 x 11.5 inches or 39 x 29.3 cm for excellent quality prints.

The Pentax 645Z has a native sensitivity range from ISO 100 to ISO 204800. The corresponding ISO settings for the Pentax WG-1000 are ISO 100 to ISO 3200 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax 645Z	Medium Format	51.1	8256	6192	1080/60i	26.0	14.7	4505	101
2.		Pentax WG-1000	1/2.3	15.9	4608	3456	1080/30p	20.9	12.8	1626	54
3.		Canon 1D X Mark II	Full Frame	20.0	5472	3648	4K/60p	24.1	13.5	3207	88
4.		Canon 5DS	Full Frame	50.3	8688	5792	1080/30p	24.7	12.4	2381	87
5.		Canon 5DS R	Full Frame	50.3	8688	5792	1080/30p	24.6	12.4	2308	86
6.		Fujifilm XP130	1/2.3	15.9	4608	3456	1080/60p	20.6	12.1	1000	51
7.		Hasselblad X1D	Medium Format	51.3	8272	6200	1080/25p	26.2	14.8	4489	102
8.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
9.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
10.		Nikon D4S	Full Frame	16.2	4928	3280	1080/60p	24.4	13.3	3074	89
11.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
12.		Nikon D7200	APS-C	24.0	6000	4000	1080/60p	24.5	14.6	1333	87
13.		Nikon W300	1/2.3	15.9	4608	3456	4K/30p	20.5	12.0	938	50
14.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
15.		Pentax WG-8	1/2.3	20.2	5184	3888	4K/30p	20.9	12.8	1626	54
16.		Pentax WG-90	1/2.3	15.9	4608	3456	1080/60p	20.9	12.8	1570	54
17.		Ricoh WG-60	1/2.3	15.9	4608	3456	1080/60p	20.6	12.2	1072	51
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the 645Z provides a higher frame rate than the WG-1000. It can shoot video footage at 1080/60i, while the WG-1000 is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the 645Z has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the WG-1000 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Pentax 645Z and Pentax WG-1000 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax 645Z	optical	Y	3.2 / 1037	tilting	n	1/4000s	3.0/s	n	n
2.		Pentax WG-1000	none	n	2.7 / 230	fixed	n	1/2000s	8.0/s	Y	n
3.		Canon 1D X Mark II	optical	Y	3.2 / 1620	fixed	Y	1/8000s	16.0/s	n	n
4.		Canon 5DS	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
5.		Canon 5DS R	optical	Y	3.2 / 1040	fixed	n	1/8000s	5.0/s	n	n
6.		Fujifilm XP130	none	n	3.0 / 920	fixed	n	1/2000s	10.0/s	Y	Y
7.		Hasselblad X1D	2360	n	3.0 / 920	fixed	Y	1/2000s	2.3/s	n	n
8.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
9.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
10.		Nikon D4S	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
11.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
12.		Nikon D7200	optical	Y	3.2 / 1229	fixed	n	1/8000s	6.0/s	Y	n
13.		Nikon W300	none	n	3.0 / 921	fixed	n	1/4000s	7.0/s	Y	Y
14.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
15.		Pentax WG-8	none	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
16.		Pentax WG-90	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
17.		Ricoh WG-60	none	n	2.7 / 230	fixed	n	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the 645Z, but is missing on the WG-1000 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The Pentax 645Z has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the 645Z and the WG-1000 write their files to SDXC cards. The 645Z features dual card slots, which can be very useful in case a memory card fails. In contrast, the WG-1000 only has one slot. The 645Z supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the WG-1000 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax 645Z and Pentax WG-1000 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax 645Z	Y	stereo / mono	Y	-	mini	3.0	-	-	-
2.		Pentax WG-1000	-	mono / mono	-	-	-	2.0	-	-	-
3.		Canon 1D X Mark II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
4.		Canon 5DS	Y	mono / mono	Y	-	mini	3.0	-	-	-
5.		Canon 5DS R	Y	mono / mono	Y	-	mini	3.0	-	-	-
6.		Fujifilm XP130	-	mono / mono	-	-	micro	2.0	Y	-	Y
7.		Hasselblad X1D	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
8.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
9.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
10.		Nikon D4S	Y	mono / mono	Y	Y	mini	2.0	-	-	-
11.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
12.		Nikon D7200	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
13.		Nikon W300	-	stereo / mono	-	-	micro	2.0	Y	-	Y
14.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-
15.		Pentax WG-8	-	mono / mono	-	-	-	3.0	-	-	-
16.		Pentax WG-90	-	mono / mono	-	-	micro	2.0	-	-	-
17.		Ricoh WG-60	-	mono / mono	-	-	micro	2.0	-	-	-

It is notable that the 645Z has a hotshoe, while the WG-1000 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Studio photographers will appreciate that the Pentax 645Z (unlike the WG-1000) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The WG-1000 is a recent model that features in the current product line-up of Pentax. In contrast, the 645Z has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the 645Z from Pentax. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Pentax website.

Review summary

So what conclusions can be drawn? Is the Pentax 645Z better than the Pentax WG-1000 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Pentax 645Z:

• More detail: Offers more megapixels (51.1 vs 15.9MP) with a 79% higher linear resolution.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (650 versus 300) on a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More heavily discounted: Has been available for much longer (launched in April 2014).

Reasons to prefer the Pentax WG-1000:

• Faster burst: Shoots at higher frequency (8 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with an integrated lens, while the 645Z requires a separate lens.
• More compact: Is smaller (116x69mm vs 156x117mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the 645Z).
• Water-proof: Is rugged and sealed and can thus be used for underwater photography (up to 15m).
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 10 years and 1 month of technical progress since the 645Z launch.

If the count of individual advantages (bullet points above) is taken as a guide, the 645Z is the clear winner of the match-up (22 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax 645Z and the Pentax WG-1000 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 645Z and the WG-1000 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax 645Z	5/5	..	3.5/5	..	4.5/5	5/5	Apr 2014	US$ 8 499	ebay.com
2.		Pentax WG-1000	..	..	..	..	..	..	Jun 2024	US$ 229	amazon.com
3.		Canon 1D X Mark II	..	..	4.5/5	89/100	4.5/5	4.5/5	Feb 2016	US$ 5 999	ebay.com
4.		Canon 5DS	..	+	..	83/100	4.5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
5.		Canon 5DS R	5/5	+	..	83/100	5/5	4.5/5	Feb 2015	US$ 3 699	ebay.com
6.		Fujifilm XP130	..	o	..	..	3.5/5	4/5	Jan 2018	US$ 229	ebay.com
7.		Hasselblad X1D	..	o	..	81/100	..	4/5	Jun 2016	US$ 8 995	ebay.com
8.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
9.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
10.		Nikon D4S	5/5	..	..	..	4.5/5	4.5/5	Feb 2014	US$ 6 499	ebay.com
11.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
12.		Nikon D7200	4/5	+ +	..	84/100	4.5/5	4.5/5	Mar 2015	US$ 1 199	ebay.com
13.		Nikon W300	..	+	..	..	4/5	4/5	May 2017	US$ 389	ebay.com
14.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
15.		Pentax WG-8	..	..	..	..	..	..	Jun 2024	US$ 399	amazon.com
16.		Pentax WG-90	..	..	..	..	..	..	Nov 2023	US$ 279	amazon.com
17.		Ricoh WG-60	..	..	..	..	..	..	Oct 2018	US$ 279	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check 645Z offers at
ebay.com
Check WG-1000 price at
amazon.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check 645Z offers at
ebay.com
Check WG-1000 price at
amazon.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
