Pentax K-30 vs MX-1

The Pentax K-30 and the Pentax MX-1 are two digital cameras that were announced, respectively, in May 2012 and January 2013. The K-30 is a DSLR, while the MX-1 is a fixed lens compact. The cameras are based on an APS-C (K-30) and a 1/1.7-inch (MX-1) sensor. The K-30 has a resolution of 16.1 megapixels, whereas the MX-1 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax K-30		Pentax MX-1
Digital single lens reflex		Fixed lens compact camera
Pentax K mount lenses		28-112mm f/1.8-2.5
16.1 MP – APS-C sensor		12 MP – 1/1.7" sensor
1080/30p Video		1080/30p Video
ISO 100-12,800 (100 - 25,600)		ISO 100-12,800
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 921k dots		3.0" LCD – 920k dots
Fixed screen (not touch-sensitive)		Tilting screen (no touchscreen)
6 shutter flaps per second		1 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		not weather sealed
410 shots per battery charge		290 shots per battery charge
130 x 97 x 71 mm, 650 g		122 x 61 x 51 mm, 391 g

Check K-30 offers at
ebay.com
Check MX-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-30 and the Pentax MX-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

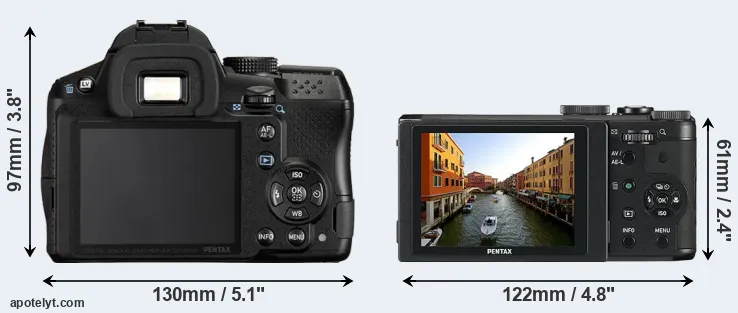

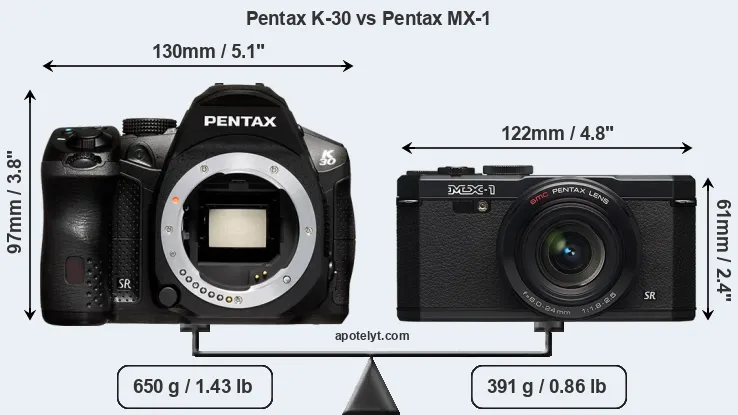

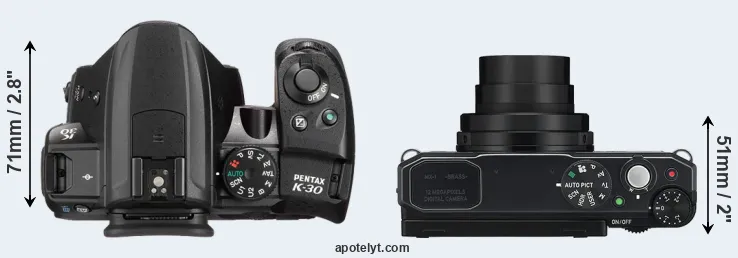

An illustration of the physical size and weight of the Pentax K-30 and the Pentax MX-1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The K-30 can be obtained in seven different colors (black, silver, blue, red, yellow, green, white), while the MX-1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Pentax MX-1 is considerably smaller (41 percent) than the Pentax K-30. It is worth mentioning in this context that the K-30 is splash and dust resistant, while the MX-1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the MX-1 has a lens built in, whereas the K-30 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
2.		Pentax MX-1	122 mm	61 mm	51 mm	391 g	290	n	Jan 2013	US$ 499	ebay.com
3.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	US$ 499	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	US$ 599	ebay.com
6.		Nikon Df	144 mm	110 mm	67 mm	760 g	1400	Y	Nov 2013	US$ 2 749	ebay.com
7.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
8.		Olympus E-M1	130 mm	94 mm	63 mm	497 g	350	Y	Sep 2013	US$ 1 399	ebay.com
9.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
10.		Panasonic GX7	123 mm	71 mm	55 mm	402 g	350	n	Aug 2013	US$ 999	ebay.com
11.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
12.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
13.		Pentax K-5 II	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2012	US$ 1 099	ebay.com
14.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
15.		Pentax K-500	130 mm	97 mm	71 mm	646 g	710	n	Jun 2013	US$ 549	ebay.com
16.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	US$ 749	ebay.com
17.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The MX-1 was launched at a lower price than the K-30, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Pentax K-30 features an APS-C sensor and the Pentax MX-1 a 1/1.7-inch sensor. The sensor area in the MX-1 is 88 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 4.5. The sensor in the K-30 has a native 3:2 aspect ratio, while the one in the MX-1 offers a 4:3 aspect.

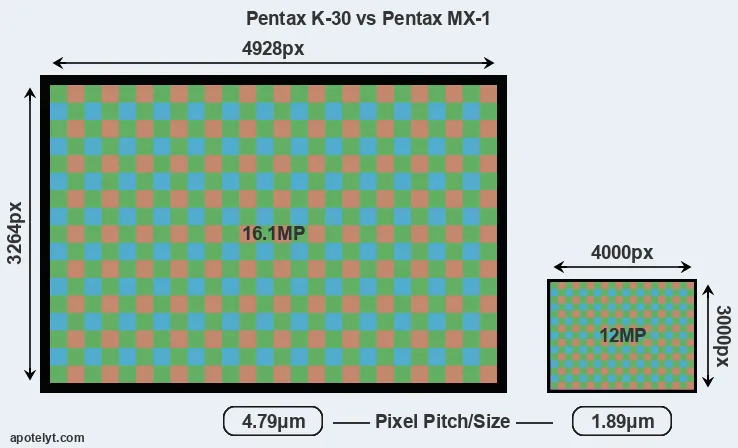

With 16.1MP, the K-30 offers a higher resolution than the MX-1 (12MP), but the K-30 nevertheless has larger individual pixels (pixel pitch of 4.79μm versus 1.89μm for the MX-1) due to its larger sensor. However, the MX-1 is a somewhat more recent model (by 7 months) than the K-30, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Pentax K-30 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the K-30 for good quality output (200 dots per inch) amounts to 24.6 x 16.3 inches or 62.6 x 41.5 cm, for very good quality (250 dpi) 19.7 x 13.1 inches or 50.1 x 33.2 cm, and for excellent quality (300 dpi) 16.4 x 10.9 inches or 41.7 x 27.6 cm. The corresponding values for the Pentax MX-1 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The Pentax K-30 has a native sensitivity range from ISO 100 to ISO 12800, which can be extended to ISO 100-25600. The corresponding ISO settings for the Pentax MX-1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the K-30 provides substantially higher image quality than the MX-1, with an overall score that is 30 points higher. This advantage is based on 3.3 bits higher color depth, 1.7 EV in additional dynamic range, and 2.4 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
2.		Pentax MX-1	1/1.7	12.0	4000	3000	1080/30p	20.4	11.3	208	49
3.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
6.		Nikon Df	Full Frame	16.2	4928	3280	none	24.6	13.1	3279	89
7.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
8.		Olympus E-M1	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.7	757	73
9.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
10.		Panasonic GX7	Four Thirds	15.8	4592	3448	1080/60p	22.6	12.2	718	70
11.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
12.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
13.		Pentax K-5 II	APS-C	16.1	4928	3264	1080/25p	23.8	14.1	1235	82
14.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
15.		Pentax K-500	APS-C	16.1	4928	3264	1080/30p	23.7	13.1	1087	79
16.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78
17.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (1080/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the K-30 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the MX-1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Pentax K-30 and Pentax MX-1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
2.		Pentax MX-1	none	n	3.0 / 920	tilting	n	1/8000s	1.0/s	Y	Y
3.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
6.		Nikon Df	optical	Y	3.2 / 921	fixed	n	1/4000s	5.5/s	n	n
7.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
8.		Olympus E-M1	2360	n	3.0 / 1037	tilting	Y	1/8000s	10.0/s	n	Y
9.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
10.		Panasonic GX7	2760	n	3.0 / 1040	tilting	Y	1/8000s	5.0/s	Y	Y
11.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
12.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
13.		Pentax K-5 II	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
14.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
15.		Pentax K-500	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
16.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
17.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

Concerning the storage of imaging data, both the K-30 and the MX-1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-30 and Pentax MX-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
2.		Pentax MX-1	-	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
6.		Nikon Df	Y	- / -	-	-	mini	2.0	-	-	-
7.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Olympus E-M1	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Panasonic GX7	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
11.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
12.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
13.		Pentax K-5 II	Y	stereo / mono	Y	-	mini	2.0	-	-	-
14.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
15.		Pentax K-500	Y	mono / mono	-	-	-	2.0	-	-	-
16.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-
17.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-

It is notable that the K-30 has a hotshoe, while the MX-1 does not. This socket makes it possible to easily attach optional accessories, such as an external flash gun.

Both the K-30 and the MX-1 have been discontinued, but can regularly be found used on ebay. The K-30 was replaced by the Pentax K-50, while the MX-1 does not have a direct successor. Further information on the features and operation of the K-30 and MX-1 can be found, respectively, in the Pentax K-30 Manual (free pdf) or the online Pentax MX-1 Manual.

Review summary

So how do things add up? Is there a clear favorite between the Pentax K-30 and the Pentax MX-1? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Pentax K-30:

• More detail: Offers more megapixels (16.1 vs 12MP) with a 18% higher linear resolution.
• Better image quality: Scores substantially higher (30 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.3 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (1.7 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.4 stops ISO advantage).
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Faster burst: Shoots at higher frequency (6 vs 1 flaps/sec) to capture the decisive moment.
• More flexible: Can take a variety of interchangeable lenses, including specialty optics.
• Longer lasting: Can take more shots (410 versus 290) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• More heavily discounted: Has been on the market for longer (launched in May 2012).

Arguments in favor of the Pentax MX-1:

• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• Ready to shoot: Comes with an integrated lens, while the K-30 requires a separate lens.
• More compact: Is smaller (122x61mm vs 130x97mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight even though it has a lens built in (unlike the K-30).
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Was introduced somewhat (7 months) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the K-30 is the clear winner of the match-up (12 : 7 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax K-30 and the Pentax MX-1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the K-30 or the MX-1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
2.		Pentax MX-1	3/5	..	..	74/100	4/5	4/5	Jan 2013	US$ 499	ebay.com
3.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	US$ 499	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	US$ 599	ebay.com
6.		Nikon Df	4/5	..	..	81/100	4/5	4/5	Nov 2013	US$ 2 749	ebay.com
7.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
8.		Olympus E-M1	5/5	+ +	..	84/100	4.5/5	4.5/5	Sep 2013	US$ 1 399	ebay.com
9.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
10.		Panasonic GX7	4/5	+	..	79/100	5/5	5/5	Aug 2013	US$ 999	ebay.com
11.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
12.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
13.		Pentax K-5 II	5/5	..	..	80/100	5/5	4.5/5	Sep 2012	US$ 1 099	ebay.com
14.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
15.		Pentax K-500	..	..	..	..	4.5/5	4.5/5	Jun 2013	US$ 549	ebay.com
16.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	US$ 749	ebay.com
17.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check K-30 offers at
ebay.com
Check MX-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check K-30 offers at
ebay.com
Check MX-1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
