Samsung NX30 vs NX500

The Samsung NX30 and the Samsung NX500 are two digital cameras that were revealed to the public, respectively, in January 2014 and February 2015. Both the NX30 and the NX500 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The NX30 has a resolution of 20 megapixels, whereas the NX500 provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Samsung NX30		Samsung NX500
Mirrorless system camera		Mirrorless system camera
Samsung NX mount lenses		Samsung NX mount lenses
20 MP – APS-C sensor		28 MP – APS-C sensor
1080/60p Video		4K/30p Video
ISO 100-25,600		ISO 100-25,600 (100 - 51,200)
Electronic viewfinder (2359k dots)		No viewfinder, LCD framing
3.0" LCD – 1036k dots		3.0" LCD – 1036k dots
Swivel touchscreen		Tilting touchscreen
9 shutter flaps per second		9 shutter flaps per second
360 shots per battery charge		370 shots per battery charge
127 x 96 x 58 mm, 375 g		120 x 64 x 43 mm, 287 g

Check NX30 offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Samsung NX30 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

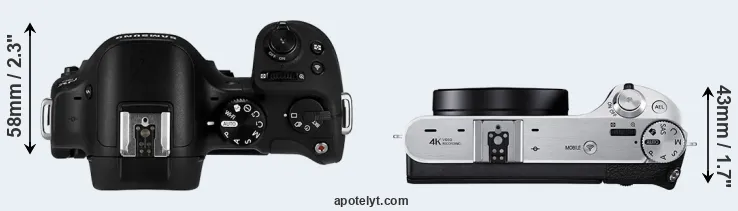

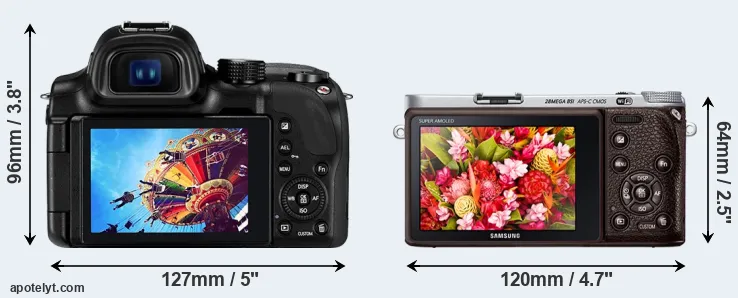

The physical size and weight of the Samsung NX30 and the Samsung NX500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (37 percent) than the Samsung NX30. Moreover, the NX500 is markedly lighter (23 percent) than the NX30. In this context, it is worth noting that neither the NX30 nor the NX500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Samsung NX30	127 mm	96 mm	58 mm	375 g	360	n	Jan 2014	US$ 999	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
3.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
4.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
5.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
6.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
7.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
8.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
9.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
10.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
11.		Sony A3000	128 mm	91 mm	85 mm	411 g	470	n	Aug 2013	US$ 329	ebay.com
12.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
13.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
14.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	US$ 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The NX500 was launched at a somewhat lower price (by 20 percent) than the NX30, which makes it more attractive for photographers on a tight budget. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

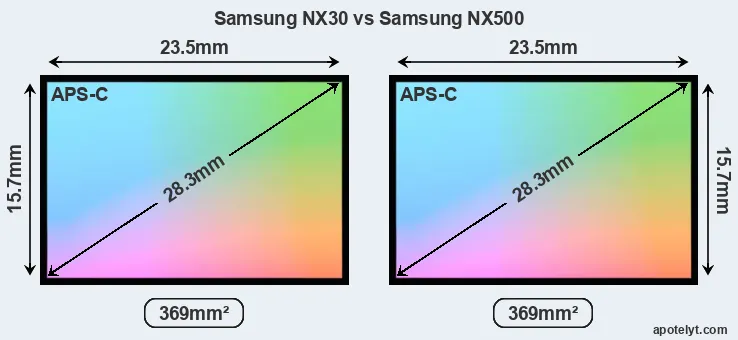

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Technology-wise, the NX500 uses a more advanced image processing engine (DRIMe Vs) than the NX30 (DRIMe IV), with benefits for noise reduction, color accuracy, and processing speed.

While the two cameras under review share the same sensor size, the NX500 offers a higher resolution of 28 megapixels, compared with 20 MP of the NX30. This megapixels advantage translates into a 18 percent gain in linear resolution. On the other hand, these sensor specs imply that the NX500 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.63μm versus 4.30μm for the NX30). However, it should be noted that the NX500 is a somewhat more recent model (by 1 year and 1 month) than the NX30, and its sensor might have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Samsung NX30 are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The Samsung NX30 has a native sensitivity range from ISO 100 to ISO 25600. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the NX30 is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. Of the two cameras under consideration, the NX500 offers substantially better image quality than the NX30 (overall score 11 points higher). The advantage is based on 1.3 bits higher color depth, 1.5 EV in additional dynamic range, and 0.4 stops in additional low light sensitivity. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Samsung NX30	APS-C	20.0	5472	3648	1080/60p	23.5	12.4	1014	76
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
4.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
5.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
6.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
7.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
8.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
9.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
10.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
11.		Sony A3000	APS-C	19.8	5456	3632	1080/60i	23.7	12.8	1068	78
12.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
13.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
14.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the NX500 provides a better video resolution than the NX30. It can shoot movie footage at 4K/30p, while the NX30 is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the NX30 has an electronic viewfinder (2359k dots), which can be very helpful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Samsung NX30, the Samsung NX500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Samsung NX30	2359	n	3.0 / 1036	swivel	Y	1/8000s	9.0/s	Y	n
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
4.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
6.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
7.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
8.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
9.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
10.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
11.		Sony A3000	202	n	3.0 / 230	fixed	n	1/4000s	2.5/s	Y	n
12.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
13.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
14.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Samsung NX30 and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the NX30 and the NX500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Samsung NX30 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Samsung NX30	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
6.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
8.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
9.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Sony A3000	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y

Both the NX30 and the NX500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Samsung. Further information on the features and operation of the NX30 and NX500 can be found, respectively, in the Samsung NX30 Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Samsung NX30 and the Samsung NX500? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Samsung NX30:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/6000s) to freeze action.
• More heavily discounted: Has been on the market for longer (launched in January 2014).

Reasons to prefer the Samsung NX500:

• More detail: Has more megapixels (28 vs 20MP), which boosts linear resolution by 18%.
• Better image quality: Scores substantially higher (11 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.4 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (DRIMe Vs vs DRIMe IV).
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More compact: Is smaller (120x64mm vs 127x96mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 88g or 23 percent) and is thus easier to take along.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was released into a lower priced segment (20 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year and 1 month) more recently.

If the number of relative strengths (bullet points above) is taken as a guide, the NX500 is the clear winner of the contest (12 : 4 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Samsung NX30 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the NX30 or the NX500. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Samsung NX30	3/5	..	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 999	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
3.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
4.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
5.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
6.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
7.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
8.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
9.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
10.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
11.		Sony A3000	3/5	+	..	..	4/5	4/5	Aug 2013	US$ 329	ebay.com
12.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
13.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
14.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	US$ 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
