Leica CL PDF User Manual

Did you lose or misplace the instruction manual that came with your Leica CL (Typ 7323)? It happens all too easily, but fortunately Leica makes a soft copy available that you can browse through online, print out, or download (see the pdf file below). It is certainly good practice to carefully familiarize oneself with the many different functionalities and options that the CL offers, and the official user manual is without doubt an authoritative and comprehensive source of respective information.

That said, the instruction booklet can be a dry read, so that a dedicated camera guide book from a professional photographer that illustrates the camera's core functions in a real life photography context can be a very helpful complement. Yes, getting one of these camera guides (see here at amazon) would involve an additional expense, but if that book helps to exploit the camera's potential to the full, the (small) additional investment may well be worth it.

Also, you might want to check out the video tutorial on the Leica CL (Typ 7323) below.

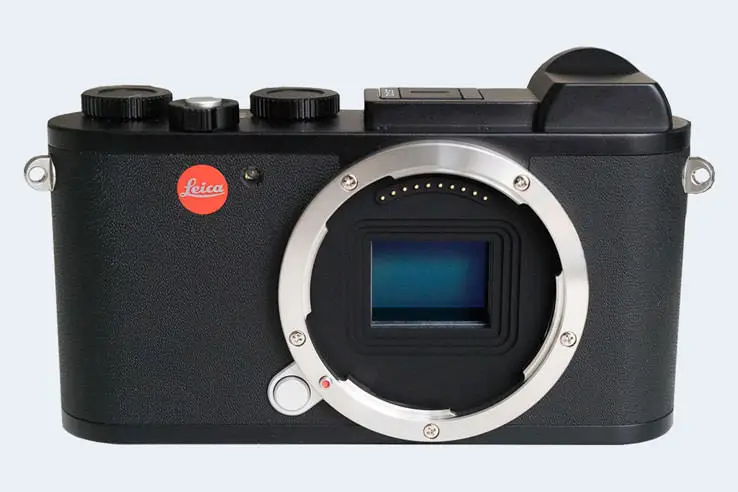

camera

In any case, the CL is an advanced imaging tool, whose many features merit serious attention. This mirrorless interchangeable lens camera was officially introduced on November 21st, 2017, which means that, as of today, the camera is 2499 days old (young?). The camera has meanwhile been discontinued, but there has not been a direct replacement model for the CL from Leica.

ad

Leica's instruction manual for the CL

The camera's instruction manual is 99 pages long. The pdf version is embedded below. As you browse through, you will hopefully find the information you are looking for. You can also print out a hard copy by right clicking on the manual and then choosing the respective menu option. For convenience, a summary of the key specs of the CL is included towards the bottom of this webpage.

Don't forget to bookmark this page for future reference (Ctrl-Shift-D on a Windows PC; Cmd-Shift-D on a Mac). Happy browsing!

Click on the button below to download the pdf version of the Leica CL (Typ 7323) manual to your computer. The file will open in a new browser window.

Download the Manual

If you prefer to read the user guide in another language, please check the respective availability on Leica's support site. That site also provides complementary online resources, such as information on the compatibility of various camera accessories or the availability of firmware updates that are not necessarily comprehensively covered in the instruction manual.

Printed, hardcopy versions of the Leica CL manual can sometimes be found online. You can check the availability on amazon and ebay via the buttons below.

amazon.com ebay.com

ad

Video tutorial for the Leica CL (Typ 7323)

Perhaps instead of reading through a manual or operations guide, you might prefer to better familiarize yourself with your CL by watching a video tutorial. It can notably help to quickly get to know the key functions and to set up your camera according to your particular preferences and needs.

Once again, the Leica CL is a sophisticated imaging tool and not exploiting its capabilities to the full would be a pity. Hence, taking the time to study online information material or to read through a well-written camera guide book is highly recommended to make the most of your purchase.

Find CL guide book at
amazon.com

Leica CL FAQ

Below are some additional questions and answers concerning some particular features of the CL.

What technology is the imaging sensor in the Leica CL based on?

The camera has a CMOS (Complementary Metal–Oxide–Semiconductor) sensor at its core.

Which image processing chip is used in the Leica CL to convert the raw signal into an image file and perform noise reduction and image sharpening?

Leica equipped the CL with the Maestro II image processor.

What is the ISO sensitivity range of the Leica CL?

The camera has a native sensitivity range from ISO 100 to ISO 50000.

What is the life expectancy of the shutter in the Leica CL (Typ 7323)?

Leica does not publish a shutter rating for the CL. Yet, shutters in comparable cameras from other manufacturers are said to be good for at least 100 000 actuations. It should be noted, though, that this number represents a Mean Time before Failure. The shutter might fail earlier, or it might last longer. Anyway, in order to exhaust an expected shutter life of 100 000 shots over, say, three years, one would have to take about 100 pictures each and every day.

Is completely silent shooting possible with the Leica CL?

The camera has an electronic shutter option, so that it is indeed feasible to capture images without any shutter noise.

Do I need to purchase an external camera trigger to shoot time-lapse sequences with the Leica CL?

No, the Leica CL (Typ 7323) has an intervalometer built-in, so that low frequency shooting (for example, flower blooming, sunset, moon rise) can be undertaken without the need to purchase a separate external intervalometer and related software.

Is it difficult to use manual focus lenses with the Leica CL?

The CL offers focus peaking as a manual focus aid. This feature works by placing a colored highlight on in-focus zones within the image.

Does the Leica CL feature an autofocus assist light?

Yes, the camera has a lamp built-in that can illuminate the subject and improve autofocus in low-light settings.

What is the fastest shutter speed that can be used with the Leica CL for flash photography?

The CL's flash sync speed is 1/180 sec.

Does the Leica CL support the Ultra High Speed (UHS) bus interface for SD cards?

Yes, the camera can indeed use UHS-II cards (data transfer speed of up to 312 MB/s).

Which battery does the Leica CL use?

The camera gets its power from the Leica BP-DC12 (here at amazon), which is a rechargeable Lithium-Ion power pack.

ad

Further reading

How does the CL stack up against available alternatives? In case you would like to check on the differences and similarities with other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~
    loader
    ad

    Core camera specifications

    Here is a list of the main features and technical characteristics of the Leica CL (Typ 7323).

    Specifications Summary
    Camera Model Leica CL
    Camera Type Mirrorless system camera
    Camera Lens Leica T mount lenses
    Launch Date November 2017
    Launch Price USD 2 795
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format APS-C Sensor
    Sensor Size 23.6 x 15.7 mm
    Sensor Area 371 mm2
    Sensor Diagonal 28.3 mm
    Crop Factor 1.5x
    Sensor Resolution 24.1 Megapixels
    Image Resolution 6 014 x 4 014 pixels
    Pixel Pitch 3.92 μm
    Pixel Density 6.52 MP/cm2
    Moiré control no AA filter
    Movie Capability 4K/30p Video
    ISO Setting 100 - 50 000 ISO
    Image Processor Maestro II
    Screen Specs
    Viewfinder Type Electronic viewfinder
    Viewfinder Field of View 100%
    Viewfinder Magnification 0.49x
    Viewfinder Resolution 2360k dots
    Top-Level Screen Control Panel
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Fixed screen
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/8000s
    Continuous Shooting 10 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash no On-Board Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-II
    Connectivity Specs
    External Flash Hotshoe
    USB Connector no USB
    HDMI Port no HDMI
    Wifi Support Wifi built-in
    Body Specs
    Battery Type Leica BP-DC12 power pack
    Battery Life (CIPA)220 shots per charge
    Body Dimensions 131 x 78 x 45 mm
    (5.2 x 3.1 x 1.8 in)
    Camera Weight 403 g (14.2 oz)

    Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
