Touchscreen on the Panasonic GX800?

The rear monitor on the Panasonic Lumix DMC-GX800 is touch sensitive. This feature is convenient for adjusting camera settings and reviewing images, and – just like a touchscreen on a smartphone – makes operations easy, quick, and intuitive. Commands can be entered by tapping, swiping, and sliding on the rear screen, instead of having to use dials and buttons on the camera body.

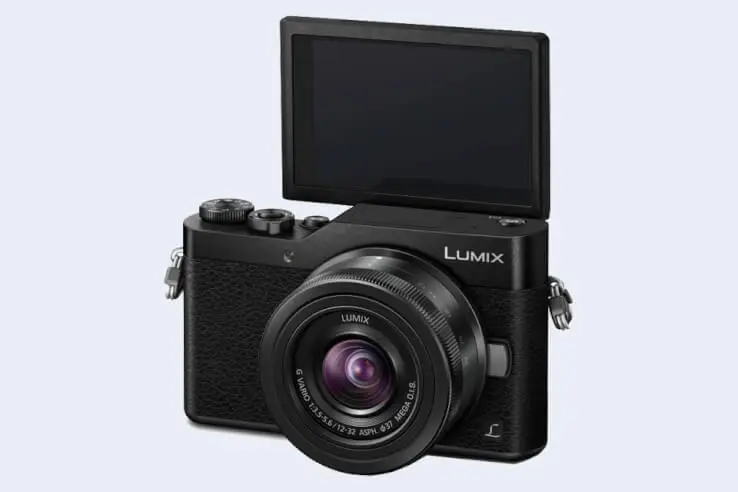

The LCD is flexibly attached to the body to allow for odd-angle shots.

articulated screen
Flexible screen on the GX800

In terms of size and resolution, the rear LCD of the Panasonic GX800 measures 3.0 inches and offers a resolution of 1,040,000 dots.

Panasonic GX800 Screen Specs
Viewfinder Type No viewfinder
Top-Level Screen no Top Display
LCD Framing Live View
LCD Size 3.0 inch
LCD Resolution 1040k dots
LCD Attachment Tilting screen
Touch Input Touchscreen

Back side of the Panasonic GX800 with LCD

GX800 and credit card rear side

As can be seen from the rear-side image, the 3.0-inch LCD occupies a large part of the backside of the camera. For comparison, the diagonal on a standard credit card measures 4 inches.

ad

Camera to camera comparisons

The Panasonic Lumix DMC-GX800 (called Panasonic GX850 in some regions) is a mirrorless interchangeable lens camera that was revealed to the public in January 2017 and is equipped with a Four Thirds sensor. It offers a resolution of 15.8 megapixel. In the United States, the camera was initially launched at a price of $549.

logo
Check GX800 offers at
ebay.com

The table below compares the rear screen specs of the Panasonic GX800 to those of several similar cameras. Additionally, the table includes some information on other core features, such as the viewfinder, shutter, flash, and image stabilization system.

scroll hint
LCD and Other Feature Comparison
    Camera
Model
Viewfinder
(Type or
000 dots)
Control
Panel
(yes/no)
LCD
Specifications
(inch/000 dots)
LCD
Attach-
ment
Touch
Screen
(yes/no)
Mech
Shutter
Speed
Shutter
Flaps
(1/sec)
Built-in
Flash
(yes/no)
Built-in
Stab
1.

Panasonic GX800none n3.0 / 1040 tilting Y 1/500s 10.0/s Y n
2.

Canon M10none n3.0 / 1040 tilting Y 1/4000s 4.6/s Y n
3.

Canon M100none n3.0 / 1040 tilting Y 1/4000s 6.1/s Y n
4.

Panasonic G51440 n3.0 / 920 swivel Y 1/4000s 6.0/s Y n
5.

Panasonic G61440 n3.0 / 1036 swivel Y 1/4000s 7.0/s Y n
6.

Panasonic G72360 n3.0 / 1040 swivel Y 1/4000s 7.0/s Y n
7.

Panasonic GF5none n3.0 / 920 fixed Y 1/4000s 4.0/s Y n
8.

Panasonic GF6none n3.0 / 1040 tilting Y 1/4000s 4.2/s Y n
9.

Panasonic GF7none n3.0 / 1040 tilting Y 1/500s 5.8/s Y n
10.

Panasonic GM1none n3.0 / 1036 fixed Y 1/500s 5.0/s Y n
11.

Panasonic GM51166 n3.0 / 921 fixed Y 1/500s 5.8/s n n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

In case you would like to check on the differences and similarities with other camera models, just make a corresponding selection in the search boxes below. An an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~
    loader
    ad

    Specifications Summary
    Camera Model Panasonic GX800
    Camera Type Mirrorless system camera
    Camera Lens Micro Four Thirds lenses
    Launch Date January 2017
    Launch Price USD 549
    Sensor Specs
    Sensor Technology CMOS
    Sensor Format Four Thirds Sensor
    Sensor Size 17.3 x 13.0 mm
    Sensor Area 225 mm2
    Sensor Diagonal 21.6 mm
    Crop Factor 2.0x
    Sensor Resolution 15.8 Megapixels
    Image Resolution 4 592 x 3 448 pixels
    Pixel Pitch 3.77 μm
    Pixel Density 7.04 MP/cm2
    Moiré control no AA filter
    Movie Capability 4K/30p Video
    ISO Setting 200 - 25 600 ISO
    ISO Boost 100 - 25 600 ISO
    Image Processor Venus
    DXO Sensor Quality (score) 73
    DXO Color Depth (bits) 23.2
    DXO Dynamic Range (EV) 13.3
    DXO Low Light (ISO) 586
    Screen Specs
    Viewfinder Type No viewfinder
    Top-Level Screen no Top Display
    LCD Framing Live View
    LCD Size 3.0 inch
    LCD Resolution 1040k dots
    LCD Attachment Tilting screen
    V-logging Friendliness Front-flip possible
    Touch Input Touchscreen
    Shooting Specs
    Focus System Contrast-detect AF
    Manual Focusing AidFocus Peaking
    Maximum Shutter Speed 1/500s
    Continuous Shooting 10 shutter flaps/s
    Shutter Life Expectancy100 000 actuations
    Silent ShootingElectronic Shutter
    Time Lapse PhotographyIntervalometer Built-in
    Fill Flash Built-in Flash
    Storage Medium SDXC cards
    Single or Dual Card Slots Single card slot
    UHS card support UHS-I
    Connectivity Specs
    External Flash no Hotshoe
    USB Connector USB 2.0
    HDMI Port micro HDMI
    Wifi Support Wifi built-in
    Body Specs
    Battery Type Panasonic DMW-BLH7 power pack
    Battery Life (CIPA)210 shots per charge
    Body Dimensions 107 x 65 x 33 mm
    (4.2 x 2.6 x 1.3 in)
    Camera Weight 269 g (9.5 oz)
