Canon 5D Mark IV vs OM System OM-5
The Canon EOS 5D Mark IV and the OM System OM-5 are two digital cameras that were officially introduced, respectively, in August 2016 and October 2022. The 5D Mark IV is a DSLR, while the OM-5 is a mirrorless interchangeable lens camera. The cameras are based on a full frame (5D Mark IV) and a Four Thirds (OM-5) sensor. The Canon has a resolution of 30.1 megapixels, whereas the OM System provides 20.2 MP.
Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Check 5D Mark IV price at
amazon.com

Check OM-5 price at
amazon.com
Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS 5D Mark IV and the OM System OM-5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.
Body comparison

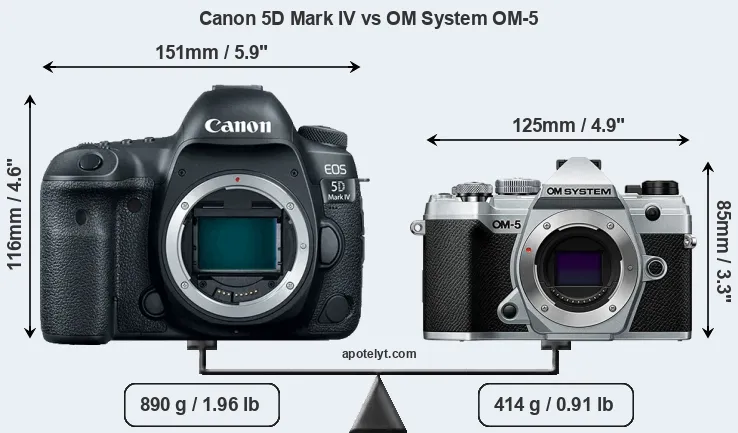

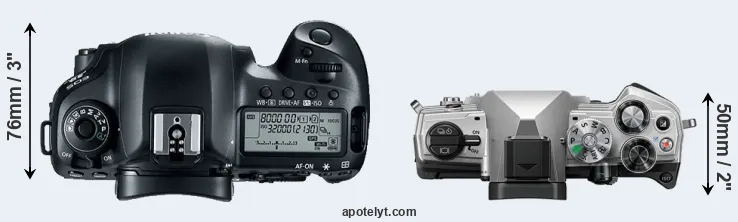

An illustration of the physical size and weight of the Canon 5D Mark IV and the OM System OM-5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.
The OM-5 can be obtained in two different colors (black, silver), while the 5D Mark IV is only available in black.



If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the OM System OM-5 is considerably smaller (39 percent) than the Canon 5D Mark IV. Moreover, the OM-5 is substantially lighter (53 percent) than the 5D Mark IV. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.
The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Canon EF Lens Catalog (5D Mark IV) and the Micro Four Thirds Lens Catalog (OM-5). Mirrorless cameras, such as the OM-5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.
Concerning battery life, the 5D Mark IV gets 900 shots out of its Canon LP-E6N battery, while the OM-5 can take 310 images on a single charge of its OM System BLS-50 power pack. The power pack in the OM-5 can be charged via the USB port, which can be very convenient when travelling.
The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

| Camera Model |
Camera Width |
Camera Height |
Camera Depth |
Camera Weight |
Battery Life |
Weather Sealing |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon 5D Mark IV | 151 mm | 116 mm | 76 mm | 890 g | 900 | Y | Aug 2016 | EUR 4 065 | amazon.com | |
| 2. | OM System OM-5 | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2022 | EUR 1 299 | amazon.com | |
| 3. | Canon 1D X Mark II | 158 mm | 168 mm | 83 mm | 1530 g | 1210 | Y | Feb 2016 | EUR 6 299 | ebay.com | |
| 4. | Canon 5D Mark II | 152 mm | 114 mm | 75 mm | 850 g | 850 | Y | Sep 2008 | EUR 3 299 | ebay.com | |
| 5. | Canon 5D Mark III | 152 mm | 116 mm | 76 mm | 950 g | 950 | Y | Mar 2012 | EUR 3 299 | ebay.com | |
| 6. | Canon 5DS | 152 mm | 116 mm | 76 mm | 930 g | 700 | Y | Feb 2015 | EUR 3 499 | ebay.com | |
| 7. | Canon 5DS R | 152 mm | 116 mm | 76 mm | 930 g | 700 | Y | Feb 2015 | EUR 3 699 | ebay.com | |
| 8. | Canon 6D | 145 mm | 111 mm | 71 mm | 770 g | 1090 | Y | Sep 2012 | EUR 1 999 | ebay.com | |
| 9. | Canon 6D Mark II | 144 mm | 111 mm | 75 mm | 765 g | 1200 | Y | Jun 2017 | EUR 2 099 | amazon.com | |
| 10. | Canon 80D | 139 mm | 105 mm | 79 mm | 730 g | 960 | Y | Feb 2016 | EUR 1 285 | ebay.com | |
| 11. | Nikon D810 | 146 mm | 123 mm | 82 mm | 980 g | 1200 | Y | Jun 2014 | EUR 3 299 | ebay.com | |
| 12. | Nikon D850 | 146 mm | 124 mm | 79 mm | 1005 g | 1840 | Y | Jul 2017 | EUR 3 799 | amazon.com | |
| 13. | Olympus E-M5 III | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Oct 2019 | EUR 1 199 | ebay.com | |
| 14. | OM System OM-1 | 135 mm | 92 mm | 73 mm | 599 g | 520 | Y | Feb 2022 | EUR 2 199 | ebay.com | |
| 15. | OM System OM-3 | 139 mm | 89 mm | 46 mm | 496 g | 590 | Y | Feb 2025 | EUR 1 999 | amazon.com | |
| 16. | OM System OM-5 II | 125 mm | 85 mm | 50 mm | 414 g | 310 | Y | Jun 2025 | EUR 1 299 | amazon.com | |
| 17. | Panasonic GX8 | 133 mm | 78 mm | 63 mm | 487 g | 330 | Y | Jul 2015 | EUR 1 199 | ebay.com | |
| Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders. | |||||||||||
Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The OM-5 was launched at a markedly lower price (by 66 percent) than the 5D Mark IV, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.
Sensor comparison

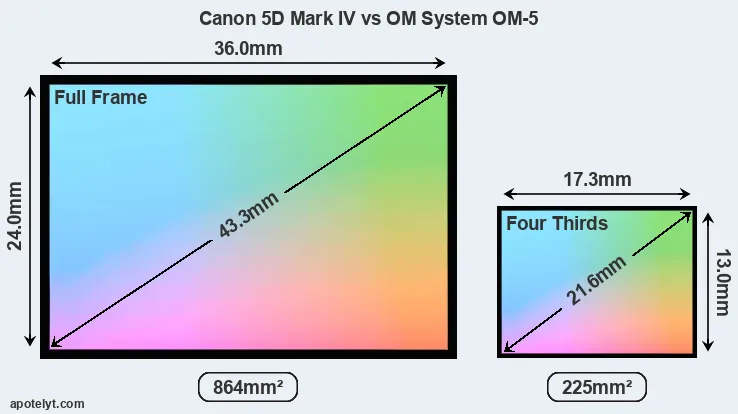

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.
Of the two cameras under consideration, the Canon 5D Mark IV features a full frame sensor and the OM System OM-5 a Four Thirds sensor. The sensor area in the OM-5 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the 5D Mark IV has a native 3:2 aspect ratio, while the one in the OM-5 offers a 4:3 aspect.

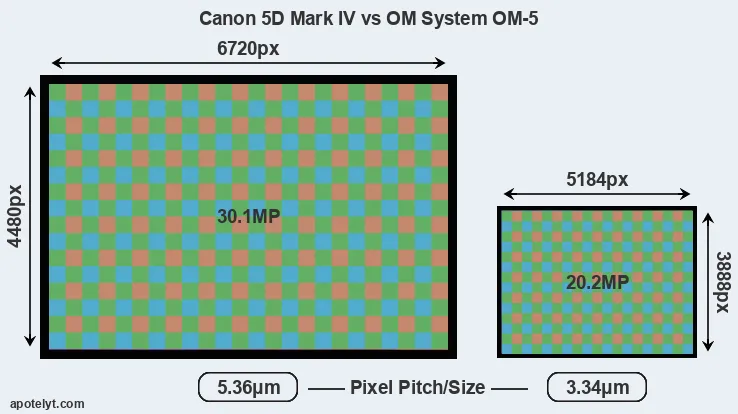

With 30.1MP, the 5D Mark IV offers a higher resolution than the OM-5 (20.2MP), but the 5D Mark IV nevertheless has larger individual pixels (pixel pitch of 5.36μm versus 3.34μm for the OM-5) due to its larger sensor. However, the OM-5 is a much more recent model (by 6 years and 2 months) than the 5D Mark IV, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the OM-5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.
The resolution advantage of the Canon 5D Mark IV implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the 5D Mark IV for good quality output (200 dots per inch) amounts to 33.6 x 22.4 inches or 85.3 x 56.9 cm, for very good quality (250 dpi) 26.9 x 17.9 inches or 68.3 x 45.5 cm, and for excellent quality (300 dpi) 22.4 x 14.9 inches or 56.9 x 37.9 cm. The corresponding values for the OM System OM-5 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.
Unlike the 5D Mark IV, the OM-5 has the capacity to capture high quality composite images (80MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).
The Canon EOS 5D Mark IV has a native sensitivity range from ISO 100 to ISO 32000, which can be extended to ISO 50-102400. The corresponding ISO settings for the OM System OM-5 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 64-25600.
Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

| Camera Model |
Sensor Class |
Resolution (MP) |
Horiz. Pixels |
Vert. Pixels |
Video Format |
DXO Portrait |
DXO Landscape |
DXO Sports |
DXO Overall |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon 5D Mark IV | Full Frame | 30.1 | 6720 | 4480 | 4K/30p | 24.8 | 13.6 | 2995 | 91 | |
| 2. | OM System OM-5 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.4 | 13.4 | 1622 | 78 | |
| 3. | Canon 1D X Mark II | Full Frame | 20.0 | 5472 | 3648 | 4K/60p | 24.1 | 13.5 | 3207 | 88 | |
| 4. | Canon 5D Mark II | Full Frame | 21.0 | 5616 | 3744 | 1080/30p | 23.7 | 11.9 | 1815 | 79 | |
| 5. | Canon 5D Mark III | Full Frame | 22.1 | 5760 | 3840 | 1080/30p | 24.0 | 11.7 | 2293 | 81 | |
| 6. | Canon 5DS | Full Frame | 50.3 | 8688 | 5792 | 1080/30p | 24.7 | 12.4 | 2381 | 87 | |
| 7. | Canon 5DS R | Full Frame | 50.3 | 8688 | 5792 | 1080/30p | 24.6 | 12.4 | 2308 | 86 | |
| 8. | Canon 6D | Full Frame | 20.0 | 5472 | 3648 | 1080/30p | 23.8 | 12.1 | 2340 | 82 | |
| 9. | Canon 6D Mark II | Full Frame | 26.0 | 6240 | 4160 | 1080/60p | 24.4 | 11.9 | 2862 | 85 | |
| 10. | Canon 80D | APS-C | 24.0 | 6000 | 4000 | 1080/60p | 23.6 | 13.2 | 1135 | 79 | |
| 11. | Nikon D810 | Full Frame | 36.2 | 7360 | 4912 | 1080/60p | 25.7 | 14.8 | 2853 | 97 | |
| 12. | Nikon D850 | Full Frame | 45.4 | 8256 | 5504 | 4K/30p | 26.4 | 14.8 | 2660 | 100 | |
| 13. | Olympus E-M5 III | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.3 | 13.1 | 1324 | 76 | |
| 14. | OM System OM-1 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.4 | 1553 | 77 | |
| 15. | OM System OM-3 | Four Thirds | 20.2 | 5184 | 3888 | 4K/60p | 23.4 | 13.7 | 1852 | 78 | |
| 16. | OM System OM-5 II | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.4 | 13.7 | 1889 | 78 | |
| 17. | Panasonic GX8 | Four Thirds | 20.2 | 5184 | 3888 | 4K/30p | 23.5 | 12.6 | 806 | 75 | |
| Note: DXO values in italics represent estimates based on sensor size and age. | |||||||||||
Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4K/30p).
Feature comparison
Beyond body and sensor, cameras can and do differ across a range of features. For example, the OM-5 has an electronic viewfinder (2360k dots), while the 5D Mark IV has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the 5D Mark IV has a higher magnification than the one of the OM-5 (0.71x vs 0.68x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon 5D Mark IV and OM System OM-5 in connection with corresponding information for a sample of similar cameras.

| Camera Model |
Viewfinder (Type or 000 dots) |
Control Panel (yes/no) |
LCD Specifications (inch/000 dots) |
LCD Attach- ment |
Touch Screen (yes/no) |
Max Shutter Speed * |
Max Shutter Flaps * |
Built-in Flash (yes/no) |
Built-in Image Stab |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon 5D Mark IV | optical | Y | 3.2 / 1620 | fixed | Y | 1/8000s | 7.0/s | n | n | |
| 2. | OM System OM-5 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 3. | Canon 1D X Mark II | optical | Y | 3.2 / 1620 | fixed | Y | 1/8000s | 16.0/s | n | n | |
| 4. | Canon 5D Mark II | optical | Y | 3.0 / 920 | fixed | n | 1/8000s | 3.9/s | n | n | |
| 5. | Canon 5D Mark III | optical | Y | 3.2 / 1040 | fixed | n | 1/8000s | 6.0/s | n | n | |
| 6. | Canon 5DS | optical | Y | 3.2 / 1040 | fixed | n | 1/8000s | 5.0/s | n | n | |
| 7. | Canon 5DS R | optical | Y | 3.2 / 1040 | fixed | n | 1/8000s | 5.0/s | n | n | |
| 8. | Canon 6D | optical | Y | 3.0 / 1040 | fixed | n | 1/4000s | 4.5/s | n | n | |
| 9. | Canon 6D Mark II | optical | Y | 3.0 / 1040 | swivel | Y | 1/4000s | 6.5/s | n | n | |
| 10. | Canon 80D | optical | Y | 3.0 / 1040 | swivel | Y | 1/8000s | 7.0/s | Y | n | |
| 11. | Nikon D810 | optical | Y | 3.2 / 1229 | fixed | n | 1/8000s | 5.0/s | Y | n | |
| 12. | Nikon D850 | optical | Y | 3.2 / 2359 | tilting | Y | 1/8000s | 9.0/s | n | n | |
| 13. | Olympus E-M5 III | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 14. | OM System OM-1 | 5760 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 15. | OM System OM-3 | 2360 | n | 3.0 / 1640 | swivel | Y | 1/8000s | 6.0/s | n | Y | |
| 16. | OM System OM-5 II | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| 17. | Panasonic GX8 | 2360 | n | 3.0 / 1040 | swivel | Y | 1/8000s | 10.0/s | n | Y | |
| Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one. | |||||||||||
One feature that is present on the 5D Mark IV, but is missing on the OM-5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

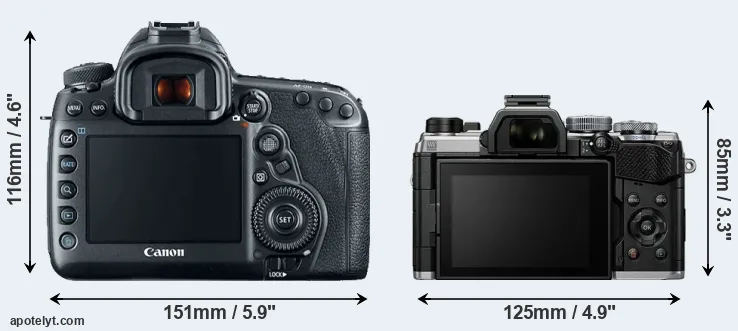

The OM-5 has an articulated screen that can be turned to be front-facing. This characteristic will be appreciated by vloggers and photographers who are interested in taking selfies. In contrast, the 5D Mark IV does not have a selfie-screen.The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the OM-5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).
The Canon 5D Mark IV and the OM System OM-5 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.
The 5D Mark IV writes its imaging data to Compact Flash or SDXC cards, while the OM-5 uses SDXC cards. The 5D Mark IV features dual card slots, which can be very useful in case a memory card fails. In contrast, the OM-5 only has one slot. The OM-5 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the 5D Mark IV can use UHS-I cards (up to 104 MB/s).
Connectivity comparison
For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS 5D Mark IV and OM System OM-5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

| Camera Model |
Hotshoe Port |
Internal Mic / Speaker |
Microphone Port |
Headphone Port |
HDMI Port |
USB Port |
WiFi Support |
NFC Support |
Bluetooth Support |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon 5D Mark IV | Y | mono / mono | Y | Y | mini | 3.0 | Y | Y | - | |
| 2. | OM System OM-5 | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
| 3. | Canon 1D X Mark II | Y | mono / mono | Y | Y | mini | 3.0 | - | - | - | |
| 4. | Canon 5D Mark II | Y | mono / mono | Y | - | mini | 2.0 | - | - | - | |
| 5. | Canon 5D Mark III | Y | mono / mono | Y | Y | mini | 2.0 | - | - | - | |
| 6. | Canon 5DS | Y | mono / mono | Y | - | mini | 3.0 | - | - | - | |
| 7. | Canon 5DS R | Y | mono / mono | Y | - | mini | 3.0 | - | - | - | |
| 8. | Canon 6D | Y | mono / mono | Y | - | mini | 2.0 | Y | - | - | |
| 9. | Canon 6D Mark II | Y | stereo / mono | Y | - | mini | 2.0 | Y | Y | Y | |
| 10. | Canon 80D | Y | stereo / mono | Y | Y | mini | 2.0 | Y | Y | - | |
| 11. | Nikon D810 | Y | stereo / mono | Y | Y | mini | 3.0 | Y | - | - | |
| 12. | Nikon D850 | Y | stereo / mono | Y | Y | mini | 3.0 | Y | Y | Y | |
| 13. | Olympus E-M5 III | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
| 14. | OM System OM-1 | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
| 15. | OM System OM-3 | Y | stereo / mono | Y | Y | micro | 3.0 | Y | - | Y | |
| 16. | OM System OM-5 II | Y | stereo / mono | Y | - | micro | 2.0 | Y | - | Y | |
| 17. | Panasonic GX8 | Y | stereo / mono | Y | - | micro | 2.0 | Y | Y | - |
It is notable that the 5D Mark IV has a headphone jack, which is not present on the OM-5 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.
Studio photographers will appreciate that the Canon 5D Mark IV (unlike the OM-5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.
Travel and landscape photographers will find it useful that the 5D Mark IV has an internal geolocalization sensor and can record GPS coordinates in its EXIF data.
Both the 5D Mark IV and the OM-5 are recent models that are part of the current product line-up. The 5D Mark IV replaced the earlier Canon 5D Mark III, while the OM-5 followed on from the Olympus E-M5 III. Further information on the features and operation of the 5D Mark IV and OM-5 can be found, respectively, in the Canon 5D Mark IV Manual (free pdf) or the online OM System OM-5 Manual.
Review summary
So what conclusions can be drawn? Is the Canon 5D Mark IV better than the OM System OM-5 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Canon EOS 5D Mark IV:
- More detail: Offers more megapixels (30.1 vs 20.2MP) with a 25% higher linear resolution.
- Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
- Better sound control: Has a headphone port that enables audio monitoring while recording.
- Brighter framing: Features an optical viewfinder for clear, lag-free composition.
- Larger viewfinder image: Features a viewfinder with a higher magnification (0.71x vs 0.68x).
- Easier setting verification: Features an LCD display on top to control shooting parameters.
- Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
- More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
- Longer lasting: Can take more shots (900 versus 310) on a single battery charge.
- Easier geotagging: Features an internal GPS sensor to log localization data.
- Faster data transfer: Supports a more advanced USB protocol (3.0 vs 2.0).
- Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
- Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
- Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
- More heavily discounted: Has been available for much longer (launched in August 2016).

Reasons to prefer the OM System OM-5:
- Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
- High quality composites: Can combine several shots after pixel-shifting its sensor.
- More framing info: Has an electronic viewfinder that displays shooting data.
- More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
- More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
- Faster burst: Shoots at higher frequency (10 vs 7 flaps/sec) to capture the decisive moment.
- Less disturbing: Has an electronic shutter option for completely silent shooting.
- More compact: Is smaller (125x85mm vs 151x116mm) and will fit more readily into a bag.
- Less heavy: Has a lower weight (by 476g or 53 percent) and is thus easier to take along.
- Easier travel charging: Can be conveniently charged via its USB port.
- Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
- More legacy lens friendly: Can use many non-native lenses via adapters.
- Easier wireless transfer: Supports Bluetooth for image sharing without cables.
- Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
- More affordable: Was introduced into a lower priced category (66 percent cheaper at launch).
- More modern: Reflects 6 years and 2 months of technical progress since the 5D Mark IV launch.
If the count of individual advantages (bullet points above) is taken as a guide, the OM-5 comes out slightly ahead of the 5D Mark IV (16 : 15 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.
How about other alternatives? Do the specifications of the Canon 5D Mark IV and the OM System OM-5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.
In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the 5D Mark IV and the OM-5 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.
Expert reviews
This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

| Camera Model |
AP score |
CL score |
DCW score |
DPR score |
EPZ score |
PB score |
Camera Launch |
Launch Price |
Street Price |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1. | Canon 5D Mark IV | 4.5/5 | + + | 4/5 | 87/100 | 4.5/5 | 4.5/5 | Aug 2016 | EUR 4 065 | amazon.com | |
| 2. | OM System OM-5 | 5/5 | .. | 4.5/5 | 83/100 | 5/5 | 4.5/5 | Oct 2022 | EUR 1 299 | amazon.com | |
| 3. | Canon 1D X Mark II | .. | .. | 4.5/5 | 89/100 | 4.5/5 | 4.5/5 | Feb 2016 | EUR 6 299 | ebay.com | |
| 4. | Canon 5D Mark II | 4/5 | 91/100 | .. | 79/100 | 4/5 | .. | Sep 2008 | EUR 3 299 | ebay.com | |
| 5. | Canon 5D Mark III | .. | + + | .. | 82/100 | 4.5/5 | 4.5/5 | Mar 2012 | EUR 3 299 | ebay.com | |
| 6. | Canon 5DS | .. | + | .. | 83/100 | 4.5/5 | 4.5/5 | Feb 2015 | EUR 3 499 | ebay.com | |
| 7. | Canon 5DS R | 5/5 | + | .. | 83/100 | 5/5 | 4.5/5 | Feb 2015 | EUR 3 699 | ebay.com | |
| 8. | Canon 6D | 5/5 | + + | .. | 83/100 | 4.5/5 | 4.5/5 | Sep 2012 | EUR 1 999 | ebay.com | |
| 9. | Canon 6D Mark II | 4/5 | + | 4/5 | 80/100 | 4.5/5 | 4/5 | Jun 2017 | EUR 2 099 | amazon.com | |
| 10. | Canon 80D | 4/5 | + + | 4.5/5 | 84/100 | 4.5/5 | 4.5/5 | Feb 2016 | EUR 1 285 | ebay.com | |
| 11. | Nikon D810 | 5/5 | .. | 5/5 | 86/100 | 5/5 | 4.5/5 | Jun 2014 | EUR 3 299 | ebay.com | |
| 12. | Nikon D850 | 4.5/5 | + + | 5/5 | 89/100 | 4.5/5 | 5/5 | Jul 2017 | EUR 3 799 | amazon.com | |
| 13. | Olympus E-M5 III | 5/5 | + | 5/5 | 82/100 | 4.5/5 | 4.5/5 | Oct 2019 | EUR 1 199 | ebay.com | |
| 14. | OM System OM-1 | 5/5 | .. | .. | 87/100 | 5/5 | 4.5/5 | Feb 2022 | EUR 2 199 | ebay.com | |
| 15. | OM System OM-3 | .. | .. | .. | 86/100 | .. | .. | Feb 2025 | EUR 1 999 | amazon.com | |
| 16. | OM System OM-5 II | .. | .. | .. | .. | .. | .. | Jun 2025 | EUR 1 299 | amazon.com | |
| 17. | Panasonic GX8 | 5/5 | + | .. | 82/100 | 4.5/5 | 4.5/5 | Jul 2015 | EUR 1 199 | ebay.com | |
| Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available. | |||||||||||
Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check 5D Mark IV price at
amazon.com

Check OM-5 price at
amazon.com
Other camera comparisons
Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.
- Canon 5D Mark IV vs Leica S3
- Canon 5D Mark IV vs Nikon D100
- Canon 5D Mark IV vs Nikon D850
- Canon 5D Mark IV vs Panasonic TZ200
- Canon 5D Mark IV vs Ricoh GR III
- Canon 5D Mark IV vs Sony HX90V
- Fujifilm GFX 100RF vs OM System OM-5
- Fujifilm X-E1 vs OM System OM-5
- Nikon D3500 vs OM System OM-5
- Nikon D5100 vs OM System OM-5
- OM System OM-5 vs Pentax K-3 III
- OM System OM-5 vs Sony A7C
Specifications: Canon 5D Mark IV vs OM System OM-5
Below is a side-by-side comparison of the specs of the two cameras to facilitate a quick review of their differences and common features.
| Camera Model | Canon 5D Mark IV | OM System OM-5 |
|---|---|---|
| Camera Type | Digital single lens reflex | Mirrorless system camera |
| Camera Lens | Canon EF mount lenses | Micro Four Thirds lenses |
| Launch Date | August 2016 | October 2022 |
| Launch Price | USD 3,499 | USD 1,199 |
| Sensor Specs | Canon 5D Mark IV | OM System OM-5 |
| Sensor Technology | CMOS | CMOS |
| Sensor Format | Full Frame Sensor | Four Thirds Sensor |
| Sensor Size | 36.0 x 24.0 mm | 17.3 x 13.0 mm |
| Sensor Area | 864 mm2 | 224.9 mm2 |
| Sensor Diagonal | 43.3 mm | 21.6 mm |
| Crop Factor | 1.0x | 2.0x |
| Sensor Resolution | 30.1 Megapixels | 20.2 Megapixels |
| Image Resolution | 6720 x 4480 pixels | 5184 x 3888 pixels |
| Pixel Pitch | 5.36 μm | 3.34 μm |
| Pixel Density | 3.48 MP/cm2 | 8.96 MP/cm2 |
| Moiré control | Anti-Alias filter | no AA filter |
| Movie Capability | 4K/30p Video | 4K/30p Video |
| ISO Setting | 100 - 32,000 ISO | 200 - 25,600 ISO |
| ISO Boost | 50 - 102,400 ISO | 64 - 25,600 ISO |
| Image Processor | DIGIC 6+ | TruePic IX |
| DXO Sensor Quality (score) | 91 | .. |
| DXO Color Depth (bits) | 24.8 | .. |
| DXO Dynamic Range (EV) | 13.6 | .. |
| DXO Low Light (ISO) | 2995 | .. |
| Screen Specs | Canon 5D Mark IV | OM System OM-5 |
| Viewfinder Type | Optical viewfinder | Electronic viewfinder |
| Viewfinder Field of View | 100% | 100% |
| Viewfinder Magnification | 0.71x | 0.68x |
| Viewfinder Resolution | 2360k dots | |
| Top-Level Screen | Control Panel | no Top Display |
| LCD Framing | Live View | Live View |
| Rear LCD Size | 3.2inch | 3.0inch |
| LCD Resolution | 1620k dots | 1040k dots |
| LCD Attachment | Fixed screen | Swivel screen |
| Touch Input | Touchscreen | Touchscreen |
| Shooting Specs | Canon 5D Mark IV | OM System OM-5 |
| Focus System | Phase-detect AF | On-Sensor Phase-detect |
| Manual Focusing Aid | no Peaking Feature | Focus Peaking |
| Max Shutter Speed (mechanical) | 1/8000s | 1/8000s |
| Continuous Shooting | 7 shutter flaps/s | 10 shutter flaps/s |
| Electronic Shutter | no E-Shutter | up to 1/32000s |
| Time-Lapse Photography | Intervalometer built-in | Intervalometer built-in |
| Image Stabilization | Lens stabilization only | In-body stabilization |
| Fill Flash | no On-Board Flash | no On-Board Flash |
| Storage Medium | CF or SDXC cards | SDXC cards |
| Single or Dual Card Slots | Dual card slots | Single card slot |
| UHS card support | UHS-I | UHS-II |
| Connectivity Specs | Canon 5D Mark IV | OM System OM-5 |
| External Flash | Hotshoe | Hotshoe |
| Studio Flash | PC Sync socket | no PC Sync |
| USB Connector | USB 3.0 | USB 2.0 |
| HDMI Port | mini HDMI | micro HDMI |
| Microphone Port | External MIC port | External MIC port |
| Headphone Socket | Headphone port | no Headphone port |
| Wifi Support | Wifi built-in | Wifi built-in |
| Near-Field Communication | NFC built-in | no NFC |
| Bluetooth Support | no Bluetooth | Bluetooth built-in |
| Geotagging | GPS built-in | no internal GPS |
| Body Specs | Canon 5D Mark IV | OM System OM-5 |
| Environmental Sealing | Weathersealed body | Weathersealed body |
| Battery Type | Canon LP-E6N | OM System BLS-50 |
| Battery Life (CIPA) | 900 shots per charge | 310 shots per charge |
| In-Camera Charging | no USB charging | USB charging |
| Body Dimensions |
151 x 116 x 76 mm (5.9 x 4.6 x 3.0 in) |
125 x 85 x 50 mm (4.9 x 3.3 x 2.0 in) |
| Camera Weight | 890 g (31.4 oz) | 414 g (14.6 oz) |

Check 5D Mark IV price at
amazon.com

Check OM-5 price at
amazon.com
Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
