Canon R5 Mark II vs Panasonic S1R

The Canon EOS R5 Mark II and the Panasonic Lumix DC-S1R are two enthusiast cameras that were officially introduced, respectively, in July 2024 and February 2019. Both the R5 Mark II and the S1R are mirrorless interchangeable lens cameras that are equipped with a full frame sensor. The Canon has a resolution of 44.8 megapixels, whereas the Panasonic provides 46.7 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5 Mark II		Panasonic S1R
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Leica L mount lenses
44.8 MP – Full Frame sensor		46.7 MP – Full Frame sensor
8k/60p Video		4K/60p Video
ISO 100-51,200 (50 - 102,400)		ISO 100-25,600 (50 - 51,200)
Electronic viewfinder (5760k dots)		Electronic viewfinder (5760k dots)
3.2" LCD – 2100k dots		3.2" LCD – 2100k dots
Swivel touchscreen		Fully flexible touchscreen
12 shutter flaps per second		9 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
340 shots per battery charge		380 shots per battery charge
138 x 98 x 88 mm, 746 g		149 x 110 x 97 mm, 1016 g

Check R5 Mark II price at
amazon.com
Check S1R offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Panasonic Lumix DC-S1R? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

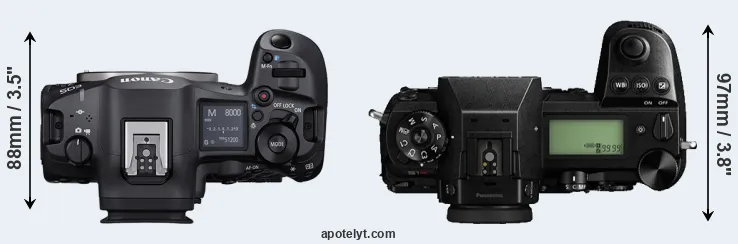

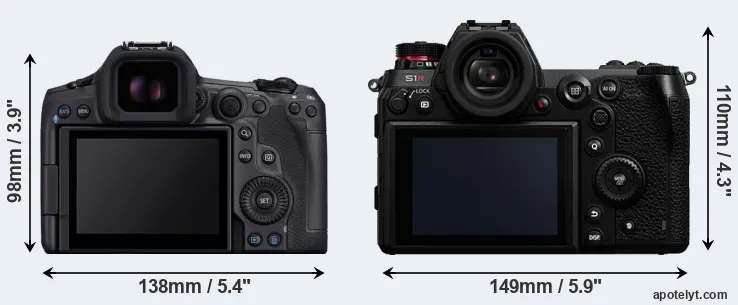

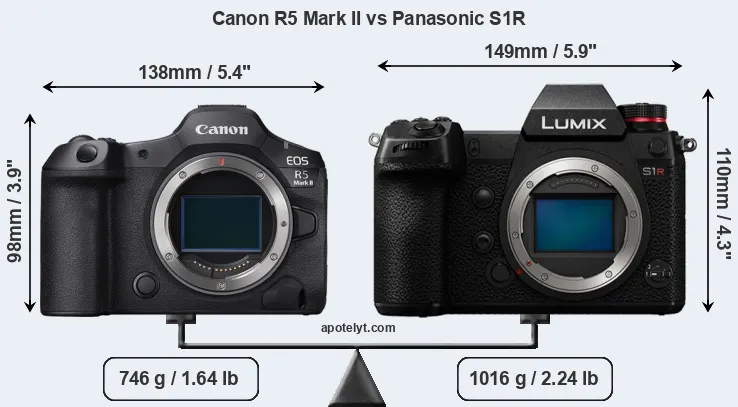

The side-by-side display below illustrates the physical size and weight of the Canon R5 Mark II and the Panasonic S1R. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S1R is notably larger (21 percent) than the Canon R5 Mark II. Moreover, the S1R is substantially heavier (36 percent) than the R5 Mark II. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
2.		Panasonic S1R	149 mm	110 mm	97 mm	1016 g	380	Y	Feb 2019	US$ 3 699	ebay.com
3.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
8.		Nikon Z7	134 mm	101 mm	67 mm	675 g	330	Y	Aug 2018	US$ 3 399	ebay.com
9.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
10.		Panasonic S1	149 mm	110 mm	97 mm	1017 g	400	Y	Feb 2019	US$ 2 499	ebay.com
11.		Panasonic S1H	151 mm	114 mm	110 mm	1052 g	400	Y	May 2019	US$ 3 999	amazon.com
12.		Panasonic S1R II	134 mm	102 mm	92 mm	795 g	350	Y	May 2025	US$ 3 299	amazon.com
13.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
14.		Sony A1 II	136 mm	97 mm	83 mm	743 g	520	Y	Nov 2024	US$ 6 499	amazon.com
15.		Sony A7R V	131 mm	97 mm	82 mm	723 g	530	Y	Oct 2022	US$ 3 899	amazon.com
16.		Sony A99 II	143 mm	104 mm	76 mm	849 g	490	Y	Sep 2016	US$ 3 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The S1R was launched at a somewhat lower price (by 14 percent) than the R5 Mark II, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

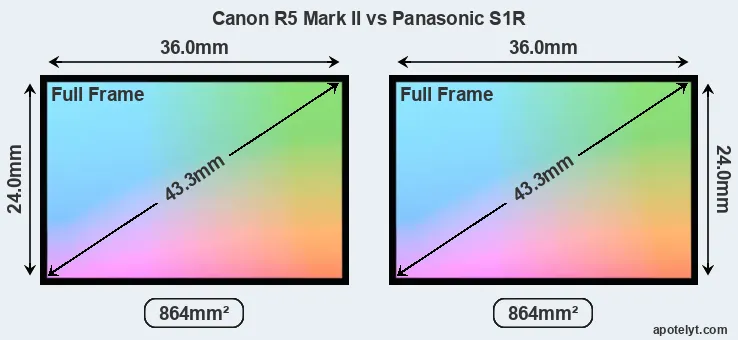

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a full frame sensor and have a format factor (sometimes also referred to as "crop factor") of 1.0. Within the spectrum of camera sensors, this places the review cameras among the large-sensor cameras that aim for top notch image quality. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

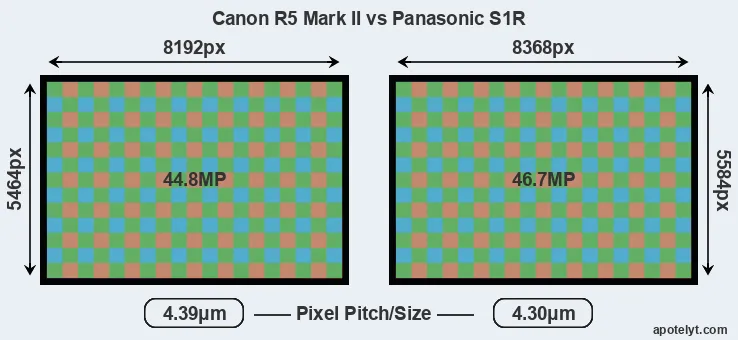

While the two cameras under review share the same sensor size, the S1R offers a slightly higher resolution of 46.7 megapixels, compared with 44.8 MP of the R5 Mark II. This megapixels advantage translates into a 2 percent gain in linear resolution. On the other hand, these sensor specs imply that the S1R has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.30μm versus 4.39μm for the R5 Mark II). Moreover, it should be noted, that the R5 Mark II is much more recent (by 5 years and 5 months) than the S1R, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of individual pixels. Coming back to sensor resolution, it should be mentioned that the S1R has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The R5 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

Unlike the R5 Mark II, the S1R has the capacity to capture high quality composite images (187MP) by combining multiple shots after shifting its sensor by miniscule distances. This multi-shot, pixel-shift mode is most suitable for photography of stationary objects (landscapes, studio scenes).

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Panasonic Lumix DC-S1R are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 50-51200.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
2.		Panasonic S1R	Full Frame	46.7	8368	5584	4K/60p	26.4	14.1	3525	100
3.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
4.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
5.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
6.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
7.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
8.		Nikon Z7	Full Frame	45.4	8256	5504	4K/30p	26.3	14.6	2668	99
9.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
10.		Panasonic S1	Full Frame	24.0	6000	4000	4K/60p	25.2	14.5	3333	95
11.		Panasonic S1H	Full Frame	24.0	6000	4000	6K/30p	25.2	14.2	2805	94
12.		Panasonic S1R II	Full Frame	44.2	8144	5424	8K/30p	25.4	14.8	3406	97
13.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
14.		Sony A1 II	Full Frame	49.8	8640	5760	8k/30p	25.4	14.8	3363	97
15.		Sony A7R V	Full Frame	60.2	9504	6336	8k/24p	26.5	14.8	3187	100
16.		Sony A99 II	Full Frame	42.2	7952	5304	4K/30p	25.4	13.4	2317	92
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R5 Mark II provides a higher video resolution than the S1R. It can shoot video footage at 8k/60p, while the Panasonic is limited to 4K/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The R5 Mark II and the S1R are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 5760k dots. The following table reports on some other key feature differences and similarities of the Canon R5 Mark II, the Panasonic S1R, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Panasonic S1R	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
3.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
4.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
6.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
8.		Nikon Z7	3690	Y	3.2 / 2100	tilting	Y	1/8000s	9.0/s	n	Y
9.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
10.		Panasonic S1	5760	Y	3.2 / 2100	full-flex	Y	1/8000s	9.0/s	n	Y
11.		Panasonic S1H	5760	Y	3.2 / 2330	swivel	Y	1/8000s	9.0/s	n	Y
12.		Panasonic S1R II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	9.0/s	n	Y
13.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
14.		Sony A1 II	9437	n	3.2 / 2100	full-flex	Y	1/8000s	30.0/s	n	Y
15.		Sony A7R V	9440	n	3.2 / 2100	full-flex	Y	1/8000s	10.0/s	n	Y
16.		Sony A99 II	2400	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II and the Panasonic S1R both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 Mark II writes its imaging data to CFexpress (type B) or SDXC cards, while the S1R uses SDXC or XQD cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Moreover, both the R5 Mark II and the S1R support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s, on both slots.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Panasonic Lumix DC-S1R and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
2.		Panasonic S1R	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
3.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
4.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Nikon Z7	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
9.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
10.		Panasonic S1	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
11.		Panasonic S1H	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
12.		Panasonic S1R II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
13.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Sony A1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Sony A7R V	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Sony A99 II	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	Y

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the S1R has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the S1R was succeeded by the Panasonic S1R II. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Panasonic websites.

Review summary

So how do things add up? Which of the two cameras – the Canon R5 Mark II or the Panasonic S1R – has the upper hand? Is one clearly better than the other? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS R5 Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (8k/60p vs 4K/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (12 vs 9 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (138x98mm vs 149x110mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 270g or 27 percent) and hence easier to carry around.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
• More modern: Reflects 5 years and 5 months of technical progress since the S1R launch.

Arguments in favor of the Panasonic Lumix DC-S1R:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• High quality composites: Can combine several shots after pixel-shifting its sensor.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.78x vs 0.76x).
• Longer lasting: Gets more shots (380 versus 340) out of a single battery charge.
• More affordable: Was released into a lower priced segment (14 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in February 2019).

If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II emerges as the winner of the contest (9 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R5 Mark II and the Panasonic S1R place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the R5 Mark II or the S1R perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
2.		Panasonic S1R	4.5/5	..	4.6/5	89/100	4.5/5	4.5/5	Feb 2019	US$ 3 699	ebay.com
3.		Canon R1	..	..	..	..	..	..	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
8.		Nikon Z7	5/5	+	4.8/5	89/100	4.5/5	5/5	Aug 2018	US$ 3 399	ebay.com
9.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
10.		Panasonic S1	4.5/5	+ +	4.5/5	88/100	4.5/5	4/5	Feb 2019	US$ 2 499	ebay.com
11.		Panasonic S1H	..	..	4/5	90/100	..	..	May 2019	US$ 3 999	amazon.com
12.		Panasonic S1R II	..	..	..	..	..	..	May 2025	US$ 3 299	amazon.com
13.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
14.		Sony A1 II	..	..	..	..	..	..	Nov 2024	US$ 6 499	amazon.com
15.		Sony A7R V	5/5	+ +	4.5/5	92/100	..	..	Oct 2022	US$ 3 899	amazon.com
16.		Sony A99 II	..	..	4.5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 3 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
