Canon R8 vs SX20

The Canon EOS R8 and the Canon PowerShot SX20 IS are two digital cameras that were announced, respectively, in February 2023 and August 2009. The R8 is a mirrorless interchangeable lens camera, while the SX20 is a fixed lens compact. The cameras are based on a full frame (R8) and a 1/2.3-inch (SX20) sensor. The R8 has a resolution of 24 megapixels, whereas the SX20 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R8		Canon SX20
Mirrorless system camera		Fixed lens compact camera
Canon RF mount lenses		28-560mm f/2.8-5.7
24 MP – Full Frame sensor		12 MP – 1/2.3" sensor
4k/60p Video		720/30p Video
ISO 100-102,400 (100 - 204,800)		ISO 100-3,200
Electronic viewfinder (2360k dots)		Electronic viewfinder (202k dots)
3.0" LCD – 1620k dots		2.5" LCD – 230k dots
Swivel touchscreen		Swivel screen (not touch-sensitive)
6 shutter flaps per second		0.7 shutter flaps per second
133 x 86 x 70 mm, 461 g		123 x 88 x 87 mm, 600 g

Check R8 price at
amazon.com
Check SX20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R8 and the Canon PowerShot SX20 IS? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

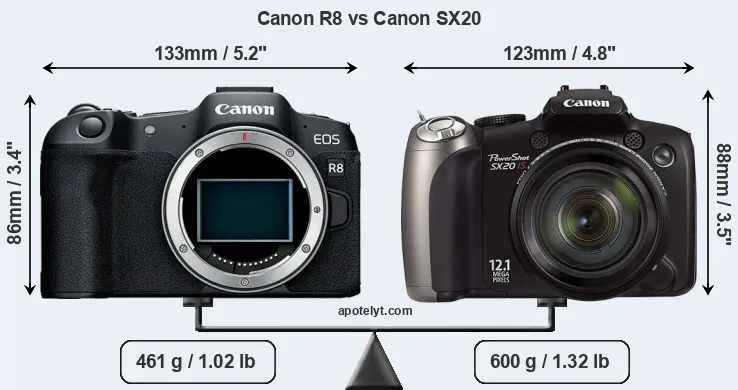

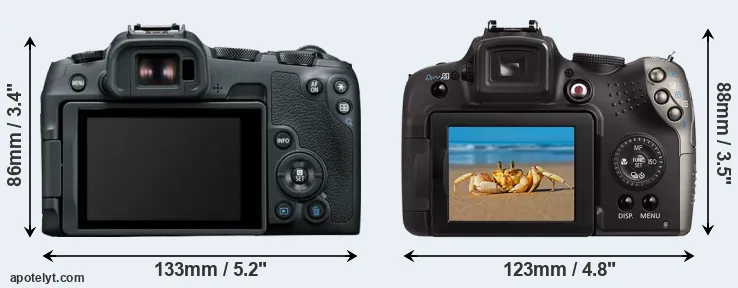

The physical size and weight of the Canon R8 and the Canon SX20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon SX20 is notably smaller (5 percent) than the Canon R8. In this context, it is worth noting that neither the R8 nor the SX20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX20 has a lens built in, whereas the R8 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The power pack in the R8 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
2.		Canon SX20	123 mm	88 mm	87 mm	600 g	..	n	Aug 2009	US$ 399	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
5.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
6.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
7.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
8.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
9.		Canon SX1	128 mm	88 mm	88 mm	615 g	..	n	Sep 2008	US$ 599	ebay.com
10.		Canon SX10	123 mm	88 mm	87 mm	600 g	..	n	Sep 2008	US$ 399	ebay.com
11.		Canon SX30	123 mm	92 mm	108 mm	601 g	370	n	Sep 2010	US$ 429	ebay.com
12.		Canon SX40	123 mm	92 mm	108 mm	600 g	380	n	Sep 2011	US$ 429	ebay.com
13.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	US$ 429	ebay.com
14.		Sony A7	127 mm	94 mm	48 mm	474 g	340	Y	Oct 2013	US$ 1 699	ebay.com
15.		Sony NEX-7	120 mm	67 mm	43 mm	400 g	430	n	Aug 2011	US$ 1 349	ebay.com
16.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX20 was launched at a lower price than the R8, despite having a lens built in. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R8 features a full frame sensor and the Canon SX20 a 1/2.3-inch sensor. The sensor area in the SX20 is 97 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 5.6. The sensor in the R8 has a native 3:2 aspect ratio, while the one in the SX20 offers a 4:3 aspect.

In terms of chip-set technology, the R8 uses a more advanced image processing engine (DIGIC X) than the SX20 (DIGIC 4), with benefits for noise reduction, color accuracy, and processing speed.

With 24MP, the R8 offers a higher resolution than the SX20 (12MP), but the R8 nevertheless has larger individual pixels (pixel pitch of 5.98μm versus 1.53μm for the SX20) due to its larger sensor. Moreover, the R8 is a much more recent model (by 13 years and 5 months) than the SX20, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the SX20 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Canon R8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R8 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon SX20 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The R8 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R8 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 100-204800. The corresponding ISO settings for the Canon PowerShot SX20 IS are ISO 100 to ISO 3200 (no boost).

In terms of underlying technology, the R8 is build around a CMOS sensor, while the SX20 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
2.		Canon SX20	1/2.3	12.0	4000	3000	720/30p	19.2	10.5	225	37
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
5.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
6.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
7.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
8.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
9.		Canon SX1	1/2.3	10.0	3648	2736	1080/30p	19.0	10.3	144	35
10.		Canon SX10	1/2.3	10.0	3648	2736	480/30p	19.0	10.3	144	35
11.		Canon SX30	1/2.3	14.0	4320	3240	720/30p	19.4	10.7	320	39
12.		Canon SX40	1/2.3	12.0	4000	3000	1080/24p	19.6	10.9	409	41
13.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
14.		Sony A7	Full Frame	24.0	6000	4000	1080/60p	24.8	14.2	2248	90
15.		Sony NEX-7	APS-C	24.0	6000	4000	1080/60i	24.1	13.4	1016	81
16.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the R8 provides a higher video resolution than the SX20. It can shoot video footage at 4k/60p, while the SX20 is limited to 720/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The two cameras under consideration are similar with respect to both having an electronic viewfinder. However, the one in the R8 offers a substantially higher resolution than the one in the SX20 (2360k vs 202k dots). The adjacent table lists some of the other core features of the Canon R8 and Canon SX20 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
2.		Canon SX20	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
5.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
6.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
7.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
8.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
9.		Canon SX1	202	n	2.8 / 230	swivel	n	1/3200s	4.0/s	Y	Y
10.		Canon SX10	202	n	2.5 / 230	swivel	n	1/3200s	0.7/s	Y	Y
11.		Canon SX30	202	n	2.7 / 230	swivel	n	1/3200s	0.6/s	Y	Y
12.		Canon SX40	202	n	2.7 / 230	swivel	n	1/3200s	10.3/s	Y	Y
13.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
14.		Sony A7	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	n
15.		Sony NEX-7	2359	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	n
16.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The R8 has a touchscreen, while the SX20 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R8 writes its imaging data to SDXC cards, while the SX20 uses SDHC cards. The R8 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the SX20 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R8 and Canon PowerShot SX20 IS and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Canon SX20	Y	stereo / mono	-	-	YES	2.0	-	-	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
8.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon SX1	Y	stereo / mono	-	-	YES	2.0	-	-	-
10.		Canon SX10	Y	stereo / mono	-	-	-	2.0	-	-	-
11.		Canon SX30	Y	stereo / mono	-	-	YES	2.0	-	-	-
12.		Canon SX40	Y	stereo / mono	-	-	YES	2.0	-	-	-
13.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Sony A7	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony NEX-7	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the R8 has a microphone port, which is missing on the SX20. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

The R8 is a recent model that features in the current product line-up of Canon. In contrast, the SX20 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the SX20 was succeeded by the Canon SX30. Further information on the features and operation of the R8 and SX20 can be found, respectively, in the Canon R8 Manual (free pdf) or the online Canon SX20 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R8 and the Canon SX20? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon EOS R8:

• More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better jpgs: Has a more modern image processing engine (DIGIC X vs DIGIC 4).
• Better video: Provides higher definition movie capture (4k/60p vs 720/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed viewfinder: Has higher resolution electronic viewfinder (2360k vs 202k dots).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/3200s) to freeze action.
• Faster burst: Shoots at higher frequency (6 vs 0.7 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Easier travel charging: Can be conveniently charged via its USB port.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards.
• More modern: Reflects 13 years and 5 months of technical progress since the SX20 launch.

Advantages of the Canon PowerShot SX20 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has an integrated lens, whereas the R8 necessitates an extra lens.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More heavily discounted: Has been around for much longer (launched in August 2009).

If the number of relative strengths (bullet points above) is taken as a guide, the R8 is the clear winner of the match-up (27 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R8 and the Canon SX20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the R8 and the SX20 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
2.		Canon SX20	..	+ +	..	73/100	..	4/5	Aug 2009	US$ 399	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
5.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
6.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
7.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
8.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
9.		Canon SX1	..	+ +	..	+	..	3.5/5	Sep 2008	US$ 599	ebay.com
10.		Canon SX10	..	+ +	..	..	..	4/5	Sep 2008	US$ 399	ebay.com
11.		Canon SX30	3/5	+ +	..	..	3.5/5	4/5	Sep 2010	US$ 429	ebay.com
12.		Canon SX40	..	+	..	..	4.5/5	4/5	Sep 2011	US$ 429	ebay.com
13.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	US$ 429	ebay.com
14.		Sony A7	5/5	+ +	..	80/100	5/5	5/5	Oct 2013	US$ 1 699	ebay.com
15.		Sony NEX-7	5/5	+ +	..	81/100	4.5/5	5/5	Aug 2011	US$ 1 349	ebay.com
16.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check R8 price at
amazon.com
Check SX20 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check R8 price at
amazon.com
Check SX20 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
