Canon R8 vs Rebel

The Canon EOS R8 and the Canon EOS Digital Rebel (labelled Canon 300D in some countries) are two digital cameras that were announced, respectively, in February 2023 and August 2003. The R8 is a mirrorless interchangeable lens camera, while the Rebel is a DSLR. The cameras are based on a full frame (R8) and an APS-C (Rebel) sensor. The R8 has a resolution of 24 megapixels, whereas the Rebel provides 6.3 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R8		Canon Rebel
Mirrorless system camera		Digital single lens reflex
Canon RF mount lenses		Canon EF mount lenses
24 MP – Full Frame sensor		6.3 MP – APS-C sensor
4k/60p Video		no Video
ISO 100-102,400 (100 - 204,800)		ISO 100-1,600
Electronic viewfinder (2360k dots)		Optical viewfinder
3.0" LCD – 1620k dots		1.8" LCD – 118k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
6 shutter flaps per second		2.5 shutter flaps per second
220 shots per battery charge		400 shots per battery charge
133 x 86 x 70 mm, 461 g		142 x 99 x 72 mm, 649 g

Check R8 price at
amazon.com
Check Rebel offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R8 and the Canon EOS Digital Rebel? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

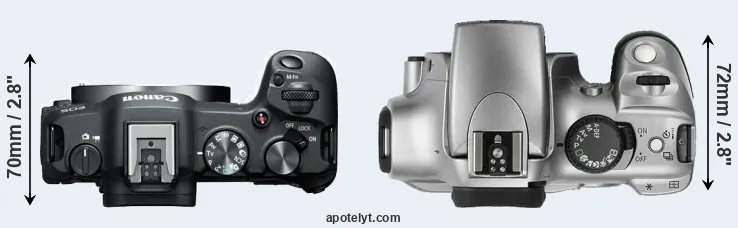

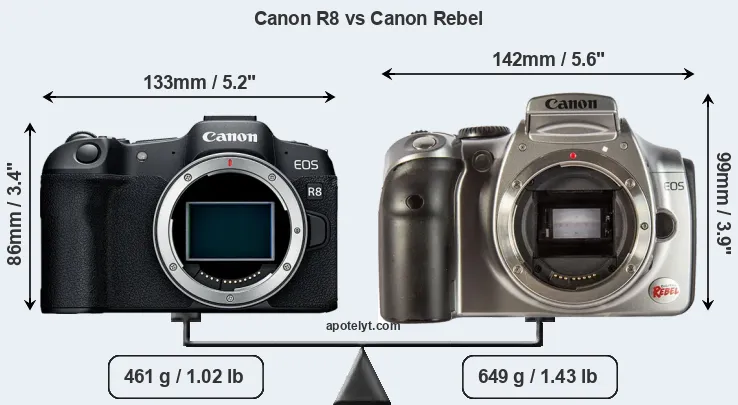

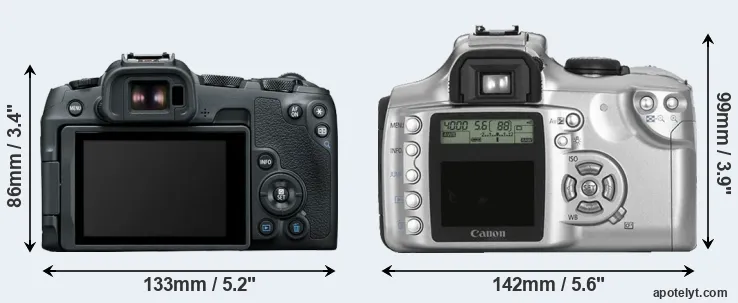

The side-by-side display below illustrates the physical size and weight of the Canon R8 and the Canon Rebel. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon Rebel is notably larger (23 percent) than the Canon R8. Moreover, the Rebel is substantially heavier (41 percent) than the R8. In this context, it is worth noting that neither the R8 nor the Rebel are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R8 gets 220 shots out of its Canon LP-E17 battery, while the Rebel can take 400 images on a single charge of its Canon BP-511 power pack. The power pack in the R8 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
2.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
3.		Canon 10D	150 mm	107 mm	75 mm	850 g	500	n	Feb 2003	US$ 1 999	ebay.com
4.		Canon 20D	144 mm	106 mm	72 mm	770 g	700	n	Aug 2004	US$ 1 499	ebay.com
5.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
6.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
7.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
8.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
9.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
10.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
11.		Canon T6s	132 mm	101 mm	78 mm	565 g	440	n	Feb 2015	US$ 649	ebay.com
12.		Canon T7i	131 mm	100 mm	76 mm	532 g	600	n	Feb 2017	US$ 749	ebay.com
13.		Canon XT	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
14.		Sony A7	127 mm	94 mm	48 mm	474 g	340	Y	Oct 2013	US$ 1 699	ebay.com
15.		Sony NEX-7	120 mm	67 mm	43 mm	400 g	430	n	Aug 2011	US$ 1 349	ebay.com
16.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The Rebel was launched at a markedly lower price (by 40 percent) than the R8, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

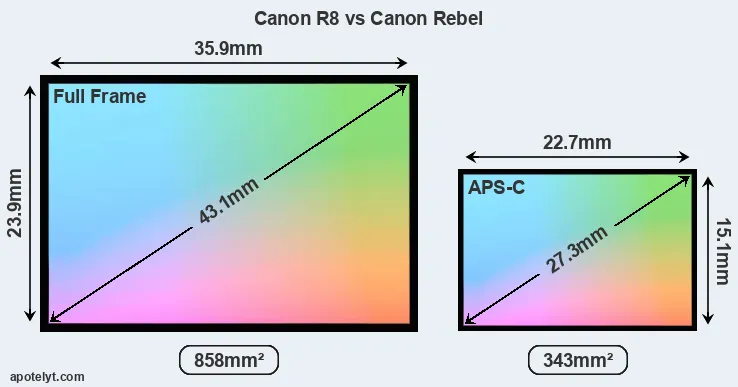

Of the two cameras under consideration, the Canon R8 features a full frame sensor and the Canon Rebel an APS-C sensor. The sensor area in the Rebel is 60 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.6. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

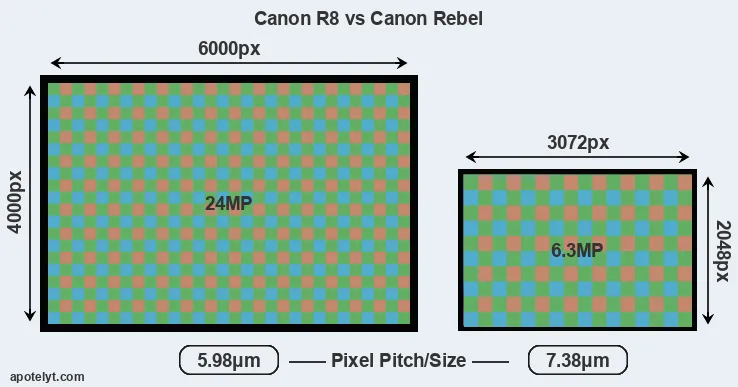

With 24MP, the R8 offers a higher resolution than the Rebel (6.3MP), but the R8 has smaller individual pixels (pixel pitch of 5.98μm versus 7.38μm for the Rebel). However, the R8 is a much more recent model (by 19 years and 5 months) than the Rebel, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R8 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon Rebel are 15.4 x 10.2 inches or 39 x 26 cm for good quality, 12.3 x 8.2 inches or 31.2 x 20.8 cm for very good quality, and 10.2 x 6.8 inches or 26 x 17.3 cm for excellent quality prints.

The R8 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R8 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 100-204800. The corresponding ISO settings for the Canon EOS Digital Rebel are ISO 100 to ISO 1600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the R8 provides substantially higher image quality than the Rebel, with an overall score that is 38 points higher. This advantage is based on 3.5 bits higher color depth, 3.9 EV in additional dynamic range, and 2.6 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
2.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
3.		Canon 10D	APS-C	6.3	3072	2048	none	21.1	10.9	571	57
4.		Canon 20D	APS-C	8.2	3504	2336	none	21.9	11.0	721	62
5.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
6.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
7.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
8.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
9.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
10.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
11.		Canon T6s	APS-C	24.0	6000	4000	1080/30p	22.6	12.0	915	70
12.		Canon T7i	APS-C	24.0	6000	4000	1080/60p	23.7	13.1	1586	80
13.		Canon XT	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
14.		Sony A7	Full Frame	24.0	6000	4000	1080/60p	24.8	14.2	2248	90
15.		Sony NEX-7	APS-C	24.0	6000	4000	1080/60i	24.1	13.4	1016	81
16.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The R8 indeed provides movie recording capabilities, while the Rebel does not. The highest resolution format that the R8 can use is 4k/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the R8 has an electronic viewfinder (2360k dots), while the Rebel has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The viewfinder in the R8 offers a wider field of view (100%) than the one in the Rebel (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the R8 has a higher magnification (0.70x vs 0.55x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Canon R8 and Canon Rebel in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
2.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon 10D	optical	Y	1.8 / 118	fixed	n	1/4000s	3.0/s	Y	n
4.		Canon 20D	optical	Y	1.8 / 118	fixed	n	1/8000s	5.0/s	Y	n
5.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
6.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
7.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
8.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
9.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
10.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
11.		Canon T6s	optical	Y	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
12.		Canon T7i	optical	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
13.		Canon XT	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
14.		Sony A7	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	n
15.		Sony NEX-7	2359	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	n
16.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The R8 has a touchscreen, while the Rebel has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R8 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R8 writes its imaging data to SDXC cards, while the Rebel uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R8 and Canon EOS Digital Rebel and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
3.		Canon 10D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 20D	Y	- / -	-	-	-	1.1	-	-	-
5.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
6.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
7.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
9.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
10.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
11.		Canon T6s	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
12.		Canon T7i	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Canon XT	Y	- / -	-	-	-	2.0	-	-	-
14.		Sony A7	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony NEX-7	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

It is notable that the R8 offers wifi support, while the Rebel does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

The R8 is a recent model that features in the current product line-up of Canon. In contrast, the Rebel has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the Rebel was succeeded by the Canon XT. Further information on the features and operation of the R8 and Rebel can be found, respectively, in the Canon R8 Manual (free pdf) or the online Canon Rebel Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Canon R8 and the Canon Rebel? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon EOS R8:

• More detail: Offers more megapixels (24 vs 6.3MP) with a 95% higher linear resolution.
• Better image quality: Scores substantially higher (38 points) in the DXO overall assessment.
• Richer colors: Generates images with noticeably better colors (3.5 bits more color depth).
• More dynamic range: Captures a larger spectrum of light and dark details (3.9 EV of extra DR).
• Better low-light sensitivity: Requires less light for good images (2.6 stops ISO advantage).
• Broader imaging potential: Can record not only still images but also 4k/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.70x vs 0.55x).
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 118k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (6 vs 2.5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (133x86mm vs 142x99mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 188g or 29 percent) and hence easier to carry around.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 1.1).
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 19 years and 5 months of technical progress since the Rebel launch.

Arguments in favor of the Canon EOS Digital Rebel:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Longer lasting: Gets more shots (400 versus 220) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in August 2003).

If the number of relative strengths (bullet points above) is taken as a guide, the R8 is the clear winner of the match-up (26 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R8 and the Canon Rebel place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the R8 and the Rebel in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
2.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
3.		Canon 10D	..	..	..	+ +	..	..	Feb 2003	US$ 1 999	ebay.com
4.		Canon 20D	..	..	..	+ +	..	..	Aug 2004	US$ 1 499	ebay.com
5.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
6.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
7.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
8.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
9.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
10.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
11.		Canon T6s	5/5	+	..	77/100	4.5/5	4.5/5	Feb 2015	US$ 649	ebay.com
12.		Canon T7i	4.5/5	..	3.5/5	80/100	4.5/5	4/5	Feb 2017	US$ 749	ebay.com
13.		Canon XT	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
14.		Sony A7	5/5	+ +	..	80/100	5/5	5/5	Oct 2013	US$ 1 699	ebay.com
15.		Sony NEX-7	5/5	+ +	..	81/100	4.5/5	5/5	Aug 2011	US$ 1 349	ebay.com
16.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.

Check R8 price at
amazon.com
Check Rebel offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just use the search menu below. Alternatively, you can follow any of the listed hyperlinks for comparisons that others found interesting.

~

Check R8 price at
amazon.com
Check Rebel offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
