Canon S120 vs Olympus Stylus 1

The Canon PowerShot S120 and the Olympus Stylus 1 are two digital cameras that were officially introduced, respectively, in August 2013 and October 2013. Both the S120 and the Stylus 1 are fixed lens compact cameras that are equipped with a 1/1.7-inch sensor. The Canon has a resolution of 12 megapixels, whereas the Olympus provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon S120		Olympus Stylus 1
Fixed lens compact camera		Fixed lens compact camera
24-120mm f/1.8-5.7		28-300mm f/2.8
12 MP – 1/1.7" sensor		11.8 MP – 1/1.7" sensor
1080/60p Video		1080/30p Video
ISO 80-12,800		ISO 100-12,800
No viewfinder, LCD framing		Electronic viewfinder (1440k dots)
3.0" LCD – 922k dots		3.0" LCD – 1040k dots
Fixed touchscreen		Tilting touchscreen
12.1 shutter flaps per second		7 shutter flaps per second
230 shots per battery charge		410 shots per battery charge
100 x 59 x 29 mm, 217 g		116 x 87 x 57 mm, 402 g

Check S120 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot S120 and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

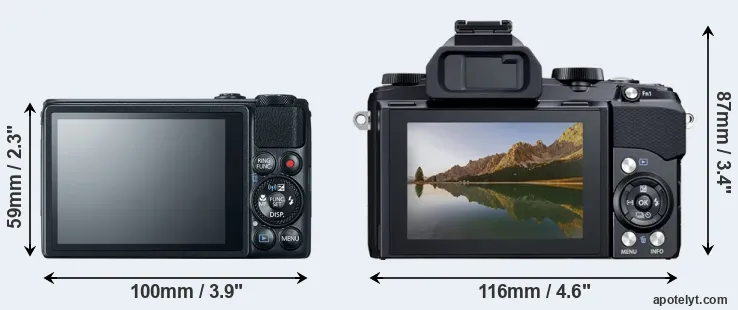

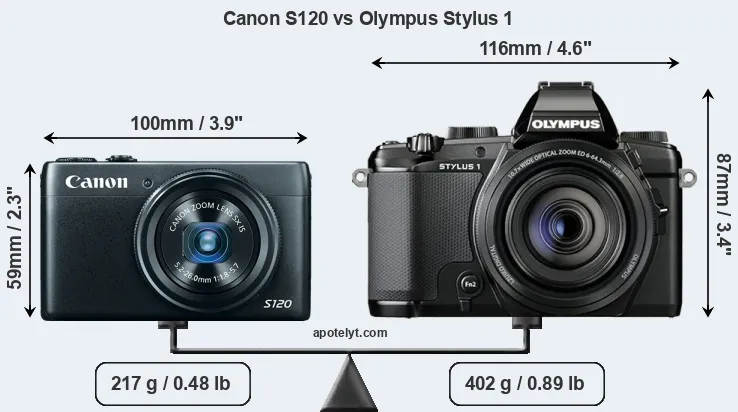

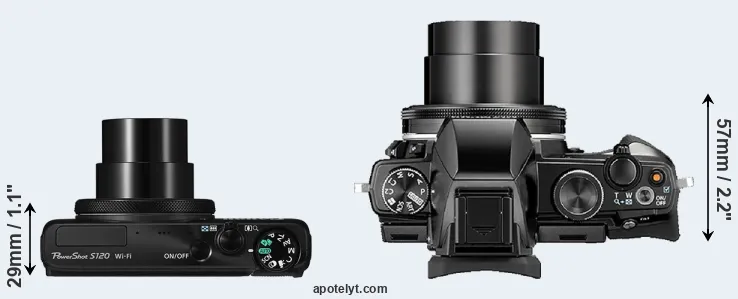

The side-by-side display below illustrates the physical size and weight of the Canon S120 and the Olympus Stylus 1. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is considerably larger (71 percent) than the Canon S120. Moreover, the Stylus 1 is substantially heavier (85 percent) than the S120. In this context, it is worth noting that neither the S120 nor the Stylus 1 are weather-sealed.

Concerning battery life, the S120 gets 230 shots out of its Canon NB-6LH battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon S120	100 mm	59 mm	29 mm	217 g	230	n	Aug 2013	EUR 499	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	EUR 499	ebay.com
3.		Canon G1 X	117 mm	81 mm	65 mm	534 g	250	n	Jan 2012	EUR 749	ebay.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	EUR 849	ebay.com
5.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	EUR 499	ebay.com
6.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	EUR 499	ebay.com
7.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	EUR 549	ebay.com
8.		Canon G15	107 mm	76 mm	40 mm	352 g	350	n	Sep 2012	EUR 579	ebay.com
9.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	EUR 599	ebay.com
10.		Canon SX50	123 mm	87 mm	106 mm	595 g	315	n	Sep 2012	EUR 529	ebay.com
11.		Fujifilm X20	117 mm	70 mm	57 mm	353 g	270	n	Jan 2013	EUR 549	ebay.com
12.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	EUR 499	ebay.com
13.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	EUR 599	ebay.com
14.		Panasonic LF1	103 mm	62 mm	28 mm	192 g	250	n	Apr 2013	EUR 429	ebay.com
15.		Panasonic LX7	111 mm	68 mm	46 mm	298 g	330	n	Jul 2012	EUR 529	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The S120 was launched at a markedly lower price (by 36 percent) than the Stylus 1, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

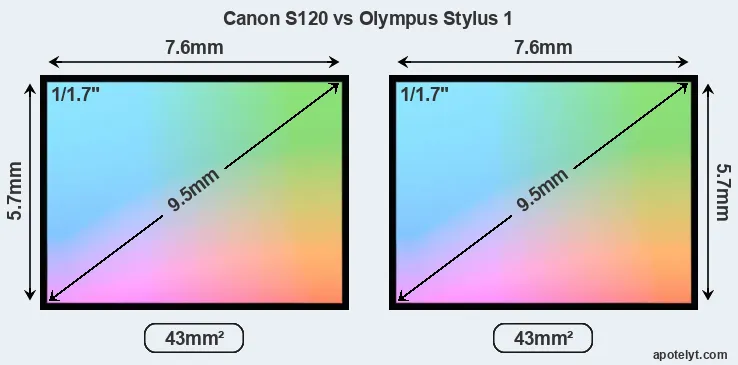

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a 1/1.7-inch sensor and have a format factor (sometimes also referred to as "crop factor") of 4.5. Within the spectrum of camera sensors, this places the review cameras among the smaller-sensor digicams that favor affordability and compact design. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

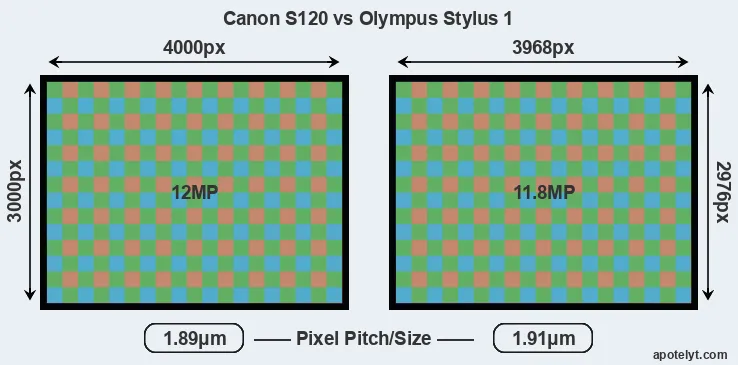

While the two cameras under review share the same sensor size, the S120 offers a slightly higher resolution of 12 megapixels, compared with 11.8 MP of the Stylus 1. This megapixels advantage translates into a 0.8 percent gain in linear resolution. On the other hand, these sensor specs imply that the S120 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.89μm versus 1.91μm for the Stylus 1). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot S120 has a native sensitivity range from ISO 80 to ISO 12800. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under review, the S120 has a notably higher overall DXO score than the Stylus 1 (overall score 5 points higher), which gives it an advantage in terms of imaging quality. This advantage is based on 0.6 bits higher color depth, 0.3 EV in additional dynamic range, and 0.5 stops in additional low light sensitivity. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon S120	1/1.7	12.0	4000	3000	1080/60p	21.3	11.9	246	56
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X	1.5-inch	14.2	4352	3264	1080/24p	21.7	10.8	644	60
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
6.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
7.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
8.		Canon G15	1/1.7	12.0	4000	3000	1080/24p	19.9	11.5	165	46
9.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
10.		Canon SX50	1/2.3	12.0	4000	3000	1080/24p	20.3	11.2	179	47
11.		Fujifilm X20	2/3	12.0	4000	3000	1080/60p	20.1	10.9	-462	46
12.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
13.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
14.		Panasonic LF1	1/1.7	12.0	4000	3000	1080/60i	20.8	11.6	211	52
15.		Panasonic LX7	1/1.7	10.0	3648	2736	1080/60p	20.7	11.7	147	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the S120 provides a higher frame rate than the Stylus 1. It can shoot video footage at 1080/60p, while the Olympus is limited to 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the S120 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon S120, the Olympus Stylus 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon S120	none	n	3.0 / 922	fixed	Y	1/2000s	12.1/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X	optical	n	3.0 / 922	swivel	n	1/4000s	1.9/s	Y	Y
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
6.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
7.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
8.		Canon G15	optical	n	3.0 / 922	fixed	n	1/4000s	2.1/s	Y	Y
9.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
10.		Canon SX50	202	n	3.0 / 461	swivel	n	1/2000s	2.2/s	Y	Y
11.		Fujifilm X20	optical	n	2.8 / 460	fixed	n	1/4000s	12.0/s	Y	Y
12.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
13.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
14.		Panasonic LF1	200	n	3.0 / 920	fixed	n	1/4000s	10.0/s	Y	Y
15.		Panasonic LX7	optional	n	3.0 / 920	fixed	n	1/4000s	11.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Canon S120 and the Olympus Stylus 1 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Both the S120 and the Stylus 1 have zoom lenses built in. The S120 has a 24-120mm f/1.8-5.7 optic and the Stylus 1 offers a 28-300mm f/2.8-2.8 (focal lengths in full frame equivalent terms). Hence, the Canon provides a wider angle of view at the short end than the Olympus, but less tele-photo reach at the long end. The S120 offers the faster maximum aperture.

Concerning the storage of imaging data, both the S120 and the Stylus 1 write their files to SDXC cards. The S120 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the Stylus 1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot S120 and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon S120	-	stereo / mono	-	-	mini	2.0	Y	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
7.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
8.		Canon G15	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
10.		Canon SX50	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Fujifilm X20	Y	stereo / mono	-	-	micro	2.0	-	-	-
12.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic LF1	-	stereo / mono	-	-	mini	2.0	Y	Y	-
15.		Panasonic LX7	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the Stylus 1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The S120 does not feature such an accessory-socket.

Both the S120 and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The Stylus 1 was replaced by the Olympus Stylus 1s, while the S120 does not have a direct successor. Further information on the features and operation of the S120 and Stylus 1 can be found, respectively, in the Canon S120 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what conclusions can be drawn? Which of the two cameras – the Canon S120 or the Olympus Stylus 1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon PowerShot S120:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Scores markedly higher (5 points) in the DXO overall assessment.
• Better low-light sensitivity: Requires less light for good images (0.5 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60p versus 1080/30p).
• Faster burst: Shoots at higher frequency (12.1 vs 7 flaps/sec) to capture the decisive moment.
• Better light gathering: Has a lens with a wider maximum aperture (f/1.8 vs f/2.8).
• Wider view: Has a wider-angle lens that facilitates landscape or interior shots.
• More compact: Is smaller (100x59mm vs 116x87mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 185g or 46 percent) and hence easier to carry around.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More affordable: Was introduced into a lower priced category (36 percent cheaper at launch).

Arguments in favor of the Olympus Stylus 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 922k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• More tele-reach: Has a longer tele-lens for perspective compression and subject magnification.
• Longer lasting: Gets more shots (410 versus 230) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.

If the number of relative strengths (bullet points above) is taken as a guide, the S120 is the clear winner of the match-up (11 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon S120 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Travel-Zoom Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the S120 or the Stylus 1. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon S120	..	+ +	..	..	4.5/5	4.5/5	Aug 2013	EUR 499	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	EUR 499	ebay.com
3.		Canon G1 X	5/5	+	..	76/100	4/5	4.5/5	Jan 2012	EUR 749	ebay.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	EUR 849	ebay.com
5.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	EUR 499	ebay.com
6.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	EUR 499	ebay.com
7.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	EUR 549	ebay.com
8.		Canon G15	4/5	+	..	76/100	4.5/5	4.5/5	Sep 2012	EUR 579	ebay.com
9.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	EUR 599	ebay.com
10.		Canon SX50	3/5	+ +	..	72/100	4.5/5	4.5/5	Sep 2012	EUR 529	ebay.com
11.		Fujifilm X20	4/5	+ +	..	77/100	4.5/5	5/5	Jan 2013	EUR 549	ebay.com
12.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	EUR 499	ebay.com
13.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	EUR 599	ebay.com
14.		Panasonic LF1	3/5	+	..	..	4/5	4.5/5	Apr 2013	EUR 429	ebay.com
15.		Panasonic LX7	3/5	+ +	..	75/100	4/5	4.5/5	Jul 2012	EUR 529	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
