Canon SX430 vs YI M1

The Canon PowerShot SX430 IS and the YI M1 are two digital cameras that were announced, respectively, in January 2017 and September 2016. The SX430 is a fixed lens compact, while the M1 is a mirrorless interchangeable lens camera. The cameras are based on a 1/2.3-inch (SX430) and a Four Thirds (M1) sensor. The Canon has a resolution of 19.9 megapixels, whereas the YI provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon SX430		YI M1
Fixed lens compact camera		Mirrorless system camera
24-1080mm f/3.5-6.6		Micro Four Thirds lenses
19.9 MP – 1/2.3" sensor		20.2 MP – Four Thirds sensor
720/25p Video		4K/30p Video
ISO 100-1,600		ISO 100-25,600
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 230k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
0.5 shutter flaps per second		5 shutter flaps per second
195 shots per battery charge		450 shots per battery charge
104 x 69 x 85 mm, 323 g		114 x 64 x 34 mm, 281 g

Check SX430 offers at
ebay.com
Check M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon PowerShot SX430 IS and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

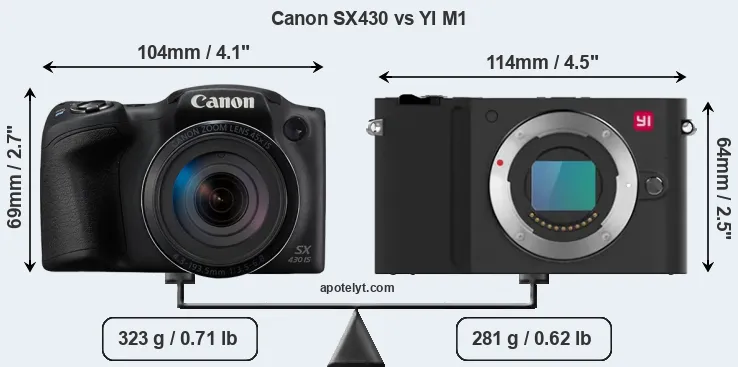

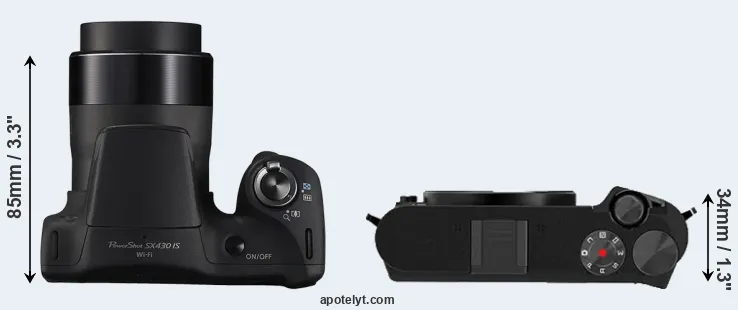

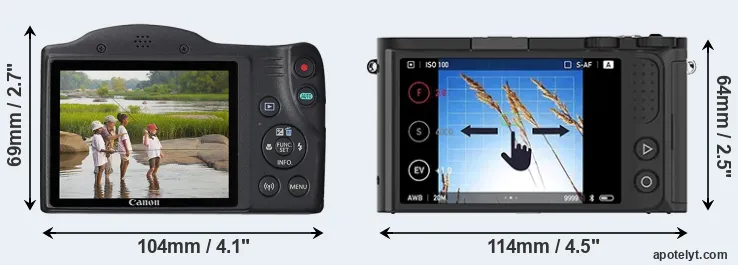

An illustration of the physical size and weight of the Canon SX430 and the YI M1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The M1 can be obtained in two different colors (black, silver), while the SX430 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is somewhat larger (2 percent) than the Canon SX430. In this context, it is worth noting that neither the SX430 nor the M1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the SX430 has a lens built in, whereas the M1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the M1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the SX430 gets 195 shots out of its Canon NB-11LH battery, while the M1 can take 450 images on a single charge of its YI BXM-10 power pack. The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon SX430	104 mm	69 mm	85 mm	323 g	195	n	Jan 2017	US$ 299	ebay.com
2.		YI M1	114 mm	64 mm	34 mm	281 g	450	n	Sep 2016	US$ 349	ebay.com
3.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
4.		Canon M50	116 mm	88 mm	59 mm	390 g	235	n	Feb 2018	US$ 779	ebay.com
5.		Canon SX410	104 mm	69 mm	85 mm	325 g	185	n	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
7.		Canon SX620	97 mm	57 mm	28 mm	182 g	295	n	May 2016	US$ 279	ebay.com
8.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	110 mm	64 mm	36 mm	270 g	250	n	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	110 mm	64 mm	40 mm	299 g	265	n	Jul 2018	US$ 399	amazon.com
12.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
13.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	US$ 399	ebay.com
14.		Sony RX100 VI	102 mm	58 mm	43 mm	301 g	240	n	Jun 2018	US$ 1 199	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The SX430 was launched at a lower price than the M1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

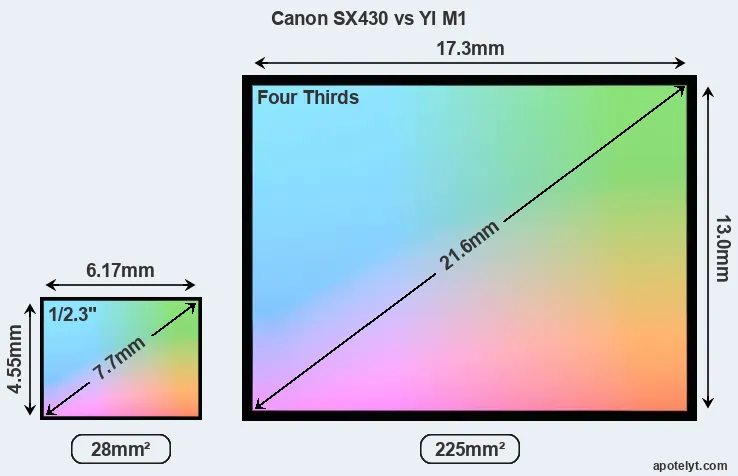

Of the two cameras under consideration, the Canon SX430 features a 1/2.3-inch sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

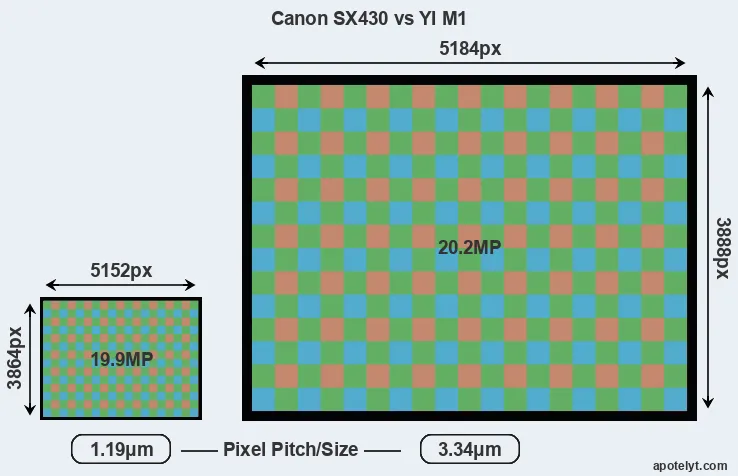

With 20.2MP, the M1 offers a higher resolution than the SX430 (19.9MP), but the M1 nevertheless has larger individual pixels (pixel pitch of 3.34μm versus 1.19μm for the SX430) due to its larger sensor. However, the SX430 is a somewhat more recent model (by 3 months) than the M1, and its sensor might have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that the SX430 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon PowerShot SX430 IS has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the YI M1 are ISO 100 to ISO 25600 (no boost).

In terms of underlying technology, the SX430 is build around a CCD sensor, while the M1 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon SX430	1/2.3	19.9	5152	3864	720/25p	20.5	11.9	900	49
2.		YI M1	Four Thirds	20.2	5184	3888	4K/30p	23.0	12.6	1030	73
3.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
4.		Canon M50	APS-C	24.0	6000	4000	4K/24p	23.8	13.3	1684	81
5.		Canon SX410	1/2.3	19.9	5152	3864	720/30p	20.2	11.6	720	47
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX620	1/2.3	20.2	5184	3888	1080/30p	20.4	11.8	838	49
8.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
9.		Canon SX720	1/2.3	20.2	5184	3888	1080/60p	20.3	11.8	817	48
10.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
11.		Canon SX740	1/2.3	20.2	5184	3888	4K/30p	20.6	12.1	1050	51
12.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
13.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
14.		Sony RX100 VI	1-inch	20.0	5472	3648	4K/30p	22.1	12.3	478	64
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the M1 provides a better video resolution than the SX430. It can shoot movie footage at 4K/30p, while the Canon is limited to 720/25p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The SX430 and the M1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The adjacent table lists some of the other core features of the Canon SX430 and YI M1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon SX430	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
2.		YI M1	none	n	3.0 / 1040	fixed	Y	1/4000s	5.0/s	n	n
3.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
4.		Canon M50	2360	n	3.0 / 1040	swivel	Y	1/4000s	10.0/s	Y	n
5.		Canon SX410	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX620	none	n	3.0 / 922	fixed	n	1/2000s	2.5/s	Y	Y
8.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
9.		Canon SX720	none	n	3.0 / 922	fixed	n	1/3200s	5.9/s	Y	Y
10.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
11.		Canon SX740	none	n	3.0 / 922	tilting	n	1/3200s	10.0/s	Y	Y
12.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
13.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
14.		Sony RX100 VI	2359	n	3.0 / 1229	tilting	Y	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The SX430 has one, while the M1 does not. While the built-in flash of the SX430 is not very powerful, it can at times be useful as a fill-in light.

The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the SX430 and the M1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon PowerShot SX430 IS and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon SX430	-	mono / mono	-	-	-	2.0	Y	Y	-
2.		YI M1	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon M50	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Canon SX410	-	stereo / mono	-	-	-	2.0	-	-	-
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX620	-	mono / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Canon SX720	-	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
11.		Canon SX740	-	stereo / mono	-	-	micro	2.0	Y	-	Y
12.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony RX100 VI	-	stereo / mono	-	-	micro	2.0	Y	Y	Y

It is notable that the M1 has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The SX430 does not feature such an accessory-socket.

Both the SX430 and the M1 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Canon and YI. Further information on the features and operation of the SX430 and M1 can be found, respectively, in the Canon SX430 Manual (free pdf) or the online YI M1 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon SX430 and the YI M1? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Canon PowerShot SX430 IS:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Ready to shoot: Has a lens built-in, whereas the M1 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Is somewhat more recent (announced 3 months after the M1).

Advantages of the YI M1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Better video: Provides higher definition movie capture (4K/30p vs 720/25p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (5 vs 0.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• Longer lasting: Gets more shots (450 versus 195) out of a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More heavily discounted: Has been on the market for longer (launched in September 2016).

If the count of individual advantages (bullet points above) is taken as a guide, the M1 is the clear winner of the contest (16 : 7 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon SX430 and the YI M1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the SX430 and the M1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon SX430	..	..	..	..	3.5/5	3.5/5	Jan 2017	US$ 299	ebay.com
2.		YI M1	..	..	..	69/100	..	..	Sep 2016	US$ 349	ebay.com
3.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
4.		Canon M50	..	+	4/5	79/100	..	3.5/5	Feb 2018	US$ 779	ebay.com
5.		Canon SX410	..	o	..	..	..	..	Feb 2015	US$ 279	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
7.		Canon SX620	..	..	..	..	..	4/5	May 2016	US$ 279	ebay.com
8.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
9.		Canon SX720	..	+	..	..	4/5	4.5/5	Feb 2016	US$ 379	ebay.com
10.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
11.		Canon SX740	..	+	3.5/5	..	4/5	4/5	Jul 2018	US$ 399	amazon.com
12.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
13.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	US$ 399	ebay.com
14.		Sony RX100 VI	4.5/5	+ +	..	83/100	4/5	4.5/5	Jun 2018	US$ 1 199	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
