Fujifilm X-M5 vs X-S20

The Fujifilm X-M5 and the Fujifilm X-S20 are two digital cameras that were revealed to the public, respectively, in October 2025 and May 2023. Both the X-M5 and the X-S20 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 26 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M5		Fujifilm X-S20
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Fujifilm X mount lenses
26 MP – APS-C sensor		26 MP – APS-C sensor
4K/60p Video		4K/60p Video
ISO 160-12,800 (80 - 51,200)		ISO 160-12,800 (80 - 51,200)
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
8 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
330 shots per battery charge		750 shots per battery charge
112 x 67 x 38 mm, 355 g		128 x 85 x 65 mm, 491 g

Check X-M5 price at
amazon.com
Check X-S20 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M5 and the Fujifilm X-S20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

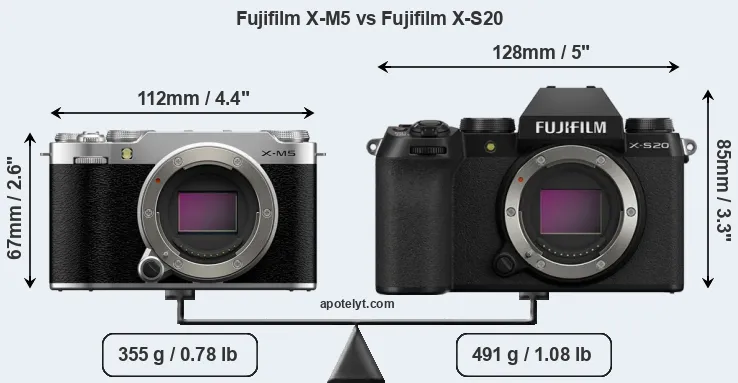

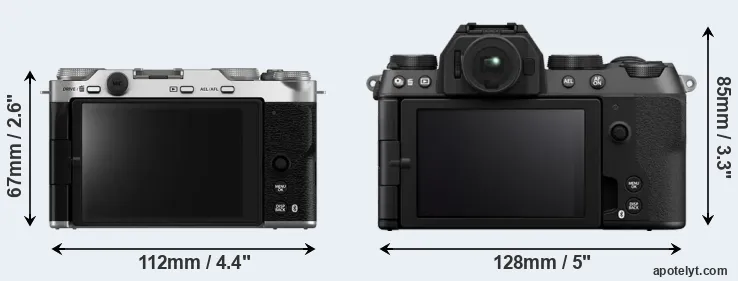

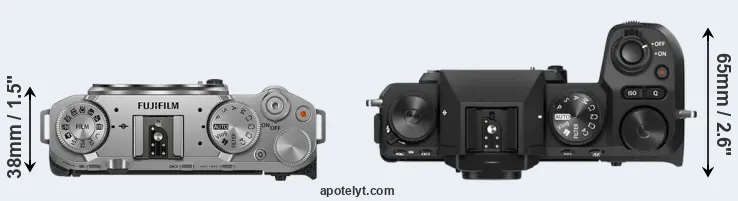

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-M5 and the Fujifilm X-S20. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The X-M5 can be obtained in two different colors (black, silver), while the X-S20 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-S20 is considerably larger (45 percent) than the Fujifilm X-M5. Moreover, the X-S20 is substantially heavier (38 percent) than the X-M5. In this context, it is worth noting that neither the X-M5 nor the X-S20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Fujinon X Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the X-M5 gets 330 shots out of its Fujifilm NP-W126S battery, while the X-S20 can take 750 images on a single charge of its Fujifilm NP-W235 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
2.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
3.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
5.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	US$ 699	ebay.com
6.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
7.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
8.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
9.		Fujifilm X-S10	126 mm	85 mm	65 mm	465 g	325	n	Oct 2020	US$ 999	amazon.com
10.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
11.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T50	124 mm	84 mm	49 mm	438 g	305	n	May 2024	US$ 1 399	amazon.com
14.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
15.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
16.		Fujifilm X100F	127 mm	75 mm	52 mm	469 g	390	n	Jan 2017	US$ 1 299	ebay.com
17.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M5 was launched at a markedly lower price (by 38 percent) than the X-S20, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature an APS-C sensor and have a format factor (sometimes also referred to as "crop factor") of 1.5. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the X-M5 uses a more advanced image processing engine (X-Processor 5) than the X-S20 (X-Processor 5), with benefits for noise reduction, color accuracy, and processing speed.

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 26 megapixels. This similarity in sensor specs implies that both the X-M5 and the X-S20 have the same pixel density, as well as the same pixel size. It should, however, be noted that the X-M5 is much more recent (by 2 years and 4 months) than the X-S20, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Fujifilm X-M5 has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The Fujifilm X-S20 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use the X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
2.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
3.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
4.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
5.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
7.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
8.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
9.		Fujifilm X-S10	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2057	85
10.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
11.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
12.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
13.		Fujifilm X-T50	APS-C	39.8	7728	5152	6.2k/30p	24.3	14.1	2418	86
14.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
15.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
16.		Fujifilm X100F	APS-C	24.0	6000	4000	1080/60p	23.9	13.2	1704	81
17.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/60p).

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-S20 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X-M5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Fujifilm X-M5, the Fujifilm X-S20, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
2.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
3.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
6.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
7.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
9.		Fujifilm X-S10	2360	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	Y
10.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T50	2360	n	3.0 / 1840	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
15.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
16.		Fujifilm X100F	2360	n	3.0 / 1040	fixed	n	1/4000s	8.0/s	Y	n
17.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the X-S20 and the X-M5 is in-body image stabilization (IBIS). The X-S20 reduces the risk of handshake-induced blur with all attached lenses, while the X-M5 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-S20 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M5 and the X-S20 write their files to SDXC cards. The X-S20 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M5 and Fujifilm X-S20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
8.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
9.		Fujifilm X-S10	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
10.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
12.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Fujifilm X-T50	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
14.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
15.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
16.		Fujifilm X100F	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
17.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y

Both the X-M5 and the X-S20 are recent models that are part of the current product line-up. The X-S20 replaced the earlier Fujifilm X-S10, while the X-M5 followed on from the Fujifilm X-M1. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm website.

Review summary

So how do things add up? Is there a clear favorite between the Fujifilm X-M5 and the Fujifilm X-S20? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Arguments in favor of the Fujifilm X-M5:

• Better jpgs: Has a more modern image processing engine (X-Processor 5 vs X-Processor 5).
• More compact: Is smaller (112x67mm vs 128x85mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 136g or 28 percent) and hence easier to carry around.
• More affordable: Was introduced into a lower priced category (38 percent cheaper at launch).
• More modern: Reflects 2 years and 4 months of technical progress since the X-S20 launch.

Reasons to prefer the Fujifilm X-S20:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Gets more shots (750 versus 330) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been around for much longer (launched in May 2023).

If the count of relative strengths (bullet points above) is taken as a measure, the X-S20 emerges as the winner of the match-up (7 : 5 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M5 and the Fujifilm X-S20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the X-M5 and the X-S20 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
2.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
3.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
5.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
6.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
7.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
8.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
9.		Fujifilm X-S10	5/5	..	4.5/5	86/100	4.5/5	4.5/5	Oct 2020	US$ 999	amazon.com
10.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
11.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T50	..	..	..	85/100	..	..	May 2024	US$ 1 399	amazon.com
14.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
15.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
16.		Fujifilm X100F	5/5	+	3.9/5	83/100	4.5/5	4.5/5	Jan 2017	US$ 1 299	ebay.com
17.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
