Fujifilm X-T20 vs Panasonic S9

The Fujifilm X-T20 and the Panasonic Lumix DC-S9 are two digital cameras that were officially introduced, respectively, in January 2017 and May 2024. Both the X-T20 and the S9 are mirrorless interchangeable lens cameras that are based on an APS-C (X-T20) and a full frame (S9) sensor. Both cameras offer a resolution of 24 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-T20		Panasonic S9
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Leica L mount lenses
24 MP – APS-C sensor		24 MP – Full Frame sensor
4K/30p Video		6K/30p Video
ISO 200-12,800 (100 - 51,200)		ISO 100-51,200 (50 - 204,800)
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.0" LCD – 1040k dots		3.0" LCD – 1840k dots
Tilting touchscreen		Swivel touchscreen
8 shutter flaps per second		30 shutter flaps per second
Lens stabilization only		In-body stabilization
350 shots per battery charge		470 shots per battery charge
118 x 83 x 41 mm, 383 g		126 x 74 x 47 mm, 486 g

Check X-T20 offers at
ebay.com
Check S9 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-T20 and the Panasonic Lumix DC-S9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

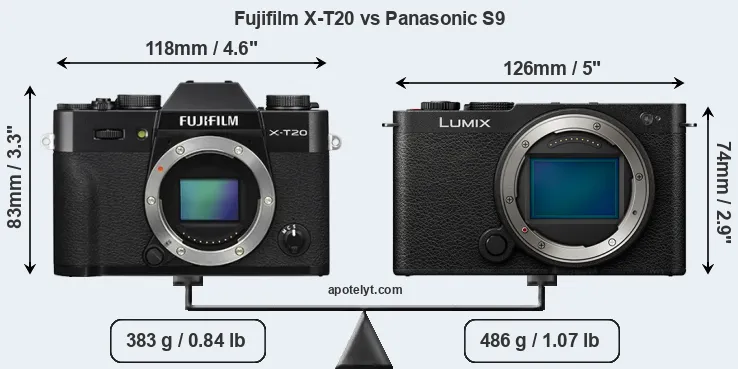

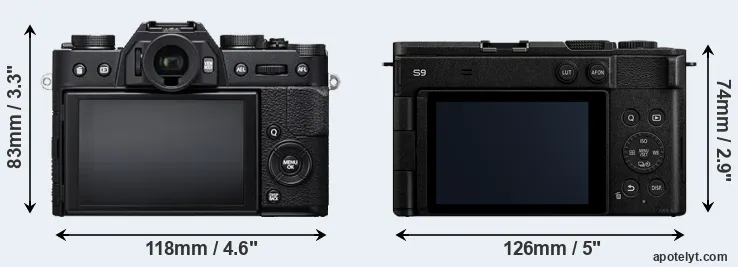

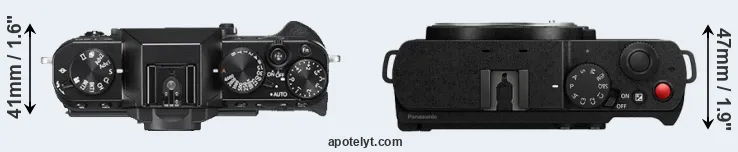

Body comparison

The physical size and weight of the Fujifilm X-T20 and the Panasonic S9 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The X-T20 can be obtained in two different colors (black, silver), while the S9 is available in four color-versions (black, blue, red, green).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Panasonic S9 is somewhat smaller (5 percent) than the Fujifilm X-T20. However, the S9 is markedly heavier (27 percent) than the X-T20. In this context, it is worth noting that neither the X-T20 nor the S9 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the X-T20 gets 350 shots out of its Fujifilm NP-W126S battery, while the S9 can take 470 images on a single charge of its Panasonic DMW-BLK22 power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
2.		Panasonic S9	126 mm	74 mm	47 mm	486 g	470	n	May 2024	US$ 1 499	amazon.com
3.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
4.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
7.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
8.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
9.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
10.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
11.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
14.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	US$ 799	ebay.com
15.		Panasonic GX9	124 mm	72 mm	47 mm	407 g	260	n	Feb 2018	US$ 849	ebay.com
16.		Panasonic S1 II	134 mm	102 mm	92 mm	800 g	350	Y	May 2025	US$ 3 199	amazon.com
17.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-T20 was launched at a markedly lower price (by 40 percent) than the S9, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

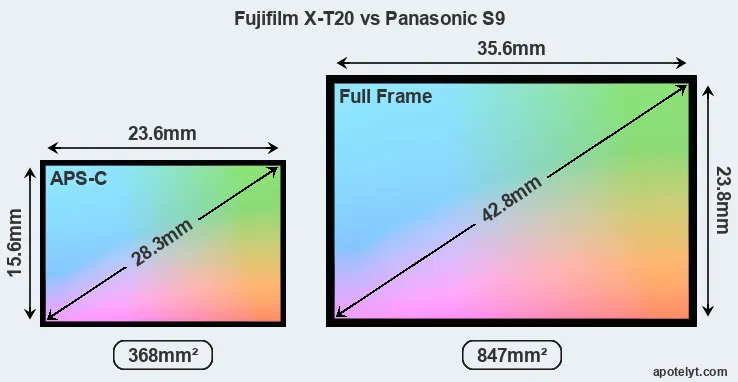

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Fujifilm X-T20 features an APS-C sensor and the Panasonic S9 a full frame sensor. The sensor area in the S9 is 130 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

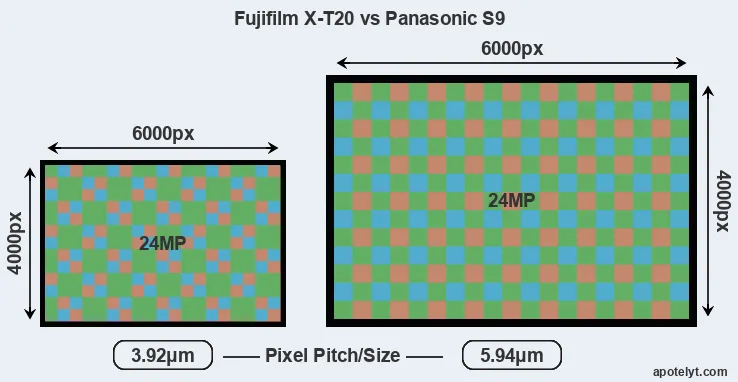

Even though the S9 has a larger sensor, both cameras offer the same resolution of 24 megapixels. This implies that the S9 has a lower pixel density and larger individual pixels (with a pixel pitch of 5.94μm versus 3.92μm for the X-T20), which gives it a potential advantage in terms of light gathering capacity. In addition, the S9 is much more recent (by 7 years and 4 months) than the X-T20, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Fujifilm X-T20 has a native sensitivity range from ISO 200 to ISO 12800, which can be extended to ISO 100-51200. The corresponding ISO settings for the Panasonic Lumix DC-S9 are ISO 100 to ISO 51200, with the possibility to increase the ISO range to 50-204800.

In terms of underlying technology, the X-T20 is build around a CMOS sensor, while the S9 uses a BSI-CMOS imager. The X-T20 uses Fujifilm's X-Trans layout of photosites, while the S9 employs the more common Bayer array.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
2.		Panasonic S9	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3297	96
3.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
4.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
5.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
6.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
7.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
8.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
9.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
10.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
11.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
12.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
13.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
14.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
15.		Panasonic GX9	Four Thirds	20.2	5184	3888	4K/30p	23.1	12.8	1163	74
16.		Panasonic S1 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.8	3406	97
17.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the S9 provides a better video resolution than the X-T20. It can shoot movie footage at 6K/30p, while the Fujifilm is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the S9 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Fujifilm X-T20 and Panasonic S9 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
2.		Panasonic S9	none	n	3.0 / 1840	swivel	Y	1/8000s	30.0/s	n	Y
3.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
4.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
6.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
7.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
9.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
10.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
14.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
15.		Panasonic GX9	2760	n	3.0 / 1240	tilting	Y	1/4000s	9.0/s	Y	Y
16.		Panasonic S1 II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	10.0/s	n	Y
17.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The X-T20 has one, while the S9 does not. While the built-in flash of the X-T20 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-T20 and the Panasonic S9 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-T20 and the S9 write their files to SDXC cards. The S9 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-T20 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-T20 and Panasonic Lumix DC-S9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
2.		Panasonic S9	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
3.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
6.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
8.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
9.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
10.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
11.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
12.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
13.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
14.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
15.		Panasonic GX9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
16.		Panasonic S1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

The S9 is a recent model that features in the current product line-up of Panasonic. In contrast, the X-T20 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the X-T20 was succeeded by the Fujifilm X-T100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm and Panasonic websites.

Review summary

So what is the bottom line? Is there a clear favorite between the Fujifilm X-T20 and the Panasonic S9? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Advantages of the Fujifilm X-T20:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Less heavy: Is lighter (by 103g or 21 percent) and hence easier to carry around.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• More affordable: Was introduced into a lower priced category (40 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in January 2017).

Reasons to prefer the Panasonic Lumix DC-S9:

• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher definition movie capture (6K/30p vs 4K/30p).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1040k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (30 vs 8 flaps/sec) to capture the decisive moment.
• Longer lasting: Gets more shots (470 versus 350) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 7 years and 4 months of technical progress since the X-T20 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the S9 is the clear winner of the contest (16 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-T20 and the Panasonic S9 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-T20 or the S9. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why hands-on reviews by experts are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
2.		Panasonic S9	..	..	..	..	..	..	May 2024	US$ 1 499	amazon.com
3.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
4.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
6.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
7.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
8.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
9.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
10.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
11.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
12.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
13.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
14.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	US$ 799	ebay.com
15.		Panasonic GX9	4/5	+	4/5	84/100	4.5/5	4.5/5	Feb 2018	US$ 849	ebay.com
16.		Panasonic S1 II	..	..	..	..	..	..	May 2025	US$ 3 199	amazon.com
17.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
