Leica M10-P vs Olympus E-500

The Leica M10-P and the Olympus Evolt E-500 are two digital cameras that were revealed to the public, respectively, in August 2018 and September 2005. The M10-P is a rangefinder-focusing mirrorless camera, while the E-500 is a DSLR. The cameras are based on a full frame (M10-P) and a Four Thirds (E-500) sensor. The Leica has a resolution of 23.8 megapixels, whereas the Olympus provides 8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M10-P		Olympus E-500
Rangefinder camera		Digital single lens reflex
Leica M mount lenses		Four Thirds lenses
23.8 MP – Full Frame sensor		8 MP – Four Thirds sensor
no Video		no Video
ISO 100-50,000		ISO 100-400 (100 - 1,600)
Optical viewfinder		Optical viewfinder
3.0" LCD – 1037k dots		2.5" LCD – 215k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
5 shutter flaps per second		2.5 shutter flaps per second
Weathersealed body		not weather sealed
210 shots per battery charge		750 shots per battery charge
139 x 80 x 39 mm, 660 g		130 x 95 x 66 mm, 479 g

Check M10-P offers at
ebay.com
Check E-500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10-P and the Olympus Evolt E-500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

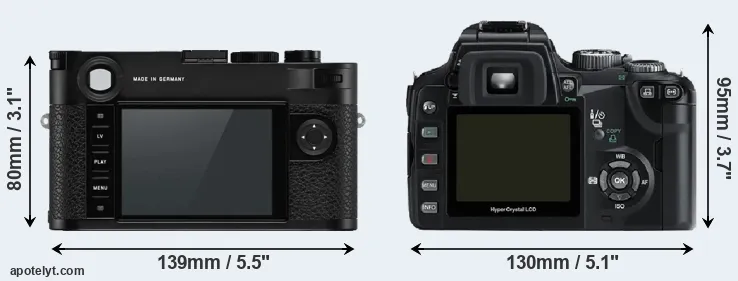

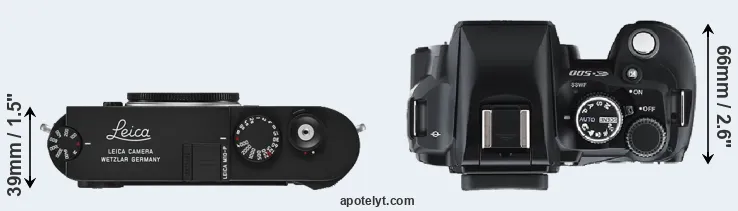

An illustration of the physical size and weight of the Leica M10-P and the Olympus E-500 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The M10-P can be obtained in two different colors (black, silver), while the E-500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-500 is notably larger (11 percent) than the Leica M10-P. However, the E-500 is markedly lighter (27 percent) than the M10-P. It is worth mentioning in this context that the M10-P is splash and dust resistant, while the E-500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica M Lens Catalog (M10-P) and the Four Thirds Lens Catalog (E-500).

Concerning battery life, the M10-P gets 210 shots out of its Leica BP-SCL5 battery, while the E-500 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
2.		Olympus E-500	130 mm	95 mm	66 mm	479 g	750	n	Sep 2005	US$ 599	ebay.com
3.		Canon 6D Mark II	144 mm	111 mm	75 mm	765 g	1200	Y	Jun 2017	US$ 1 999	amazon.com
4.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
5.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
6.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
7.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
9.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
10.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
11.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
12.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
13.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
14.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
15.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
16.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
17.		Olympus E-510	136 mm	92 mm	68 mm	538 g	750	n	Mar 2007	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The E-500 was launched at a markedly lower price (by 93 percent) than the M10-P, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

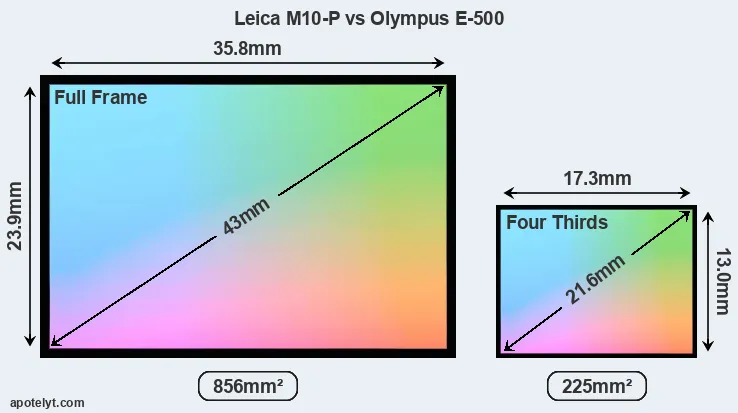

Of the two cameras under consideration, the Leica M10-P features a full frame sensor and the Olympus E-500 a Four Thirds sensor. The sensor area in the E-500 is 74 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.0. The sensor in the M10-P has a native 3:2 aspect ratio, while the one in the E-500 offers a 4:3 aspect.

With 23.8MP, the M10-P offers a higher resolution than the E-500 (8MP), but the M10-P nevertheless has larger individual pixels (pixel pitch of 6.00μm versus 5.30μm for the E-500) due to its larger sensor. Moreover, the M10-P is a much more recent model (by 12 years and 10 months) than the E-500, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the M10-P has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica M10-P implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10-P for good quality output (200 dots per inch) amounts to 29.8 x 20 inches or 75.6 x 50.7 cm, for very good quality (250 dpi) 23.8 x 16 inches or 60.5 x 40.6 cm, and for excellent quality (300 dpi) 19.8 x 13.3 inches or 50.4 x 33.8 cm. The corresponding values for the Olympus E-500 are 16.3 x 12.2 inches or 41.5 x 31.1 cm for good quality, 13.1 x 9.8 inches or 33.2 x 24.9 cm for very good quality, and 10.9 x 8.2 inches or 27.6 x 20.7 cm for excellent quality prints.

The Leica M10-P has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Olympus Evolt E-500 are ISO 100 to ISO 400, with the possibility to increase the ISO range to 100-1600.

In terms of underlying technology, the M10-P is build around a CMOS sensor, while the E-500 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
2.		Olympus E-500	Four Thirds	8.0	3264	2448	none	20.7	10.3	45	51
3.		Canon 6D Mark II	Full Frame	26.0	6240	4160	1080/60p	24.4	11.9	2862	85
4.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
5.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
6.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
7.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
8.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
9.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
10.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
11.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
12.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
13.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
14.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
15.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
16.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
17.		Olympus E-510	Four Thirds	10.0	3648	2736	none	21.2	10.0	442	52
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The M10-P and the E-500 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the M10-P offers a wider field of view (100%) than the one in the E-500 (95%), so that a larger proportion of the captured image is visible in the finder. In addition, the viewfinder of the M10-P has a higher magnification (0.73x vs 0.45x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica M10-P and Olympus E-500 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
2.		Olympus E-500	optical	n	2.5 / 215	fixed	n	1/4000s	2.5/s	Y	n
3.		Canon 6D Mark II	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.5/s	n	n
4.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
5.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
7.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
8.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
9.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
10.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
11.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
13.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
14.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
15.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
16.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
17.		Olympus E-510	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10-P has a touchscreen, while the E-500 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Leica M10-P has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The M10-P writes its imaging data to SDXC cards, while the E-500 uses Compact Flash or xD Picture cards. The E-500 features dual card slots, which can be very useful in case a memory card fails. In contrast, the M10-P only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10-P and Olympus Evolt E-500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
2.		Olympus E-500	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 6D Mark II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
6.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
10.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
11.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
12.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
13.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
14.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
15.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
16.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
17.		Olympus E-510	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the M10-P offers wifi support, while the E-500 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M10-P and the E-500 have been discontinued, but can regularly be found used on ebay. The E-500 was replaced by the Olympus E-510, while the M10-P does not have a direct successor. Further information on the features and operation of the M10-P and E-500 can be found, respectively, in the Leica M10-P Manual (free pdf) or the online Olympus E-500 Manual.

Review summary

So how do things add up? Which of the two cameras – the Leica M10-P or the Olympus E-500 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Leica M10-P:

• More detail: Offers more megapixels (23.8 vs 8MP) with a 76% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• More complete view: Has a viewfinder with a larger field of view (100% vs 95%).
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.45x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (5 vs 2.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More modern: Reflects 12 years and 10 months of technical progress since the E-500 launch.

Advantages of the Olympus Evolt E-500:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Less heavy: Has a lower weight (by 181g or 27 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (750 versus 210) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was introduced into a lower priced category (93 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in September 2005).

If the number of relative strengths (bullet points above) is taken as a guide, the M10-P is the clear winner of the match-up (17 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the M10-P and the E-500 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
2.		Olympus E-500	..	76/100	..	+ +	..	..	Sep 2005	US$ 599	ebay.com
3.		Canon 6D Mark II	4/5	+	4/5	80/100	4.5/5	4/5	Jun 2017	US$ 1 999	amazon.com
4.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
5.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
6.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
7.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
8.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
9.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
10.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
11.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
12.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
13.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
14.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
15.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
16.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
17.		Olympus E-510	..	89/100	..	+ +	3.5/5	4.5/5	Mar 2007	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
