Leica S1 vs Nikon D2Xs

The Leica S1 Pro and the Nikon D2Xs are two professional cameras that were revealed to the public, respectively, in August 1996 and June 2006. The S1 is a mirrorless interchangeable lens camera, while the D2Xs is a DSLR. The cameras are based on a medium format (S1) and an APS-C (D2Xs) sensor. The Leica has a resolution of 26.4 megapixels, whereas the Nikon provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica S1		Nikon D2Xs
Mirrorless system camera		Digital single lens reflex
Leica R mount lenses		Nikon F mount lenses
26.4 MP – Medium Format sensor		12.2 MP – APS-C sensor
no Video		no Video
ISO 50-1,600		ISO 100-800 (800 - 3,200)
Optical viewfinder		Optical viewfinder
no LCD		2.5" LCD – 230k dots
no rear screen		Fixed screen (not touch-sensitive)
0.01 shutter flaps per second		5 shutter flaps per second
not weather sealed		Weathersealed body
339 x 214 x 119 mm, 2500 g		158 x 150 x 86 mm, 1252 g

Check S1 offers at
ebay.com
Check D2Xs offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S1 Pro and the Nikon D2Xs? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

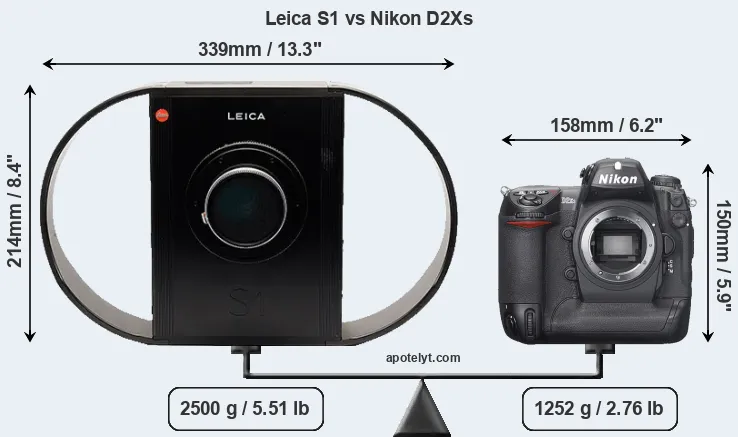

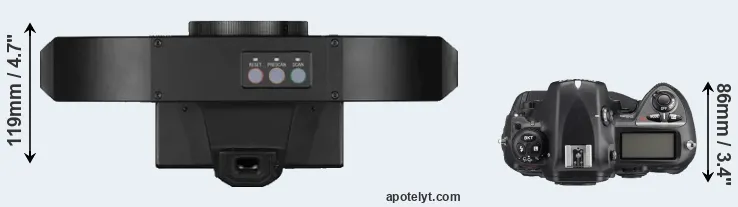

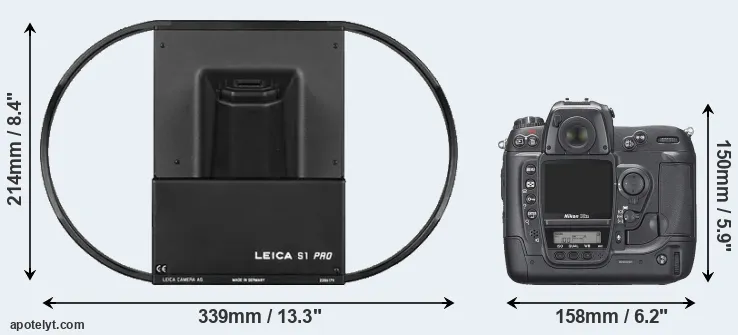

An illustration of the physical size and weight of the Leica S1 and the Nikon D2Xs is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D2Xs is considerably smaller (67 percent) than the Leica S1. Moreover, the D2Xs is substantially lighter (50 percent) than the S1. It is noteworthy in this context that the D2Xs is splash and dust-proof, while the S1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Leica R Lens Catalog (S1) and the Nikon Lens Catalog (D2Xs). Mirrorless cameras, such as the Leica S1, have moreover the advantage that they have a relatively short flange to focal plane distance and can thus use many lenses from other systems via adapters.

As can be seen in the images above, the D2Xs has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	EUR 21 499	ebay.com
2.		Nikon D2Xs	158 mm	150 mm	86 mm	1252 g	3800	Y	Jun 2006	EUR 5 069	ebay.com
3.		Canon 1D Mark III	156 mm	157 mm	80 mm	1155 g	2200	Y	Feb 2007	EUR 4 309	ebay.com
4.		Canon 250D	122 mm	93 mm	70 mm	449 g	1070	n	Apr 2019	EUR 549	amazon.com
5.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	EUR 1 499	amazon.com
6.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	EUR 999	ebay.com
7.		Leica CL	131 mm	78 mm	45 mm	403 g	220	n	Nov 2017	EUR 2 490	ebay.com
8.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	EUR 3 949	ebay.com
9.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	EUR 3 999	ebay.com
10.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	EUR 18 599	ebay.com
11.		Leica TL2	134 mm	69 mm	33 mm	399 g	250	n	Jul 2017	EUR 1 949	ebay.com
12.		Nikon D2X	158 mm	150 mm	86 mm	1252 g	3800	Y	Sep 2004	EUR 4 999	ebay.com
13.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	EUR 4 849	ebay.com
14.		Nikon D200	147 mm	113 mm	74 mm	920 g	400	Y	Nov 2005	EUR 1 799	ebay.com
15.		Nikon D300	147 mm	114 mm	74 mm	925 g	1000	Y	Aug 2007	EUR 1 829	ebay.com
16.		Sony A6100	120 mm	67 mm	59 mm	396 g	420	n	Aug 2019	EUR 899	ebay.com
17.		Sony A6400	120 mm	67 mm	50 mm	403 g	410	Y	Jan 2019	EUR 1 049	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D2Xs was launched at a markedly lower price (by 78 percent) than the S1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

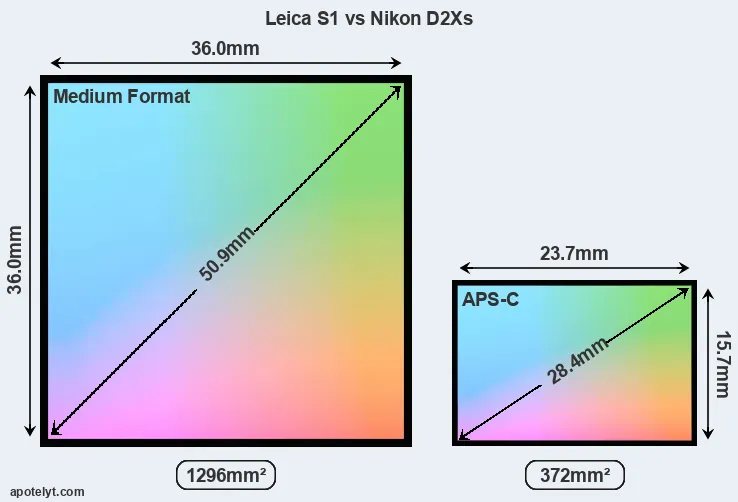

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Leica S1 features a medium format sensor and the Nikon D2Xs an APS-C sensor. The sensor area in the D2Xs is 71 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.85 and 1.5. The sensor in the S1 has a native 1:1 aspect ratio, while the one in the D2Xs offers a 3:2 aspect.

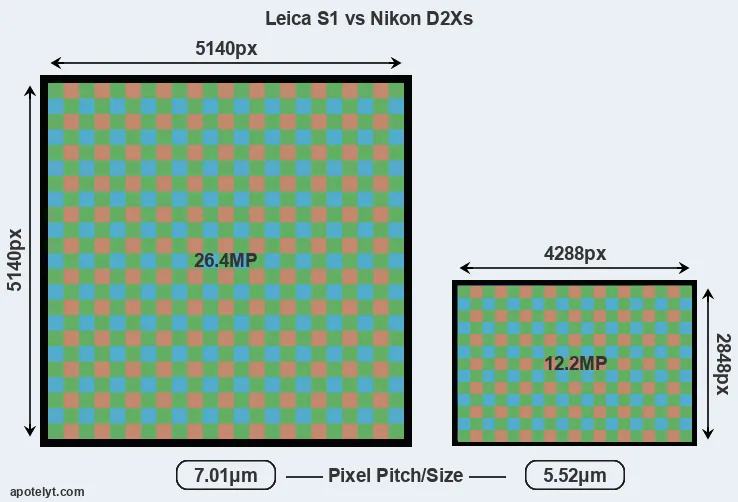

With 26.4MP, the S1 offers a higher resolution than the D2Xs (12.2MP), but the S1 nevertheless has larger individual pixels (pixel pitch of 7.01μm versus 5.52μm for the D2Xs) due to its larger sensor. However, the D2Xs is a much more recent model (by 9 years and 9 months) than the S1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S1 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S1 for good quality output (200 dots per inch) amounts to 25.7 x 25.7 inches or 65.3 x 65.3 cm, for very good quality (250 dpi) 20.6 x 20.6 inches or 52.2 x 52.2 cm, and for excellent quality (300 dpi) 17.1 x 17.1 inches or 43.5 x 43.5 cm. The corresponding values for the Nikon D2Xs are 21.4 x 14.2 inches or 54.5 x 36.2 cm for good quality, 17.2 x 11.4 inches or 43.6 x 28.9 cm for very good quality, and 14.3 x 9.5 inches or 36.3 x 24.1 cm for excellent quality prints.

The Leica S1 Pro has a native sensitivity range from ISO 50 to ISO 1600. The corresponding ISO settings for the Nikon D2Xs are ISO 100 to ISO 800, with the possibility to increase the ISO range to 800-3200.

In terms of underlying technology, the S1 is build around a CCD sensor, while the D2Xs uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
2.		Nikon D2Xs	APS-C	12.2	4288	2848	none	22.2	10.9	489	59
3.		Canon 1D Mark III	APS-H	10.1	3888	2592	none	22.7	11.7	1078	71
4.		Canon 250D	APS-C	24.0	6000	4000	4K/25p	23.9	13.4	1791	82
5.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
6.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
7.		Leica CL	APS-C	24.1	6014	4014	4K/30p	24.0	13.3	1788	82
8.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
9.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
10.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
11.		Leica TL2	APS-C	24.1	6014	4014	4K/30p	23.9	13.3	1753	82
12.		Nikon D2X	APS-C	12.2	4288	2848	none	22.1	10.9	476	59
13.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
14.		Nikon D200	APS-C	10.0	3872	2592	none	22.3	11.5	583	64
15.		Nikon D300	APS-C	12.2	4288	2848	none	22.1	12.0	679	67
16.		Sony A6100	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1947	84
17.		Sony A6400	APS-C	24.0	6000	4000	4K/30p	24.0	13.6	1431	83
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The S1 and the D2Xs are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The adjacent table lists some of the other core features of the Leica S1 and Nikon D2Xs along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
2.		Nikon D2Xs	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	n	n
3.		Canon 1D Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	10.0/s	n	n
4.		Canon 250D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
6.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
7.		Leica CL	2360	Y	3.0 / 1040	fixed	Y	1/8000s	10.0/s	n	n
8.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
9.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
10.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
11.		Leica TL2	optional	n	3.7 / 1230	fixed	Y	1/4000s	7.0/s	n	n
12.		Nikon D2X	optical	Y	2.5 / 235	fixed	n	1/8000s	5.0/s	n	n
13.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
14.		Nikon D200	optical	Y	2.5 / 230	fixed	n	1/8000s	5.0/s	Y	n
15.		Nikon D300	optical	Y	3.0 / 922	fixed	n	1/8000s	6.0/s	Y	n
16.		Sony A6100	1440	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
17.		Sony A6400	2359	n	3.0 / 922	tilting	Y	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the D2Xs, but is missing on the S1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The S1 writes its imaging data to external storage, while the D2Xs uses Compact Flash cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S1 Pro and Nikon D2Xs and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica S1	-	- / -	-	-	-	-	-	-	-
2.		Nikon D2Xs	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 1D Mark III	Y	- / -	-	-	-	2.0	-	-	-
4.		Canon 250D	Y	stereo / mono	Y	-	mini	2.0	Y	-	Y
5.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
6.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
7.		Leica CL	Y	stereo / mono	-	-	-	-	Y	-	-
8.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
9.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
10.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
11.		Leica TL2	Y	stereo / mono	-	-	micro	3.0	Y	-	-
12.		Nikon D2X	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
14.		Nikon D200	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D300	Y	- / -	-	-	mini	2.0	-	-	-
16.		Sony A6100	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y
17.		Sony A6400	Y	stereo / mono	Y	-	micro	2.0	Y	Y	Y

It is notable that the D2Xs has a hotshoe, which makes it possible to easily attach optional accessories, such as an external flash gun. The S1 does not feature such an accessory-socket.

Studio photographers will appreciate that the Nikon D2Xs (unlike the S1) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the S1 and the D2Xs have been discontinued, but can regularly be found used on ebay. The S1 was replaced by the Leica S2, while the D2Xs was followed by the Nikon D3X. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Leica and Nikon websites.

Review summary

So how do things add up? Is there a clear favorite between the Leica S1 and the Nikon D2Xs? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Leica S1 Pro:

• More detail: Offers more megapixels (26.4 vs 12.2MP) with a 41% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been available for much longer (launched in August 1996).

Advantages of the Nikon D2Xs:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Rear screen: Has a backside LCD (2.5") for image review and settings control.
• Faster burst: Shoots at higher frequency (5 vs 0.01 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (158x150mm vs 339x214mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 1248g or 50 percent) and is thus easier to take along.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More affordable: Was introduced into a lower priced category (78 percent cheaper at launch).
• More modern: Reflects 9 years and 9 months of technical progress since the S1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the D2Xs is the clear winner of the contest (12 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica S1 and the Nikon D2Xs place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the S1 or the D2Xs perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica S1	..	..	..	..	..	..	Aug 1996	EUR 21 499	ebay.com
2.		Nikon D2Xs	..	..	..	..	..	..	Jun 2006	EUR 5 069	ebay.com
3.		Canon 1D Mark III	..	..	..	..	..	..	Feb 2007	EUR 4 309	ebay.com
4.		Canon 250D	4/5	o	4.5/5	79/100	4/5	4/5	Apr 2019	EUR 549	amazon.com
5.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	EUR 1 499	amazon.com
6.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	EUR 999	ebay.com
7.		Leica CL	..	..	4.2/5	..	..	4/5	Nov 2017	EUR 2 490	ebay.com
8.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	EUR 3 949	ebay.com
9.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	EUR 3 999	ebay.com
10.		Leica S2	..	..	..	..	..	..	Sep 2008	EUR 18 599	ebay.com
11.		Leica TL2	3.5/5	..	3/5	..	4/5	4/5	Jul 2017	EUR 1 949	ebay.com
12.		Nikon D2X	..	..	..	+ +	..	..	Sep 2004	EUR 4 999	ebay.com
13.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	EUR 4 849	ebay.com
14.		Nikon D200	..	+ +	..	+ +	o	..	Nov 2005	EUR 1 799	ebay.com
15.		Nikon D300	..	+ +	..	+ +	5/5	4.5/5	Aug 2007	EUR 1 829	ebay.com
16.		Sony A6100	..	..	4/5	82/100	4/5	5/5	Aug 2019	EUR 899	ebay.com
17.		Sony A6400	4/5	+	4/5	85/100	4.5/5	4/5	Jan 2019	EUR 1 049	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
