Nikon D3400 vs YI M1

The Nikon D3400 and the YI M1 are two digital cameras that were announced, respectively, in August 2016 and September 2016. The D3400 is a DSLR, while the M1 is a mirrorless interchangeable lens camera. The cameras are based on an APS-C (D3400) and a Four Thirds (M1) sensor. The Nikon has a resolution of 24 megapixels, whereas the YI provides 20.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon D3400		YI M1
Digital single lens reflex		Mirrorless system camera
Nikon F mount lenses		Micro Four Thirds lenses
24 MP – APS-C sensor		20.2 MP – Four Thirds sensor
1080/60p Video		4K/30p Video
ISO 100-25,600		ISO 100-25,600
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 921k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Fixed touchscreen
5 shutter flaps per second		5 shutter flaps per second
1200 shots per battery charge		450 shots per battery charge
124 x 98 x 76 mm, 445 g		114 x 64 x 34 mm, 281 g

Check D3400 offers at
ebay.com
Check M1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon D3400 and the YI M1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

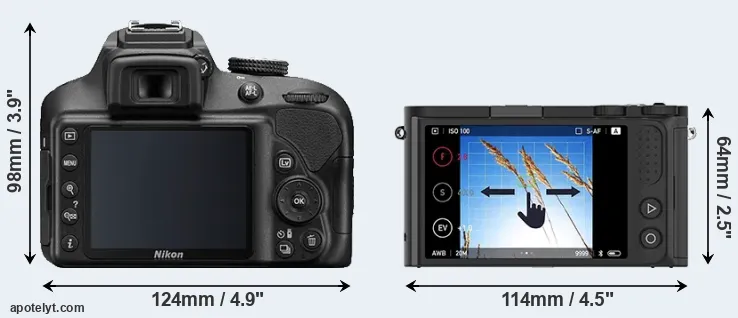

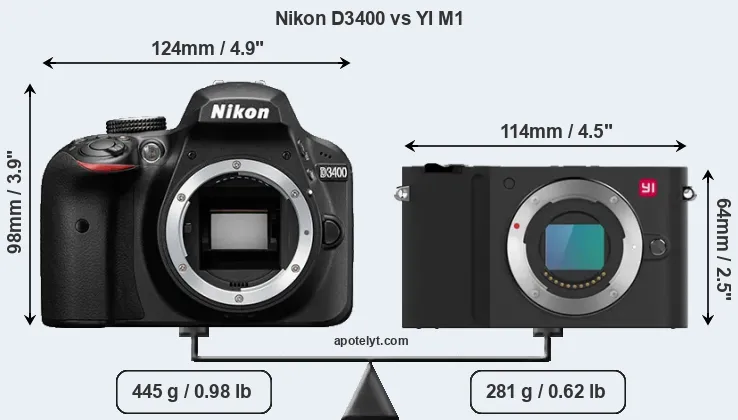

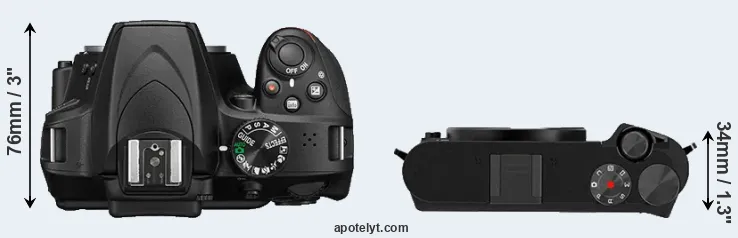

The physical size and weight of the Nikon D3400 and the YI M1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

The D3400 can be obtained in two different colors (black, red), while the M1 is also available in two color-versions, but different ones (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the YI M1 is considerably smaller (40 percent) than the Nikon D3400. Moreover, the M1 is substantially lighter (37 percent) than the D3400. In this context, it is worth noting that neither the D3400 nor the M1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. A larger imaging sensor will tend to go along with bigger and heavier lenses, although exceptions exist. You can compare the optics available for the two cameras in the Nikon Lens Catalog (D3400) and the Micro Four Thirds Lens Catalog (M1). Mirrorless cameras, such as the M1, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the D3400 gets 1200 shots out of its Nikon EN-EL14a battery, while the M1 can take 450 images on a single charge of its YI BXM-10 power pack. The power pack in the M1 can be charged via the USB port, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
2.		YI M1	114 mm	64 mm	34 mm	281 g	450	n	Sep 2016	US$ 349	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
5.		Canon M100	108 mm	67 mm	35 mm	302 g	295	n	Aug 2017	US$ 499	ebay.com
6.		Canon SX420	104 mm	69 mm	85 mm	325 g	195	n	Jan 2016	US$ 299	ebay.com
7.		Canon SX710	113 mm	66 mm	35 mm	269 g	230	n	Jan 2015	US$ 349	ebay.com
8.		Canon SX730	110 mm	64 mm	40 mm	300 g	250	n	Apr 2017	US$ 399	ebay.com
9.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
10.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	US$ 399	ebay.com
11.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	US$ 599	ebay.com
12.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
13.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
14.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
15.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
16.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
17.		Nikon D7500	136 mm	104 mm	73 mm	720 g	950	Y	Apr 2017	US$ 1 299	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The M1 was launched at a markedly lower price (by 30 percent) than the D3400, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

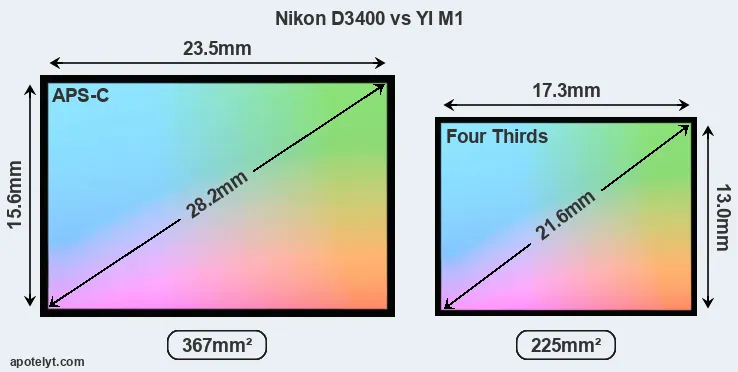

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon D3400 features an APS-C sensor and the YI M1 a Four Thirds sensor. The sensor area in the M1 is 39 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.0. The sensor in the D3400 has a native 3:2 aspect ratio, while the one in the M1 offers a 4:3 aspect.

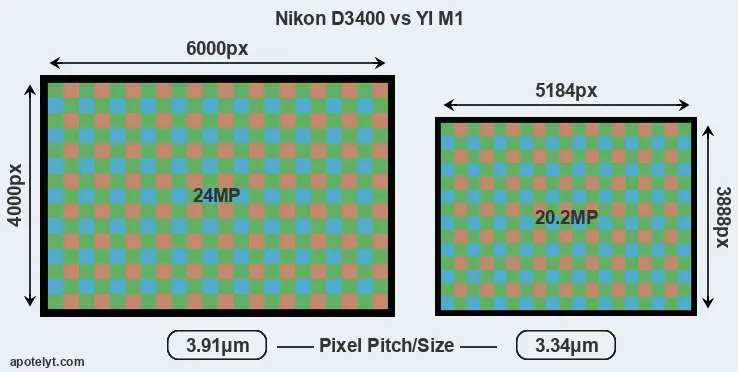

With 24MP, the D3400 offers a higher resolution than the M1 (20.2MP), but the D3400 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 3.34μm for the M1) due to its larger sensor. It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that the D3400 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Nikon D3400 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3400 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the YI M1 are 25.9 x 19.4 inches or 65.8 x 49.4 cm for good quality, 20.7 x 15.6 inches or 52.7 x 39.5 cm for very good quality, and 17.3 x 13 inches or 43.9 x 32.9 cm for excellent quality prints.

The Nikon D3400 has a native sensitivity range from ISO 100 to ISO 25600. The YI M1 offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
2.		YI M1	Four Thirds	20.2	5184	3888	4K/30p	23.0	12.6	1030	73
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon 200D	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
5.		Canon M100	APS-C	24.0	6000	4000	1080/60p	23.5	12.9	1272	78
6.		Canon SX420	1/2.3	19.9	5152	3864	720/25p	20.3	11.7	806	48
7.		Canon SX710	1/2.3	20.2	5184	3888	1080/60p	20.2	11.6	712	47
8.		Canon SX730	1/2.3	20.2	5184	3888	1080/60p	20.5	11.9	924	50
9.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
10.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
11.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
12.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
13.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
14.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
15.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
16.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
17.		Nikon D7500	APS-C	20.7	5568	3712	4K/30p	24.3	14.0	1483	86
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the M1 provides a better video resolution than the D3400. It can shoot movie footage at 4K/30p, while the Nikon is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D3400 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the M1 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Nikon D3400 and YI M1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
2.		YI M1	none	n	3.0 / 1040	fixed	Y	1/4000s	5.0/s	n	n
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon 200D	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
5.		Canon M100	none	n	3.0 / 1040	tilting	Y	1/4000s	6.1/s	Y	n
6.		Canon SX420	none	n	3.0 / 230	fixed	n	1/4000s	0.5/s	Y	Y
7.		Canon SX710	none	n	3.0 / 922	fixed	n	1/3200s	6.0/s	Y	Y
8.		Canon SX730	none	n	3.0 / 922	tilting	n	1/3200s	5.9/s	Y	Y
9.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
10.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
11.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
12.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
13.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
14.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
15.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
16.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
17.		Nikon D7500	optical	Y	3.2 / 922	tilting	Y	1/8000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D3400 has one, while the M1 does not. While the built-in flash of the D3400 is not very powerful, it can at times be useful as a fill-in light.

The YI M1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the D3400 and the M1 write their files to SDXC cards. The D3400 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the M1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon D3400 and YI M1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
2.		YI M1	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon 200D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Canon M100	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Canon SX420	-	mono / mono	-	-	-	2.0	Y	Y	-
7.		Canon SX710	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX730	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
9.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
12.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
13.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
14.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
15.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
16.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
17.		Nikon D7500	Y	stereo / mono	Y	Y	mini	2.0	Y	-	Y

It is notable that the M1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the D3400 does not provide wifi capability.

Both the D3400 and the M1 have been discontinued, but can regularly be found used on ebay. The D3400 was replaced by the Nikon D3500, while the M1 does not have a direct successor. Further information on the features and operation of the D3400 and M1 can be found, respectively, in the Nikon D3400 Manual (free pdf) or the online YI M1 Manual.

Review summary

So what conclusions can be drawn? Is the Nikon D3400 better than the YI M1 or vice versa? The listing below highlights the relative strengths of the two models.

Advantages of the Nikon D3400:

• More detail: Offers more megapixels (24 vs 20.2MP) with a 11% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (1200 versus 450) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.

Arguments in favor of the YI M1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/60p).
• More detailed LCD: Has a higher resolution rear screen (1040k vs 921k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (114x64mm vs 124x98mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 164g or 37 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).

If the number of relative strengths (bullet points above) is taken as a guide, the M1 comes out slightly ahead of the D3400 (11 : 10 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon D3400 and the YI M1 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it says little about, for example, the shooting experience and imaging performance of the D3400 and the M1 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
2.		YI M1	..	..	..	69/100	..	..	Sep 2016	US$ 349	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon 200D	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
5.		Canon M100	3/5	+	..	..	4/5	3.5/5	Aug 2017	US$ 499	ebay.com
6.		Canon SX420	..	..	..	..	..	3/5	Jan 2016	US$ 299	ebay.com
7.		Canon SX710	..	+	..	..	4/5	3.5/5	Jan 2015	US$ 349	ebay.com
8.		Canon SX730	..	+	..	..	4/5	4/5	Apr 2017	US$ 399	ebay.com
9.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
10.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	US$ 399	ebay.com
11.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	US$ 599	ebay.com
12.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
13.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
14.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
15.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
16.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
17.		Nikon D7500	4.5/5	+ +	4.5/5	86/100	5/5	4.5/5	Apr 2017	US$ 1 299	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, please note that some of the review sites have changed their methodology and reporting over time.
