Olympus E-450 vs E-PL5

The Olympus E-450 and the Olympus PEN E-PL5 are two digital cameras that were announced, respectively, in March 2009 and September 2012. The E-450 is a DSLR, while the E-PL5 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-450 has a resolution of 10 megapixels, whereas the E-PL5 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-450		Olympus E-PL5
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
no Video		1080/30p Video
ISO 100-1,600		ISO 200-25,600
Optical viewfinder		Viewfinder optional
2.7" LCD – 215k dots		3.0" LCD – 460k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3.5 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
500 shots per battery charge		360 shots per battery charge
130 x 91 x 53 mm, 440 g		111 x 64 x 38 mm, 325 g

Check E-450 offers at
ebay.com
Check E-PL5 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-450 and the Olympus PEN E-PL5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Olympus E-450 and the Olympus E-PL5 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL5 can be obtained in three different colors (black, silver, white), while the E-450 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL5 is considerably smaller (40 percent) than the Olympus E-450. Moreover, the E-PL5 is markedly lighter (26 percent) than the E-450. In this context, it is worth noting that neither the E-450 nor the E-PL5 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-450) and the Micro Four Thirds Lens Catalog (E-PL5). Mirrorless cameras, such as the E-PL5, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-450 gets 500 shots out of its Olympus BLS-1 battery, while the E-PL5 can take 360 images on a single charge of its Olympus BLS-5 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
2.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
3.		Canon G12	112 mm	76 mm	48 mm	401 g	370	n	Sep 2010	US$ 499	ebay.com
4.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	US$ 599	ebay.com
5.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
6.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
7.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
8.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
10.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
11.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
12.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
13.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
14.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
15.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
16.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
17.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The E-450 was launched at a somewhat lower price (by 17 percent) than the E-PL5, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

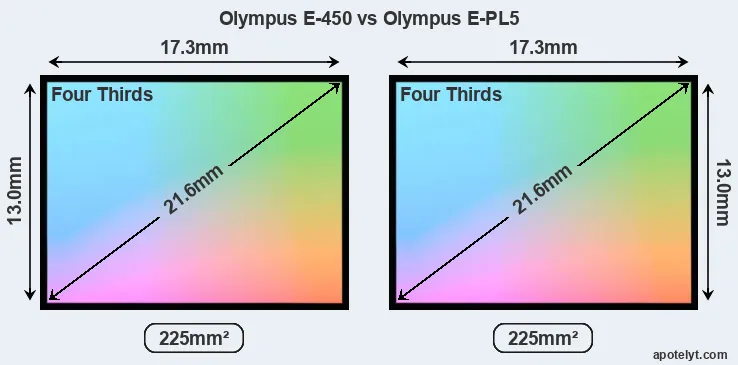

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-PL5 uses a more advanced image processing engine (TruePic VI) than the E-450 (TruePic III+), with benefits for noise reduction, color accuracy, and processing speed.

While the two cameras under review share the same sensor size, the E-PL5 offers a higher resolution of 15.9 megapixels, compared with 10 MP of the E-450. This megapixels advantage translates into a 26 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-PL5 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.74μm for the E-450). However, it should be noted that the E-PL5 is much more recent (by 3 years and 5 months) than the E-450, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Olympus E-PL5 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL5 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-450 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-450 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-PL5 are ISO 200 to ISO 25600 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). Of the two cameras under consideration, the E-PL5 offers substantially better image quality than the E-450 (overall score 16 points higher). The advantage is based on 1.3 bits higher color depth, 1.8 EV in additional dynamic range, and 0.8 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
2.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
3.		Canon G12	1/1.7	10.0	3648	2736	720/24p	20.4	11.2	161	47
4.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
5.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
6.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
7.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
8.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
9.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
10.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
11.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
12.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
13.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
14.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
15.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
16.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
17.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The E-PL5 indeed provides for movie recording, while the E-450 does not. The highest resolution format that the E-PL5 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the E-450 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL5 relies on live view and the rear LCD for framing. That said, the E-PL5 can be equipped with an optional viewfinder – the VF-3. The following table reports on some other key feature differences and similarities of the Olympus E-450, the Olympus E-PL5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
2.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
3.		Canon G12	optical	n	2.8 / 461	swivel	n	1/4000s	1.1/s	Y	Y
4.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
5.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
6.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
7.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
8.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
9.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
10.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
11.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
12.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
13.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
14.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
15.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
16.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
17.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The E-450 has one, while the E-PL5 does not. While the built-in flash of the E-450 is not very powerful, it can at times be useful as a fill-in light.

The E-450 writes its imaging data to Compact Flash or xD Picture cards, while the E-PL5 uses SDXC cards. The E-450 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL5 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-450 and Olympus PEN E-PL5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G12	Y	stereo / mono	-	-	mini	2.0	-	-	-
4.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
5.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
11.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
12.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-

Both the E-450 and the E-PL5 have been discontinued, but can regularly be found used on ebay. The E-PL5 was replaced by the Olympus E-PL6, while the E-450 does not have a direct successor. Further information on the features and operation of the E-450 and E-PL5 can be found, respectively, in the Olympus E-450 Manual (free pdf) or the online Olympus E-PL5 Manual.

Review summary

So what is the bottom line? Is there a clear favorite between the Olympus E-450 and the Olympus E-PL5? Which camera is better? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Olympus E-450:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (500 versus 360) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More affordable: Was introduced into a lower priced segment (17 percent cheaper at launch).
• More heavily discounted: Has been available for much longer (launched in March 2009).

Arguments in favor of the Olympus PEN E-PL5:

• More detail: Has more megapixels (15.9 vs 10MP), which boosts linear resolution by 26%.
• Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.3 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (1.8 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.8 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (TruePic VI vs TruePic III+).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (460k vs 215k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8 vs 3.5 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (111x64mm vs 130x91mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 115g or 26 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• More modern: Reflects 3 years and 5 months of technical progress since the E-450 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the E-PL5 is the clear winner of the contest (18 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-450 and the Olympus E-PL5 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-450 and the E-PL5 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
2.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
3.		Canon G12	4/5	+	..	73/100	4.5/5	4.5/5	Sep 2010	US$ 499	ebay.com
4.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	US$ 599	ebay.com
5.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
6.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
7.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
8.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
9.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
10.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
11.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
12.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
13.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
14.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
15.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
16.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
17.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
