Olympus E-PL1 vs Stylus 1

The Olympus PEN E-PL1 and the Olympus Stylus 1 are two digital cameras that were announced, respectively, in February 2010 and October 2013. The E-PL1 is a mirrorless interchangeable lens camera, while the Stylus 1 is a fixed lens compact. The cameras are based on a Four Thirds (E-PL1) and a 1/1.7-inch (Stylus 1) sensor. The E-PL1 has a resolution of 12.2 megapixels, whereas the Stylus 1 provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PL1		Olympus Stylus 1
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-300mm f/2.8
12.2 MP – Four Thirds sensor		11.8 MP – 1/1.7" sensor
720/30p Video		1080/30p Video
ISO 200-3,200		ISO 100-12,800
Viewfinder optional		Electronic viewfinder (1440k dots)
2.7" LCD – 230k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens-based stabilization
290 shots per battery charge		410 shots per battery charge
115 x 72 x 42 mm, 334 g		116 x 87 x 57 mm, 402 g

Check E-PL1 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PL1 and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

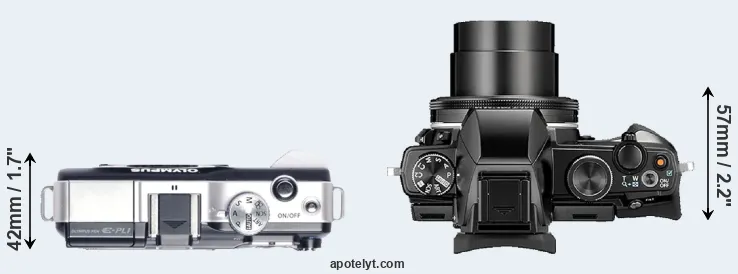

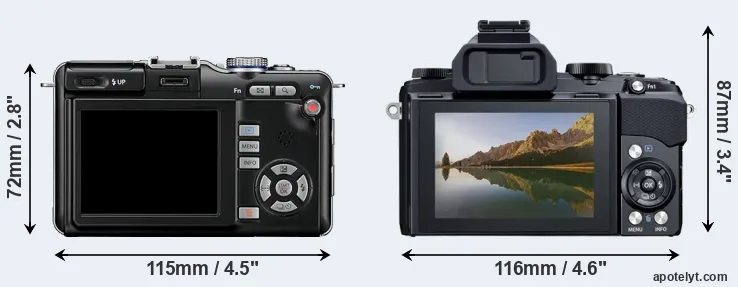

The physical size and weight of the Olympus E-PL1 and the Olympus Stylus 1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

The E-PL1 can be obtained in four different colors (black, blue, yellow, white), while the Stylus 1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is notably larger (22 percent) than the Olympus E-PL1. In this context, it is worth noting that neither the E-PL1 nor the Stylus 1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1 has a lens built in, whereas the E-PL1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PL1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the E-PL1 gets 290 shots out of its Olympus BLS-1 battery, while the Stylus 1 can take 410 images on a single charge of its Olympus BLS-5 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
6.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
7.		Olympus E-P1	121 mm	70 mm	36 mm	355 g	300	n	Jun 2009	US$ 799	ebay.com
8.		Olympus E-P2	121 mm	70 mm	36 mm	355 g	300	n	Nov 2009	US$ 799	ebay.com
9.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
10.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
11.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
12.		Olympus E-PL9	117 mm	68 mm	39 mm	380 g	350	n	Feb 2018	US$ 599	ebay.com
13.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
14.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
15.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
16.		Panasonic G10	124 mm	84 mm	74 mm	388 g	380	n	Mar 2010	US$ 499	ebay.com
17.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

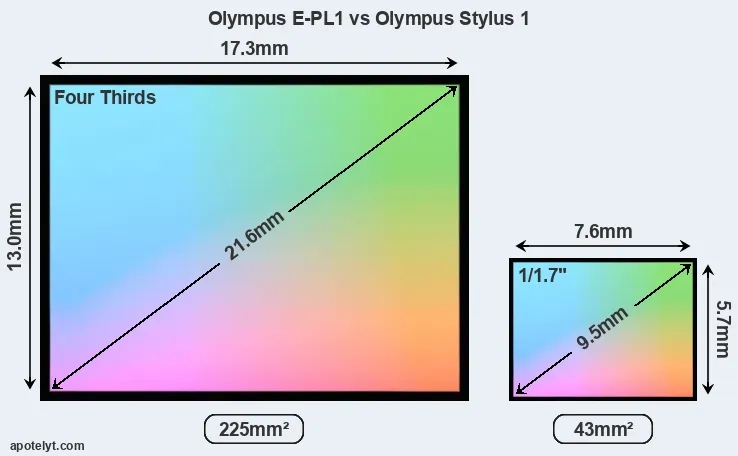

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Olympus E-PL1 features a Four Thirds sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 81 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the Stylus 1 uses a more advanced image processing engine (TruePic VI) than the E-PL1 (Truepic V), with benefits for noise reduction, color accuracy, and processing speed.

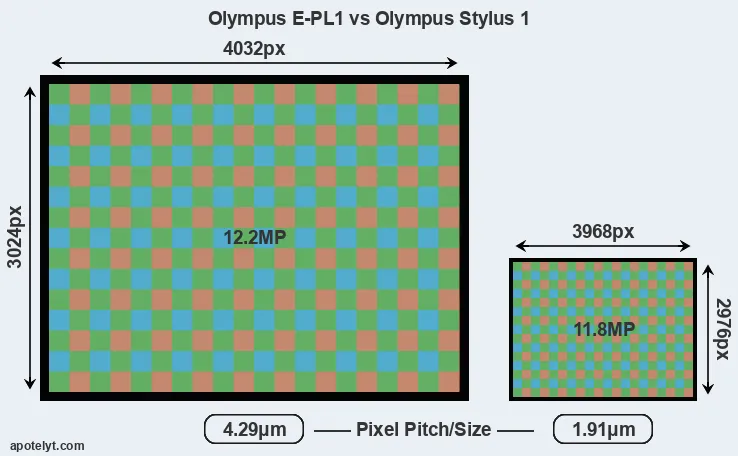

With 12.2MP, the E-PL1 offers a slightly higher resolution than the Stylus 1 (11.8MP), but the E-PL1 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 1.91μm for the Stylus 1) due to its larger sensor. However, the Stylus 1 is a much more recent model (by 3 years and 8 months) than the E-PL1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Olympus PEN E-PL1 has a native sensitivity range from ISO 200 to ISO 3200. The corresponding ISO settings for the Olympus Stylus 1 are ISO 100 to ISO 12800 (no boost).

In terms of underlying technology, the E-PL1 is build around a CMOS sensor, while the Stylus 1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
6.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
7.		Olympus E-P1	Four Thirds	12.2	4032	3024	720/30p	21.4	10.4	536	55
8.		Olympus E-P2	Four Thirds	12.2	4032	3024	720/30p	21.5	10.4	505	56
9.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
10.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
11.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
12.		Olympus E-PL9	Four Thirds	15.9	4608	3456	4K/30p	23.1	12.8	1162	74
13.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
14.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
15.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
16.		Panasonic G10	Four Thirds	12.0	4000	3000	720/30p	21.2	10.1	411	52
17.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, but the Stylus 1 provides a better video resolution than the E-PL1. It can shoot movie footage at 1080/30p, while the E-PL1 is limited to 720/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PL1 relies on live view and the rear LCD for framing. That said, the E-PL1 can be equipped with an optional viewfinder – the VF-2. The adjacent table lists some of the other core features of the Olympus E-PL1 and Olympus Stylus 1 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
6.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
7.		Olympus E-P1	none	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
8.		Olympus E-P2	optional	n	3.0 / 230	fixed	n	1/4000s	3.0/s	n	Y
9.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
10.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
11.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
12.		Olympus E-PL9	none	n	3.0 / 1040	tilting	Y	1/4000s	8.6/s	Y	Y
13.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
14.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
15.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
16.		Panasonic G10	202	n	3.0 / 460	fixed	n	1/4000s	2.6/s	Y	n
17.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Stylus 1 has a touchscreen, while the E-PL1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus Stylus 1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-PL1 writes its imaging data to SDHC cards, while the Stylus 1 uses SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PL1 and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-P1	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-P2	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL9	Y	stereo / mono	-	-	micro	2.0	Y	-	Y
13.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic G10	Y	mono / -	-	-	mini	2.0	-	-	-
17.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the Stylus 1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PL1 does not provide wifi capability.

Both the E-PL1 and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The E-PL1 was replaced by the Olympus E-PL2, while the Stylus 1 was followed by the Olympus Stylus 1s. Further information on the features and operation of the E-PL1 and Stylus 1 can be found, respectively, in the Olympus E-PL1 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what is the bottom line? Is the Olympus E-PL1 better than the Olympus Stylus 1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Olympus PEN E-PL1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better low-light sensitivity: Requires less light for good images (1.4 stops ISO advantage).
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (115x72mm vs 116x87mm) and thus needs less room in the bag.
• More heavily discounted: Has been available for much longer (launched in February 2010).

Arguments in favor of the Olympus Stylus 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More dynamic range: Captures a broader range of light and dark details (1.5 EV of extra DR).
• Better jpgs: Has a more modern image processing engine (TruePic VI vs Truepic V).
• Better video: Provides higher definition movie capture (1080/30p vs 720/30p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 230k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (7 vs 3 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the E-PL1 necessitates an extra lens.
• Longer lasting: Gets more shots (410 versus 290) out of a single battery charge.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 3 years and 8 months of technical progress since the E-PL1 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the Stylus 1 is the clear winner of the contest (15 : 5 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PL1 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it says little about, for example, the shooting experience and imaging performance of the E-PL1 and the Stylus 1 in practical situations. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
6.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
7.		Olympus E-P1	..	+	..	66/100	4/5	4.5/5	Jun 2009	US$ 799	ebay.com
8.		Olympus E-P2	3/5	+	..	69/100	4/5	4.5/5	Nov 2009	US$ 799	ebay.com
9.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
10.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
11.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
12.		Olympus E-PL9	..	+	..	..	4.5/5	4/5	Feb 2018	US$ 599	ebay.com
13.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
14.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
15.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
16.		Panasonic G10	3/5	..	..	70/100	4/5	4/5	Mar 2010	US$ 499	ebay.com
17.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
