Olympus E-PM1 vs Stylus 1

The Olympus PEN E-PM1 and the Olympus Stylus 1 are two digital cameras that were revealed to the public, respectively, in June 2011 and October 2013. The E-PM1 is a mirrorless interchangeable lens camera, while the Stylus 1 is a fixed lens compact. The cameras are based on a Four Thirds (E-PM1) and a 1/1.7-inch (Stylus 1) sensor. The E-PM1 has a resolution of 12.2 megapixels, whereas the Stylus 1 provides 11.8 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-PM1		Olympus Stylus 1
Mirrorless system camera		Fixed lens compact camera
Micro Four Thirds lenses		28-300mm f/2.8
12.2 MP – Four Thirds sensor		11.8 MP – 1/1.7" sensor
1080/60i Video		1080/30p Video
ISO 100-12,800		ISO 100-12,800
Viewfinder optional		Electronic viewfinder (1440k dots)
3.0" LCD – 460k dots		3.0" LCD – 1040k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
5.5 shutter flaps per second		7 shutter flaps per second
In-body stabilization		Lens-based stabilization
330 shots per battery charge		410 shots per battery charge
110 x 64 x 34 mm, 265 g		116 x 87 x 57 mm, 402 g

Check E-PM1 offers at
ebay.com
Check Stylus 1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus PEN E-PM1 and the Olympus Stylus 1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

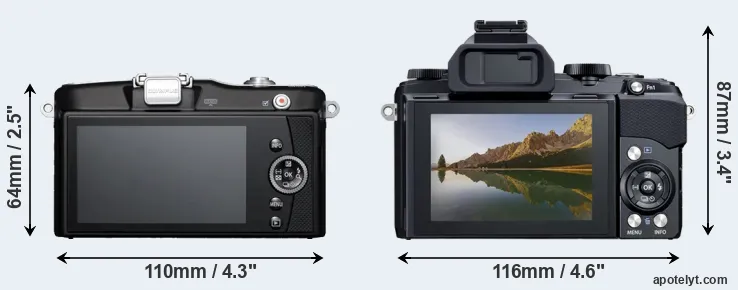

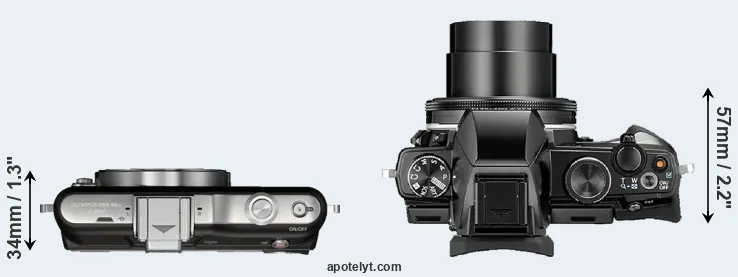

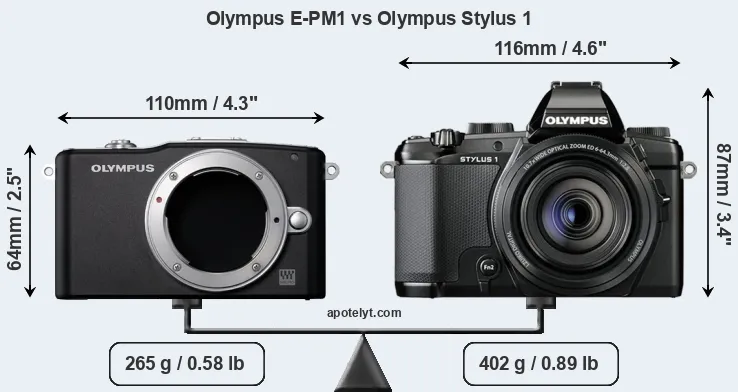

An illustration of the physical size and weight of the Olympus E-PM1 and the Olympus Stylus 1 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PM1 can be obtained in six different colors (black, silver, brown, pink, purple, white), while the Stylus 1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus Stylus 1 is considerably larger (43 percent) than the Olympus E-PM1. In this context, it is worth noting that neither the E-PM1 nor the Stylus 1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the Stylus 1 has a lens built in, whereas the E-PM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PM1 and their specifications in the Micro Four Thirds Lens Catalog.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
2.		Olympus Stylus 1	116 mm	87 mm	57 mm	402 g	410	n	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G16	109 mm	76 mm	40 mm	356 g	360	n	Aug 2013	US$ 549	ebay.com
5.		Nikon P7800	119 mm	78 mm	50 mm	399 g	350	n	Sep 2013	US$ 549	ebay.com
6.		Olympus E-P3	122 mm	69 mm	34 mm	369 g	330	n	Jun 2011	US$ 799	ebay.com
7.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
8.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
9.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
10.		Olympus E-PL5	111 mm	64 mm	38 mm	325 g	360	n	Sep 2012	US$ 599	ebay.com
11.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
12.		Olympus Stylus 1s	116 mm	87 mm	57 mm	402 g	450	n	Apr 2015	US$ 699	ebay.com
13.		Olympus XZ-2	113 mm	65 mm	48 mm	346 g	340	n	Sep 2012	US$ 599	ebay.com
14.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
15.		Panasonic GF2	113 mm	68 mm	33 mm	310 g	300	n	Nov 2010	US$ 549	ebay.com
16.		Panasonic GF3	108 mm	67 mm	32 mm	264 g	300	n	Jun 2011	US$ 549	ebay.com
17.		Panasonic GF5	108 mm	67 mm	37 mm	267 g	360	n	Apr 2012	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

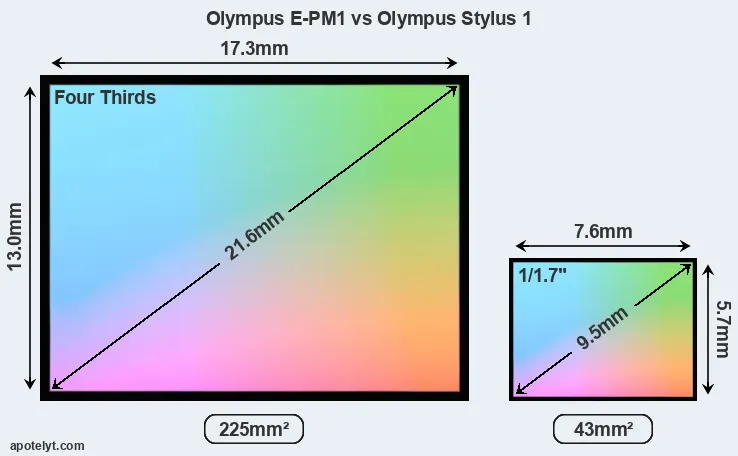

Of the two cameras under consideration, the Olympus E-PM1 features a Four Thirds sensor and the Olympus Stylus 1 a 1/1.7-inch sensor. The sensor area in the Stylus 1 is 81 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.0 and 4.5. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

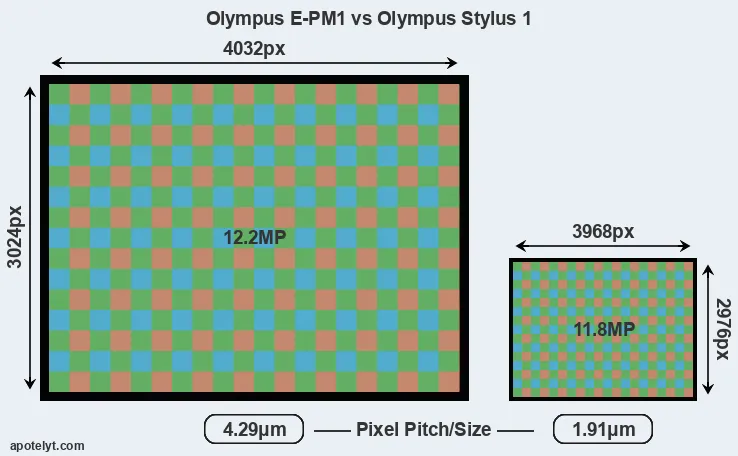

With 12.2MP, the E-PM1 offers a slightly higher resolution than the Stylus 1 (11.8MP), but the E-PM1 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 1.91μm for the Stylus 1) due to its larger sensor. However, the Stylus 1 is a much more recent model (by 2 years and 4 months) than the E-PM1, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the Stylus 1 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Olympus PEN E-PM1 has a native sensitivity range from ISO 100 to ISO 12800. The Olympus Stylus 1 offers exactly the same ISO settings.

In terms of underlying technology, the E-PM1 is build around a CMOS sensor, while the Stylus 1 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
2.		Olympus Stylus 1	1/1.7	11.8	3968	2976	1080/30p	20.7	11.6	179	51
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G16	1/1.7	12.0	4000	3000	1080/60p	21.0	11.7	230	54
5.		Nikon P7800	1/1.7	12.0	4000	3000	1080/30p	21.2	11.7	200	54
6.		Olympus E-P3	Four Thirds	12.2	4032	3024	1080/60i	20.8	10.1	536	51
7.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
8.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
9.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
10.		Olympus E-PL5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	889	72
11.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
12.		Olympus Stylus 1s	1/1.7	11.8	3968	2976	1080/30p	20.2	11.3	-111	47
13.		Olympus XZ-2	1/1.7	11.8	3968	2976	1080/30p	20.4	11.3	216	49
14.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
15.		Panasonic GF2	Four Thirds	12.0	4000	3000	1080/60i	21.2	10.3	506	54
16.		Panasonic GF3	Four Thirds	12.0	4000	3000	1080/60i	20.6	10.1	459	50
17.		Panasonic GF5	Four Thirds	12.0	4000	3000	1080/60i	20.5	10.0	573	50
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the E-PM1 provides a higher frame rate than the Stylus 1. It can shoot video footage at 1080/60i, while the Stylus 1 is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the Stylus 1 has an electronic viewfinder (1440k dots), which can be very helpful when shooting in bright sunlight. In contrast, the E-PM1 relies on live view and the rear LCD for framing. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The following table reports on some other key feature differences and similarities of the Olympus E-PM1, the Olympus Stylus 1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
2.		Olympus Stylus 1	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G16	optical	n	3.0 / 922	fixed	n	1/4000s	2.2/s	Y	Y
5.		Nikon P7800	921	n	3.0 / 921	swivel	n	1/4000s	8.0/s	Y	Y
6.		Olympus E-P3	optional	n	3.0 / 614	fixed	Y	1/4000s	3.0/s	Y	Y
7.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
8.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
9.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
10.		Olympus E-PL5	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
11.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
12.		Olympus Stylus 1s	1440	n	3.0 / 1040	tilting	Y	1/2000s	7.0/s	Y	Y
13.		Olympus XZ-2	optional	n	3.0 / 920	tilting	Y	1/2000s	5.0/s	Y	Y
14.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
15.		Panasonic GF2	optional	n	3.0 / 460	fixed	Y	1/4000s	2.6/s	Y	n
16.		Panasonic GF3	none	n	3.0 / 460	fixed	Y	1/4000s	3.2/s	Y	n
17.		Panasonic GF5	none	n	3.0 / 920	fixed	Y	1/4000s	4.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The Stylus 1 has a touchscreen, while the E-PM1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Olympus Stylus 1 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the E-PM1 and the Stylus 1 write their files to SDXC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus PEN E-PM1 and Olympus Stylus 1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
2.		Olympus Stylus 1	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G16	Y	stereo / mono	-	-	mini	2.0	Y	-	-
5.		Nikon P7800	Y	stereo / mono	Y	-	mini	2.0	-	-	-
6.		Olympus E-P3	Y	stereo / -	-	-	mini	2.0	-	-	-
7.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
8.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
9.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
10.		Olympus E-PL5	Y	stereo / mono	-	-	mini	2.0	-	-	-
11.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
12.		Olympus Stylus 1s	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus XZ-2	Y	stereo / mono	-	-	mini	2.0	-	-	-
14.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic GF2	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Panasonic GF3	-	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic GF5	-	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the Stylus 1 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-PM1 does not provide wifi capability.

Both the E-PM1 and the Stylus 1 have been discontinued, but can regularly be found used on ebay. The E-PM1 was replaced by the Olympus E-PM2, while the Stylus 1 was followed by the Olympus Stylus 1s. Further information on the features and operation of the E-PM1 and Stylus 1 can be found, respectively, in the Olympus E-PM1 Manual (free pdf) or the online Olympus Stylus 1 Manual.

Review summary

So what is the bottom line? Is the Olympus E-PM1 better than the Olympus Stylus 1 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Olympus PEN E-PM1:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better low-light sensitivity: Requires less light for good images (1.5 stops ISO advantage).
• Better video: Provides higher movie framerates (1080/60i versus 1080/30p).
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• More compact: Is smaller (110x64mm vs 116x87mm) and thus needs less room in the bag.
• More heavily discounted: Has been available for much longer (launched in June 2011).

Arguments in favor of the Olympus Stylus 1:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More dynamic range: Captures a broader range of light and dark details (1.3 EV of extra DR).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1040k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (7 vs 5.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has an integrated lens, whereas the E-PM1 necessitates an extra lens.
• Longer lasting: Gets more shots (410 versus 330) out of a single battery charge.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 2 years and 4 months of technical progress since the E-PM1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the Stylus 1 is the clear winner of the contest (13 : 7 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-PM1 and the Olympus Stylus 1 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-PM1 and the Stylus 1 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
2.		Olympus Stylus 1	..	+ +	..	..	4.5/5	4.5/5	Oct 2013	US$ 699	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G16	4/5	+	..	..	4.5/5	4.5/5	Aug 2013	US$ 549	ebay.com
5.		Nikon P7800	3/5	..	..	..	4/5	4.5/5	Sep 2013	US$ 549	ebay.com
6.		Olympus E-P3	..	83/100	..	74/100	4.5/5	4.5/5	Jun 2011	US$ 799	ebay.com
7.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
8.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
9.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
10.		Olympus E-PL5	3/5	+ +	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
11.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
12.		Olympus Stylus 1s	..	..	..	..	..	..	Apr 2015	US$ 699	ebay.com
13.		Olympus XZ-2	4/5	+	..	..	4.5/5	4.5/5	Sep 2012	US$ 599	ebay.com
14.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
15.		Panasonic GF2	3/5	82/100	..	70/100	4.5/5	4.5/5	Nov 2010	US$ 549	ebay.com
16.		Panasonic GF3	3/5	82/100	..	71/100	4.5/5	4/5	Jun 2011	US$ 549	ebay.com
17.		Panasonic GF5	3/5	..	..	..	4.5/5	4.5/5	Apr 2012	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
